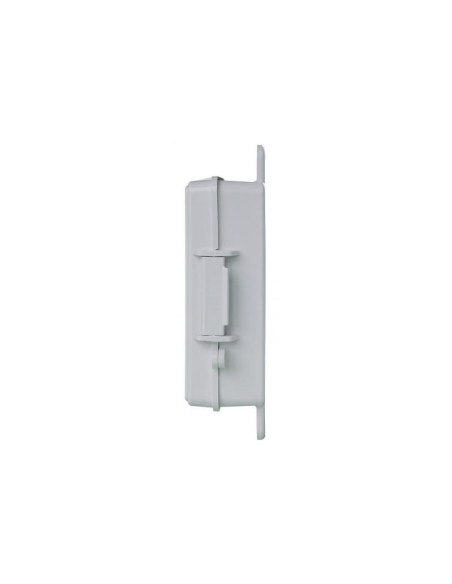

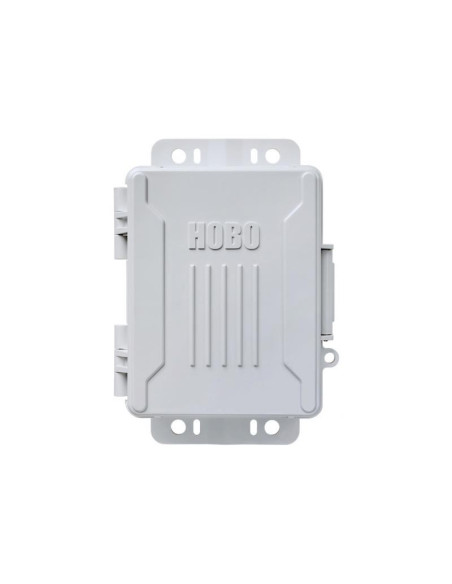

H21-USB HOBO USB Micro Station Data Logger

H21-USB

Onset

New

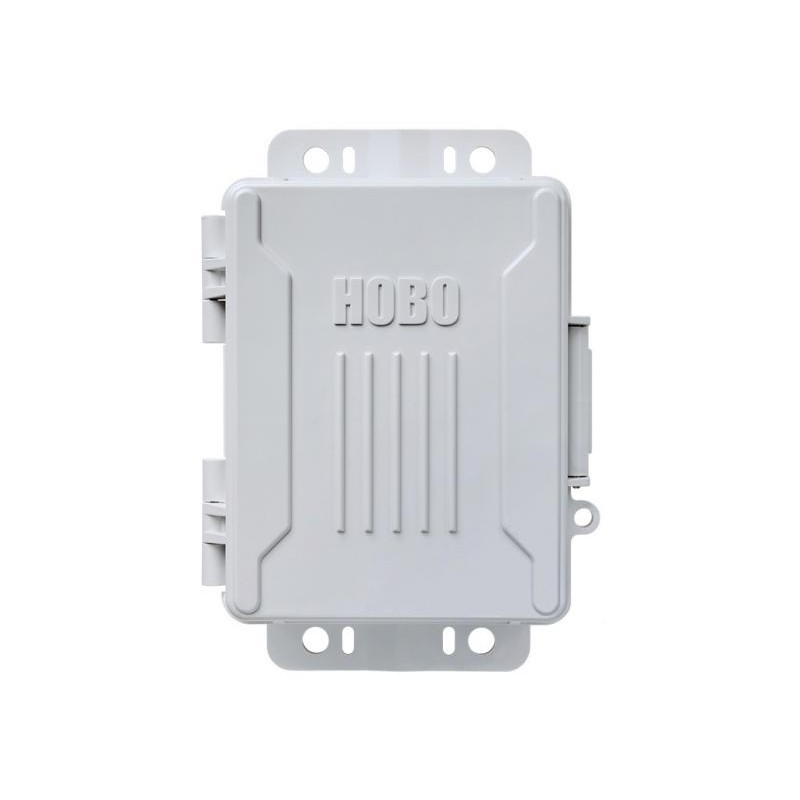

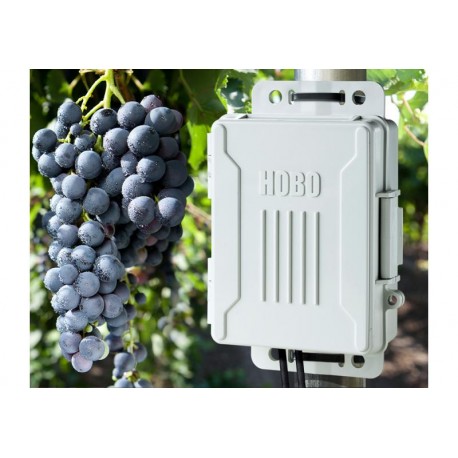

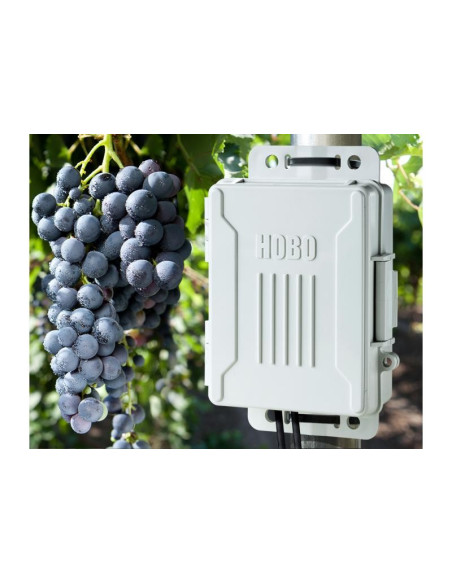

Rugged and compact, the redesigned HOBO USB Micro Station is a weatherproof data logger for multi-channel monitoring of microclimates.

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our More info about this product form

Onset Data Loggers

Onset Computer Corporation

279,00 €

tax excl.

Add to wishlist

Environment of Use Indoor/Outdoor
Type of Logger Multicanal
Number of Channels 15
IP Classification IP66
Communications USB
Battery Life 1 year
Power Supply: 4 AA 1.5V batteries

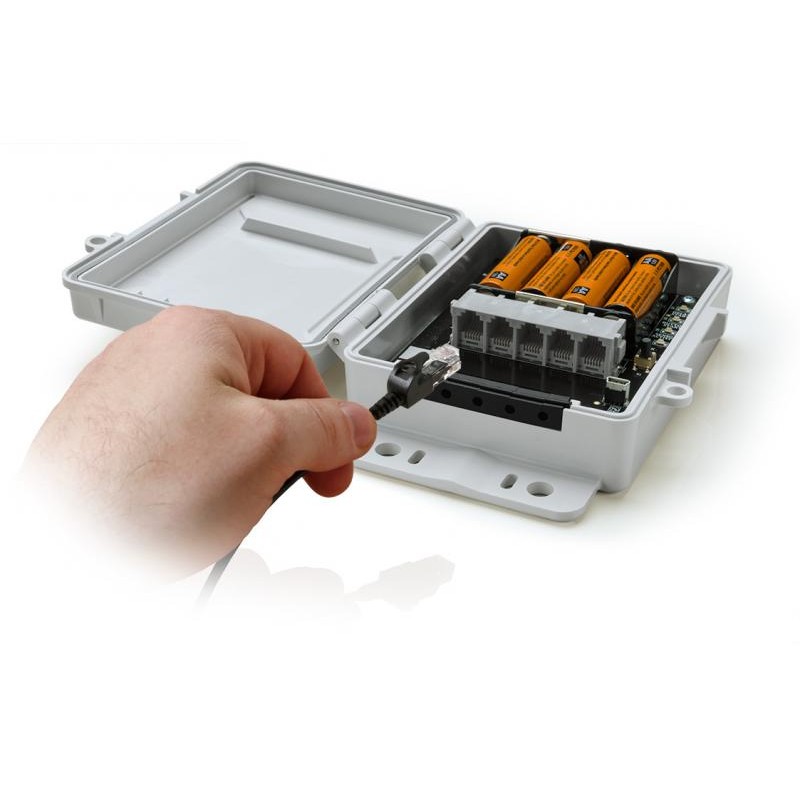

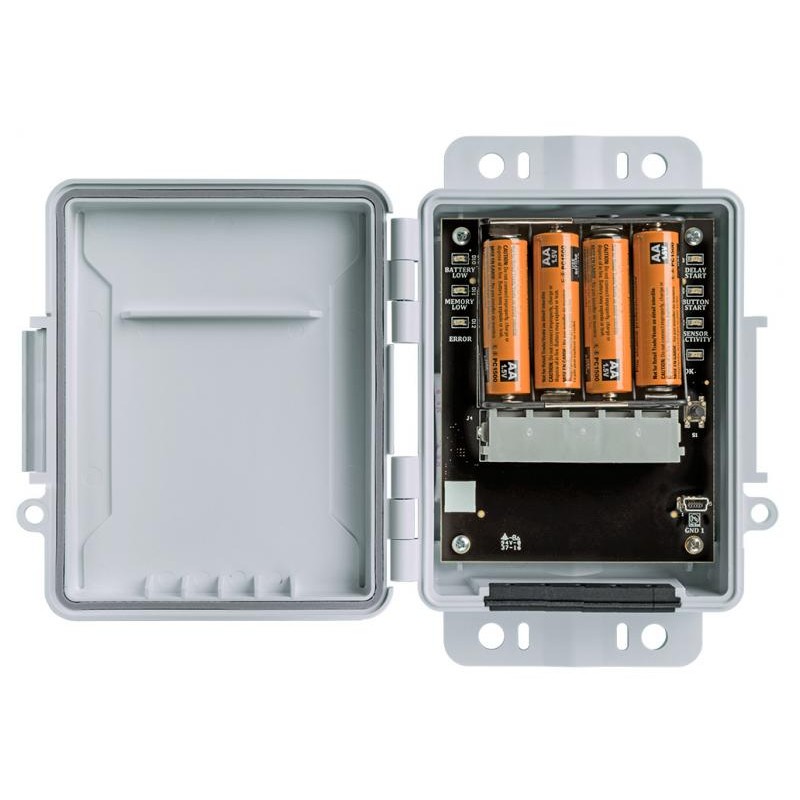

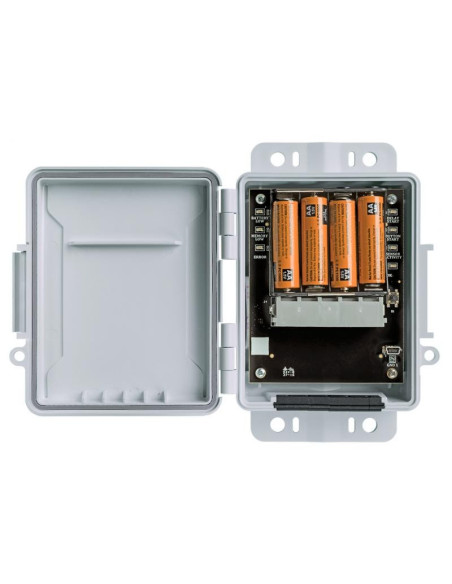

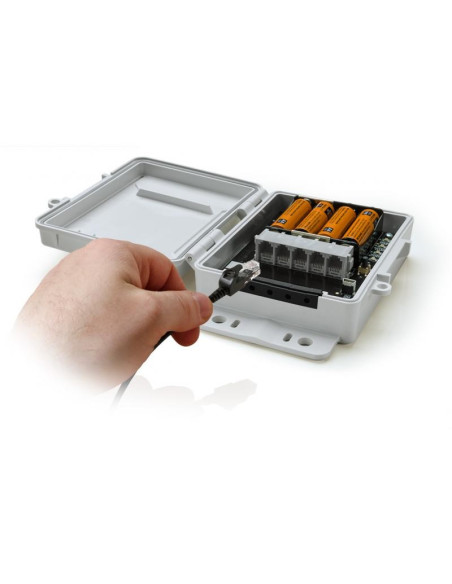

This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick. The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and an integrated mounting tabs for easy installation.

  • Highlighted Features:

- Compact size for easy deployment
- Weatherproof IP66 enclosure for harsh environments
- Direct USB offload--no need for an adapter cable
- Includes five smart sensor inputs

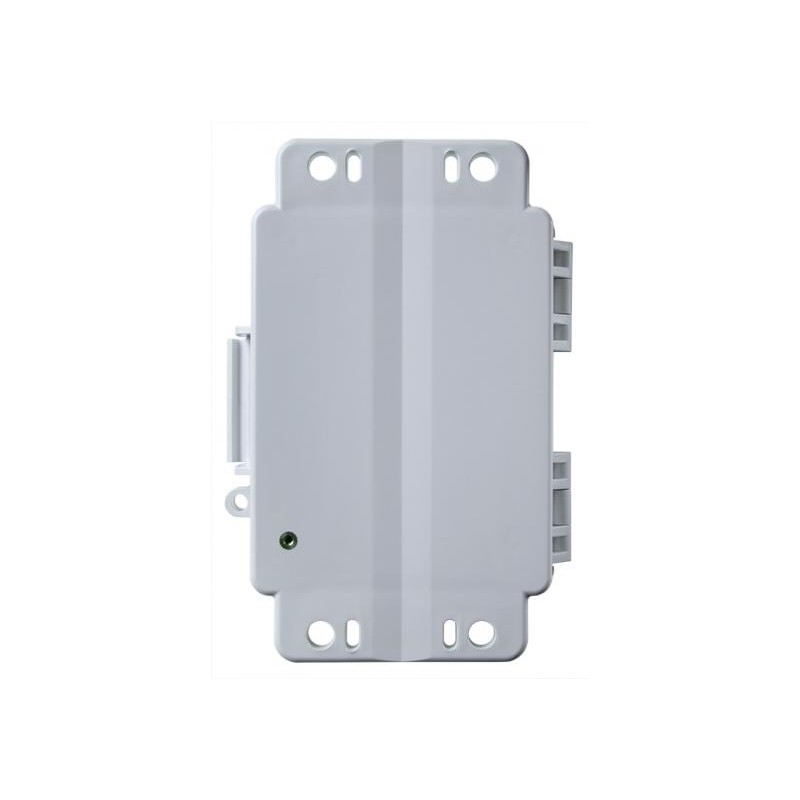

- Hinged door and integrated mounting tabs
- Runs for up to a year on four standard AA batteries
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis

  • In what environment does this data logger operate?

This data logger operates in indoor and outdoor environments.

  • What measurements does this data logger support?

The H21-USB data logger supports the following measurements: 4-20mA, Amp Hour (Ah), Barometric Pressure, DC Voltage, Kilowatt Hours (kWh), Leaf Wetness, Light Intensity, Power Factor (PF), Pulse Input, Rainfall, Relative Humidity, Soil Moisture, Temperature, Volt-Amp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA), Water Flow, Watt Hours (Wh), Watts (W) and Wind

Logger
Operating Range -20° to 50°C (-4° to 122°F) with alkaline batteries
-40 to 70°C (-40 to 158°F) with lithium batteries
Smart Sensor Connectors 5
Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Smart Sensor Network Cable Length 100 m (328 ft) maximum
Logging Interval 1 second to 18 hours
Start Modes Immediate, at interval, push button, or delayed start
Memory Modes Stop when full or wrap when full
Memory 512 KB nonvolatile flash data storage
Time Accuracy 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Battery Type Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (-4° to 122°F); four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)
Battery Life 1 year, typical use (up to five sensors with 1 minute or greater logging interval)
Communication Type USB 2.0 interface
Full Memory Download Time 4 minutes
Enclosure Access Hinged door secured by one latch with eyelet for use with user-supplied padlock
Materials Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gaskets: Silicone rubber; Cable channel: EPDM rubber
Dimensions 17.04 x 11.94 x 4.47 cm (6.71 x 4.70 x 1.76 in.) see diagrams in manual
Padlock hole diameter: 0.58 cm (0.23 in.)
Weight 414g (14.6 oz.)
Environmental Rating Weatherproof enclosure, NEMA 4X and IP66
CE Compliant The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

- HOBO H21-USB Micro Station
- Four AA 1.5V alkaline batteries
- Rubber plugs
- Grease packet
- Screws and washers
- Cable ties
