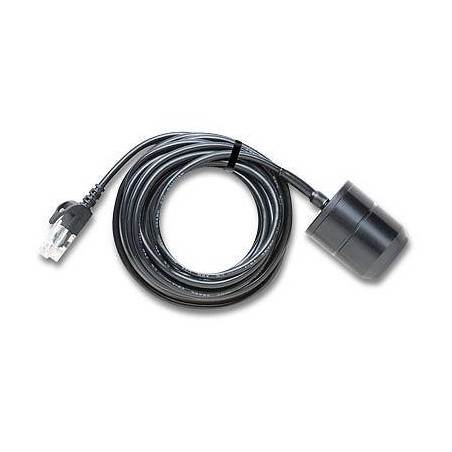

S-LIB-M003 HOBO- Solar Radiation Sensor

S-LIB-M003

Onset

New

207,00 €

Add to wishlist

Manual: PDF Solar Radiation Sensor

The Sensor measures: Solar Light Radiation W/m2
Output Signal: HOBO Smart Sensor
Cable Length: 1.8 m
Sensor for use in: Outdoor

The Solar Radiation Smart Sensor HOBO S-LIB-M003 is a light sensor (silicon pyranometer) with a measurement range of 0 to 1280 W/m2 over a spectral range of 300 to 1100 nm. This sensor reports the average light intensity over a user-set set logging interval from a minimum of 1 second. Although the azimuth error is only ±2% error at 45° from vertical, a light sensor bracket and light sensor level are recommended.

Measurement parameters:
Average over logging interval, user-defined sampling interval from 1 second

Measurement range: 0 to 1280 W/m2
Operating Temperature Range: -40° to 75°C (-40° to 167°F)
Accuracy: ±10 W/m2 or ±5%, whichever is greater in sunlight. Additional temperature induced error ±0.38 W/m2 /°C from 25°C (0.21/m2/°F from 77°F)
Resolution: 1.25 W/m2
Drift: <±2% per year

Spectral Range: 300 to 1100 nm
Cosine Response Error: ±5%, 0° to 70°; ±10%, 70° to 80° from vertical
Azimuth Error: ±2% error at 45° from vertical, 360° rotation
Calibration: Factory recalibration available
Housing: anodized aluminum housing with acrylic diffuser and o-ring seal
Dimensions: 4.1 cm high x 3.2 cm diameter (1 5/8 in. x 1 1/4 in.)
Approximate Weight: 120 g (4 oz)
Cable Length: 3 m (9.8 ft)
