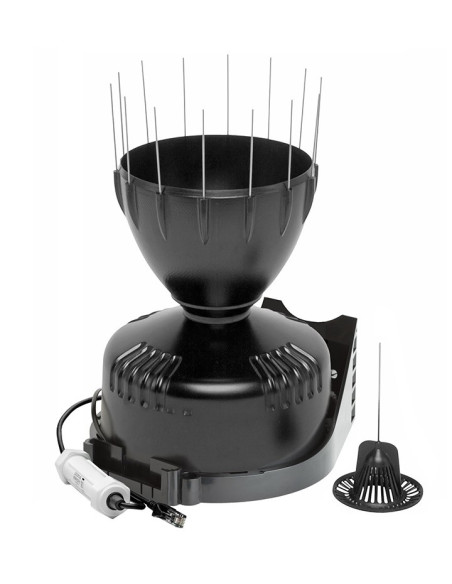

S-RGF-M002 Davis 0.02 mm Rain Gauge Smart Sensor for HOBO Loggers

S-RGF-M002

Onset

New

  • Streamlined design reduces the amount of missed rain capture in high wind conditions, resulting in more accurate rainfall data
  • Improved debris screen locks in place to remain secure during high winds
  • Same 16.5 cm (6.5”) opening diameter as the old version

372,00 €

Add to wishlist

Output Signal: HOBO Smart Sensor
Cable Length: 2m
Sensor for use in: Outdoor

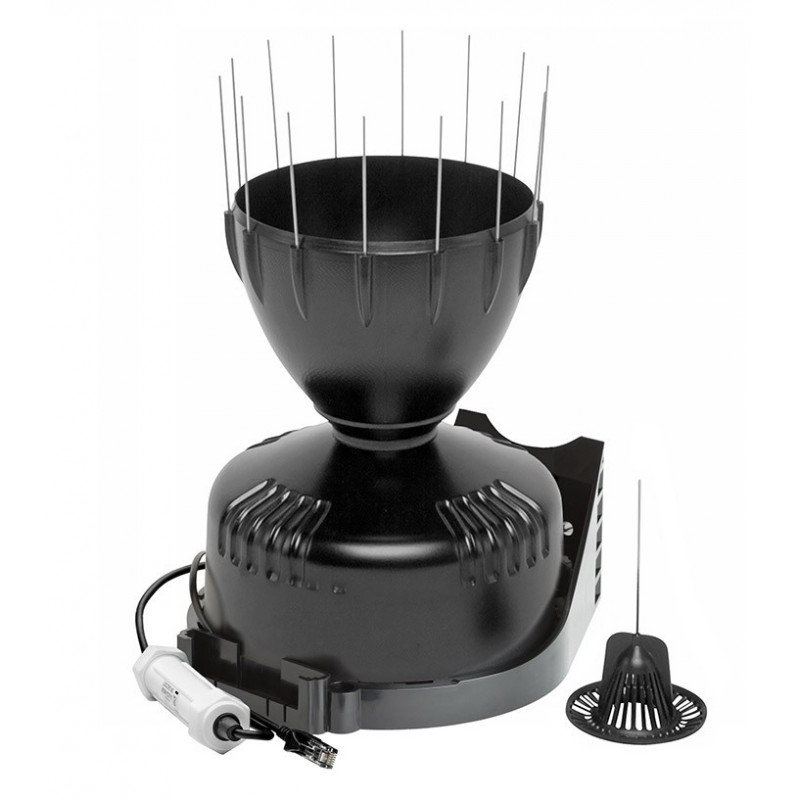

The AeroCone™ rain gauge accurately measures the amount of rainfall dropped by an automatic drain rocker. It has a reed switch that closes each time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be recorded by a datalogger or pulse counter.

The instrument features an aerodynamic cone that increases accuracy in strong wind conditions, and is specially designed to comply with the guidelines established by the World Meteorological Organization (WMO).

The rain gauge accurately measures the amount of rainfall dropped by means of an automatic drain rocker.
It has a reed switch that closes every time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be registered by a datalogger type HOBO UA-003-64 or pulse counter.

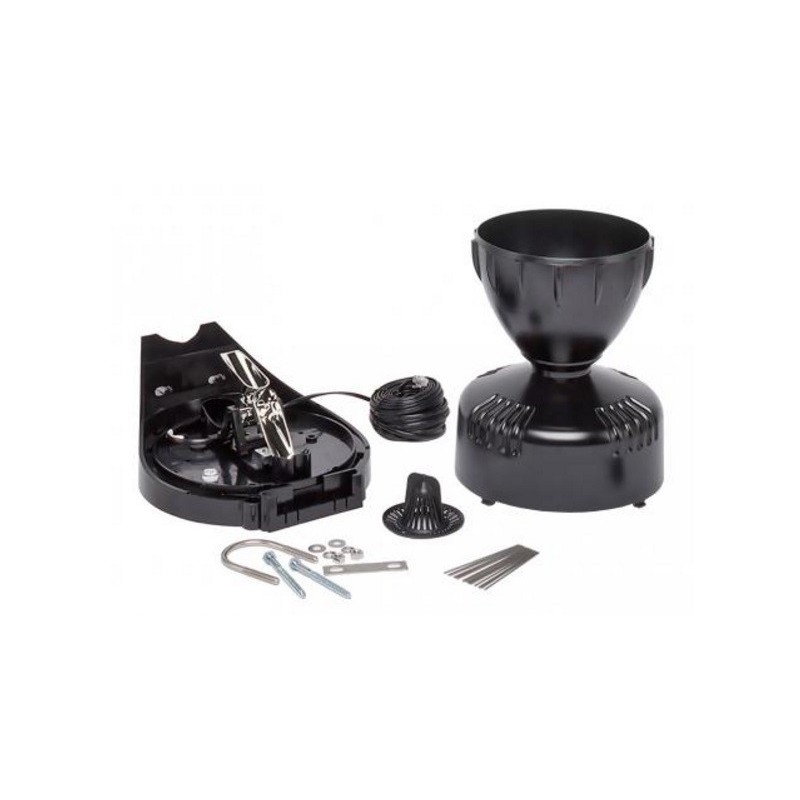

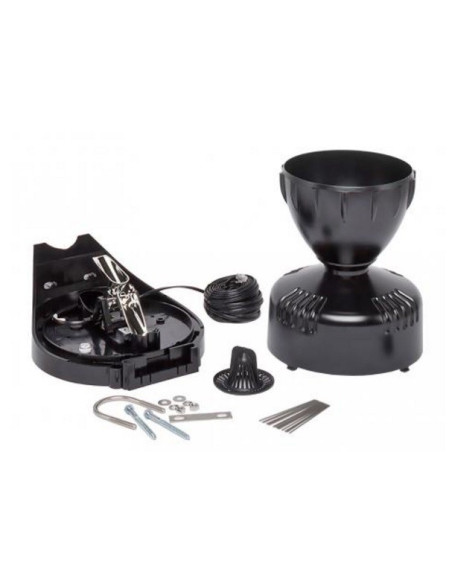

It includes a cable of 12 meters in length, a filter with system of fixation to avoid that can be dropped or to be displaced by the wind and a base with mast mount support and set of anti-bird skewers.

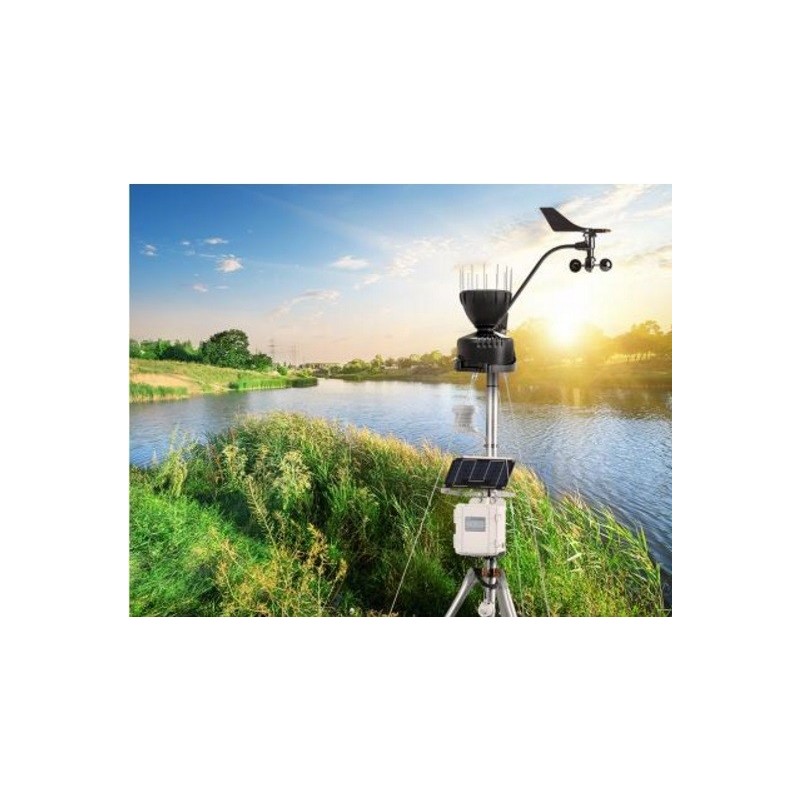

Davis Rain Gauge Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink.
They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget.
The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.

Measurement Range

0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval

Accuracy

±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour

Resolution

0.01 in. (S-RGC-M002) or 0.2 mm (S-RGD-M002)

Calibration

Requires annual calibration; can be field calibrated

Operating Temperature Range

0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)

Environmental Rating

Weatherproof

Housing

UV-stabilized ABS plastic

Mechanism

Tipping bucket with magnetic reed switch pivots on metal shaft

Dimensions

16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area

Weight

1 kg (2 lb, 3 oz)

Bits per Sample

12

Number of Data Channels*

1

Measurement Averaging

No

Cable Length Available

2 m (6.6 ft)

Length of Smart Sensor Network Cable*

0.5 m (1.6 ft)



The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
