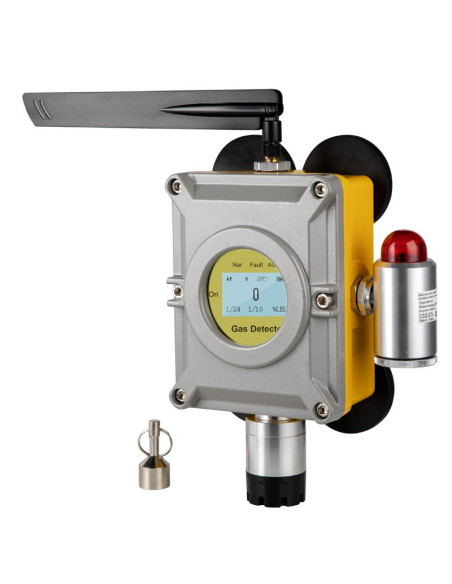

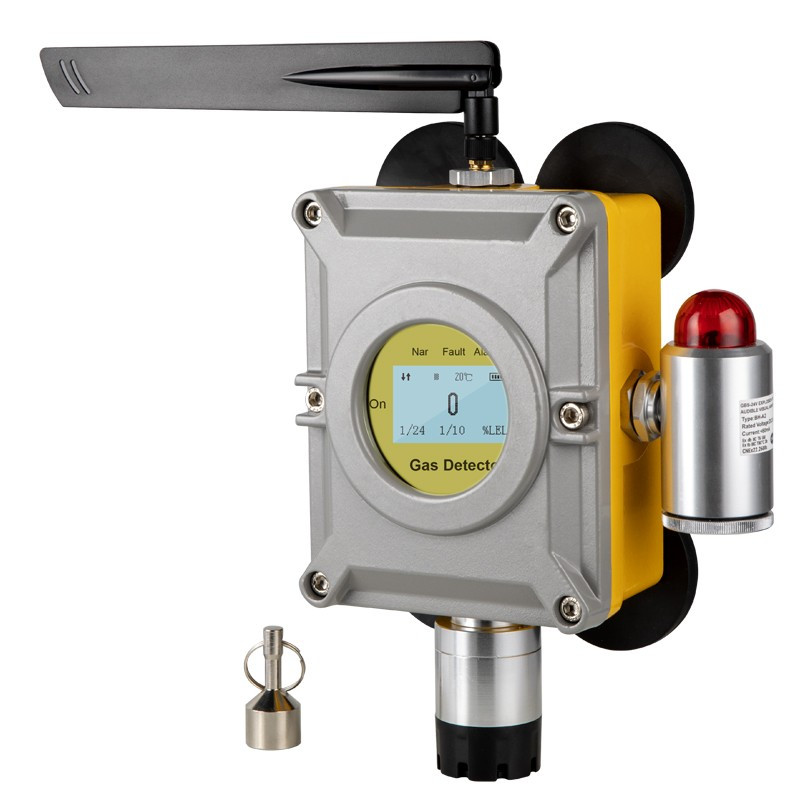

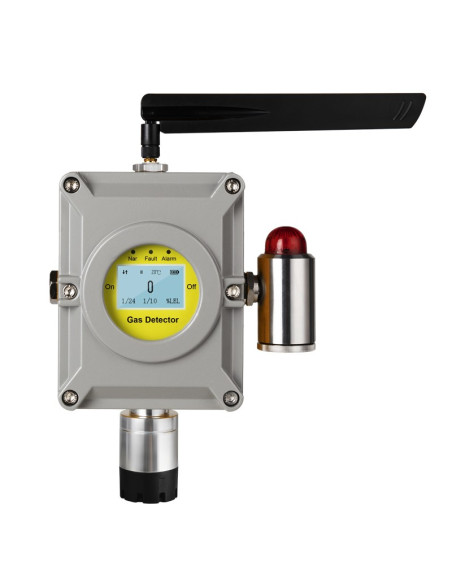

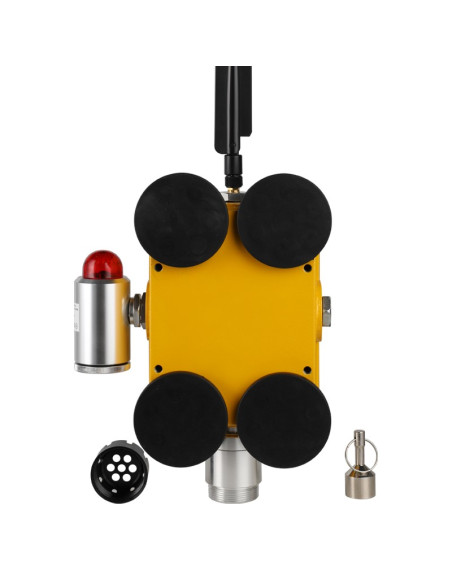

AO-GT-S60D Wireless Gas Detector IP66
Ideal for continuous detection of combustible gases in oil stations, gas stations, valve wells, and other spaces.
The GT-S60D wireless gas detector uses an NDIR infrared sensor to detect gas concentration and transmit it to the main control MCU through a serial port. The main control chip communicates wirelessly via LoRa and regularly uploads gas concentration information, alarm information, battery level information, and abnormal type information to the corresponding controller host. By combining with upper computer software, the statistics and viewing of on-site gas concentration information are achieved.
This detector is suitable for continuous detection of gas concentration in environments containing combustible gases in oil stations, gas stations, valve wells, power wells, communication wells, and other spaces.
| Feature | Details |
| Ultra-low power infrared sensor | Yes |
| Wireless LoRa transmission | Yes |
| Integrated sound and light alarm | Yes |
| High-density battery | Yes |
| Anti-theft displacement alarm | Yes |

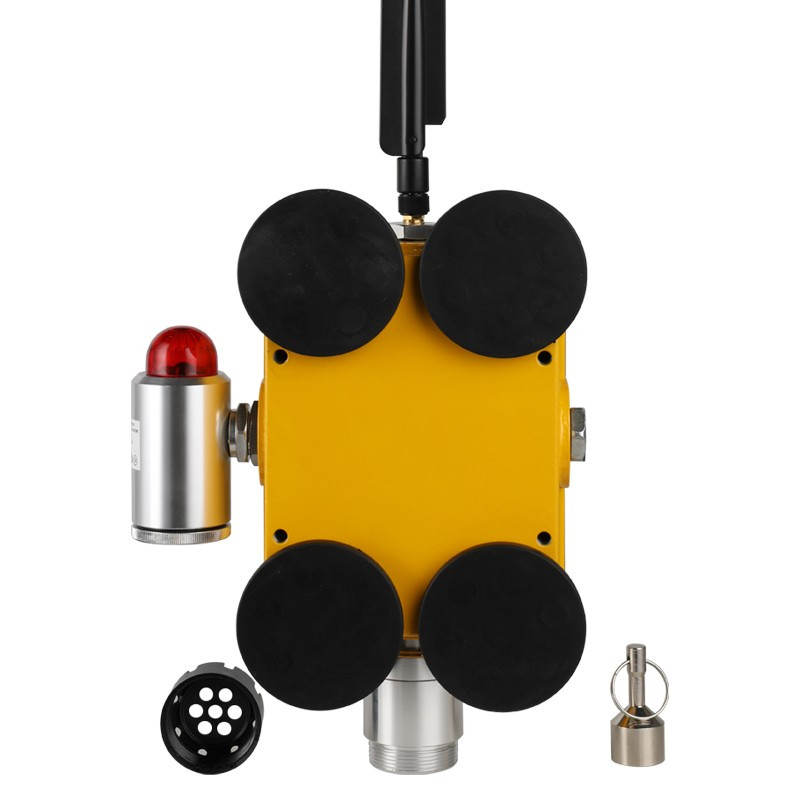

| Magnetic suction installation | Firm and does not fall off |
| Parameter | Value |
|---|---|
| Detected gas | Oil gas (O~100%LEL) |
| Error | ±5%FS |
| Temperature | -40°℃ ~ 80℃ (±2°) |
| Communication method | LoRa wireless transmission |
| Sensor | NDIR infrared sensor |
| Power supply | Battery powered |
| Condition | -20°℃~ 60~℃ ≤95%RH non dew |
| Battery life | Not less than 5 years (standard mode) |
| Dimension | 212×190×78mm |
| Weight | About 3.1kg |
