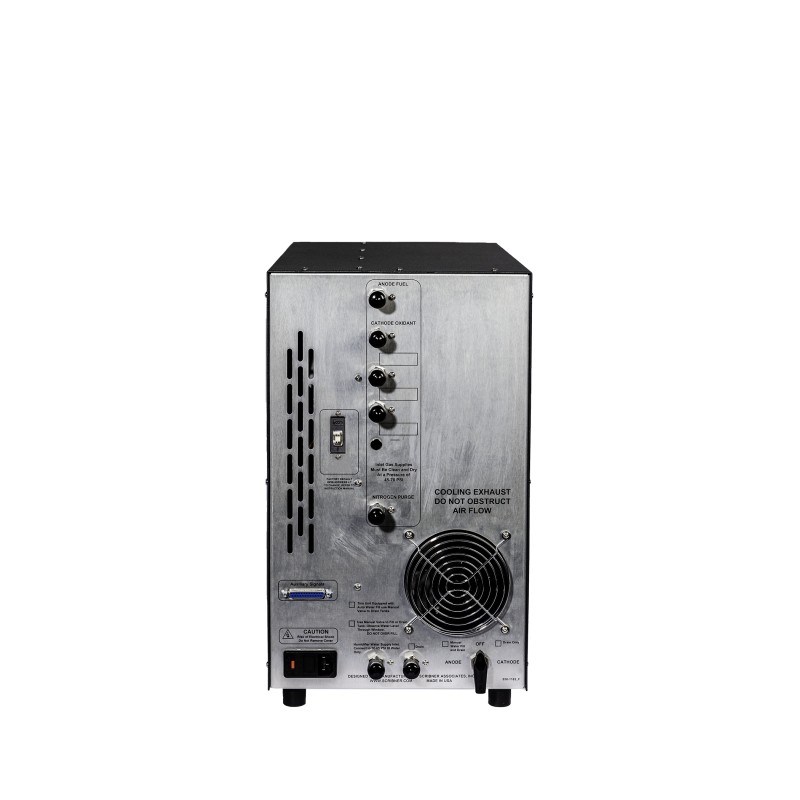

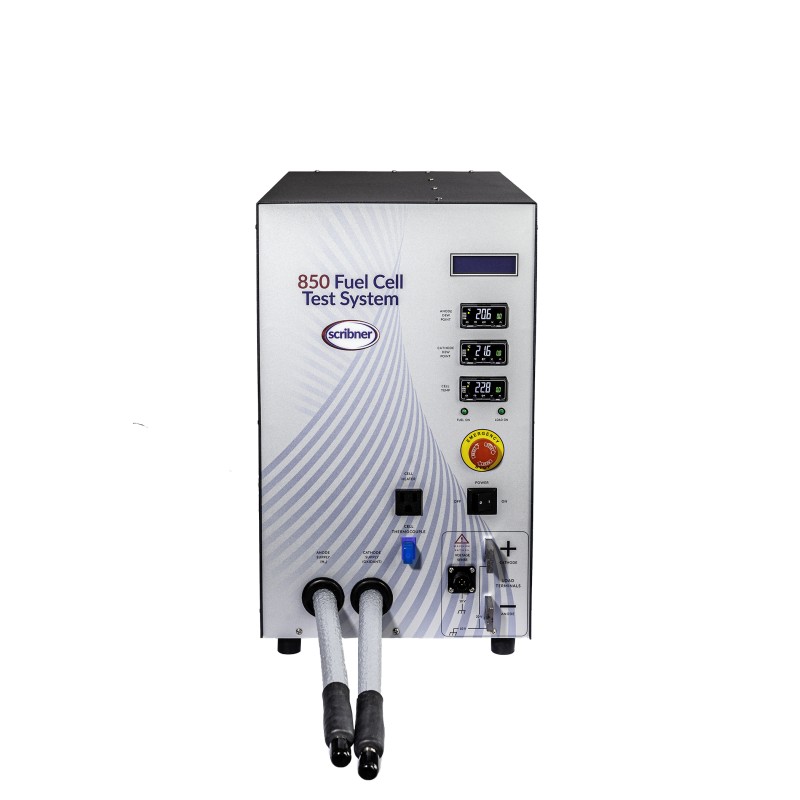

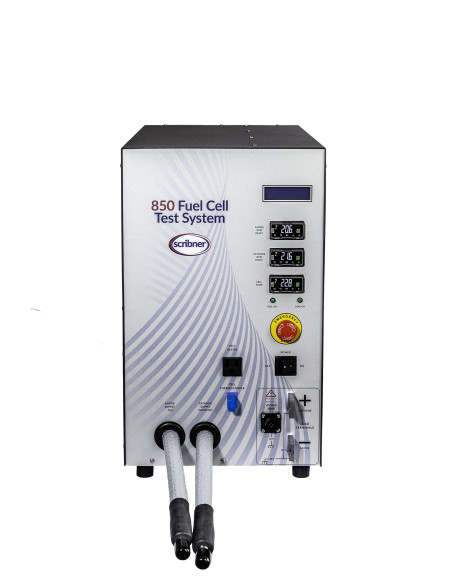

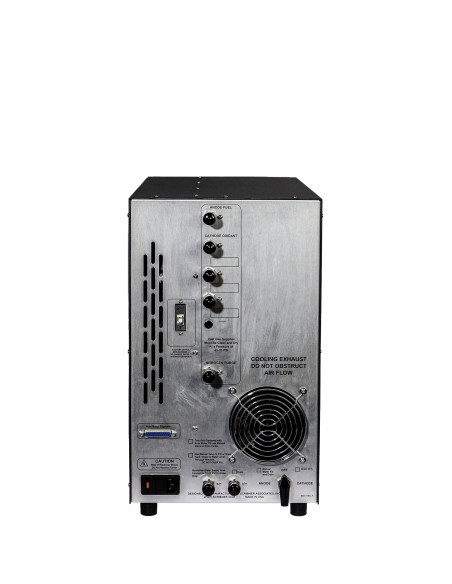

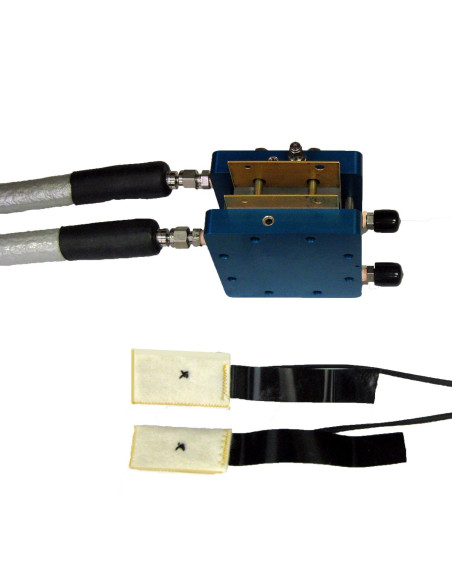

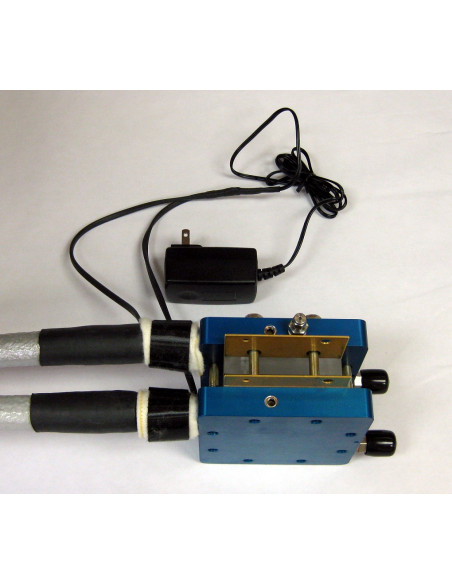

Scribner 850-PEM/DMFC Fuel Cell Test System


Scribner Associates


The model 850 Multi-Range Fuel Cell Test System is a complete test station for operation and measurement of PEM/DMFC fuel cells.  The 850 is ideal for single-cell and short-stack fuel cell research and university programs.

Add to wishlist

Type of Cells Fuel Cell Test Systems

The 850 combines a computer-controlled instrument with fuel handling hardware in an integrated bench-top unit. The 850 uses the proven 890 as the basis for the electronic load design. The powerful FuelCell® software package is included for controlling station operation.

Need more power? Try our 840 Fuel Cell Test System with up to 1 kW / 500 A.
Multiple current range electronic load choices: 5/25/50 A or 10/50/100 A, 100 W, 20 V
Suitable for up to 50 cm2 PEM cells.
FuelCell ® software for user-friendly computer controlled cell operation & experimentation

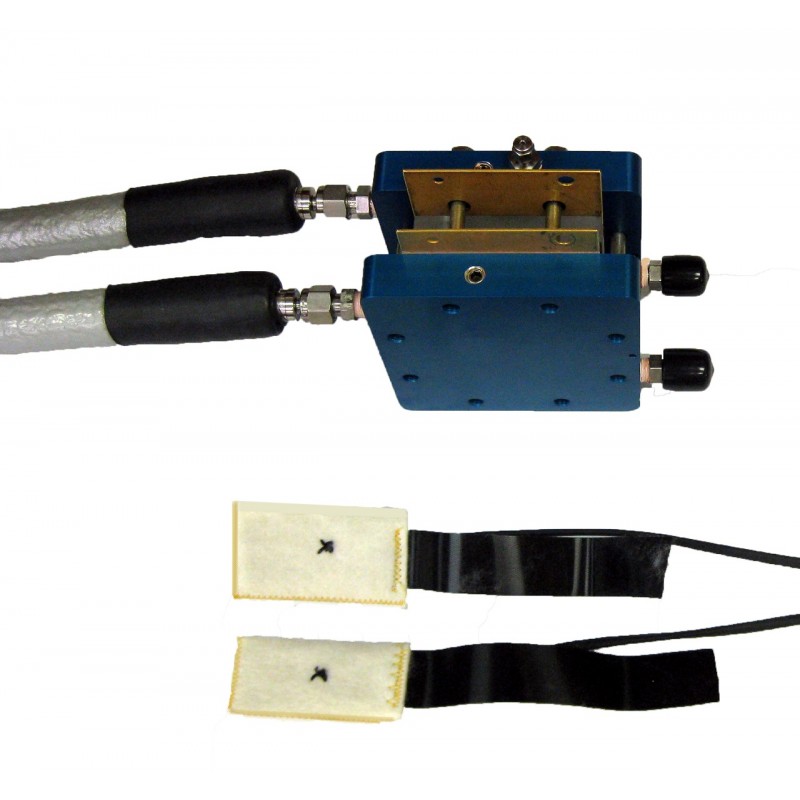

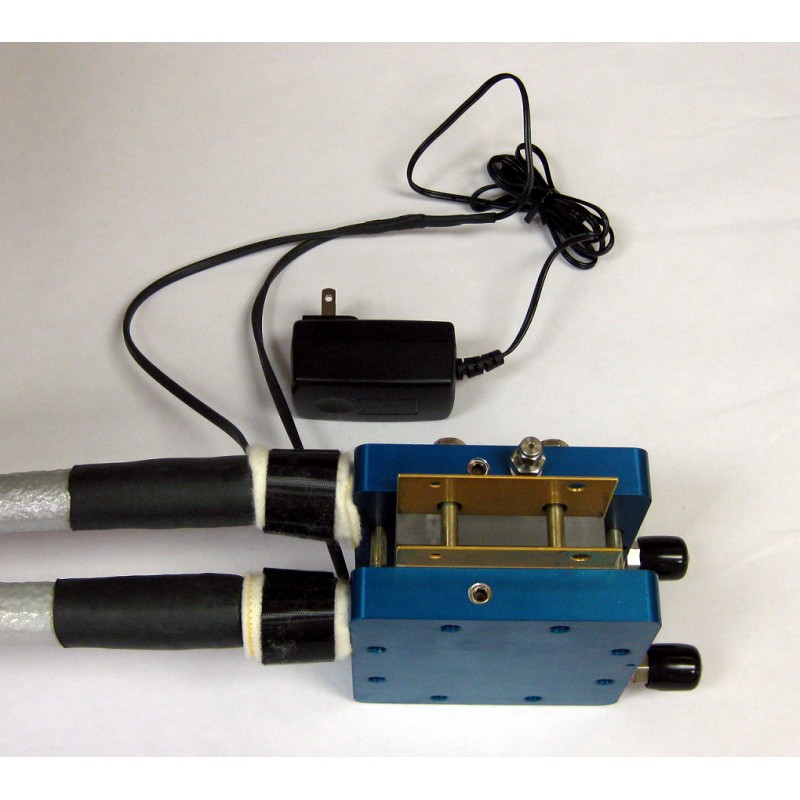

Temperature controlled high performance 316L stainless steel humidifiers, and heated gas transfer lines
Computer control of anode and cathode mass flow rates
Automatic control of N2 purge gas to cell
Detection of pressure loss for reactant and purge gasses
Current, voltage or power control modes
Continuous real time cell resistance and IR-free voltage measurement by Current Interrupt
Whole cell voltage plus two high-impedance reference inputs for half-cell data
Cell main terminals and sense inputs tolerant of a non-isolated cell
Automatic Water Fill for humidifiers
Safety features include detection of alarm conditions and automatic hardware
