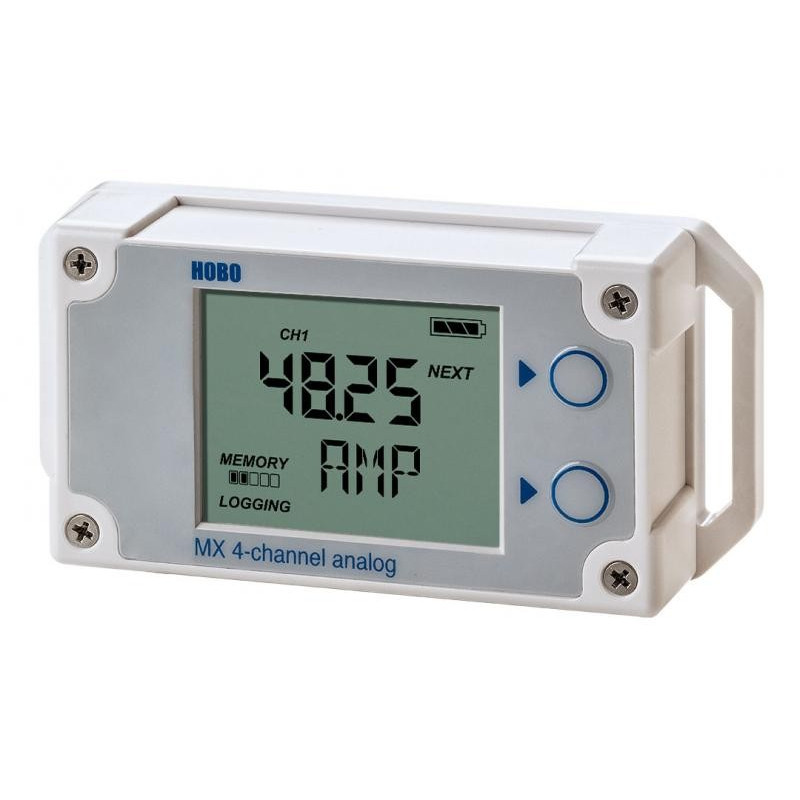

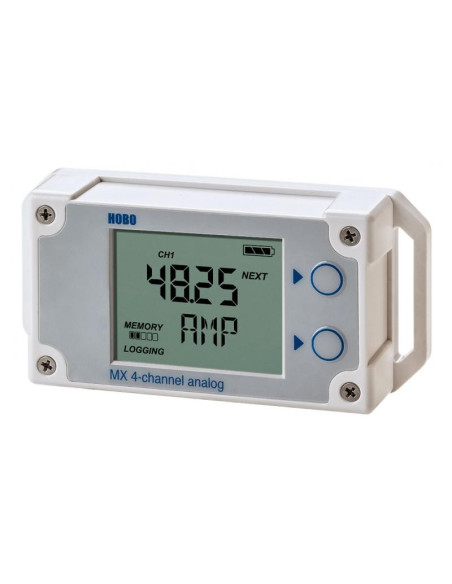

MX1105 HOBO 4-Channel Analog Data Logger Bluetooth

MX1105

Onset

New

The HOBO MX1105 multi-channel data logger, with four-channel inputs, measures and transmits data wirelessly from a variety of sensors to your mobile device via Bluetooth Low Energy (BLE) technology.

Important Information

External sensors sold separately. Requires HOBOconnect app and a compatible mobile device or Windows computer.

219,00 €

tax excl.

Add to wishlist

Environment of Use Indoor
Type of Logger Multicanal
Measured Parameters Multiple parameters through analog signals and external sensors

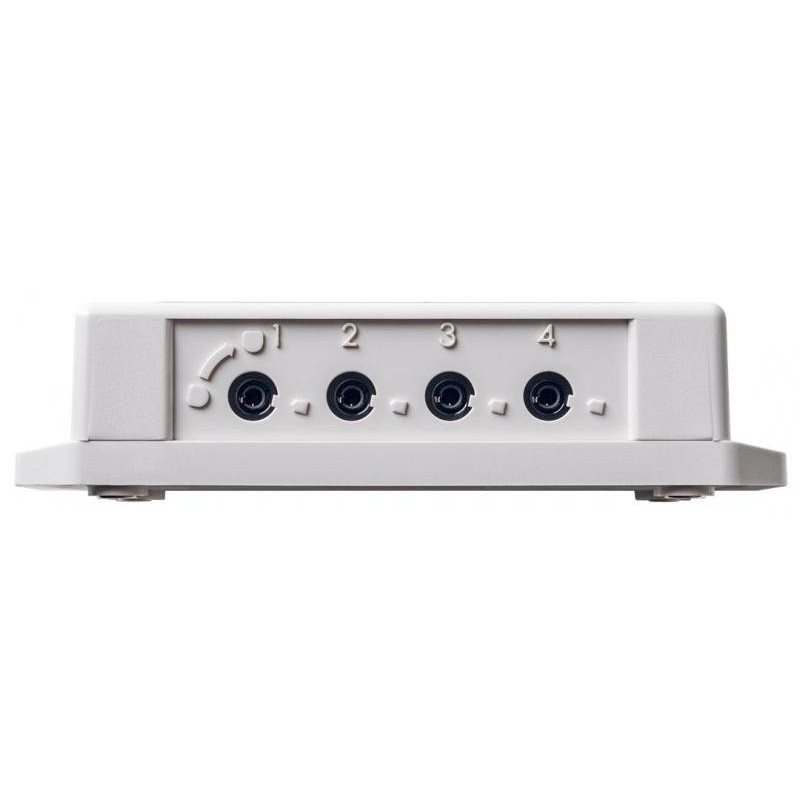

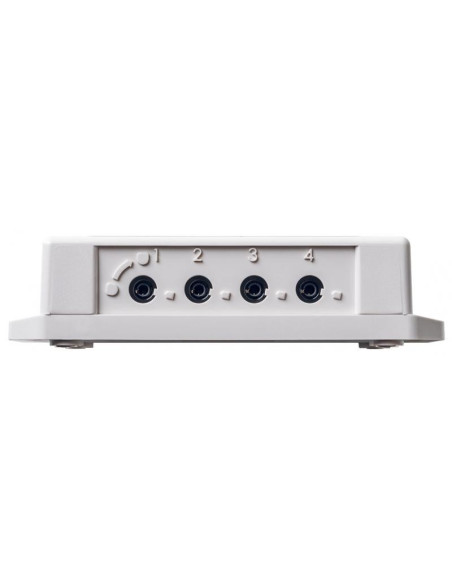

Number of Channels 4 Analog
ADC Bits 16 bit
With Display LCD
IP Classification IP54
Communications Bluetooth BLE
Battery Life 1 year +
Memory Capacity 1.9 million measurements

This self-contained wireless data logger lets you use your mobile device and Onset’s free HOBOmobile® app for iOS to access data, at any time, over a 100-foot range via Bluetooth Low Energy (BLE) technology. You can configure the logger, read out data, view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files – all with no dedicated equipment beyond a mobile device. And if used with the new MX Gateway, you can remotely access your data in Onset’s cloud-based HOBOlink® software.

The MX1105 is ideal for energy audits, building commissioning studies, equipment scheduling, and more.



Highlighted Features

  • BLE communications for wireless data offload
  • 16-bit resolution for highly accurate measurements
  • Stores 1.9 million measurements for longer deployments between offloads
  • New Self-Describing sensors with intelligent configuration for fast deployment
  • Compatible with existing sensors for a wide range of indoor monitoring
  • Audible and visual LCD-screen alarms notify you if a sensor becomes unplugged or a reading exceeds set thresholds

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The MX1105 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatts (kW) and Temperature

The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available

Logger with
Cable Type
SD-MA-420 or CABLE-4-20mA SD-VOLT-2.5 or CABLE-2.5-STEREO SD-VOLT-05 or CABLE-
ADAP5
SD-VOLT-10 or CABLE-ADAP10 SD-VOLT-24 or CABLE-ADAP24
Measurement Range 0 to 20.1 mA 0 to 2.5 V 0 to 5.0 V 0 to 10 V 0 to 24 V
Accuracy ±0.001 mA ±0.2% of reading ±0.1 mV ±0.1% of reading ±0.2 mV ±0.3% of reading ±0.4 mV ±0.3% of reading ±1.0 mV ±0.3% of reading
Resolution 0.3 µA 40 µV 80 µV 160 µV 384 µV
Logger
Operating Range -20° to 70°C (-4° to 158°F)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, date & time, or after a set logging period
Restart Mode Push button
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery Type Two AAA 1.5 V alkaline batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0° and 50°C (32° and 122°F). Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory 4 MB (1.9 million measurements, maximum)
Full Memory Download Time Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size 11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
Weight 123 g (4.34 oz)
Environmental Rating IP54
CE Compliant The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
FCC Logo Australia/New Zealand General Compliance mark

*Per RH sensor manufacturer data sheet
