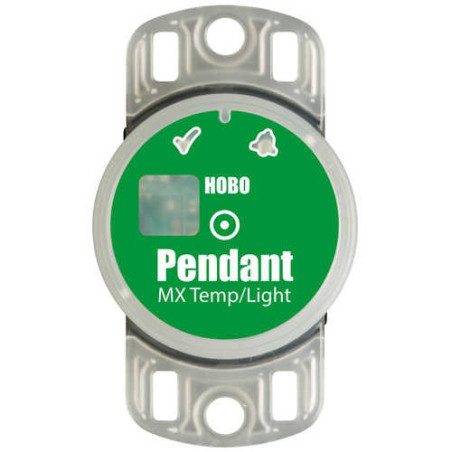

MX2202 HOBO Pendant® MX Temperature & Light Data Logger

MX2202

Onset

New

Grupo 1

icon-app-store.png   en_app_rgb_wo_60.png

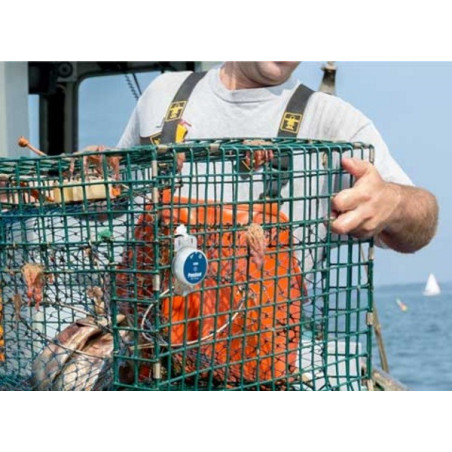

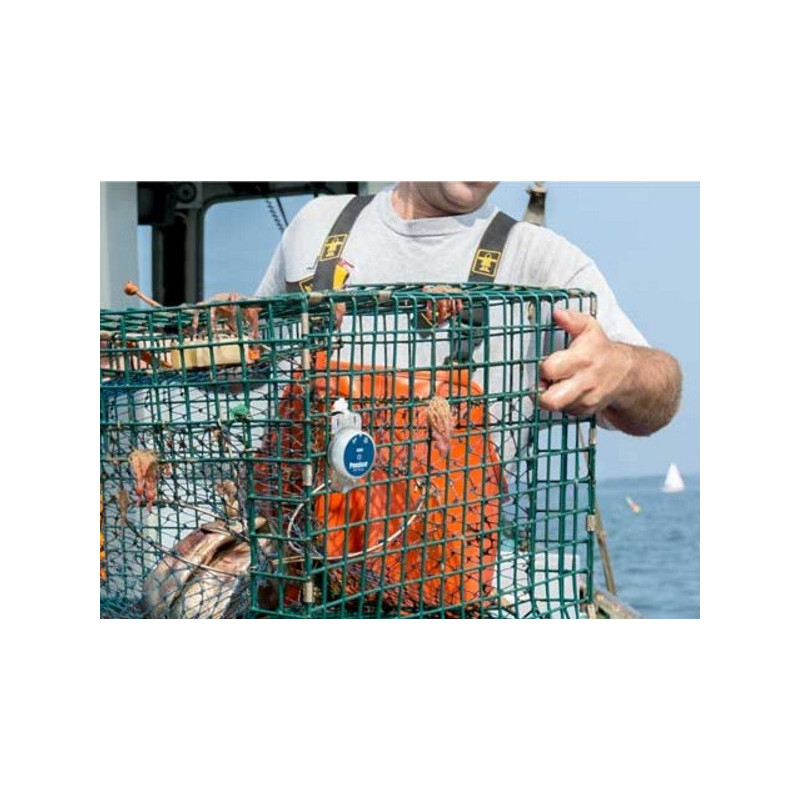

The HOBO MX2202 water temperature/light level logger leverages the power of Bluetooth Low Energy (BLE) to deliver accurate temperature and relative light-level measurements straight to your iOS or Android mobile device. Designed for durability, this compact waterproof logger is ideal for measuring temperature in streams, lakes, oceans, and soil environments. Data collection in the field has never been easier!

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our "More info about this Product" form

89,00 €

tax excl.

Add to wishlist

Number of Channels 2 Channels: Temp + Light
ADC Bits 16 bit
Precision ±0.5°C
Resolution 0.04°C
With Display No
IP Classification Submersible
Communications Bluetooth BLE
Battery Life 2 years
Memory Capacity 96,000 measurements

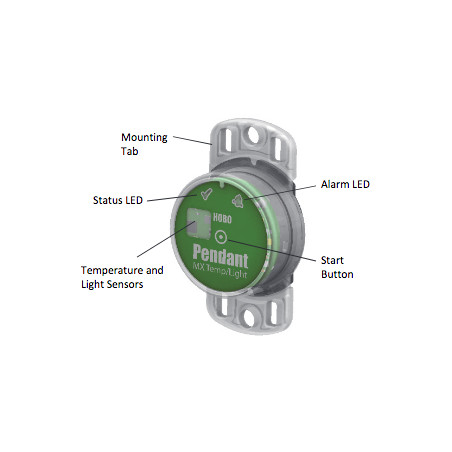

Highlighted Features

  • Convenient wireless setup and download via Bluetooth Low Energy (BLE)
  • Large memory stores 98,000 measurements
  • Waterproof to 30 meters (100 feet)
  • User-replaceable battery
  • Mounting tabs for fast, easy deployment
  • LED alarm notifies you when temperature exceeds set threshold
  • Works with Onset’s free HOBOmobile app
  • ±0.5°C (±0.9°F) accuracy

In what environment does this data logger operate?

This data logger operates in indoor, outdoor and underwater environments.

What measurements does this data logger support?

The MX2202 data logger supports the following measurements: Light Intensity, Temperature and Water Temp

Temperature Sensor (MX2201 and MX2202)

Range

-20° to 70°C (-4° to 158°F) in air

-20° to 50°C (-4° to 122°F) in water

Accuracy

±0.5°C from -20° to 70°C (-4° to 158°F)

Resolution

0.04°C (0.072°F)

Drift

<0.1°C (0.18°F) per year

Response Time

17 minutes typical to 90% in air moving 1 m/s, unmounted

7 minutes typical to 90% in stirred water, unmounted



Light Sensor (MX2202)

Range

0 to 167,731 lux (15,582 lum/ft2)

Accuracy

±10% typical for direct sunlight (see Light Measurement on page 2 for more details)



Logger

Radio Power

1 mW (0 dBm)

Transmission Range

Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)

Logger Operating Range

-20° to 70°C (-4° to 158°F) in air

Logging Rate

1 second to 18 hours

Buoyancy (Fresh Water)

2g (0.07 oz) positive

Waterproof

To 30.5 m (100 ft)

Memory

96,000 measurements

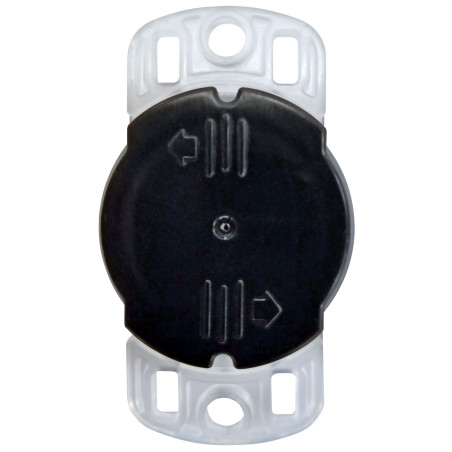

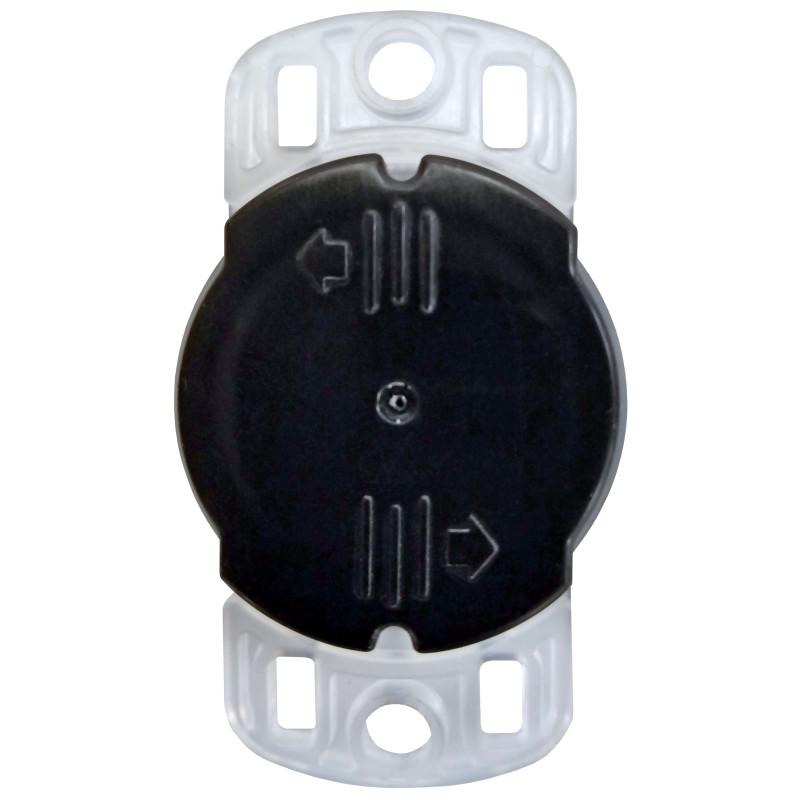

Battery

CR2032 3V lithium, user replaceable

Battery Life

1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.

2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software.

Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.

To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.

Time Accuracy

± 1 minute per month at 25°C (77°F)

Full Memory Dowload

Approximately 45 seconds; may take longer the farther the device is from the logger

Wetted Materials

Polypropylene case, EPDM O-ring

Dimensions

3.35 x 5.64 x 1.6 cm (1.32 x 2.22 x 0.63 inches)

Weight

12.75 g (.45 oz)

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
