SD-TEMP-xx Air/Water/Soil HOBO Temperature Sensor

Onset

New

  • Self-Describing technology for quick, easy setup of the data logger

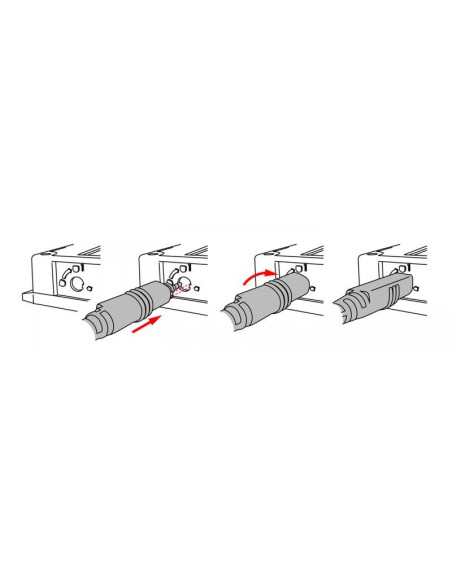

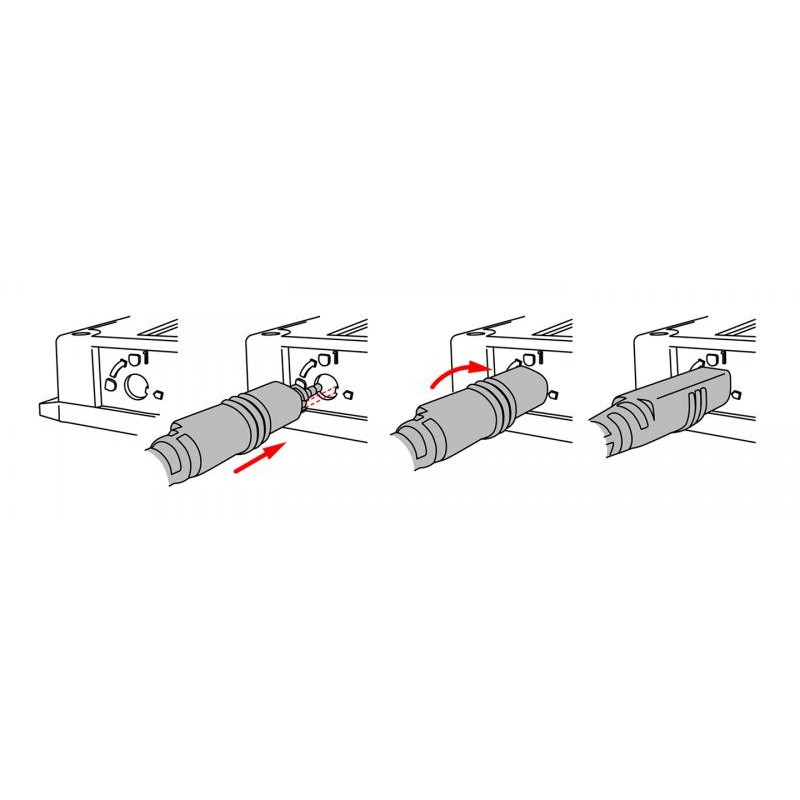

  • Locking jack to ensure sensor is connected and stays connected
  • Measurement range of -40° and 100°C (-40° to 212°F)
  • Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)
  • Available in lengths of 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m, (20 ft) & 15.2 m (50 ft)

58,00 €

tax excl.

Add to wishlist

The Sensor measures: Air/water/soil temperature

SD-TEMP-xx Data Sheet Download (61.04k)

SD-TEMP-xx Manual Download (371.85k)

For use with HOBO MX1104 and MX1105 multi-channel data loggers.

This air / water / soil temperature sensor offers integrated strain relief, so the probe is secured to the logger.

It features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.

In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.

What measurements does this sensor support?
The SD-TEMP-xx sensor supports the following measurements: Air Temperature, Soil Temperature, Temperature and Water Temperature

Measurement Range -40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F) in air
Accuracy ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A
Resolution 0.002° at 25°C (0.003° at 77°F)
Drift <0.1°C (<0.2°F) per year
Response Time in Air 2 minutes typical to 90% in air moving 1 m/s (2.2 mph)
Response Time in Stirred Water 30 seconds typical to 90%
Operating Range Sensor tip and cable immersion in fresh water up to 50°C (122°F) for 1 year
Probe Housing Copper-plated sensor tip
Probe Dimensions 5.1 x 33 mm (0.2 x 1.3 inches)
Cable Length SD-TEMP-01: 0.3 m (1 ft)
SD-TEMP-06: 1.8 m (6 ft)
SD-TEMP-20: 6.1 m (20 ft)
SD-TEMP-50: 15.2 m (50 ft)

Choose Sensor Length:

SD-TEMP-01: 0.3 m (1 ft)
SD-TEMP-06: 1.8 m (6 ft)
SD-TEMP-20: 6.1 m (20 ft)
SD-TEMP-50: 15.2 m (50 ft)
