The OQ610 temperature logger is suitable for a wide range of temperature recording applications in industry, research and development.
It is available as a standalone temperature logger or as part of a complete system for through process monitoring in the food and paint industries.
◆ 6 channels for type K or T thermocouples
◆ Compact and simple to use
◆ USB connectivity to PC
◆ High accuracy
◆ Extended battery life
This product is no longer in stock
Availability date:
Environment of Use | Indoor |
Type of Logger | Multicanal |
Measured Parameters | Temperature |
Application | Industrial Process Monitoring |
Number of Channels | 6 channels |
Precision | ±0.5°C |
Resolution | 0.1°C |
With Display | LCD |
Communications | USB |
Memory Capacity | 260,000 readings |

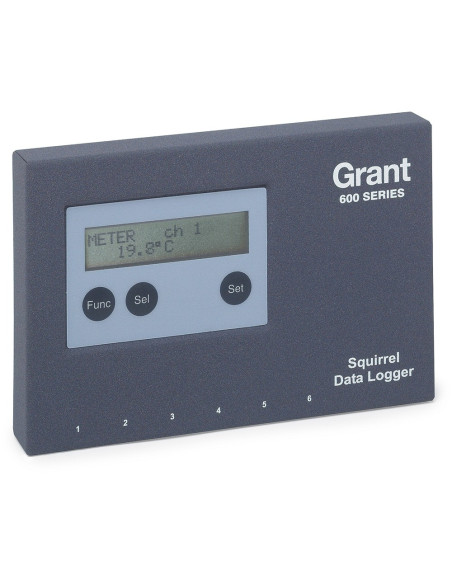

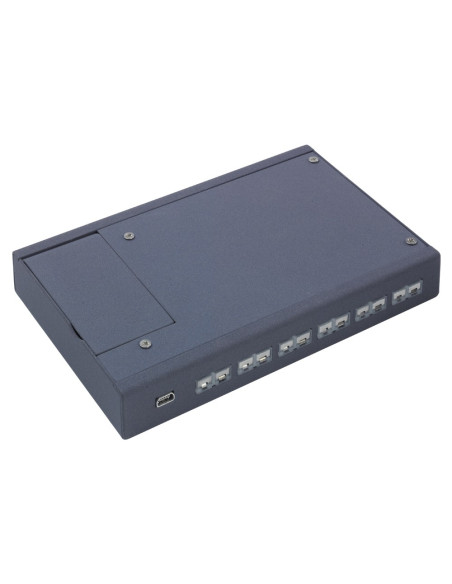

Squirrel OQ610 series temperature data logger
Dedicated data logger for temperature and through process monitoring
►Small, lightweight, battery operated and easily portable.
►Quick and easy to program via three push buttons and display, or via PC

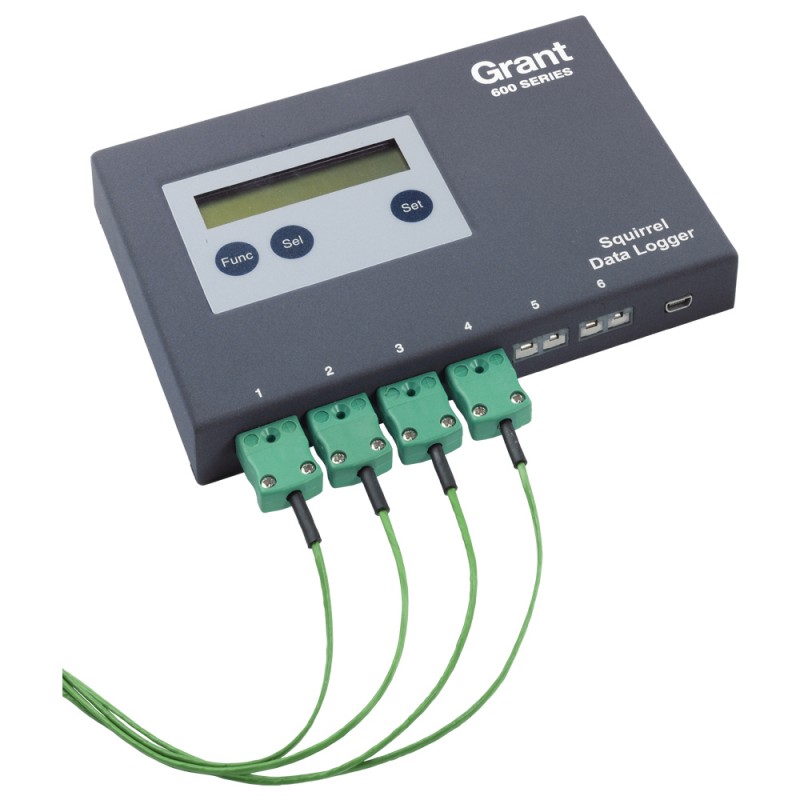

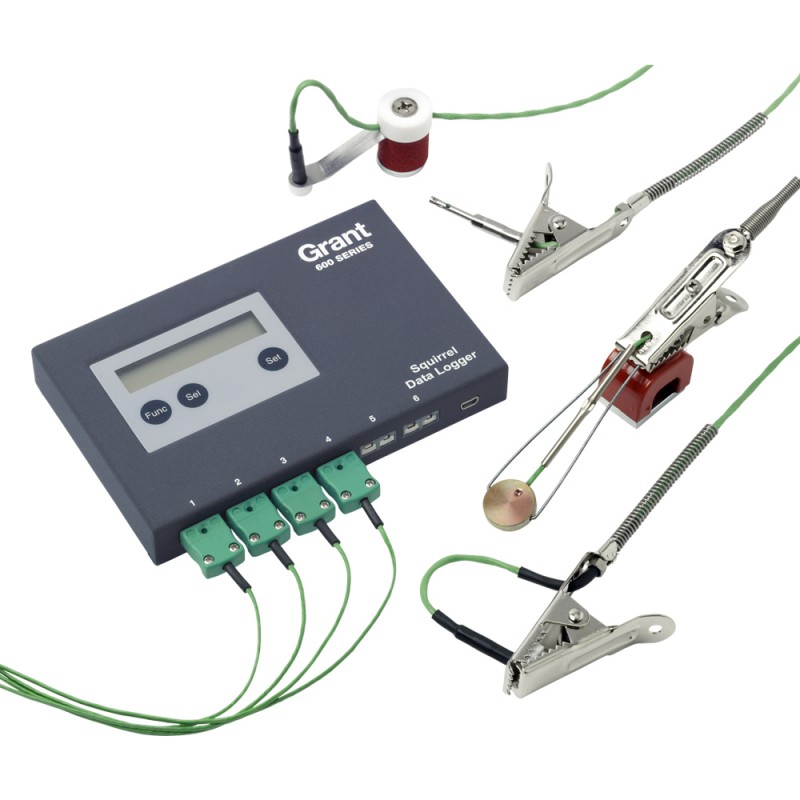

►Automatically detects when sensors are present – easy set-up of up to 6 channels for use with a wide range of K or T type thermocouple probes
►Start and stop logging at specific times or at certain temperature levels
►Fast ample rates for fast process times: up to 8 samples/second
►Can provide automatic cure calculation in through process applications
►Non-volatile memory provides up to 250,000 readings of secure data

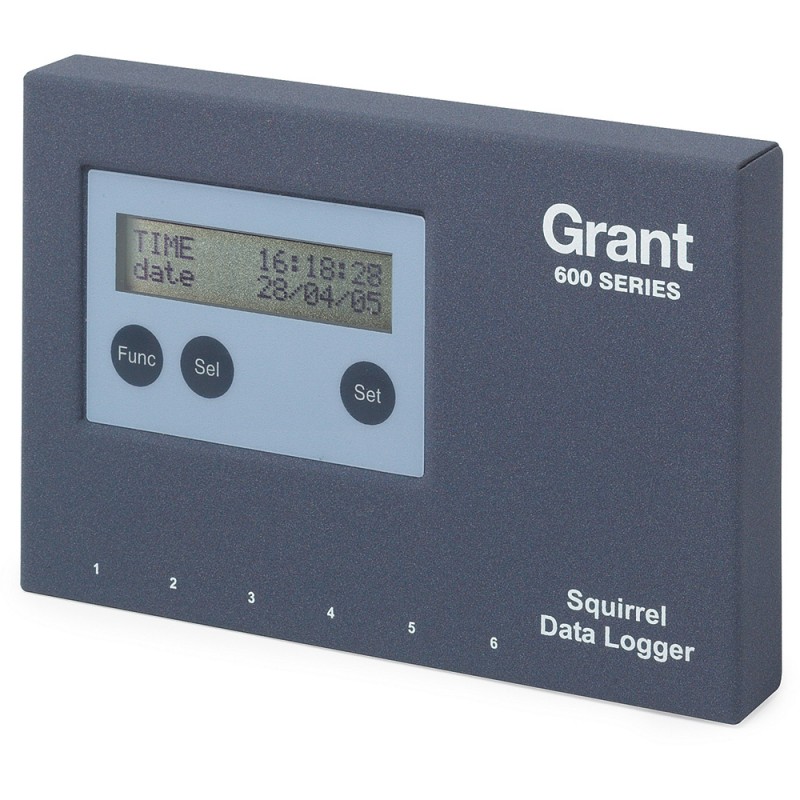

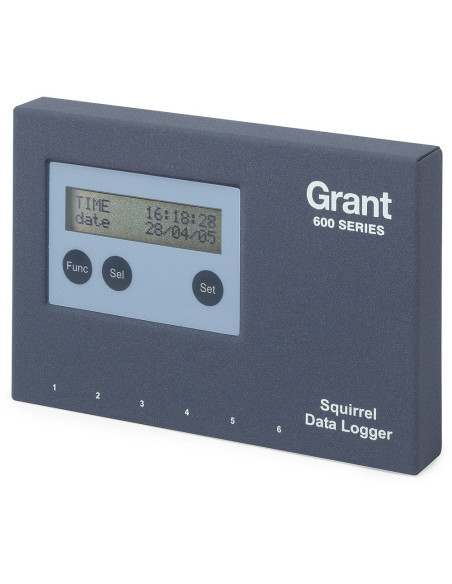

►Time and date reported with each reading

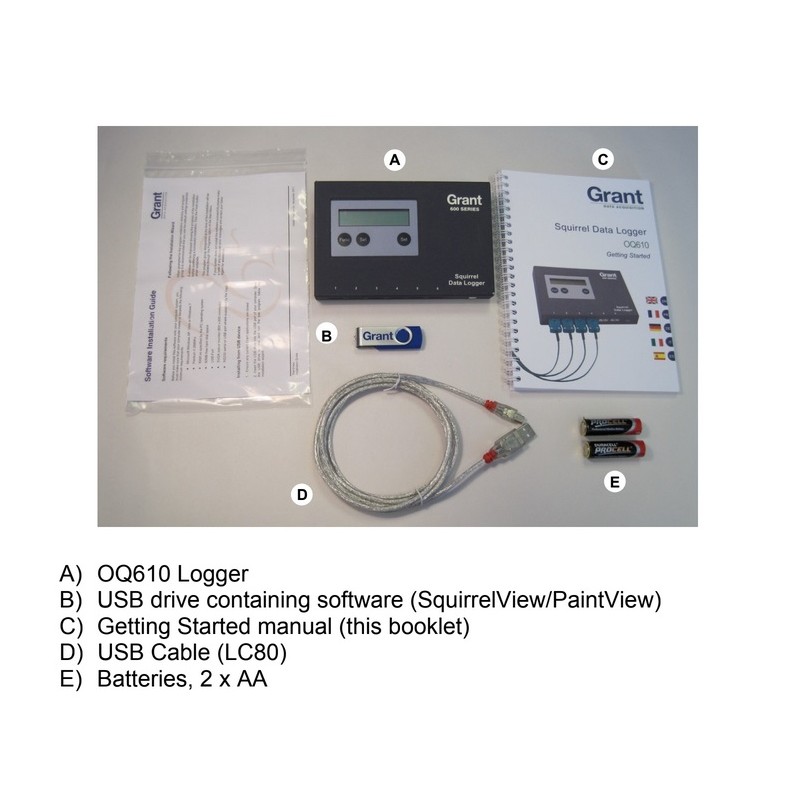

OQ610 Squirrel for 6 K or T type probes, memory size 260K readings
Includes SquirrelView software and USB connecting cable LC80.
SquirrelView suitable for Windows 98SE, 2000, and XP.
The OQ610 temperature data logger is suitable for a wide range of temperature recording applications in industry, research and development. It is available as a stand alone temperature data logger or as part of a complete system for through process monitoring in the food and paint industries.
With the addition of a thermal barrier the Grant OQ610 is suitable for use in through process applications where heat treatment is being used to produce a product. To ensure consistent quality of heat treated products, it is important to have proof that they have passed through the manufacturing process at the right temperature for the right amount of time.
By passing the Grant OQ610 oven logger through the process along with the products, a temperature profile can be produced to show exactly what is happening to the products and the process. Benefits include improved quality of your product and increased efficiency, reduced energy costs, quality assurance reports for compliance and traceability and complete quality control for your process.
Squirrel OQ610 Technical Specifications
Accuracy | -50 to 500ºC, ±0.5ºC |
(-58ºF to 932ºF, ±0.9ºF) | |
-200 to 1300ºC, ±1.0ºC | |
(-328 to 2372ºF, ± 1.8ºF) | |
Resolution | 0.1ºC (0.18ºF) |
Sampling rate | Fastest: eight times per second per channel |
Slowest: once every two hours per channel | |
Channels | 6 K or T type thermocouple |
Temperature measuring range | -200ºC to 1300ºC (-328 to 2372ºF) (K type) |
-200ºC to 400ºC (-328 to 752ºF) (T type) | |
Operating environment | Temperature range -30 to 65ºC |
Humidity 95% | |
Memory | Flash memory of 260,000 readings |
Maximum no. runs stored | 8 |
USB communication | 1.1 and 2.0 compatible |

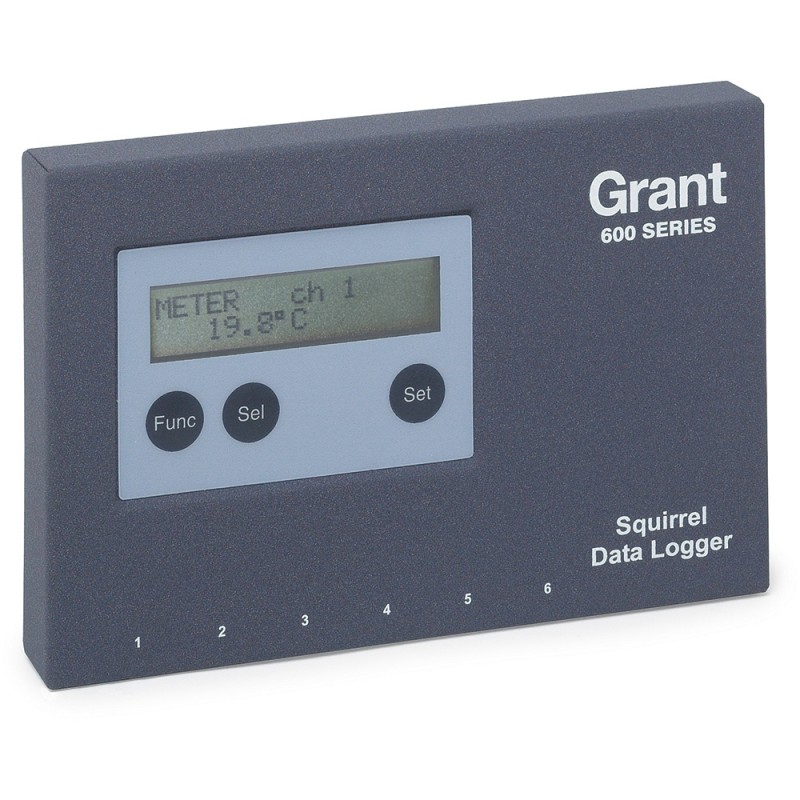

Display | Alphanumeric display of 2 x 16 characters |
shows cure pass/fail, battery status, probes | |
connected, real time readings and communication to PC | |
Power supply | Two AA cells to give 200 hours operation |
at default settings | |
Dimensions and weight (l x w x h) | 153 x 101 x 23mm, 450 g |
OQ610 Squirrel data logger
OQ610 Squirrel for 6 K or T type probes, memory size 260K readings
includes SquirrelView software and USB connecting cable LC80.
SquirrelView suitable for Windows 10, 7, XP, 2000, 98SE.
CMK610-S Concrete Maturity System
"Includes custom waterproof case and type K extension leads PC610-S,
OQ610 Squirrel for 6x K or T type probes, memory size 260K readings"
SquirrelView software and USB connecting cable LC80.
SquirrelView suitable for Windows 10, 7, XP, 2000, 98SE.
PC610-S Custom waterproof case
Custom waterproof case and type K extension leads PC610-S
