TC6-K  K type Thermocouple (0º to 285ºC, 285º to 482ºC) View larger

TC6-K K type Thermocouple (0º to 285ºC, 285º to 482ºC)




0 to 285°C (32° to 545°F)
285 to 482°C (545° to 900°F)

32,00 €

Add to wishlist

The Sensor measures: Temperature
Output Signal: mV
Cable Length: 1.8 m
Sensor for use in: Indoor

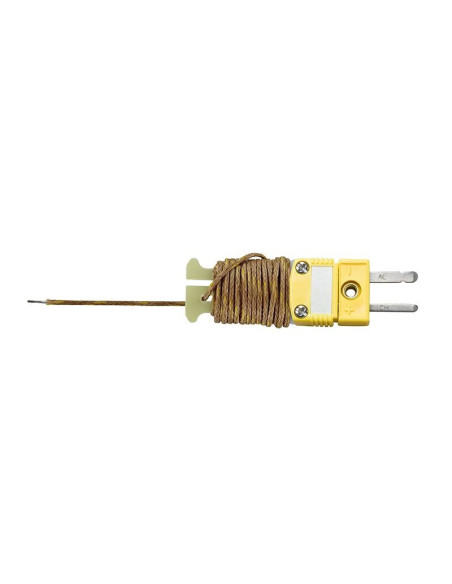

The Type K 6 ft Beaded Thermocouple probe includes 1.8m (6 feet) of insulated 30-AWG wire wound on an integrated spool caddy /sub miniature connector. Color-coded for type K (yellow) thermocouples according to the ANSI standard, this probe is insulated with glass braid and responsive over a range of 0°C to 285°C (32°F to 545°F) with an initial accuracy of ±2.2°C (±4°F) for probe only over the range of 285°C to 482°C (545°F to 900°F). Overall accuracy varies with attached logger. Initial Accuracy: ±0.75%

Range: 0°C to 285°C (32°F to 545°F)
Initial Accuracy: ±2.2°C (±4°F)
Range: 285°C to 482°C (545°F to 900°F)
Initial Accuracy: ±0.75%***
Insulation: Glass Braid

Notes: Glass braid is rated up to 482°C (900°F) continuous, and 537°C (1000°F) for single exposure.

*** Percentage is of degrees above or below 0°C (32°F)
