EG4115 15 Input Meter Data Logger

EG4115

Onset

New

DISCONTINUED

The EG4115 is an accurate and flexible solution for monitoring multiple circuits in any residential or commercial energy monitoring application.

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our More info about this product form

Onset Data Loggers

Onset Computer Corporation

Add to wishlist

Environment of Use Indoor
Type of Logger Multicanal
Measured Parameters V, A, W, Wh, Hz, VA, VAr, THD, deg
Number of Channels 15
Precision 0.5%
Communications Homeplug AV / Ethernet
Maximum Pulse Rate 50 - 60 Hz
Memory Capacity 64 (data storage points)

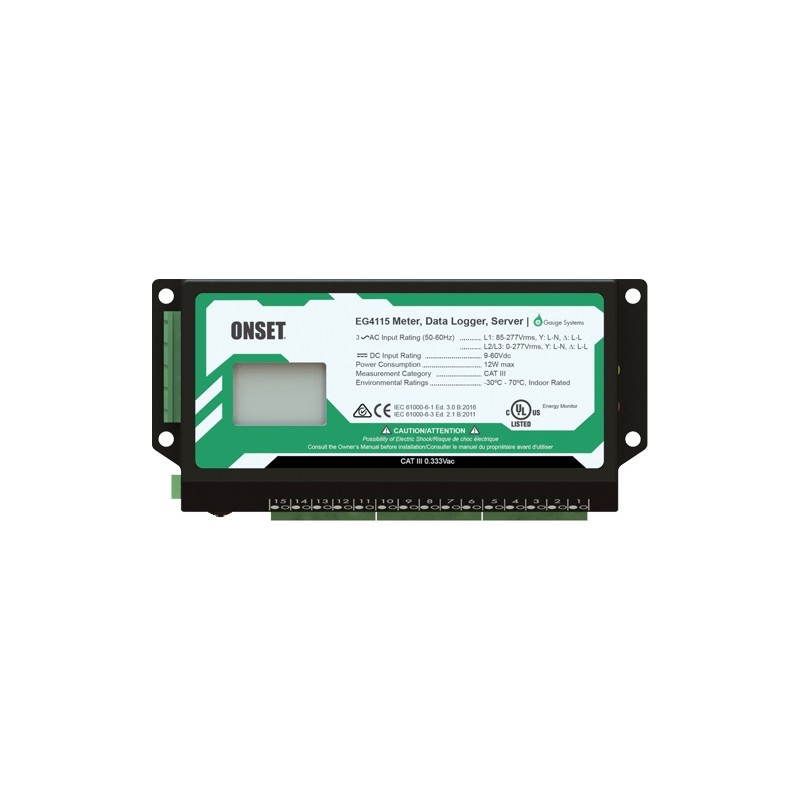

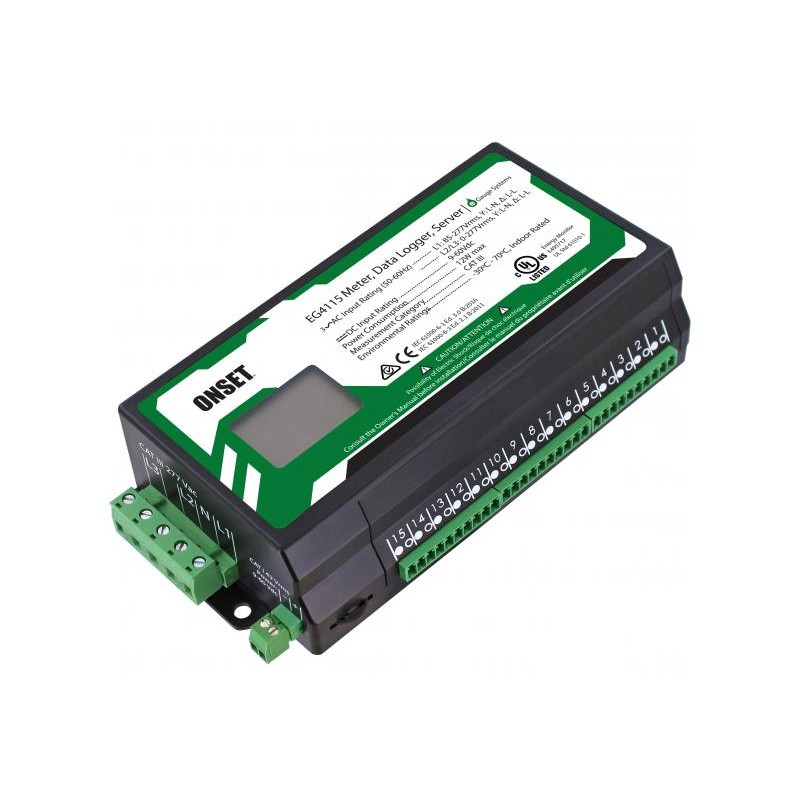

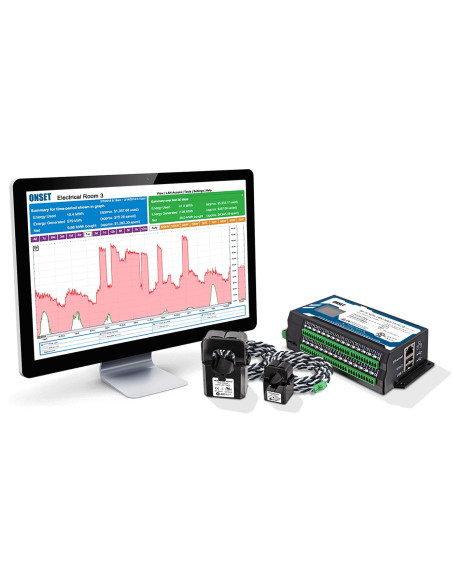

The EG4115 is a 15-channel energy meter with 0.5% revenue-grade accuracy compliance and the ability to measure residential or commercial circuit panels, up to 3-phase 277/480VAC and 6900A. The meter has HomePlug AV powerline communication, an Ethernet port, and 2 USB ports for additional options, like WiFi. The embedded web server lets you connect to the interface over the internet or on a local area network. Each unit has a data logger that stores up to 64 data points for the lifetime of the hardware, and you can access data as granular as 1-second averages for the most recent hour of recording.

  • Highlighted Features

- 15 sensor inputs
- Supports wide range of current transformers (CTs) to accommodate virtually any size load

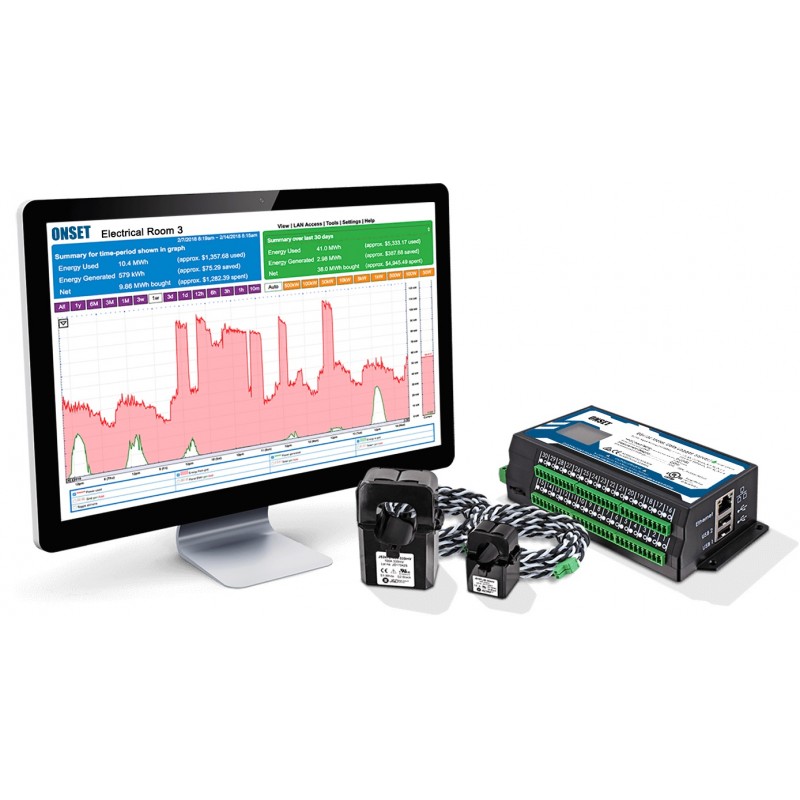

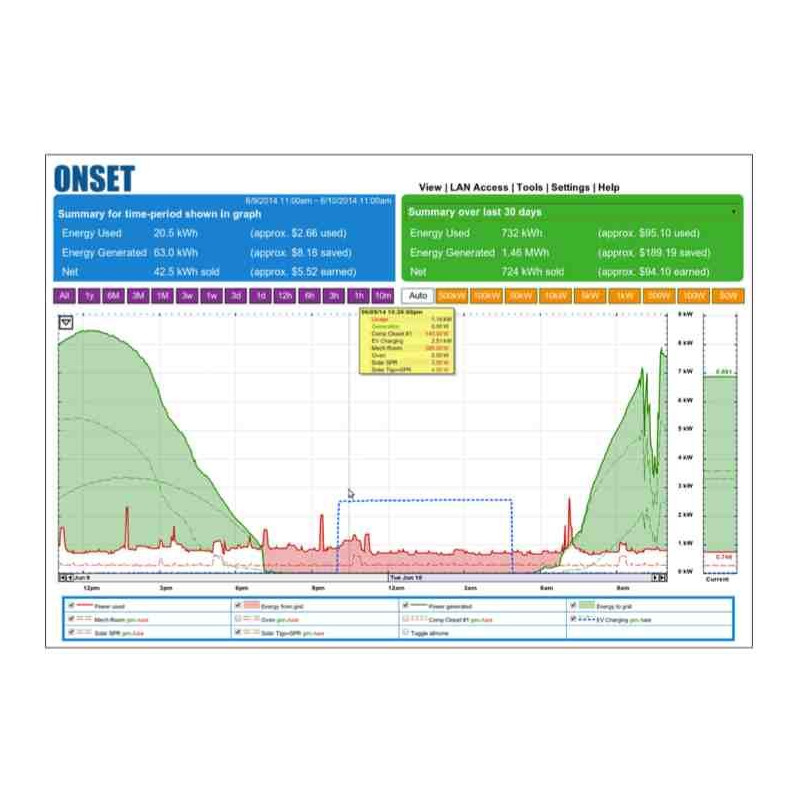

- Built-in web server and graphical monitoring software
- Custom views and alerts; CSV exports of granular data
- Fully web-configurable
- Built-in solid-state memory
- No service contracts
- No batteries

  • In what environment does this data logger operate?

This data logger operates in an indoor environment.

  • What measurements does this data logger support?

The EG4115 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Kilowatts (kW), Volt-Amp Reactive, Volt-Amp Reactive hour, Watt Hours (Wh) and Watts (W)

Measurement

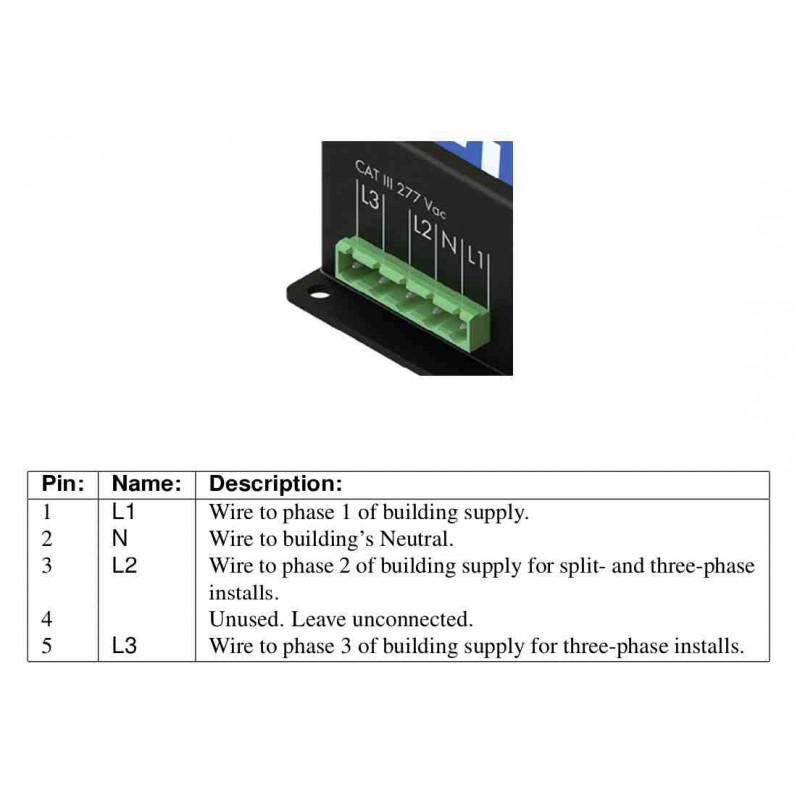

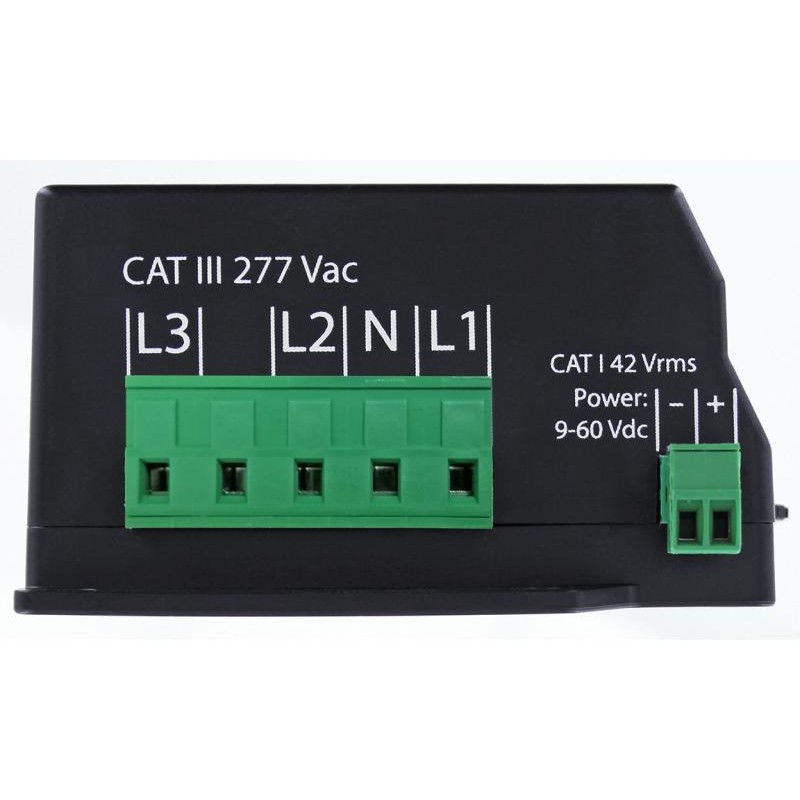

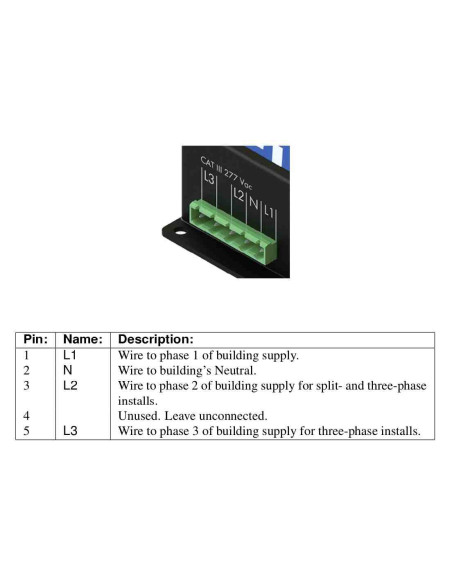

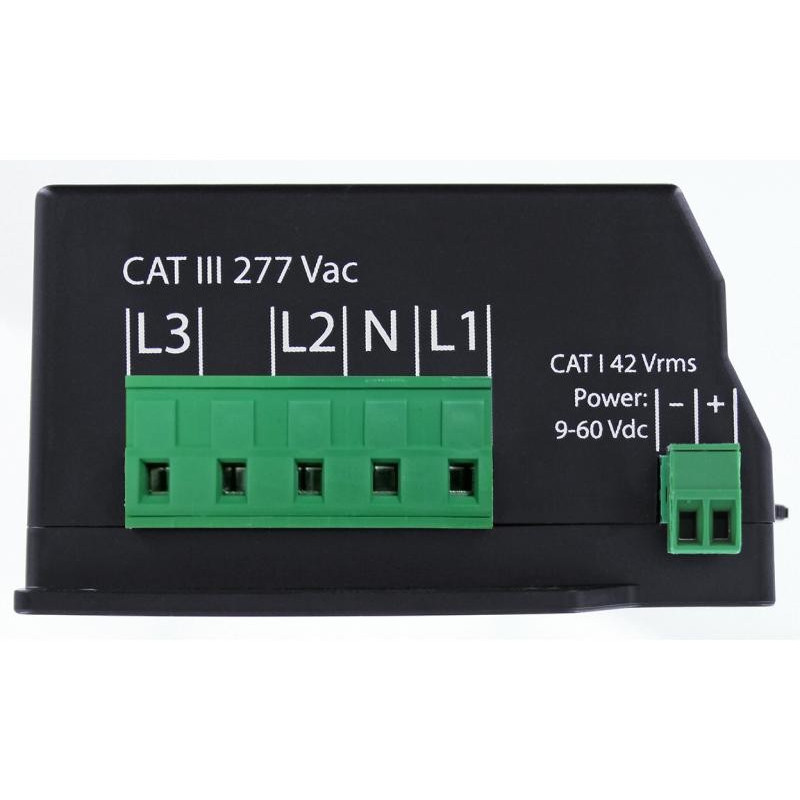

AC Voltage: L1: 85-277 Vrms
L2: 0-277 Vrms
L3: 0-277 Vrms
DC Voltage: 42 Vrms

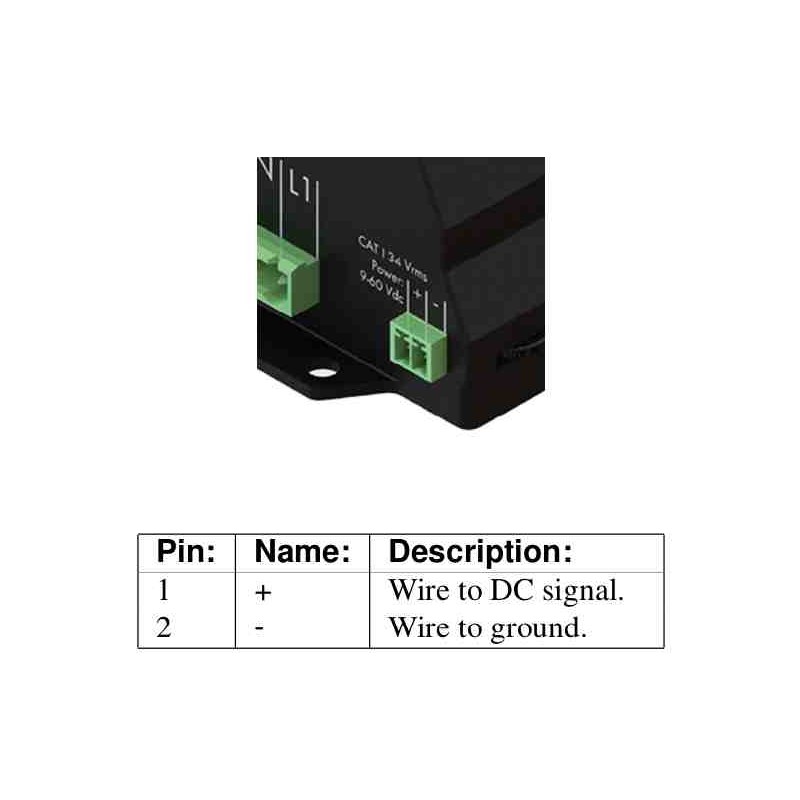

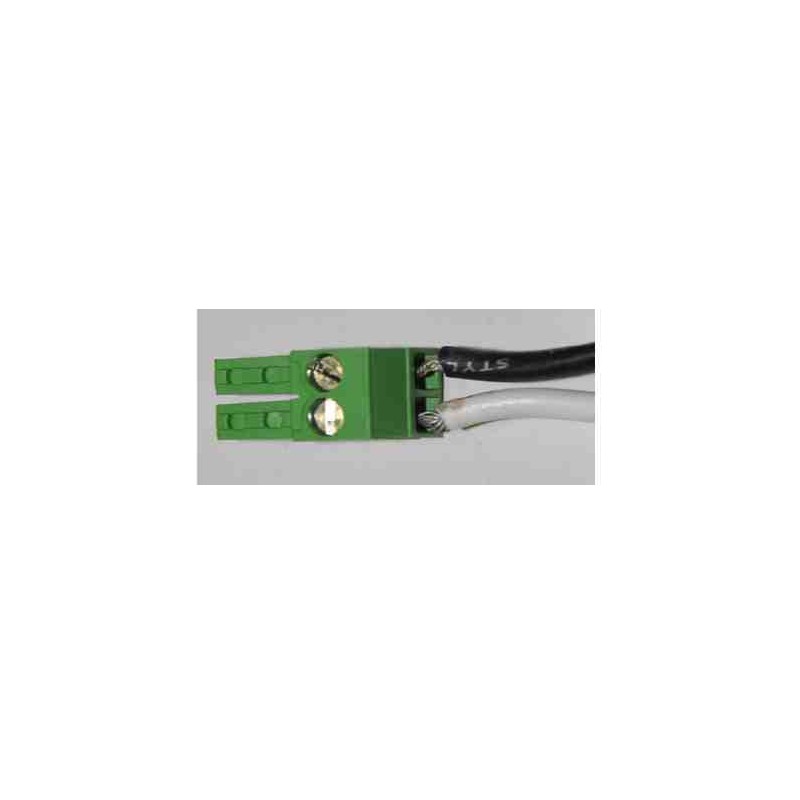

Power: 9-60 Vdc
Measurement: +/-60 Vdc

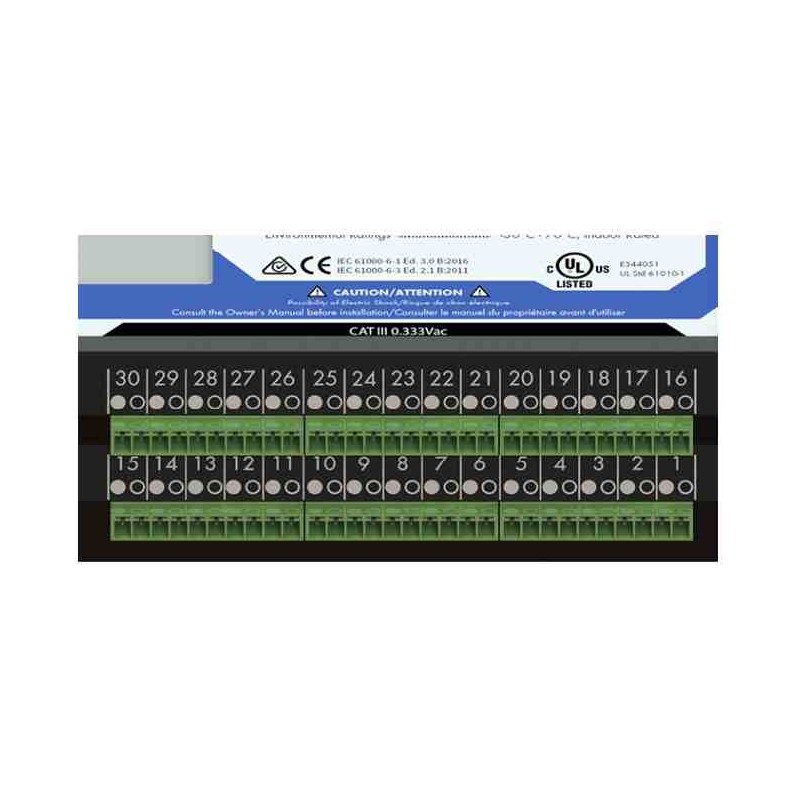

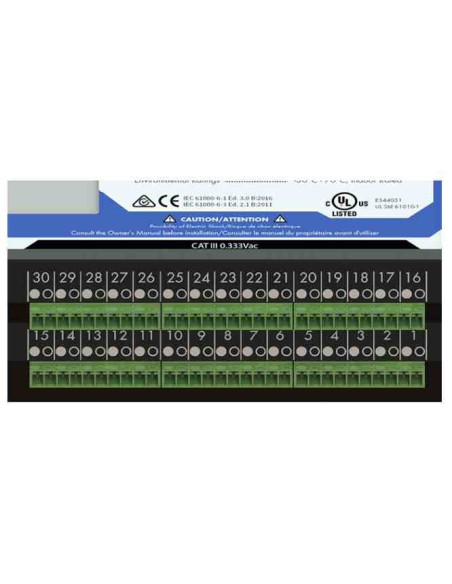

Current: 15 channels
5-6900A max per channel
Fully isolated inputs
Frequency: 50 or 60 Hz
Logging Values: V, A, W, Wh, Hz, VA, VAr, THD, deg
Power Draw: 12W max, 2W typical
Environmental
Op. Temperature: -30 to 70 deg C (-22 to 158 F)
Max Altitude: 4000m (13,123ft)
Max Humidity: 80% up to 31 deg C
Meas. Category: Overvoltage Category III
Location: Open type indoor device
Pollution Degree: 2
Data Logger Capacity
Register Count: 64 (data storage points)
Granularity: 1 hour/1 second
(duration/avg) 1 year/1 minute
10 yrs/15 minute
Device Lifetime/1 Day
Safety and Regulatory
Safety: IEC/UL 61010-1 Ed. 3.0 B:2010
CE: IEC 61000-6-1 Ed. 3.0 B:2016
IEC 61000-6-3 Ed. 2.1 B:2011
FCC: FCC Title 47 CFR Part 15-Subpart B Class B
ICES-003 Information Technology Equipment Class B
Communication
Homeplug AV: Compatible with Homeplug AV-adapter within ~100ft. on same phase as L1

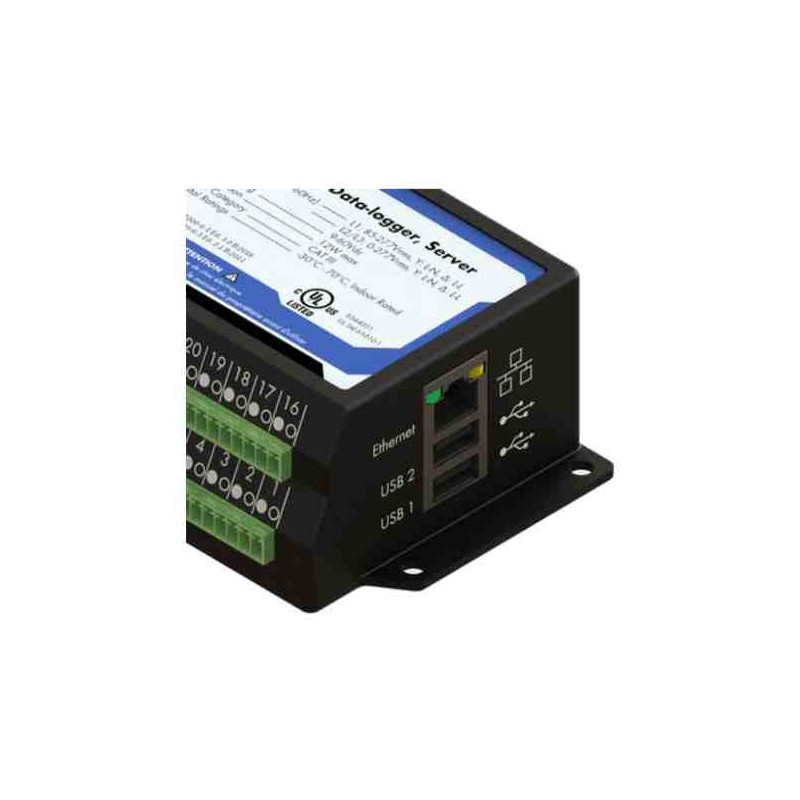

Ethernet: IEEE 802.3 - LAN
User Interface
Compatible Browsers:
(Only up-to-date versions supported)
Google Chrome
Firefox
Safari
Internet Explorer
Enclosure
Material: FRABS
Dimensions: 17 x 8 x 4.6cm
(6.7 x 3.15 x 1.81in)
Weight: 300g (0.66lbs)
Warranty Standard: 2 years
