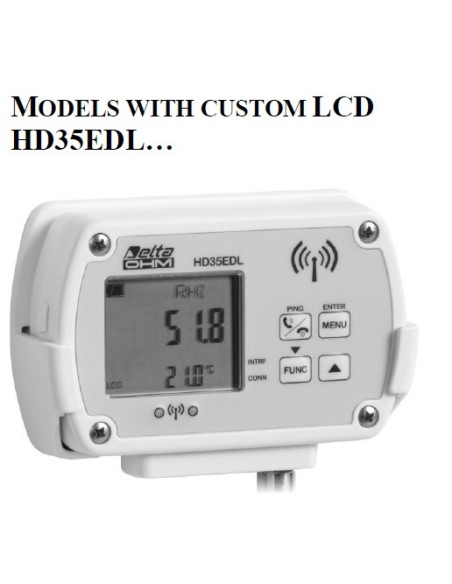

HD35EDL Wireless Data Logger (optional LCD display)

View larger

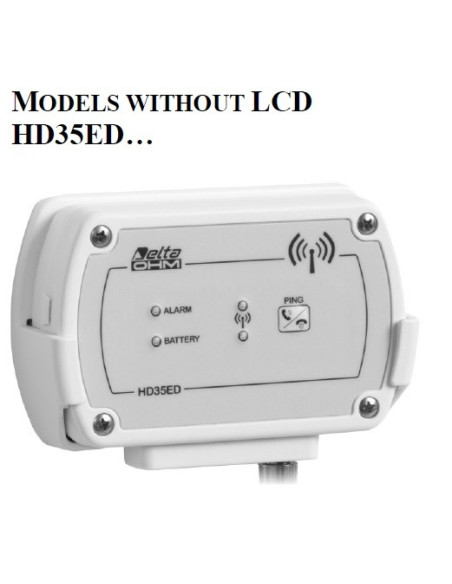

HD 35 Series Wireless Data Logger (with/without LCD display)

Reference HD 35

Manufacturer: Delta Ohm

Condition: New

It stores the measures in its internal memory and transmits the logged data to the base unit automatically at regular intervals or upon request. Optional Custom or Graphic LCD display.

Transmitting range in open field: 300 m (E, J) / 180 m (U). Acoustic alarm with internal buzzer. Powered by the internal battery. Supplied with: internal 3.6V not rechargeable lithium-thionyl chloride (Li-SOCl2) battery, wall mount support HD35.03 (models for indoor use only), operating manual.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
RELATED PRODUCTS
HD 35 SYSTEM
Download

HD35_D_es Download (3.08M)

HD35_Manual_es Download (16.93M)

An HD 35 system consists of the following components:
• HD35AP ... basic unit
• HD35RE ... repeaters
• HD35ED ... data logger series
• HD35ED-ALM remote alarm device

The radio frequency (868 MHz: option E, 902-928 MHz: option U or 915.9-929.7 MHz: option J) has to be specified when ordering.

The kit HD35.11K (pair of flanges, pin for padlock and padlock) for fixed installation has to be ordered separately.
