CT-2VA Electrocorder Power Logger and Energy Logger for Industry and Light Commercial

Acksen

New

One voltage channel 300Vac
Two models available, 60Aac or 400Aac range.
Complete with Electrosoft energy analysis software
Sealed to IP65/NEMA 12/4 as standard

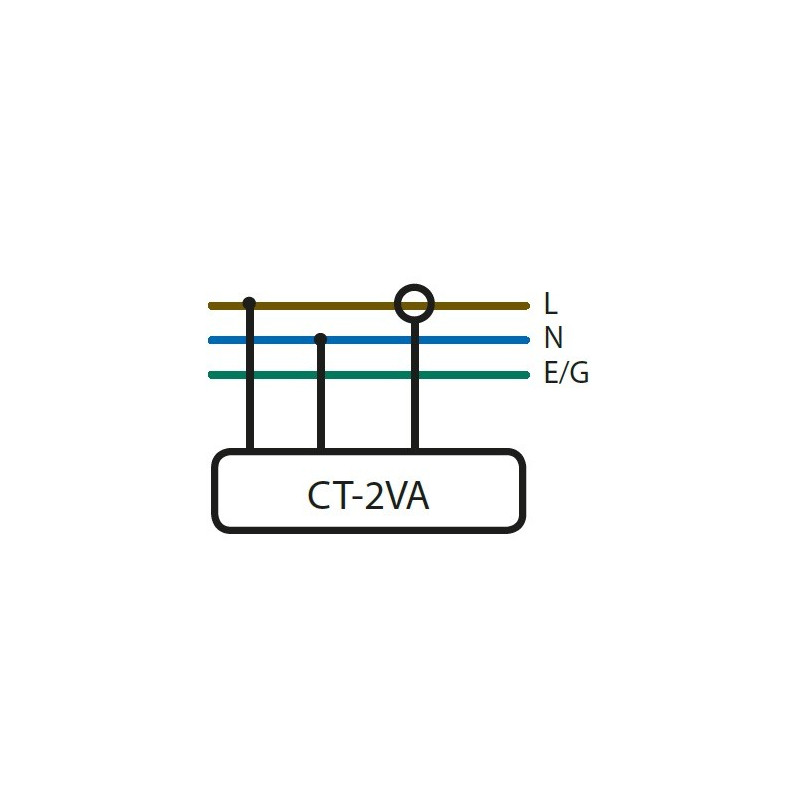

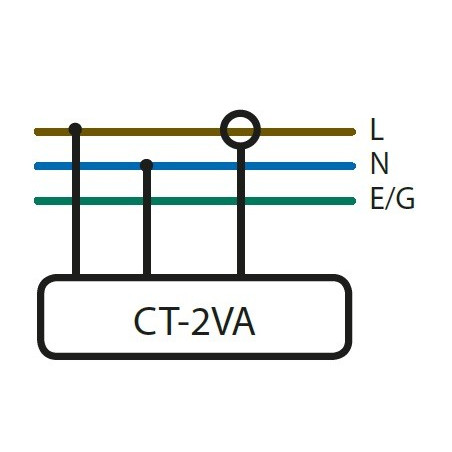

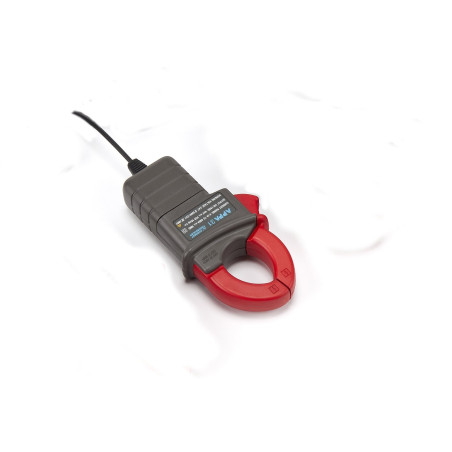

The CT-2VA is a single-phase voltage and current data logger that uses a clip-on CT (current transformer) and plug to connect to the mains supply / equipment you wish to monitor. Setup the Logger using the Electrosoft software, then fit it to the distribution board or other point that you're going to measure.

630,00 €

Add to wishlist

Type of Logger Electric Power

This logger is designed to be installed by a competent person (generally an electrician or engineer), and if isolated test points or a mains socket are available can be fitted without power interruption.  Once you're set up, it'll start logging automatically as soon as voltage is detected!  The indicator will flash Green when logging.

When the logger's finished recording (or you've captured enough data!) just disconnect from supply, hook it up to your PC and download the information.  Electrosoft will let you view the data immediately on-screen and save or export for later analysis.

The CT-2VA data logger is used by power distribution companies, facilities management, electrical or site services and maintenance engineers to monitor both voltage and current variations helping them to diagnose any related issues, or to gather data perhaps to make representations to their power supplier . As the product records both voltage and current, users can determine if low voltage is related to high current demands on site, or if the low voltage is being supplied to the site.
The advantage of the Electrocorder products over most others is that our data loggers constantly sample information (recording the Min, Max and Average) over the set period, many other products only take 'snap shots' of what is going on and can miss 99.9% of the data that is critical to your analysis.

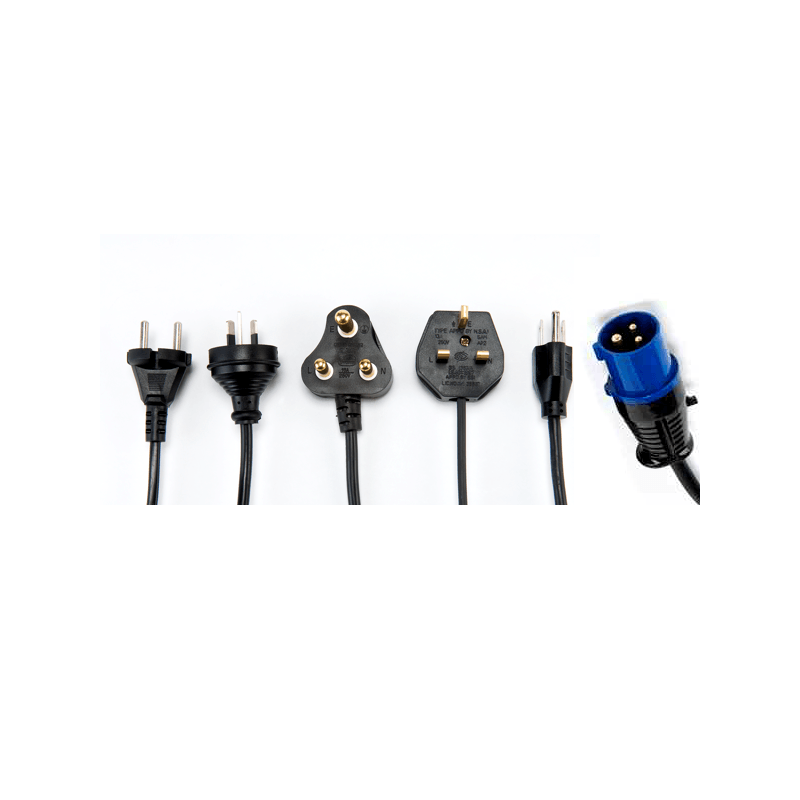

Set includes data logger, voltage input lead, CT, USB lead, Electrosoft software and carry case.

Determining product order codes:
To specify your Electrocorder select various codes and enter into the boxes in order to create an accurate product code. For example: CT-2VA-5H-UK-IP65-SET.
