CT-2VA DC Electrocorder Energy Logger for Industry and Light Commercial Applications

Acksen

New

The DC-3VA is specifically designed to accurately monitor one or two DC voltage channels, 1V to 300Vdc and one DC current channel.

Current Options:

± 10Adc to ± 100Adc
± 30Adc to ± 300Adc
± 100Adc to ± 1kAdc

Environmental Sealing:

IP43 or IP65

1 145,00 €

Add to wishlist

Type of Logger Electric Power

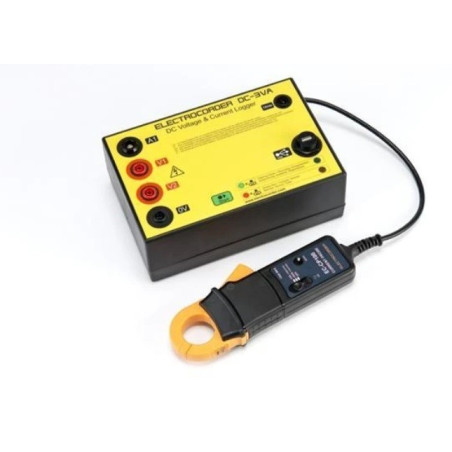

The DC-3VA is a three-channel DC voltage and current data logger.  Setup the Logger using the Electrosoft software, then fit it to the supply/equipment that you're going to measure.

This logger is designed to be installed by a competent person (generally an electrician or engineer), and if isolated test points are available can be fitted without power interruption.  Once you're set up, just press the Start button to start logging!  The onboard indicator will flash Green when logging.

When the logger's finished recording (or you've captured enough data!) just disconnect from supply, hook it up to your PC and download the information.  Electrosoft will let you view the data immediately on-screen and save or export for later analysis.

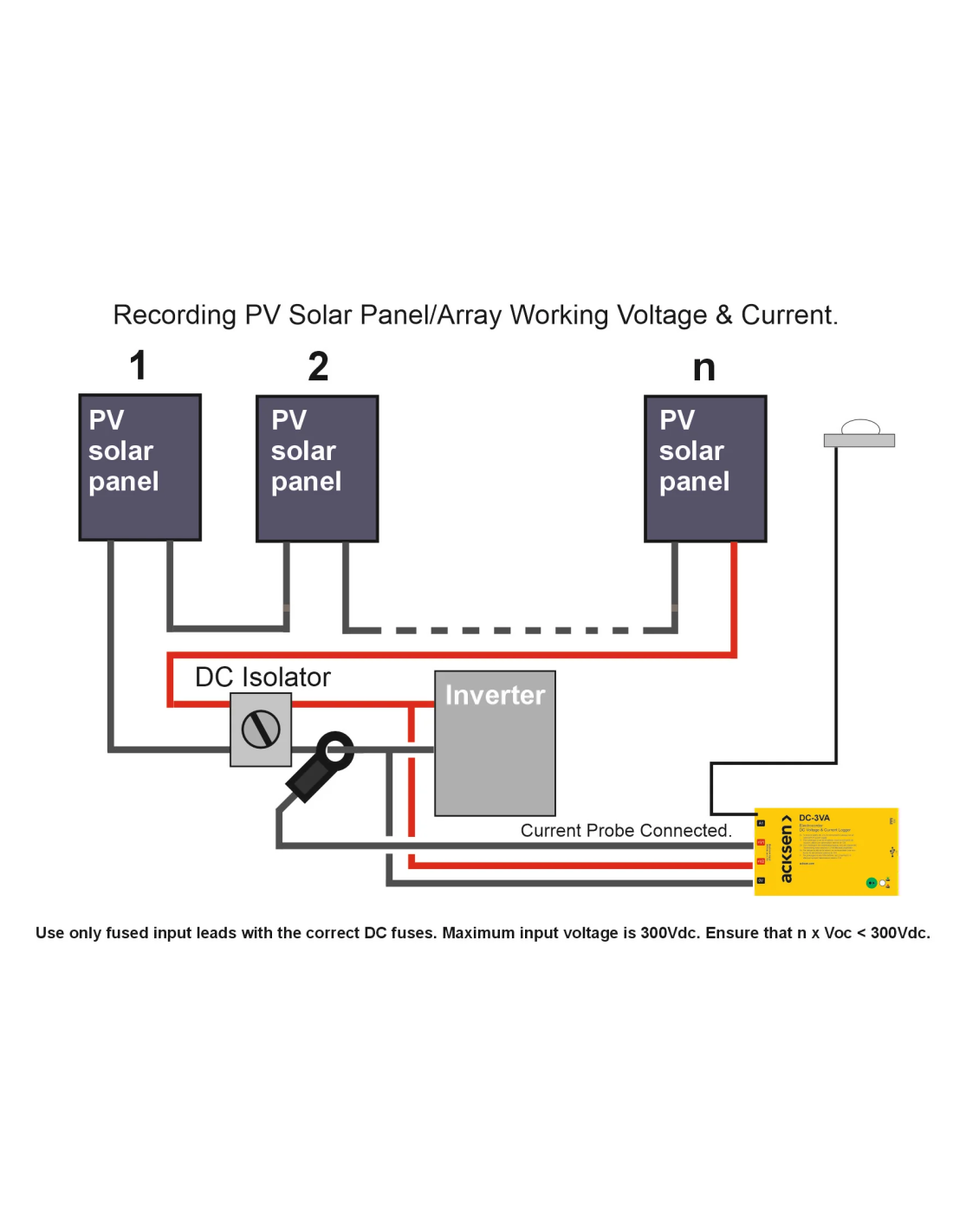

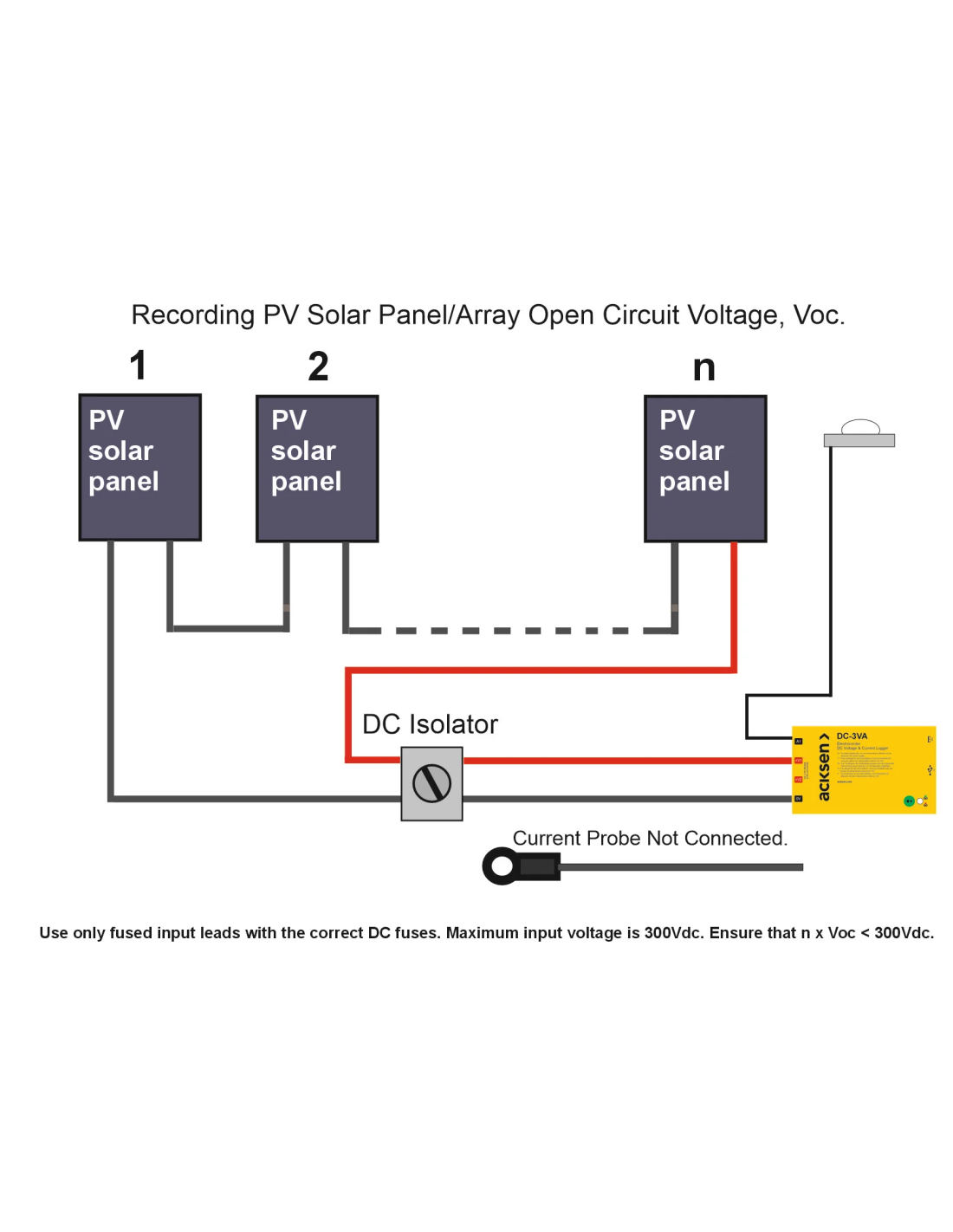

The DC-3VA data logger is ideal for monitoring and recording one, two channels of DC voltages from up to 300Vdc and one channel of DC currents on either a 10A, 100A or 300A scale; for example from batteries, circuit breaker trip batteries, charging circuits, power supplies, photovoltaic (PV) cells, DC motor circuits, DC Generators, DC telecoms circuits.

The advantage of the Electrocorder products over most others is that our data loggers constantly sample information (recording the Min, Max and Average) over the set period, many other products only take 'snap shots' of what is going on and can miss 99.9% of the data that is critical to your analysis.

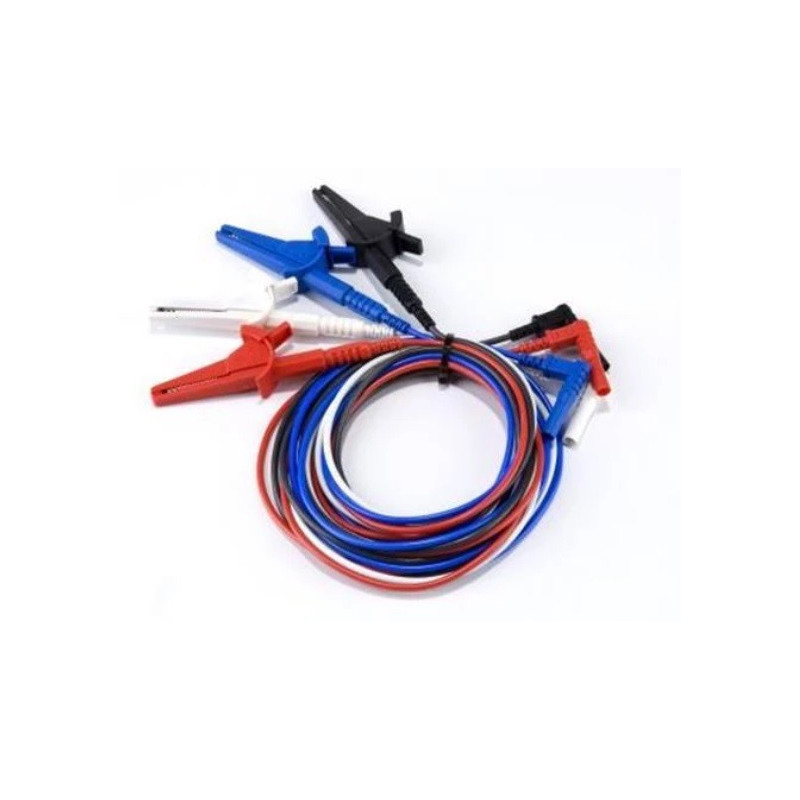

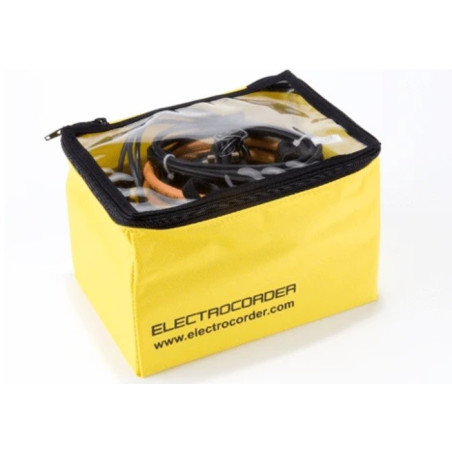

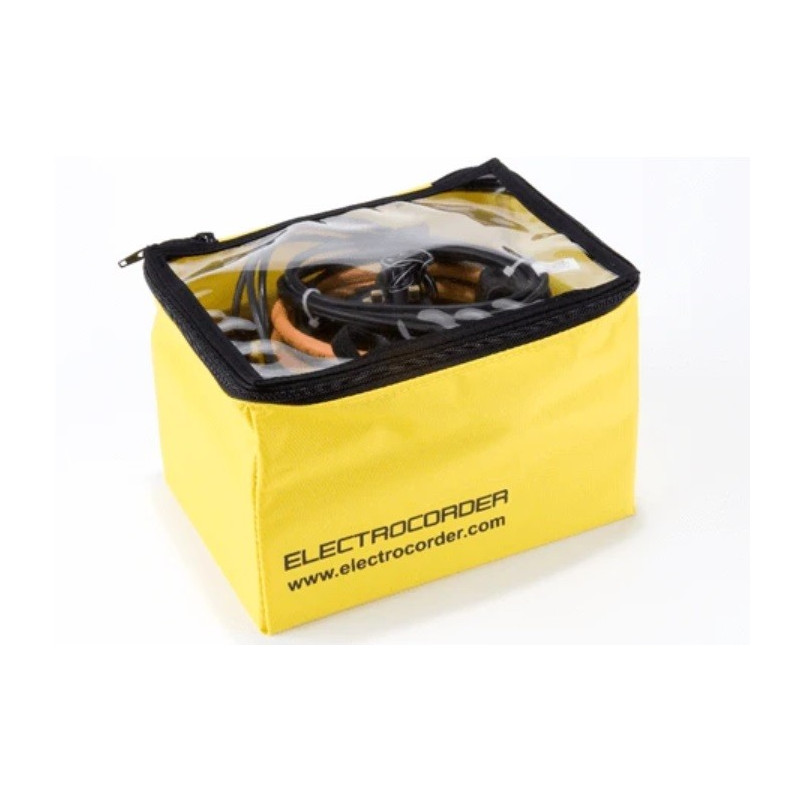

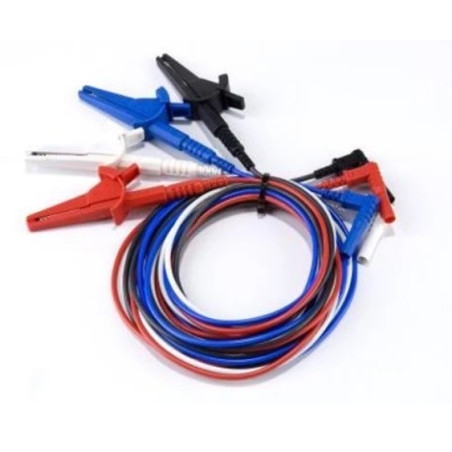

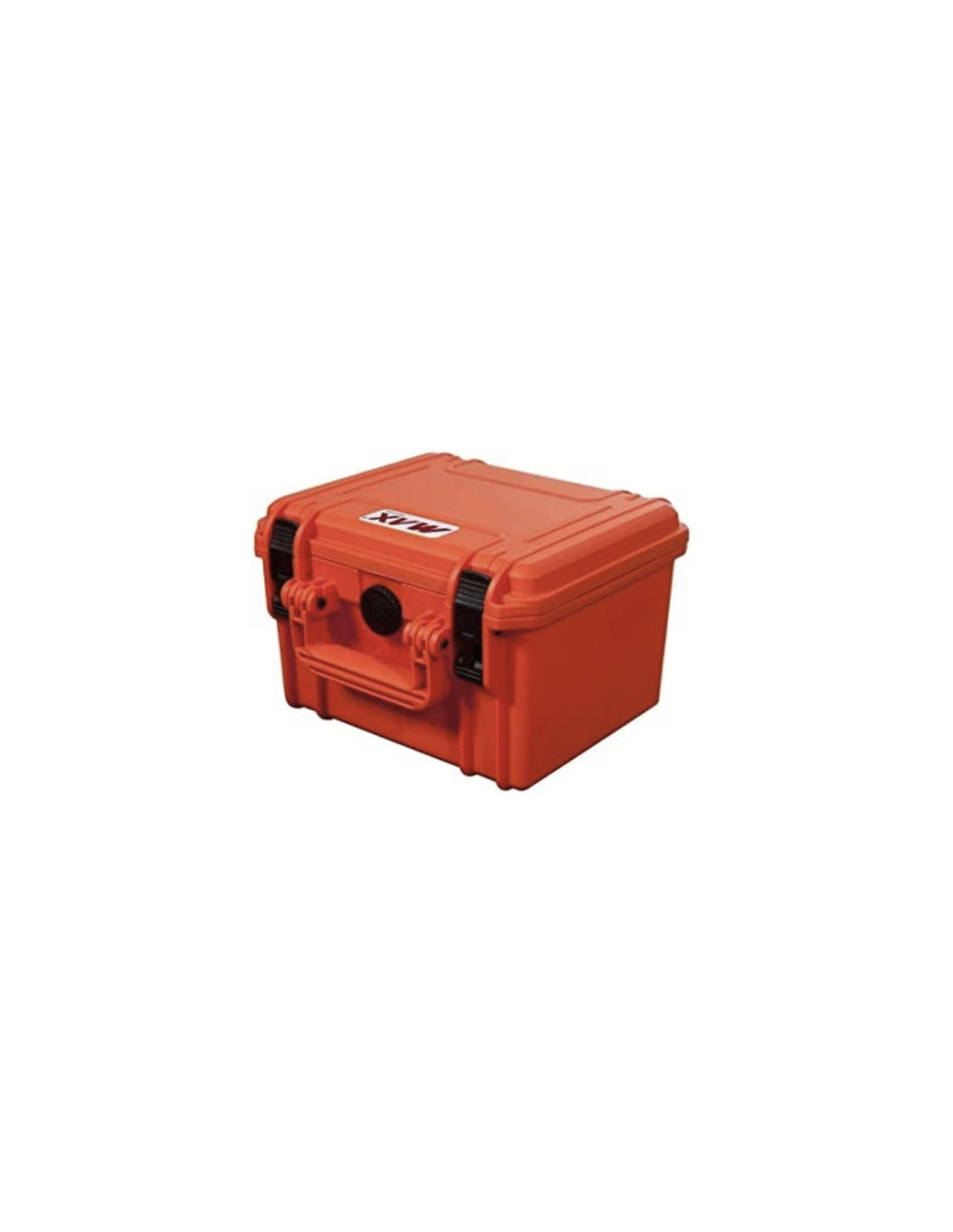

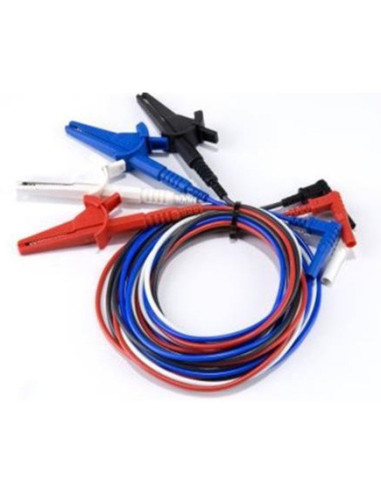

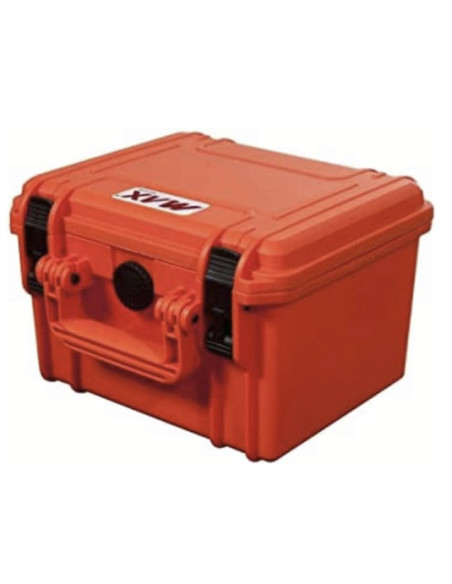

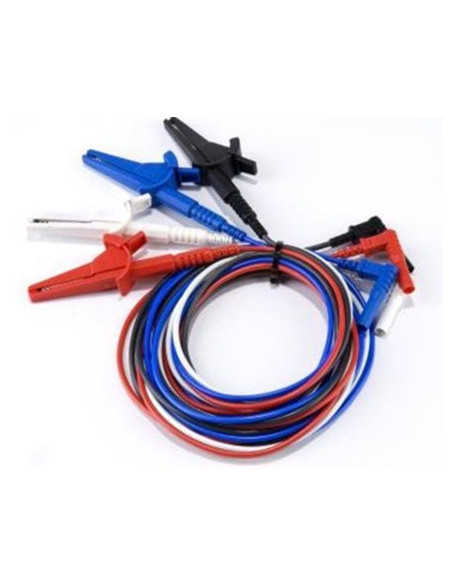

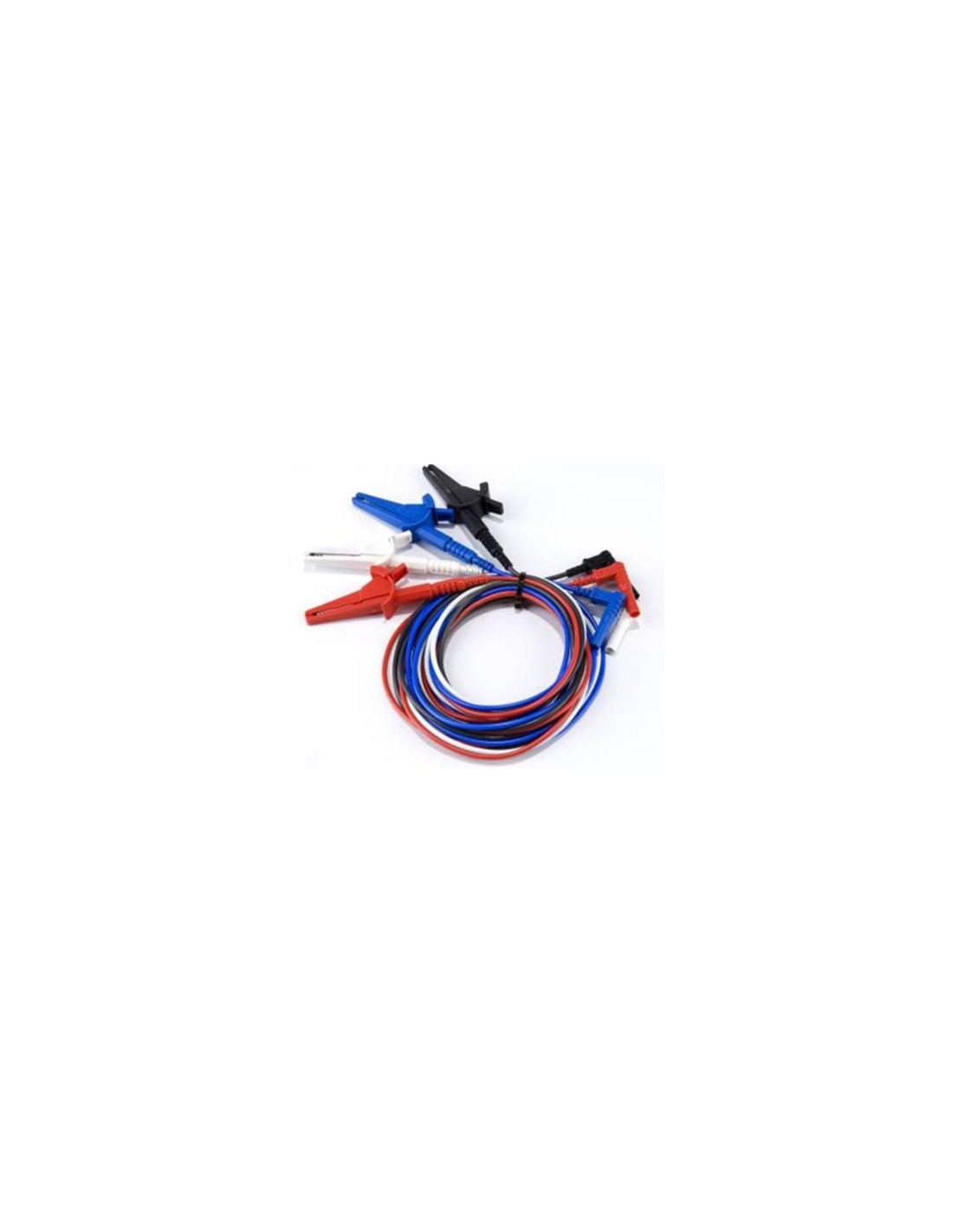

Set includes data logger, fused voltage leads, DC current probes, USB lead, 12Vdc PSU, Electrosoft software and carry case.
