EC-3V Three Phase Voltage Logger

Reference

Manufacturer: Acksen

Condition: New

The EC-3V is used by power distribution companies, voltage and energy optimisation companies, facilities management, electrical or site services and maintenance engineers to monitor voltage variations on site helping them to diagnose any voltage related issues, or to gather data perhaps to make representations to their power supplier. Voltage optimisation companies also use the product to monitor voltage levels pre and post optimisation.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

730,00 €

tax excl.

Quantity

Line Frequency

Voltage Lead Colors

IP Protection ENVIRONMENTAL SEALING

Add to wishlist

OVERVIEW
SPECIFICATIONS
VIDEOS
Data sheet
Download

ADC Bits	10 bit
Precision	±1%
IP Classification	IP43
Warranty Period	+10 years

MANUAL EC-3V Download (189.98k)

MANUAL PT EC-3V Download (90.88k)

SPECS EC-3V Download (260.68k)

OPTIM EC-3V Download (599.33k)

Two sizes are available, the larger EC-3V and the smaller SL-3V, which is about a quarter of the size. The SL-3V has a shorter battery life of approximately 9 months, around 1/3 of the EC-3V (24 months). Note the EC-3V has native USB communications and has a phase sequence (rotation) checker as standard, and the SL-3V has RS-232 comms and no integral phase sequence checker.

The advantage of the Electrocorder products over most others is that our data loggers constantly sample information (recording the Min, Max and Average)over the set period, many other products only take 'snap shots' of what isgoing on and can miss 99.9% of the data that is critical to your analysis.

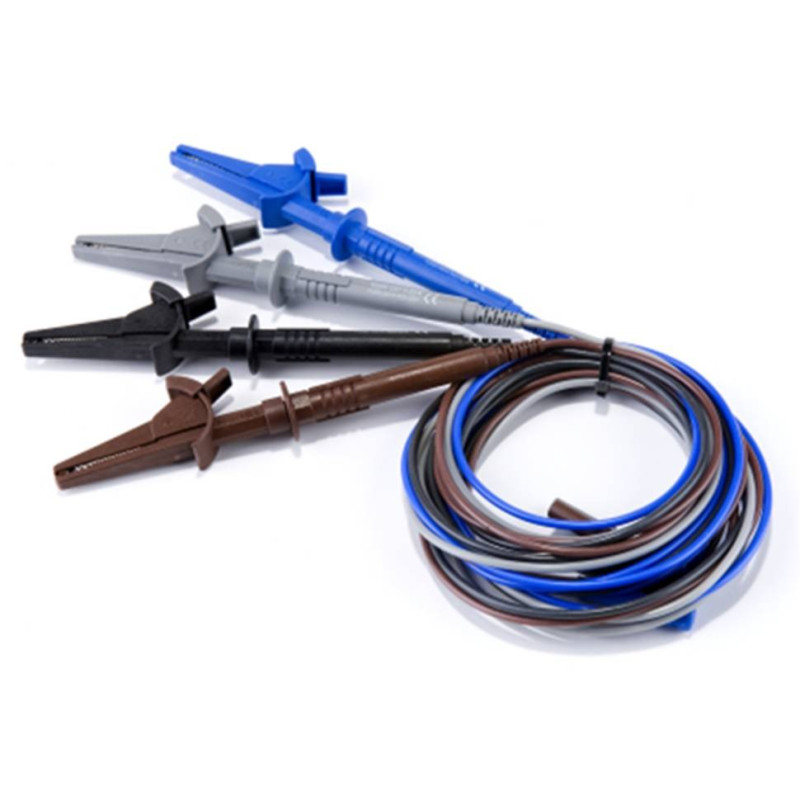

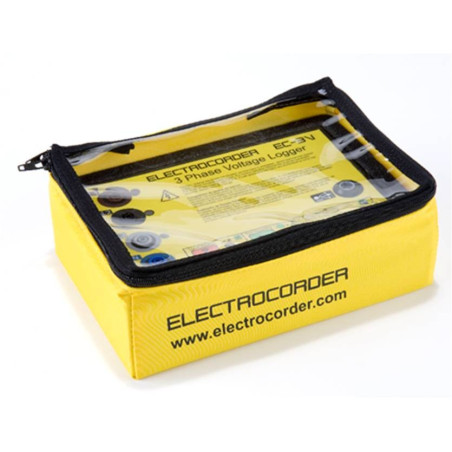

Kit includes data logger, voltage input leads, USB lead, Electrosoft software and a carry case

Ideal for industrial logging
CAT Rating: CAT III

Voltage Range: 500V

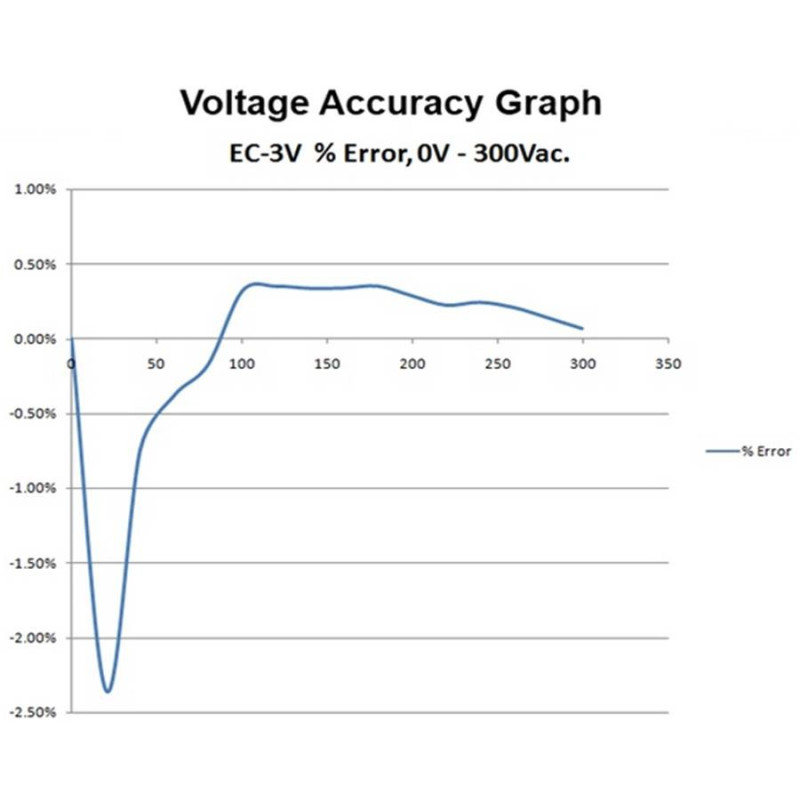

Voltage Accuracy: ±1% of reading ±1 Volt, 90Vac - 450Vrms (ph – ph); else ±3%. (50/60Hz ±2%)

Recording Period: 1 sec to 60 mins
Recording Standard: EN50160

Environmental Sealing: IP43 as standard, available as IP65/NEMA 12/4
Size & Weight: Metric - 250x175x70mm & 500g

Harmonised Code: 9030.39.01
