EC-3A-RS Three Phase Current & Energy Logger

Acksen

New

For Load Surveys, Energy Audits, Current Consumption Queries.
Rugged enclosure, with protective carry case.
Flexible Rogowski coils (‘CTs’).
Constant sampling, misses nothing.
‘No Voltage’ logging, with long 3-month battery life.
Used by SSE, ESB, NIE, Dalkia, plus many more.

915,00 €

tax excl.

Add to wishlist

Number of Channels 3 Current
ADC Bits 10 bit
Precision ±0.2°C
With Display No
IP Classification IP65
Communications USB
Battery Life 3 month
Maximum Pulse Rate 800 Hz
Memory Capacity 96,000 measurements
Warranty Period +10 years

Ideal analysis logger for Energy Audits
The affordable Electrocorder is the best value solution for carrying out site audits, with great analysis and reporting tools in our free software.  Our focus on providing an easy to deploy energy analyzer with built-in equipment management tools helps to make logging as effective as possible.  Tamper-proof setup means that installers or other personnel can't casually change or view logging parameters and invalidate data.

Designed for extended Volt-free Logging
Operates on replaceable batteries for up to 3 months of volt-free logging when needed, with optional external power input for extended life.  Rugged and reliable, with IP65 environmental sealing as standard!

Never miss data with Constant Sampling
Constant Sampling ensures that you never miss any data, with minimum and maximum values displayed across the averaging period.  Records for up to 50 days to EN50160 standard.  Averaging period can be set from 1 second to 60 minutes (301 days).  Many other loggers will only take data snapshots, meaning that you miss crucial trend data.

Industry Standard
Electrocorder is the market leader in energy and power analysis and fault diagnosis, used to troubleshoot and resolve customer complaints by electricity network suppliers throughout Europe such as Dalkia, SSE, Electricity North West, ESB Networks and NIE Networks.  Supplied Worldwide to utilities, industry and electrical contractors.  Acksen has been designing and manufacturing Power Quality Loggers since 1994, using our expertise to provide highly robust and reliable equipment - so much that we're prepared to offer a free lifetime warranty on all our Loggers (conditions apply).

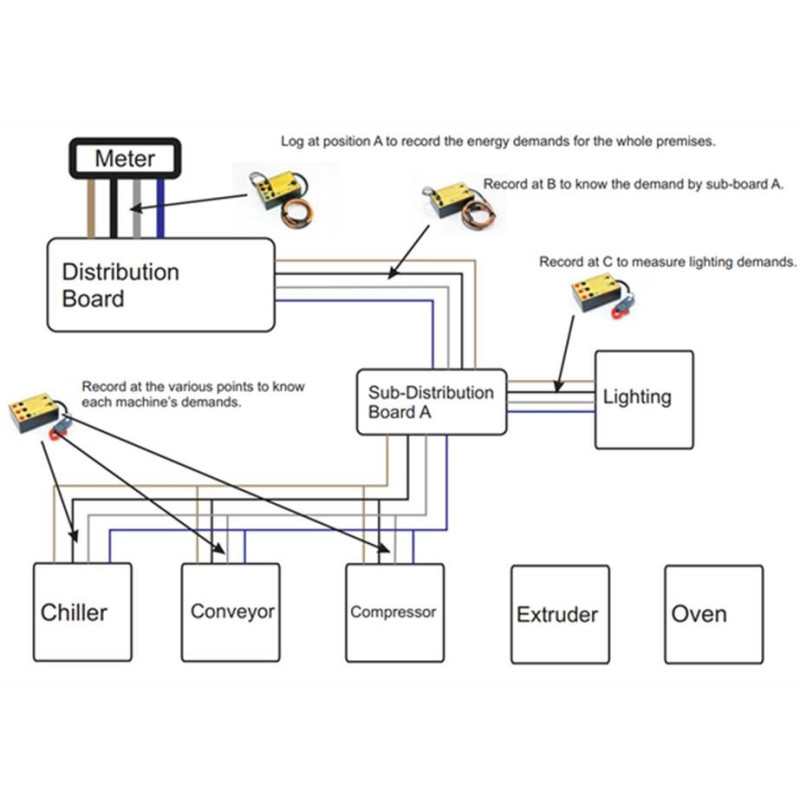

Perfect for Load Surveys/Feeder Loading Analysis
The EC-3A-RS is used by power distribution companies, heavy industry, facilities management, electrical or site services and maintenance engineers to monitor loading variations on site helping them to diagnose any related issues, transformer and feeder sizing problems. Ideal for gathering data to make a case for splitting-up the loading or increasing circuit capacity.  Available in 5kA or 10kA variants on request for larger sites!

Included with your Energy Data Logger Kit
Everything you need to operate is included - no hidden extras required!

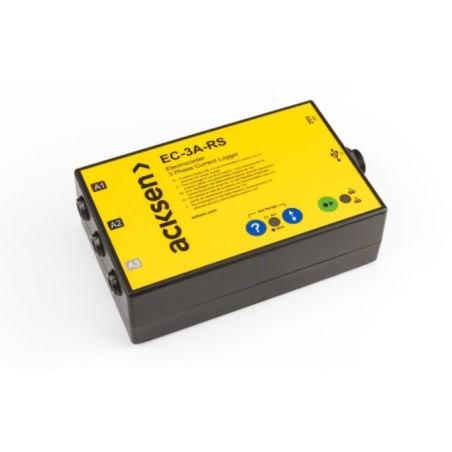

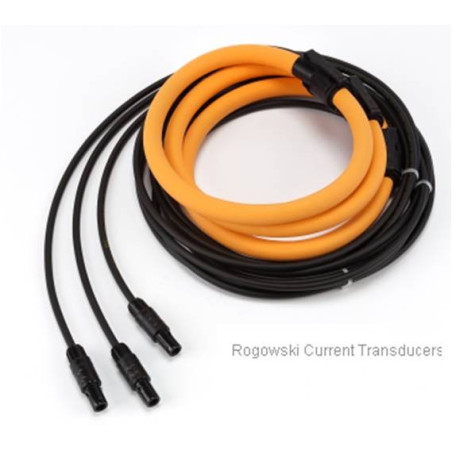

Electrocorder EC-3A-RS with 3 flexible rogowski coils
USB Download Cable
Zipped Carrying Case
User Instructions
Free analysis software download

Free Electrosoft PC Software

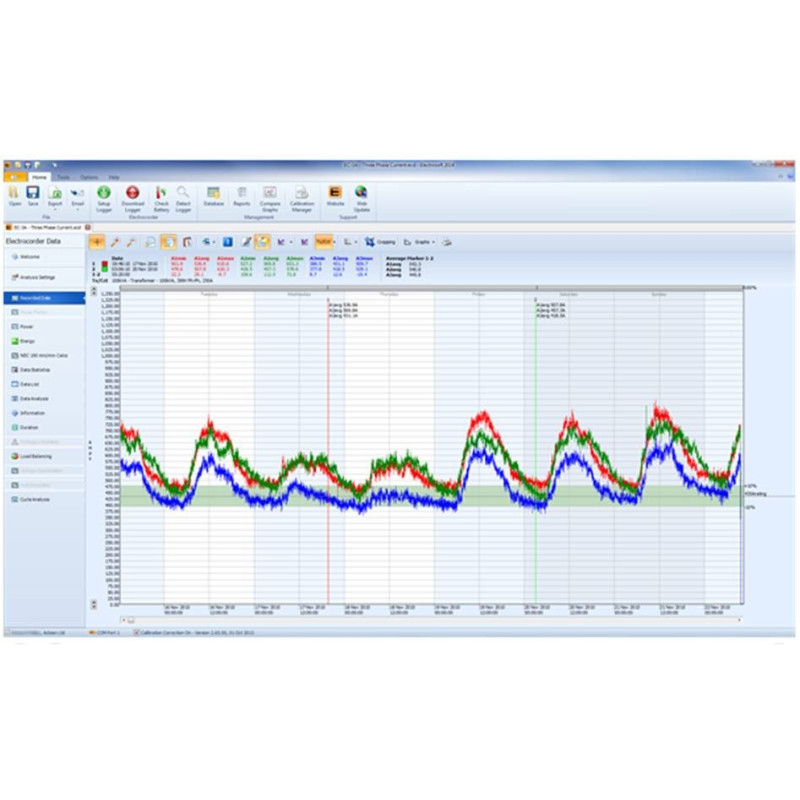

Free Electrosoft software (compatible with Windows 10 down to XP) allows you to view and zoom on Current, Power and Energy graphs.  Data can be exported to Microsoft Excel in one click or emailed to colleagues.  A wide range of analysis reports can be printed or saved as PDF files with your company logo!

Electrosoft includes many more industry-leading features such as Statistics and Load Balancing, Tariff & Costing Analysis with Annual CO2 and Energy usage projections, Logger Management Database and Calibration Management tools.

Electrosoft also includes sample files so you can download and try it out now without needing a logger!

Input Channels:
3x Current (flexible Rogowski coils) - True RMS Average, Minimum and Maximum
Frequency: 50Hz or 60Hz models

Ranges:
400A or 3kA (manually selected)

Dimensions & Weight:
Logger: Metric - 260x180x190mm & 2kg,  Imperial/English - 10" x 7" x 8" & 4lb
Rogowski Coil fits around 140mm cables
Rogowski Coil dimensions: Lead Length 2m/6’6” Sensor Length 450mm/18” Sensor Diameter 145mm/6”

Environmental:
Sealing: Sealed to IP65
Operating Range: -10C to +40C or +14°F to +104°F
Case Material: ABS

Standards Compliance:
CAT Rating: 1000V CAT III, 600V CAT IV
Recording: EN50160: 1994

Accuracy:
Current: ±2% of range, typically (±5% of range outside 10%-90% of selected range)

Reading Floor: 4A on 400A range, 20A on 3kA range
Time Clock: Greater than 0.001%

Power Supply:
Batteries are primary cells, 6 x 1.5V C-Cell Alkaline (IEC-LR14, ANSI/NEDA-14A), with 12Vdc input socket for external power supply/battery.

Battery Life:
Approx. 3 months logging (full batteries)
Logging life is unlimited with external PSU, or extended with external battery.

Measurement/Recording:
Recording Period: 1 sec to 60 mins

Recording Duration: 2 hours to 301 days
Recording Standard:EN50160:1994
Recording Method: Constant Sampling, 16 samples per cycle
Sampling Frequency: 800Hz at 50Hz or 960Hz at 60Hz
Sampling Resolution: 10-bit

Memory:
Memory Type: SEEPROM, Non-volatile
Memory Capacity: 192kB (32,000 current levels per channel)

Conformity:
Emissions EN55022:1994B, (EN50081-1:1992).
Immunity EN50082-2:1995, following the provisions of EMC directive 89/336/EEC.
Recording std EN50160:1994.LVD 72/23/EEC with respect to EN60065. (IEC-61010).
All models certified (light industrial, 3V/m).

General:
Harmonised Code: 9030.39.01

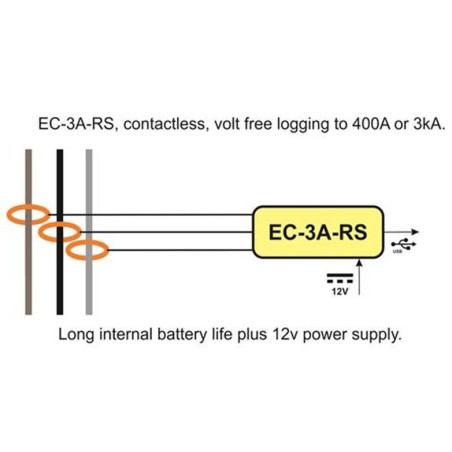

The EC-3A-RS is a three-phase current data logger that just needs its 3 flexible Rogowski coils connected to your incoming supply.  Setup the Logger using the Electrosoft software, then fit it to the distribution board or other point that you're going to measure.

As no voltage input is required, you can fit easily as a competent person without necessarily requiring an electrician or engineer, and may not require any power interruption at all.  Once you're set up, just press the Start button to start logging!  The onboard indicator will flash Green when logging.

When the logger's finished recording (or you've captured enough data!) just disconnect from supply, hook it up to your PC and download the information.  Electrosoft will let you view the data immediately on-screen and save or export for later analysis.

For a demonstration of how to use the logger, please watch our view below - please note that in the video below the model used is the forerunner of the CT-3A-RS which uses CTs rather than Rogowski coils.

Electrosoft, for all Electrocorders

Electrosoft 2018 (v6.4.0 Build 0568)

Requires Microsoft Windows XP, Vista, 7, 8, 10 or 2003/2008/2012 Server.

Compatible with 32-bit and 64-bit versions of Windows.

Free Electrosoft software (compatible with Windows 10 down to XP) allows you to view and zoom on Current, Power and Energy graphs.  Data can be exported to Microsoft Excel in one click or emailed to colleagues.  A wide range of analysis reports can be printed or saved as PDF files with your company logo!

Electrosoft includes many more industry-leading features such as Statistics and Load Balancing, Tariff & Costing Analysis with Annual CO2 and Energy usage projections, Logger Management Database and Calibration Management tools.

Electrosoft also includes sample files so you can download and try it out now without needing a logger!

Please watch our brief video below for an overview of how to use Electrosoft with your Electrocorder.

Electrosoft Datasheet

Video Support for Electrosoft

Video Support for Electrosoft

USB-RS232 Converter Drivers

Download USB Drivers (Windows)

NOTE, all drivers are installed automatically by Electrosoft/TempLog, driver downloads are available on the Support Page for users that run older versions of Electrosoft and want to use our USB converter with that older version.
