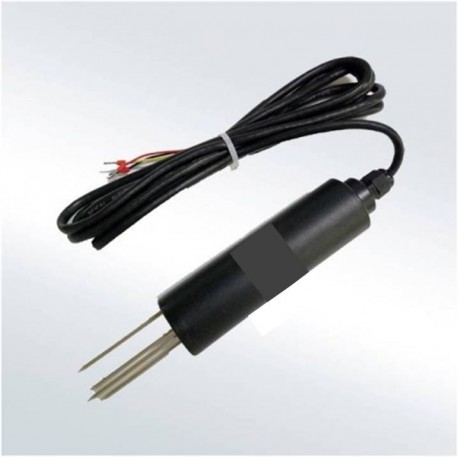

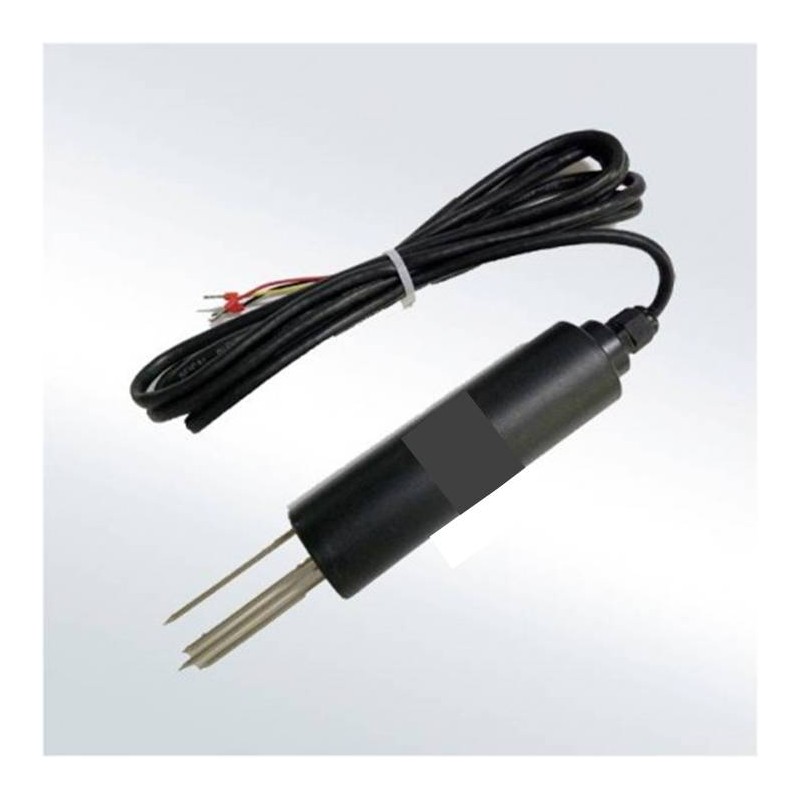

Soil Moisture Sensor View larger

AO-510-01 Soil Moisture Sensor

AO-510-01

AO-Electronics

New

Soil moisture sensor can be widely applied to the soil moisture monitoring, water-saving irrigation, greenhouse control, fine agriculture, hydrology and meteorology, and other fields, road monitoring.

Add to wishlist

The Sensor measures: Soil Humidity
Output Signal: 4-20mA ,0-5V,0-2V, SDI-12, RS485 optional
Cable Length: 5 meters
Power Supply: 5V/12V/24VDC
Sensor for use in: Outdoor
Parameters Measured Soil Moisture

AO-510-01 is a high accuracy, high sensitivity of soil moisture measuring instrument.The product on the principle of electromagnetic pulse (FDR:Frequency Domain Reflectometry) to measure the dielectric constant of the soil, stainless steel probe is inserted into the soil surface or soil profile to quickly online measurement of soil volumetric moisture content, the method is the most popular method of soil moisture measurement.It can be used permanently embedded in the soil.

FEATURES

  * Four 316L needle probe
  * High stability
  * High accuracy
  * Fast response
  * Easy Installation

  * Is not affected by chemical fertilizer and the influence of metal ions

APPLICATIONS

  * Agriculture irrigation
  * Greenhouse
  * Grass farm
  * Environment monitoring
  * Water conservation
  * Soil testing

 Item                                                Technical Specification
Range                                             0-100%(m3/m3)
Accuracy                                       ±2%(0-50%)
Output Signal                                4-20mA ,0-5V,0-2V, RS485 optional
Response Time                           <1s
Supply                                           5V, 12-24VDC
Effective measurement area      With the center of the probe diameter is 70mm,
                                                       high 70mm cylinder
Housing                                        ABS
Dimensions                                  Ø50*208mm( probe:Ø4*78mm)
Operating Temperature               -30℃-+70℃
Ingress Protection                       IP67
Storage                                        10-60℃@20%-90%RH
Probe material                            316L stainless steel

Unidad: mm

ASSEMBLY The test medium must be of uniform intensity;

If measuring the water content of the soil of the surface, the sensor should be inserted vertically into the ground.

Do not shake the sensor when inserting it; otherwise, the probe will mix;

If the water content in the multi-layered soil is measured, the sensor must be buried in the ground and parallel to the ground.

Make sure the probe does not mix;

When removing the sensors from the ground, hold the sensor housing and do not pull on the cable forcibly.

The floor in the probes must be brushed with force; Please keep the sensor in dry and clean conditions.
