RK500-06 potential oxidation reduction sensor

View larger

AO-500-06 ORP Sensor (Oxidation / Reduction Potential)

Reference

Manufacturer: RIKA

Condition: New

The RK500-06 ORP sensor is a simple and cost-effective solution for a wide variety of wastewater and process applications.

Volume discounts

Quantity	Price	You Save %
1+	450,00 €	0%
5+	405,00 €	10%
10+	382,50 €	15%

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

450,00 €

Quantity

Select Model

Add to wishlist

OVERVIEW
ESPECIFICATIONS
Models
Data sheet

The Sensor measures:	Redox
Output Signal:	4-20mA, 0-5V, RS485
Cable Length:	2m
Power Supply:	5V/12V/24VDC
Sensor for use in:	Outdoor

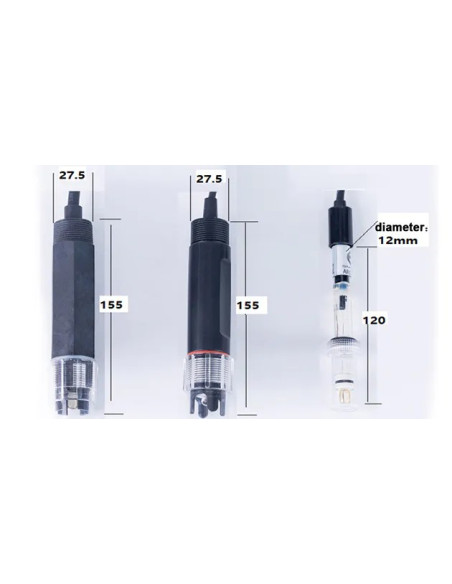

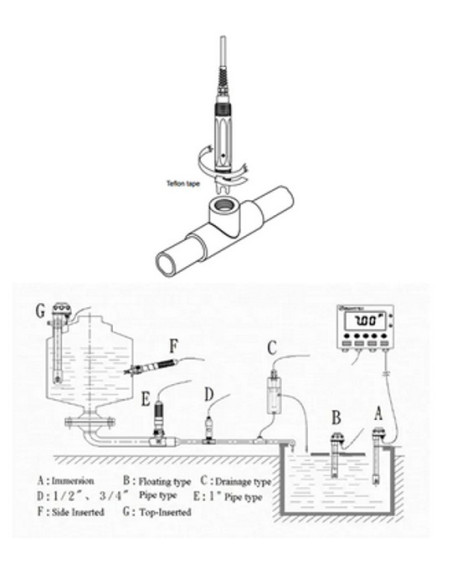

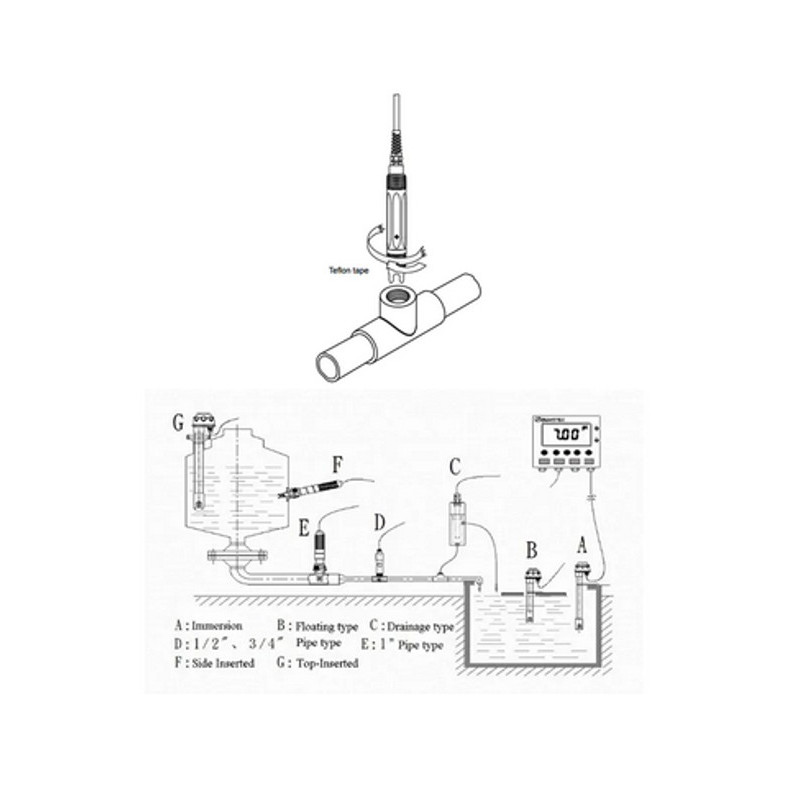

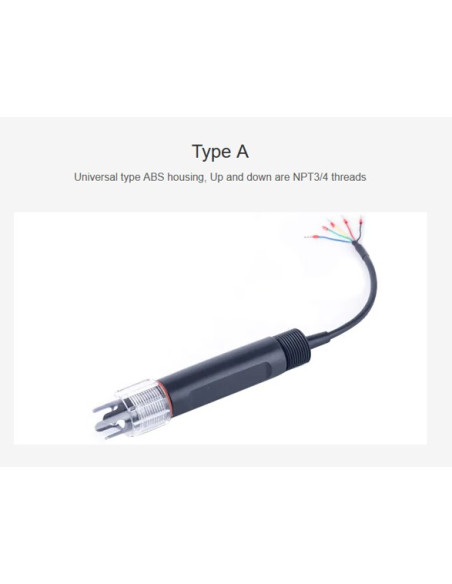

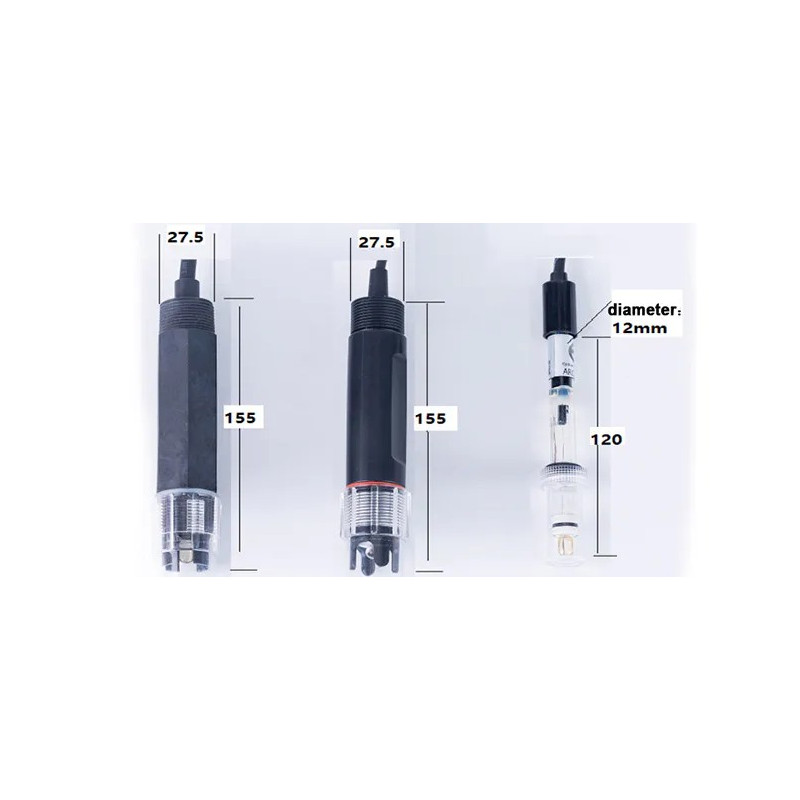

ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.
