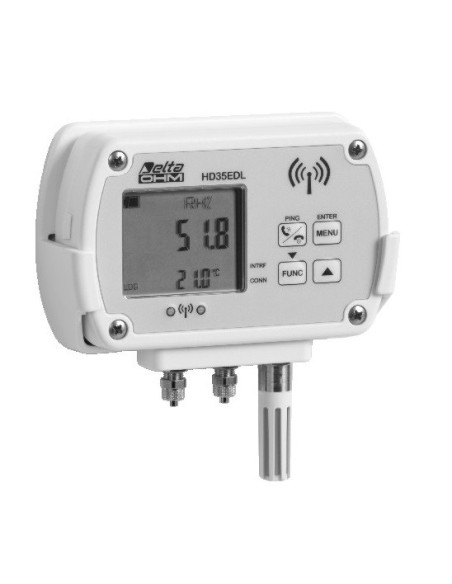

HD 35ED 1N4r5 TV Temperature, Humidity and Differential Pressure Wireless data logger

Reference HD 35ED 1N4r5 TV

Manufacturer: Delta Ohm

Condition: New

For clean rooms. 22,000 samples. Optional custom LCD display (option L). Fixed vertical temperature and relative humidity combined probe (with NTC10KΩ temperature sensor). Pressure input for tubes with 5 mm internal diameter. Metal pressure inputs with tube clamp ring to minimize pressure losses.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
RELATED PRODUCTS

Pressure sensor with excellent long-term stability.
Measurement of dynamic pressures (not suitable for the measurement of static
pressures): a small air flow is required between the two pressure inputs.
Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- differential pressure: ± 125 Pa with resolution 0.01 Pa
RH. Sensor operating temperature: -20 ... + 80 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 85% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
Supplied with 3.6V non-rechargeable Li-SOCl2 battery (1.5 years typical life with 30 seconds logging interval and without repeaters) and HD35.03 wall mount support.
