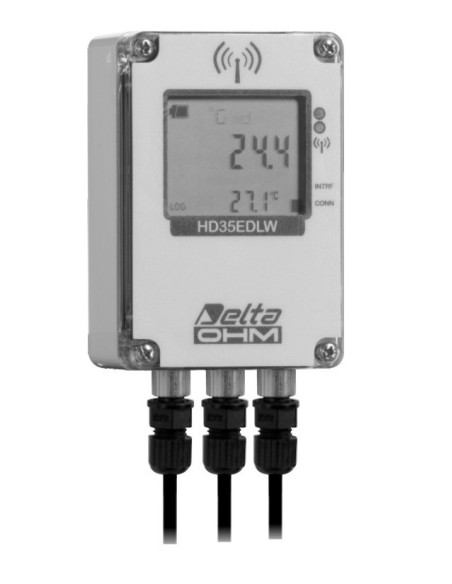

HD 35EDW WBGT Wireless Data Logger for the Analysis of the WBGT (Wet Bulb Globe Temperature)

Reference

Manufacturer: Delta Ohm

Condition: New

30,000 samples. Optional custom LCD display (option L). Three inputs with M12 connector for the wet bulb temperature probe (TP 3501TC2 or TP3204), the globe-thermometer temperature probe (TP 3575TC2 or TP 3576TC2) and the dry bulb temperature probe (TP 3507TC2) for indoor measurements according to ISO 7243. Installation on VTRAP30 tripod (optional).

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

470,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
RELATED PRODUCTS
Download

HD35 MANUAL Download (16.93M)

Instrument measuring ranges for indoor measurements:
- wet bulb temperature: + 4 ... + 80 ° C
- globe-thermometer temperature: -10 ... + 100 ° C
- dry bulb temperature: -40 ... + 100 ° C
On request, when ordering, the wet bulb temperature probe and the dry bulb temperature probe can be replaced by the HP3517ETC1 ... temperature and relative humidity combined probe (Pt100 temperature sensor) for measurements not according to ISO 7243. The outdoor installation of the HP3517ETC1 ... probe requires HD9007A-3 protection against solar radiations.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Supplied with 3.6V non-rechargeable Li-SOCl2 battery (2 years typical life with 30 seconds logging interval and without repeaters). The probes and the supports have to be ordered separately.
