Economical pulse output rain gauge with 1 reed relay (RAIN-O-MATIC)




Low Cost Rain Gauge with 1 pulse output via 1 reed relay. (PCB 9601)

At AlphaOmega-Electronics you will find the best range of Data Loggers and at the most competitive prices.

Volume discounts

Quantity Price
You Save
1+ 69,00 € 0%
2+ 66,93 € 3%
3+ 65,55 € 5%
4+ 63,48 € 8%
5+ 62,10 € 10%

69,00 €

Add to wishlist

The Sensor measures: Rain (rain gauge)
Output Signal: Pulses
Power Supply: Does not require
Sensor for use in: Outdoor

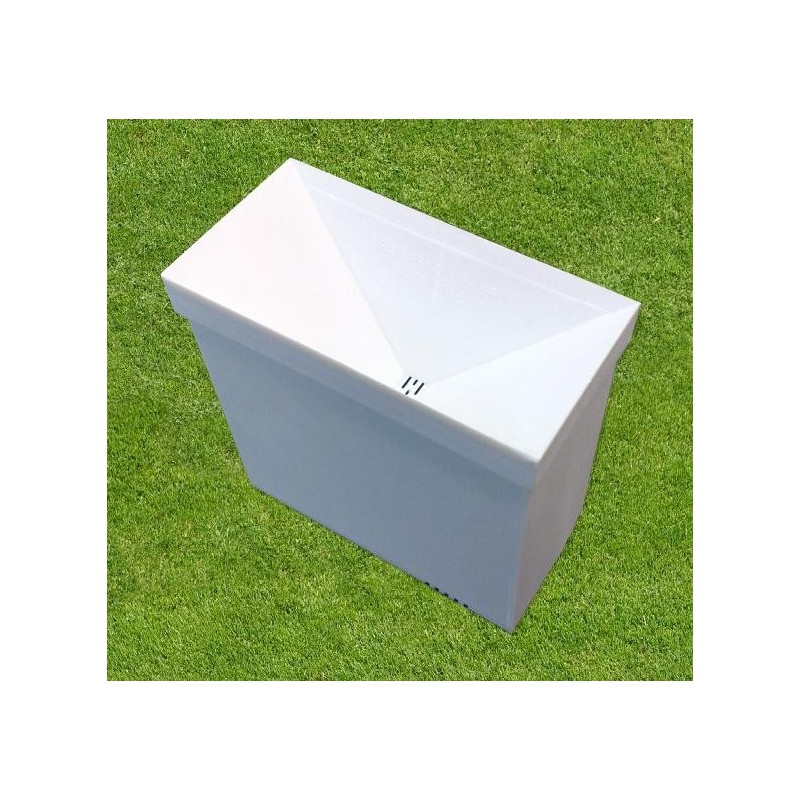

The Rain-O-Matic is an innovative product with a highly functional design.
This rain collector has been designed to be used outdoors and connected to a digital pulse counter or data logger*.

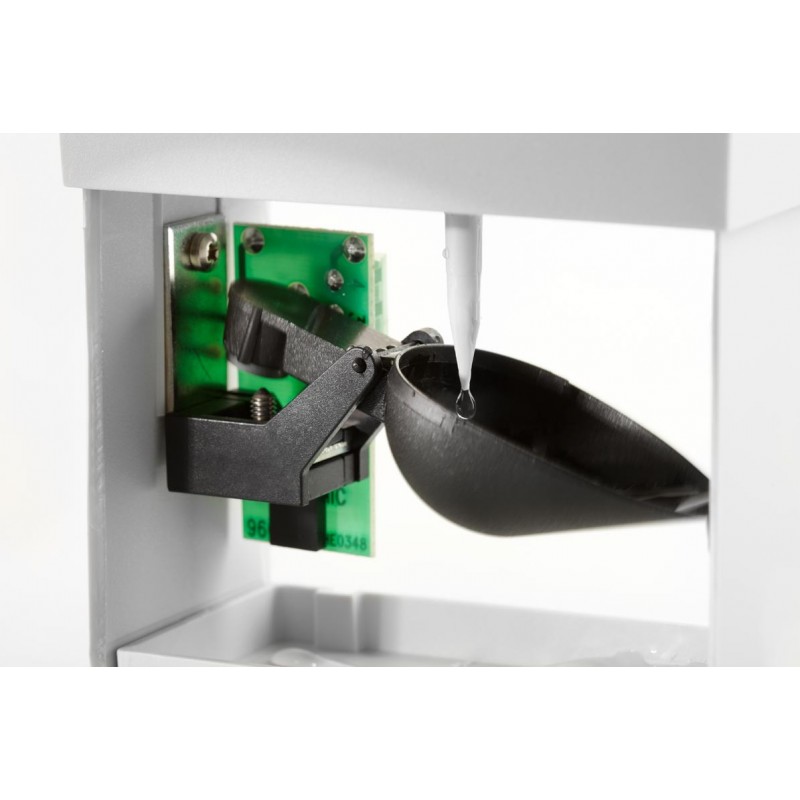

For each mm of precipitation collected in the collector, an automatic emptying mechanism is activated. This process generates an impulse that is recorded by the counter or recorder* (not included), thus recording the number of impulses (= number of mm of rain).
The LCD counter or data logger* stores the accumulated precipitation, which can be read at any time on the LCD* display.

Rain-O-Matic has undergone 2 years of testing at the Danish Agricultural Testing Laboratory. In addition, after the results obtained, the State Body for Tests and Implements has placed it among one of the most accurate pluviometers in the world.

Rain-O-Matic is frost resistant, extremely reliable in operation and has an accuracy of no more than 2% over a two year period.

* Digital pulse counter and data logger not included.

- Rain collector, hole 5 x 10 cm = 50 cm2

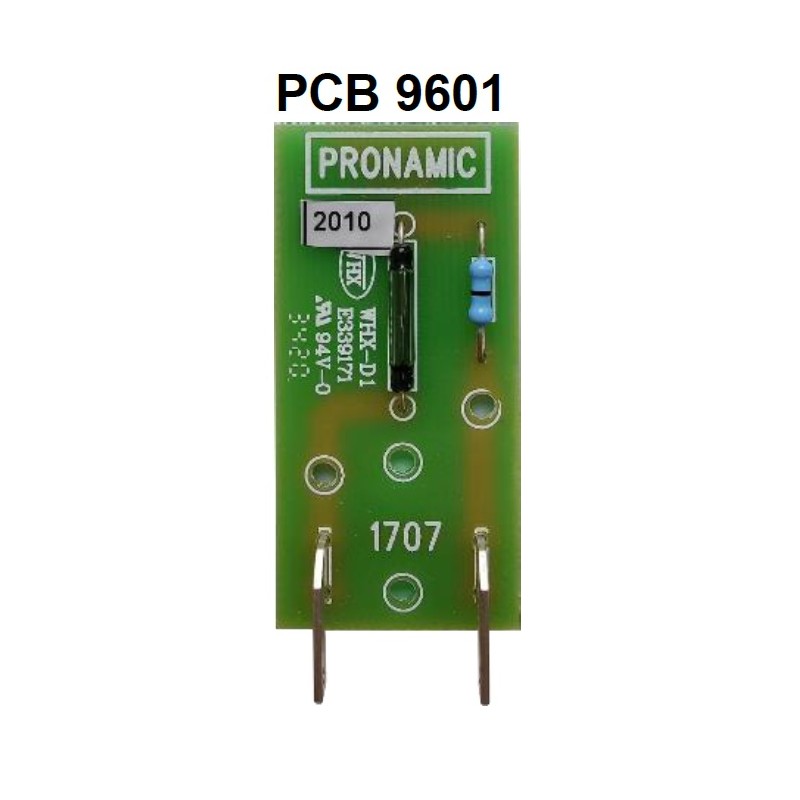

- PCB No. 9601 has a male connection and a reed switch. The reed switch is NC - Normally Closed.
- Resolution: 1 mm rain pr. tip
- Calibration: 5 grams pr. Tip.

Sensor Specifications:

-     Resolution: 1mm

Electric specifications:

-     Output signal: 1 or 2 reed switches (depending on model)

Mechanical specifications:

-     Material: Styrosun®, ABS plastic and PA5
-     Dimensions: 100 x 99 x 50mm
-     Weight: 119g
