Online only

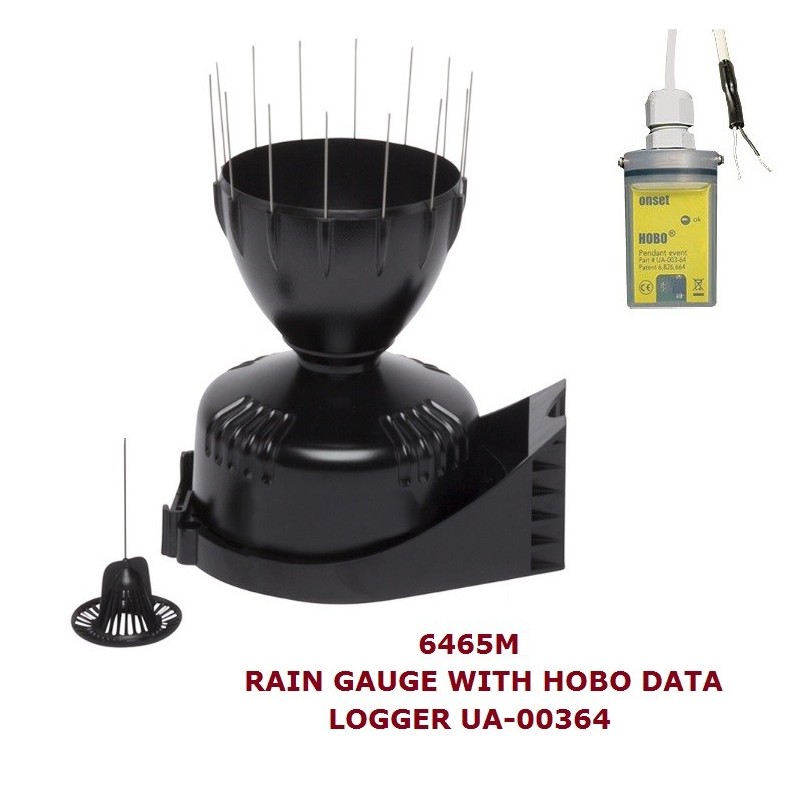

AO-6465M-HOBO Davis Rain Gauge with AeroCone™, support for mast mounting & HOBO UA-003 Logger

AO-6465M-HOBO

AO-Electronics

New

290,00 €

tax excl.

Add to wishlist

Environment of Use Outdoor
Number of Channels 2: Temp + Events
ADC Bits 10 bit
With Display No
IP Classification IP67
Communications Optic
Battery Life 1 year +
Maximum Pulse Rate 1 Hz (1 pulse per second)
Memory Capacity 52K readings
The Sensor measures: Rain (rain gauge)

The AeroCone ™ rain gauge accurately measures the amount of rainfall dropped by an automatic drain rocker. It has a reed switch that closes each time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be recorded by a datalogger or pulse counter.

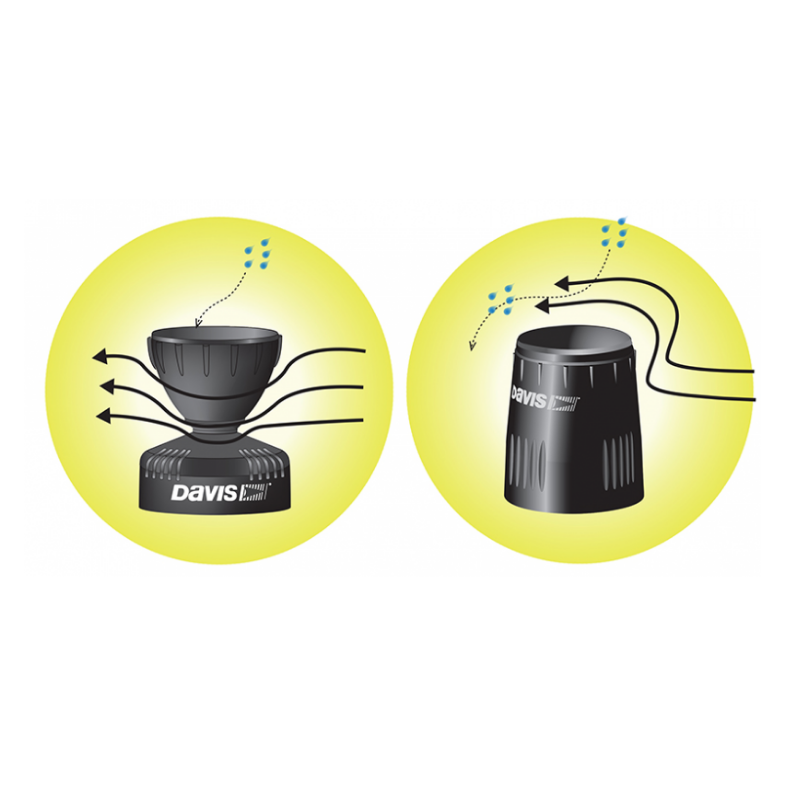

The instrument features an aerodynamic cone that increases accuracy in strong wind conditions, and is specially designed to comply with the guidelines established by the World Meteorological Organization (WMO).

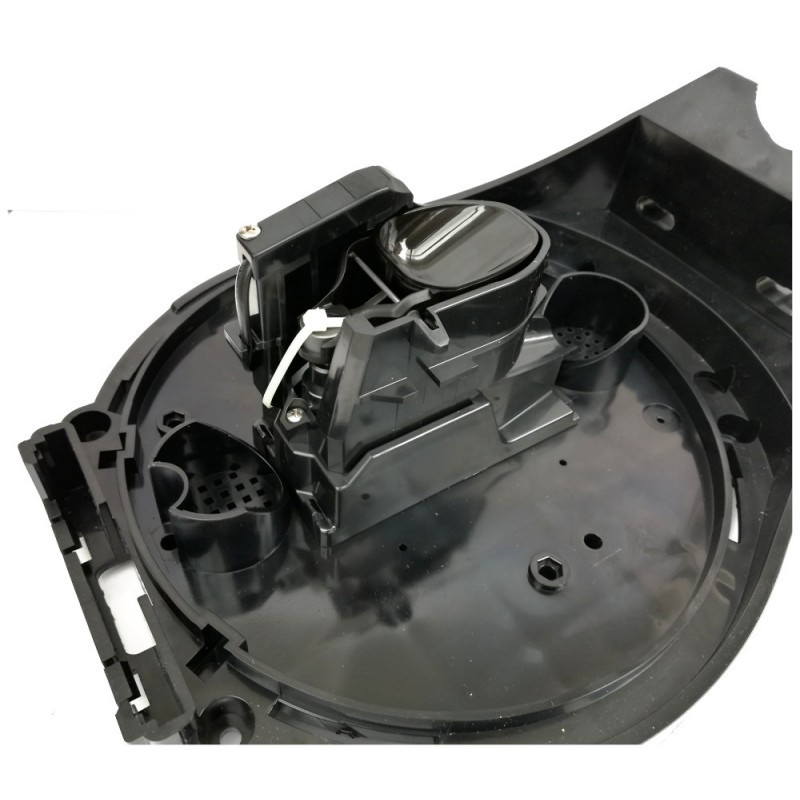

The rain gauge accurately measures the amount of rainfall dropped by means of an automatic drain rocker.
It has a reed switch that closes every time the weight of the accumulated water makes swing the rocker, which produces a pulse that can be registered by a datalogger type HOBO UA-003-64 or pulse counter.

It includes a filter with system of fixation to avoid that can be dropped or to be displaced by the wind and a base with mast mount support and set of anti-bird skewers.

The 6465M-HOBO Includes the HOBO DataLogger HOBO UA-003-64 in the inside to record Events, Rainfall and Temperature data.

The Logger requires software.
Free HOBOware PRO Download

Especificaciones del sensor:

  • Área de recolección: 200 cm2
  • Resolución: 0,2 mm
  • Precisión: ±4%

Especificaciones eléctricas:

  • Señal de salida: interruptor reed

Especificaciones mecánicas:

  • Material: plástico ABS resistente a los rayos UV
  • Dimensiones: ∅ 165 x 240 mm
  • Peso: 1 Kg
