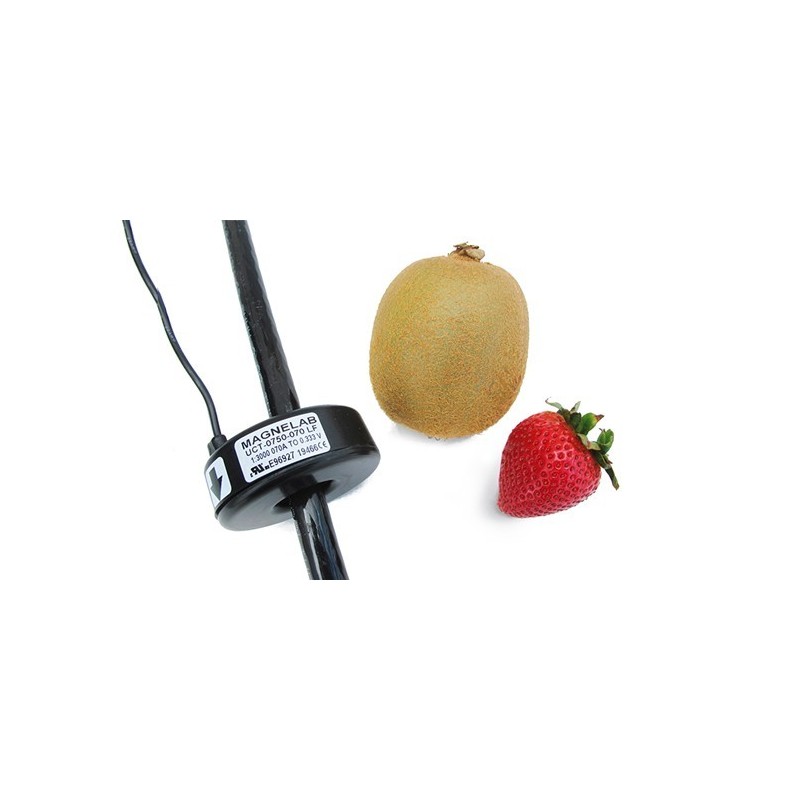

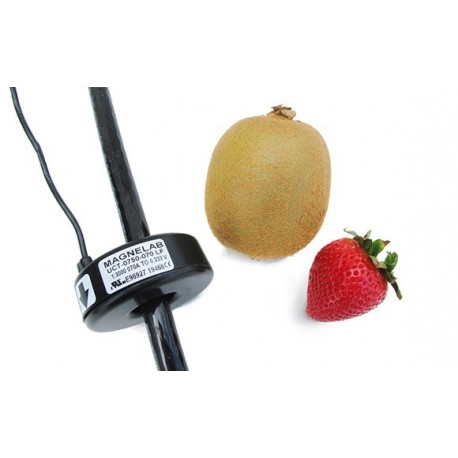

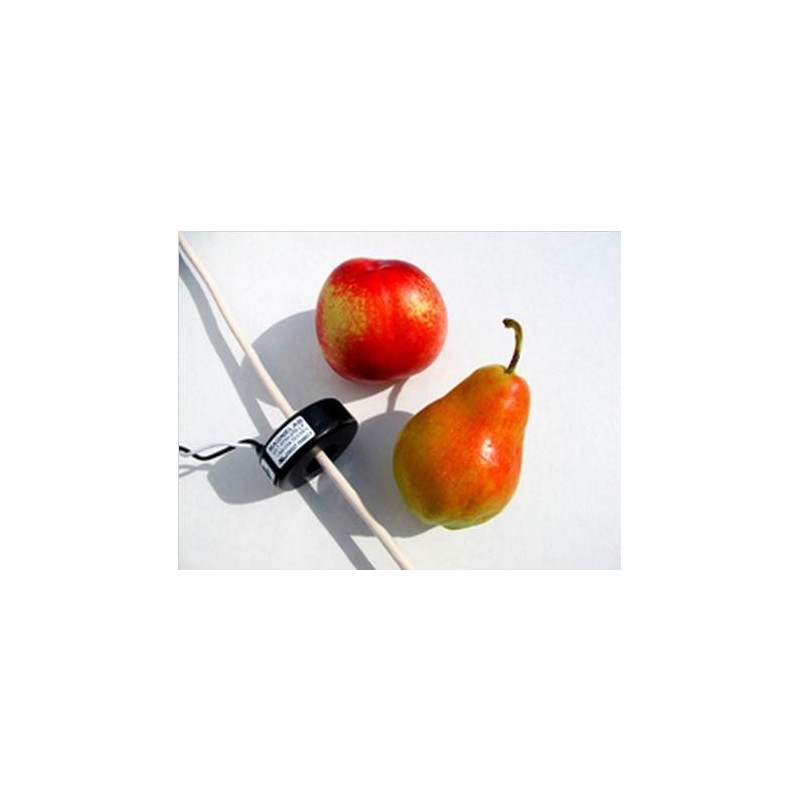

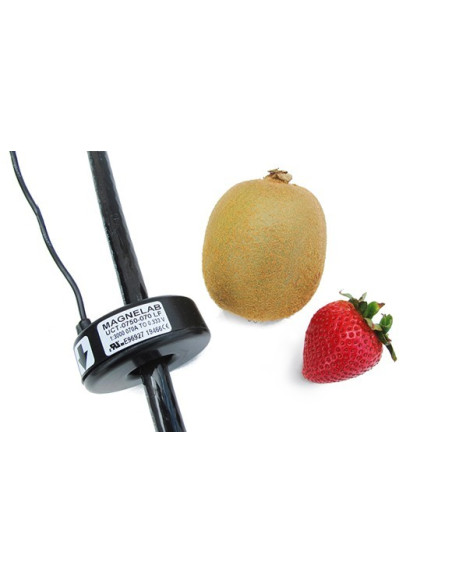

UCT-0750 5-100A Solid-Core AC Current Sensor

UCT-0750

Magnelab

New

Add to wishlist

Description: Magnelab UCT current sensor models are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction of this current sensor comes with eight feet twisted leads. Please contact Magnelab for other ratings and customized designs.

Features:

  • Rated input current from 5 Amp to 100 Amp
  • Output 0.333 Volt AC at rated current w/ Linearity accuracy ± 1%
  • Phase angle < 1 degrees measured at 50% rated current
  • Accuracy at 10% to 130% of rated current
  • 8 ft. twisted-pair lead and UL recognized
  • Custom output and other parameters are available

Click on the red button above left to view SPEC Sheet on this product.

PART NUMBER AND RATING
UCT-0750-000 No Burden Resistor
UCT-0750-030 30 Amp
UCT-0750-050 50 Amp
UCT-0750-070 70 Amp
UCT-0750-100 100 Amp
All Dimensions in Inches
A 0.75
B 2.10
C 0.75


AC-Split-Core-Current-Transformer-UCT-0500_chart_dimensions
