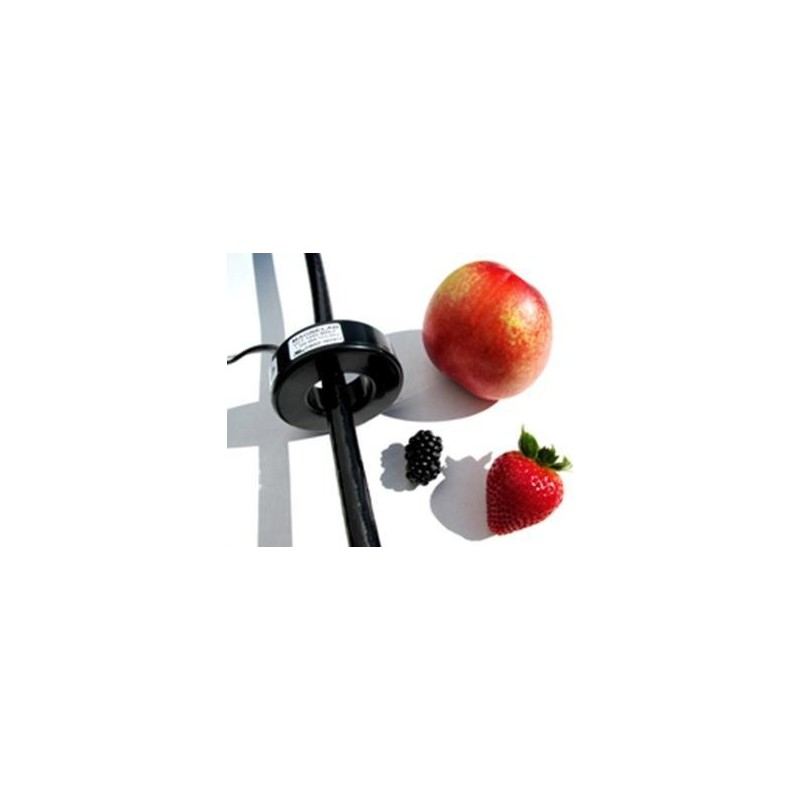

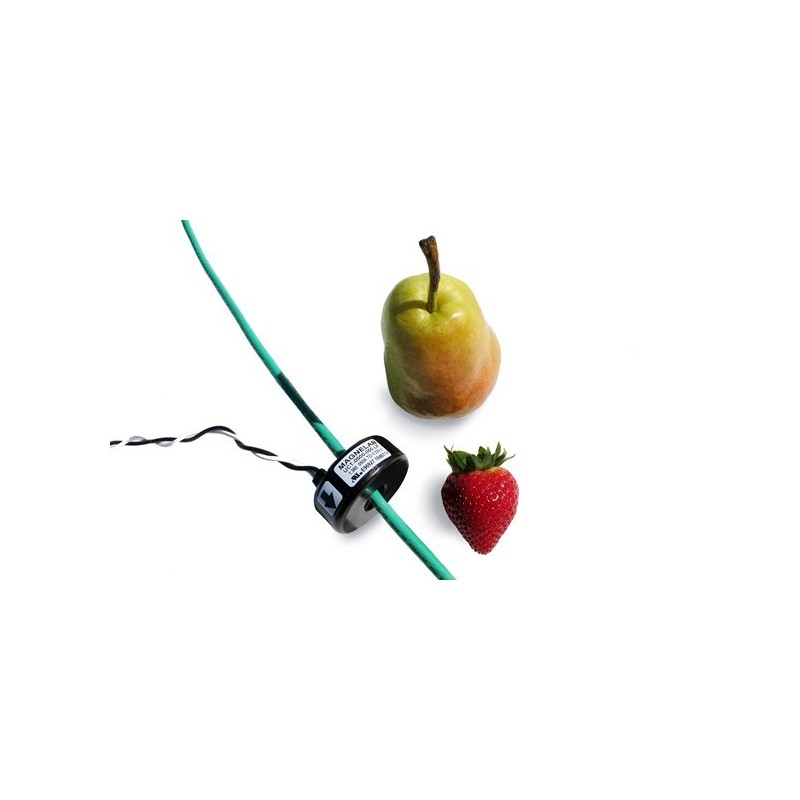

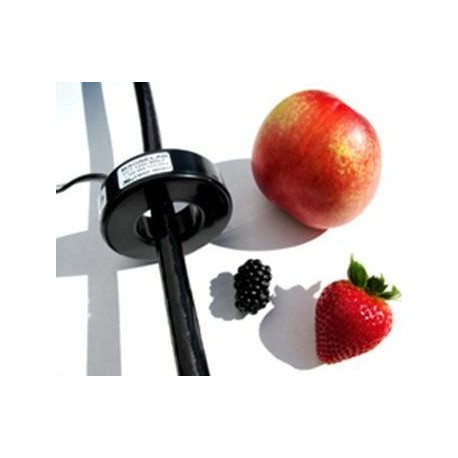

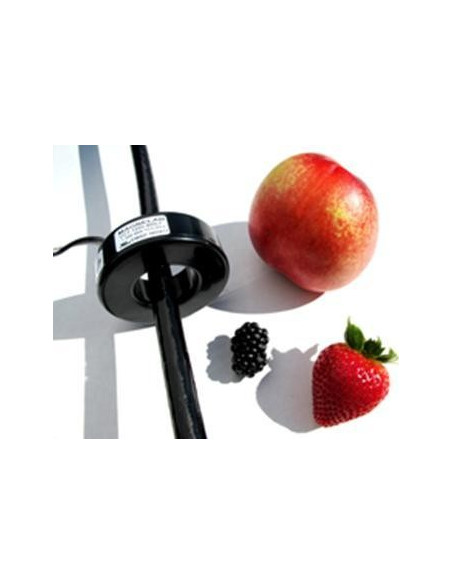

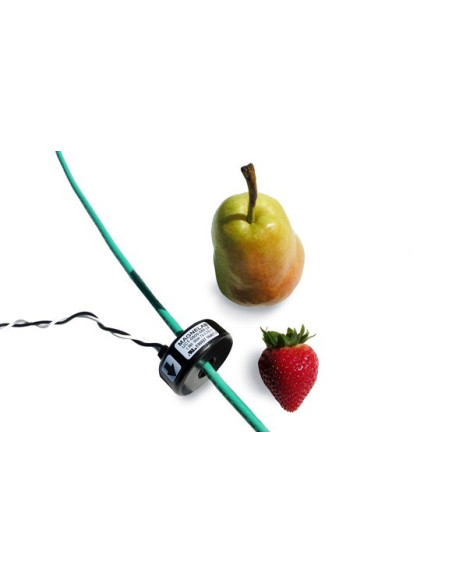

UCT-0500 5-60A Solid-Core AC Current Sensoro Class 0.6 Accuracy

UCT-0500

Magnelab

New

Add to wishlist

Description: The Magnelab UCT current sensor models are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction comes with eight feet twisted leads. Please contact Magnelab for other ratings and customized current sensor designs.

Features:

  • Rated input current from 5 Amp to 60 Amp
  • Output 0.333 Volt AC at rated current
  • Phase angle < 1 degrees measured at 50% rated current
  • Linearity accuracy ± 1% w/ accuracy at 10% to 130% of rated current
  • 8 ft. twisted-pair lead and is UL recognized
  • Custom output and other parameters are available
PART NUMBER AND RATING
UCT-0500-000 No Burden Resistor
UCT-0500-010 10 Amp
UCT-0500-015 15 Amp
UCT-0500-020 20 Amp
UCT-0500-030 30 Amp
UCT-0500-050 50 Amp
UCT-0500-060 60 Amp
All Dimensions in Inches
A 0.50
B 1.90
C 0.75


AC-Split-Core-Current-Transformer-UCT-0500_chart_dimensions
