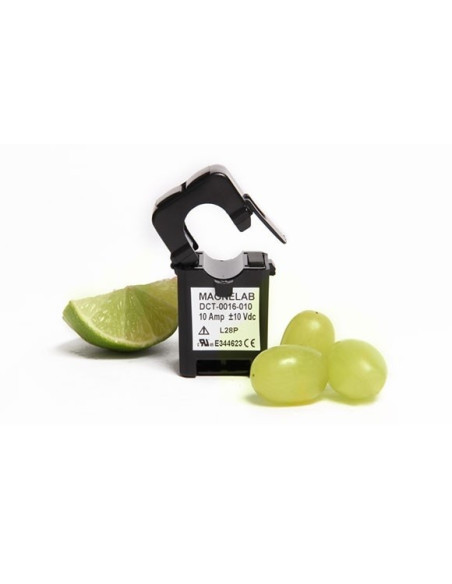

DCT-0010 AC Current Transducer with 0-5 Vdc o/p

Magnelab

New

Rated input 5 to 50 Amps AC

Add to wishlist

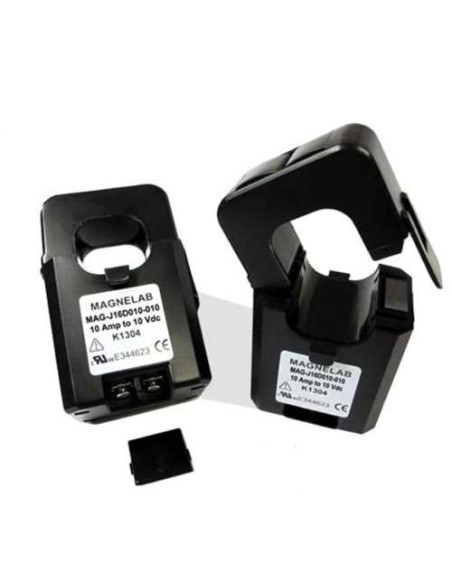

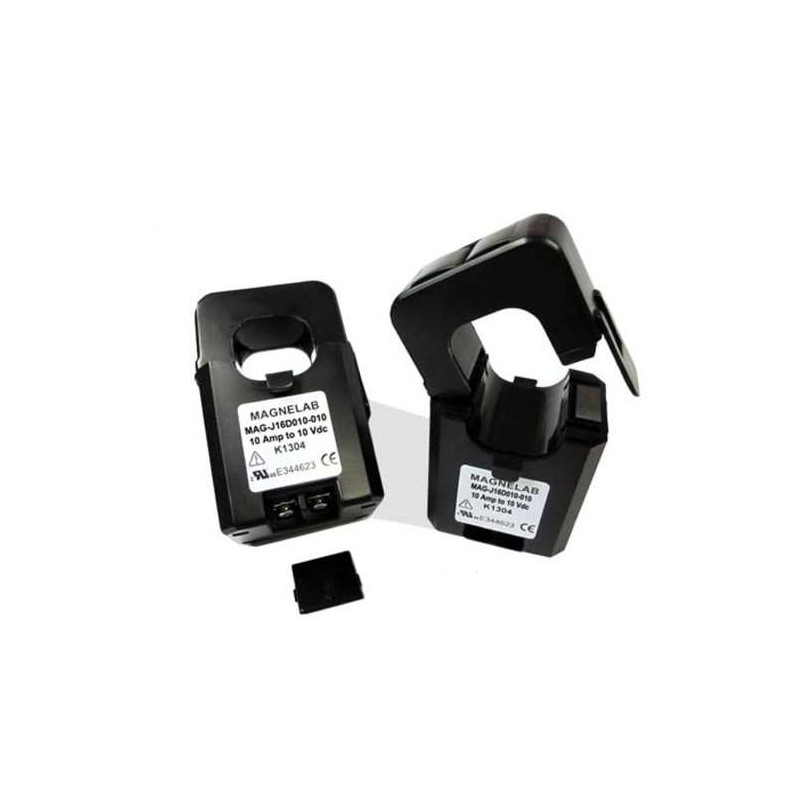

10mm split-core current sensor that transforms an AC current of 5, 10, 25 or 50 Amps to a DC voltage output of 5V. Split-core sensors are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0010 has a self-locking mechanism.

Frequent Applications

  • HVAC & Pumps
  • Refrigeration
  • Small Industrial Motors
  • Fans
  • Lighting

Features

  • Rated input 5 to 50 Amps AC
  • Output of 5 Vdc at rated current (7.5 Vdc limit built in)
  • Accuracy +/- 2% full scale (50/60 Hz Sinewave)
  • Accuracy at 5% to 120% of rated current
  • Output Impedance 6.2 KOhms
  • Output Ripple +/- 5%
  • 2 X M3-Screw terminals
  • System Voltage: CAT III 600 VAC
  • UL recognized, CE and RoHS Compliant
  • 7-Year Warranty
