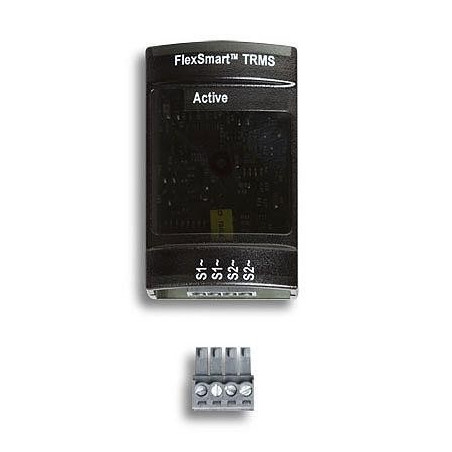

S-FS-TRMSA AC TRMS Module (2 channels) Sensor - HOBO View larger

S-FS-TRMSA AC TRMS Module (2 channels) Sensor - HOBO

S-FS-TRMSA

Onset

New

 S-FS-TRMSA TRMS Module (2 channels) Sensor - HOBO

120,00 €

Add to wishlist

The 15-bit two-channel FlexSmart True RMS Current / Voltage Module accepts an input range of 5mV to 512mV and is compatible with 333mV FS output sensors. Field wiring is 2-wire via screw terminals.

Features:
2 input channels of AC Current and/or Voltage
Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

Environment:
The S-FS-TRMSA Sensor is for use in Indoor environments

Measurements:
The S-FS-TRMSA Sensor supports the following measurements:
AC Current & AC Voltage

Especificaciones:
Input Channels: 2
Range: 5mV to 512mV input; compatible with 333mV FS output sensors
Maximum input: ±1V
Minimum input: 5mV
Accuracy: ±0.3% of reading ±0.5% FSR*
Resolution: 12-bit
Field wiring: 2-wire via screw terminals
Dimensions: 3.5cm x 5.7cm x 1.9cm (1.38 in. x 2.25 in. x 0.75 in.)
Weight: 21.2g (0.75oz)

Data Loggers Compatibles:
H22-001 Energy Logger

To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Input Channels: 2
Range: 5mV to 512mV input; compatible with 333mV FS output sensors
Maximum input: ±1V
Minimum input: 5mV
Accuracy: ±0.3% of reading ±0.5% FSR*
Resolution: 15-bit
Field wiring: 2-wire via screw terminals
Dimensions: 3.5cm x 5.7cm x 1.9cm (1.38 in. x 2.25 in. x 0.75 in.)
Weight: 21.2g (0.75oz)



* Crest factor may cause additional error
