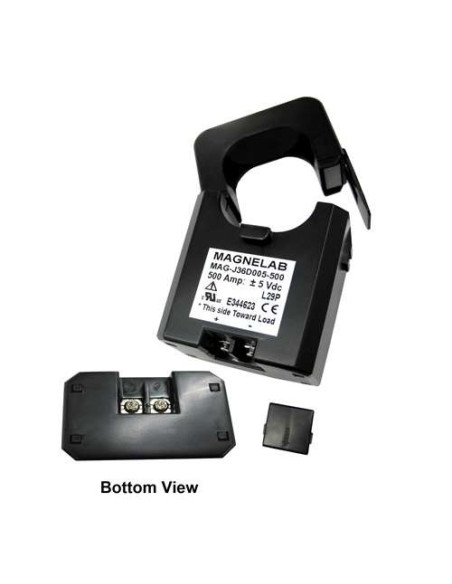

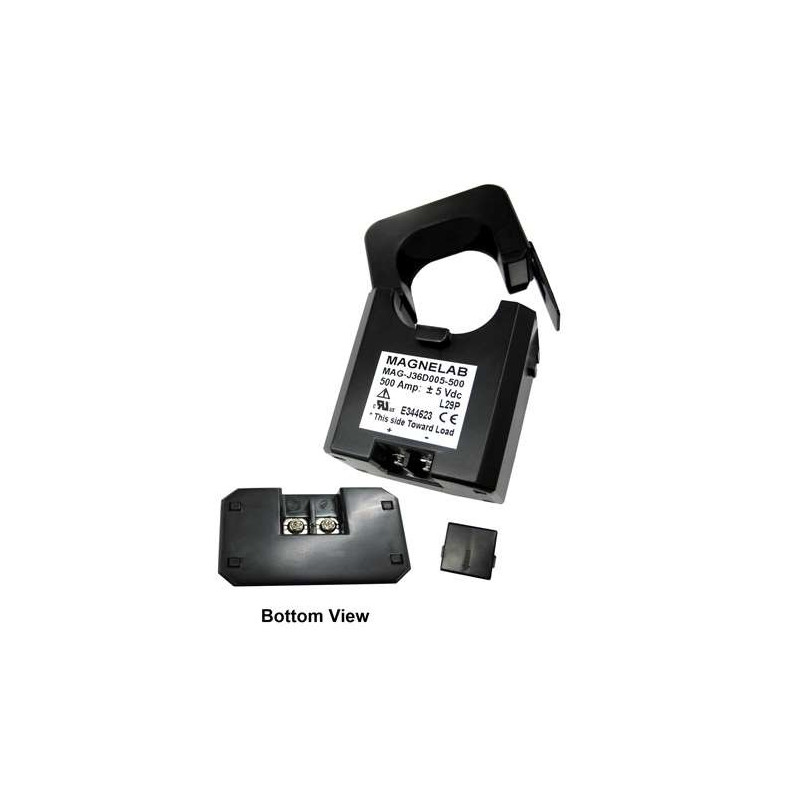

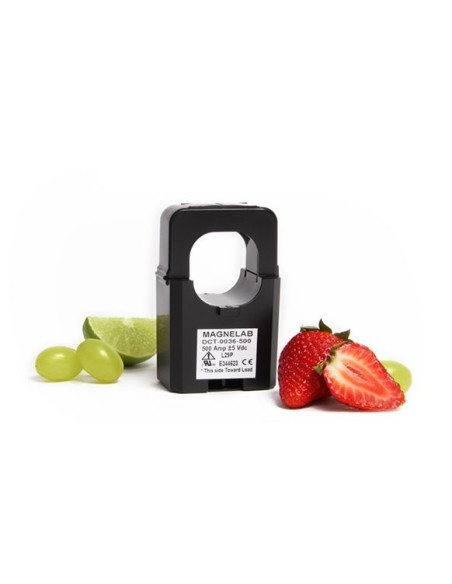

DCT-0036-500 CORE DC VOLTAGE OUTPUT TRANSDUCER

36mm split-core current sensor that transforms an AC current input of 500 Amps to 5 Vdc. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0036-500 has a self-locking mechanism.

Frequent Applications

• HVAC & Pumps
• Refrigeration
• Small Industrial Motors
• Fans
• Lighting

Features

• Rated input 500A
• 5Vdc output at rated current (7.5 Vdc limit built in)
• Accuracy +/- 2% full scale (50/60 hz)
• Output impedance of 5.8 kOhms
• Output ripple +/- 5%
• Operating temperature: -20°C, ≤ 85% RH
