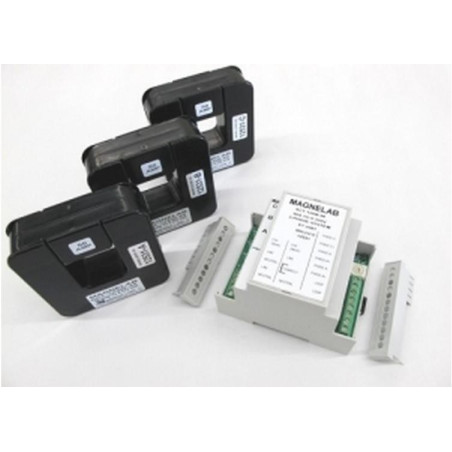

SCT-200W Wireless AC Current Sensor Split Core Transformer System (from 100A to 1500A)
Magnelab's SCT-200W Series are wireless CT systems designed to work with any energy meter that accepts 0.333V RMS or 1.0V RMS transducers.
Each CT contains an RF link powered by the measured current and will link to the controller (PT Unit) at any current above 5A.
The system consists of three matched CTs and a controller with three outputs for A, B and C phases.
• Linearity accuracy ±1%
• Phase angle < 1 degree (measured at rated current)
• AC current up to 1,500A
• Wireless range 10 meters
• 1.0V or 0.333V output (select when ordering)
• UL pending, CE mark
• SCT-125W System Available (1.25″ opening, 70A-800A)
