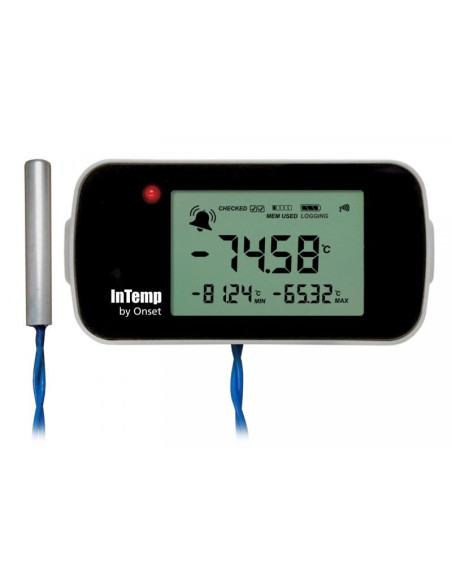

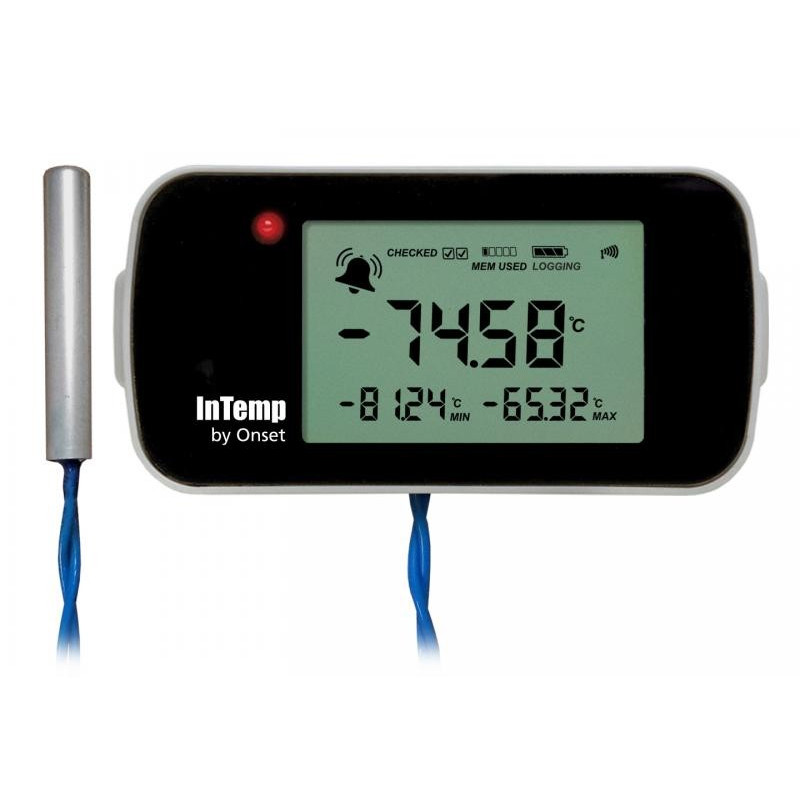

CX405 InTemp RTD Data logger for Temperature in Dry Ice




Easy logger setup and data download in seconds
Two-point NIST Certificate of Calibration (for the probe only), valid for one year
Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
Advanced audible and visual alarm capabilities for notification of temperature excursions
LCD display with current and daily min/max temperatures
Protective, anti-cut cable sheath
User-replaceable AAA batteries to guard against local power loss
Built to FDA, USP, EU, and WHO standards
Free InTemp mobile app to configure logger, view data, and access the free InTempConnect cloud software service
Real-time alerts and automatic data downloads with optional CX5000 Gateway device

235,00 €

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics
Function: Measure dry ice temp.
Parameters Measured Temperature

InTemp CX405-RTD Dry Ice data loggers are specifically designed for ultra-low temperature monitoring of vaccines and pharmaceuticals in environments of storage and transportation.
This Data logger uses Bluetooth Low Energy (BLE) technology to wirelessly communicate with the InTemp CX5000 Gateway and/or the free InTemp mobile app.
It sends data to the free InTempConnect cloud platform.

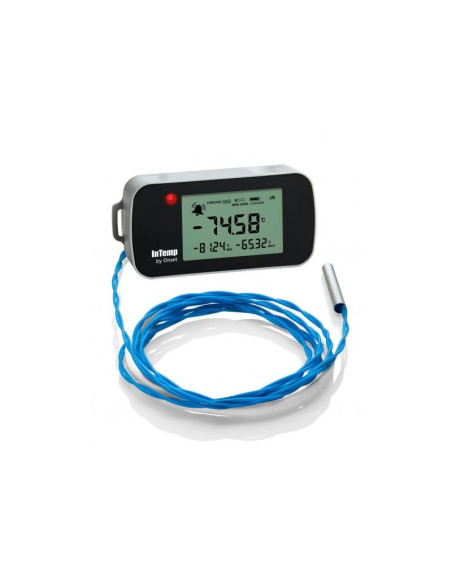

The CX405-RTD has a built-in 1.5 m external probe that can measure temperatures as low as -95°C and up to 50°C with a high degree of accuracy.
The InTemp CX405-RTD also has a protective sheath to prevent accidental cutting of the probe cable and includes a clip for secure mounting.

This CX405 Dry Ice data logger also features a built-in LCD display to view temperature readings, visual alarms (and audible alarms), and battery level,  plus the ability to view and display minimum and maximum readings.

When the InTemp CX5000 Gateway is added, a user can get text or email notifications of temperature variations, as well as automatic data downloads from data loggers within the range of the CX Gateway device.

Environment in which this data logger operates:
This data logger operates in a cold chain environment.

Measurements taht this data logger supports:
The CX405 data logger supports the following measurement: Temperature

External Temperature Probe
Range -95° to 50°C (-139° to 122°F)
Accuracy ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
Resolution 0.05°C at 25°C (0.09°F at 77°F)
NIST Calibration Two-point NIST calibration, probe only
Cable Length 1.5 m (4.92 ft)
Probe Dimensions Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter



Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
Logging Rate 1 second to 18 hours
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery Type Two AAA 1.5 V alkaline or lithium batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the app, excessive report generation, numerous audible alarms, and paging all impact battery life.
Memory 128 KB (75,245 total measurements or 37,622 probe & internal paired measurements)
Full Memory Download Time Approximately 60 seconds; may take longer the farther the device is from the logger
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensions 9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
Weight 90.2 g (3.18 oz)
Environmental Rating IP54
CE Compliant The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
Compliance Marks FCC LogoAustralia/New Zealand General Compliance markAustralia/New Zealand General Compliance mark

Passed RTCA DO160G, part 21H

Ambient Temperature Sensor
Range -30° to 70°C (-22° to 158°F)
Accuracy ±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
Resolution 0.024°C at 25°C (0.04°F at 77°F)
InTemp CX405-RTD Dry Ice Data Logger
Two AAA 1.5 alkaline batteries
Battery door and screw
NIST Certificate of Calibration
