InTemp Bluetooth Low Energy Temperature (with Probe) Data Logger CX402-xxM

Onset

New

InTemp CX402-xxM data loggers (with probe) monitor temperatures in refrigerators, freezers, and other temperature controlled environments to meet world GDP requirements.



BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our More info about this product. form.

165,00 €

Add to wishlist

Instrument for: Hospitals, Lab's, Clinics

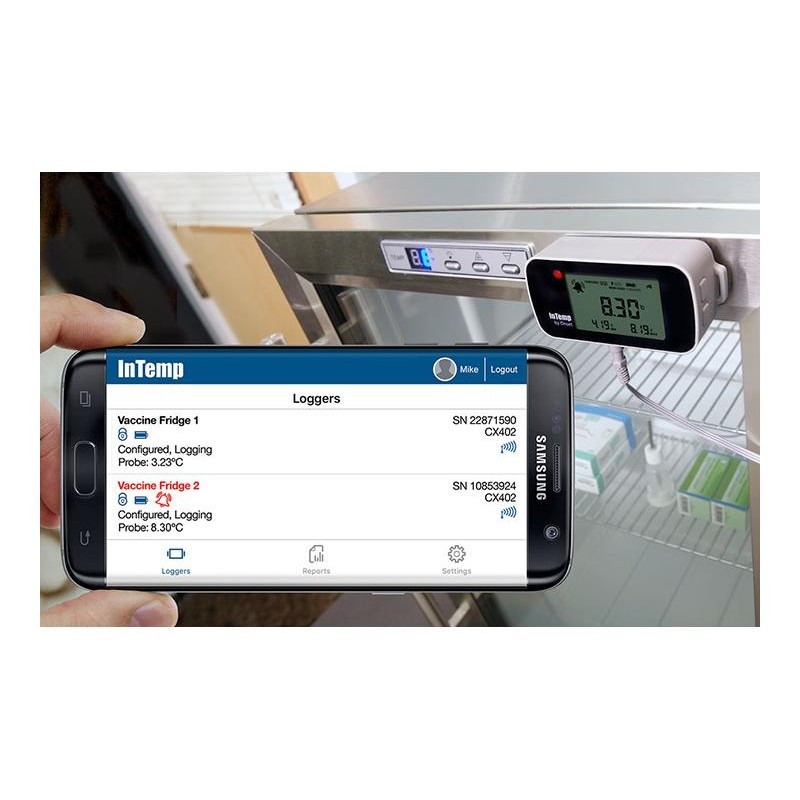

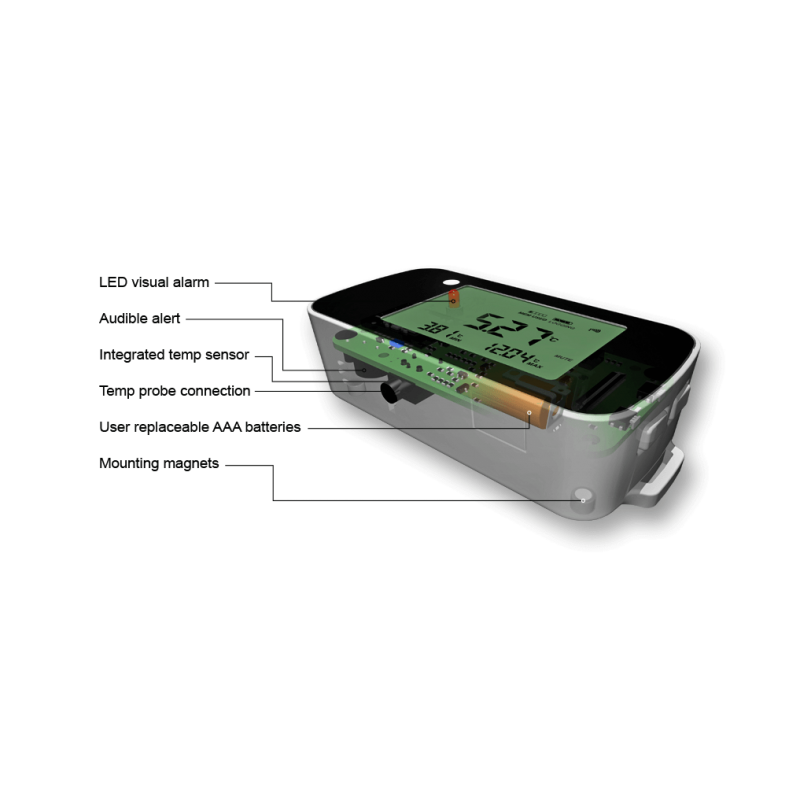

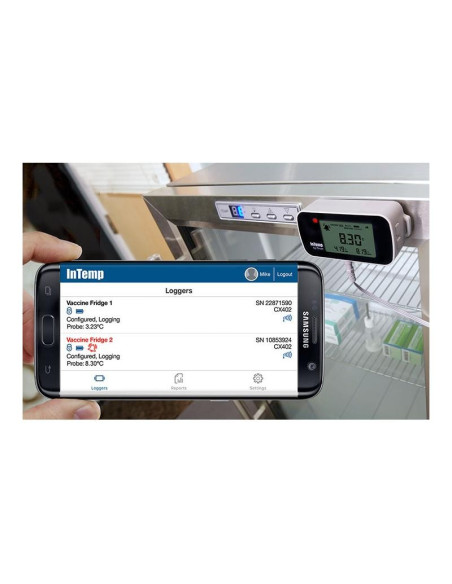

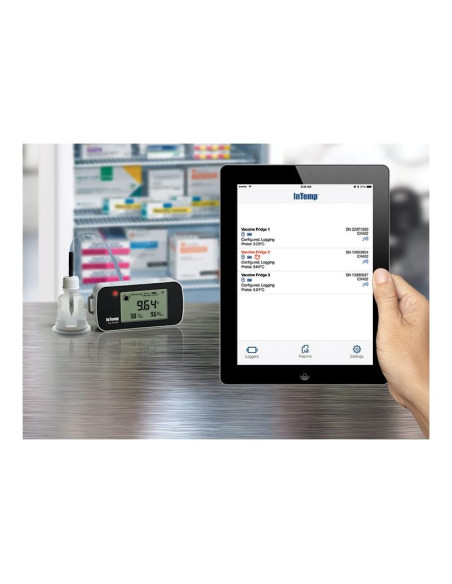

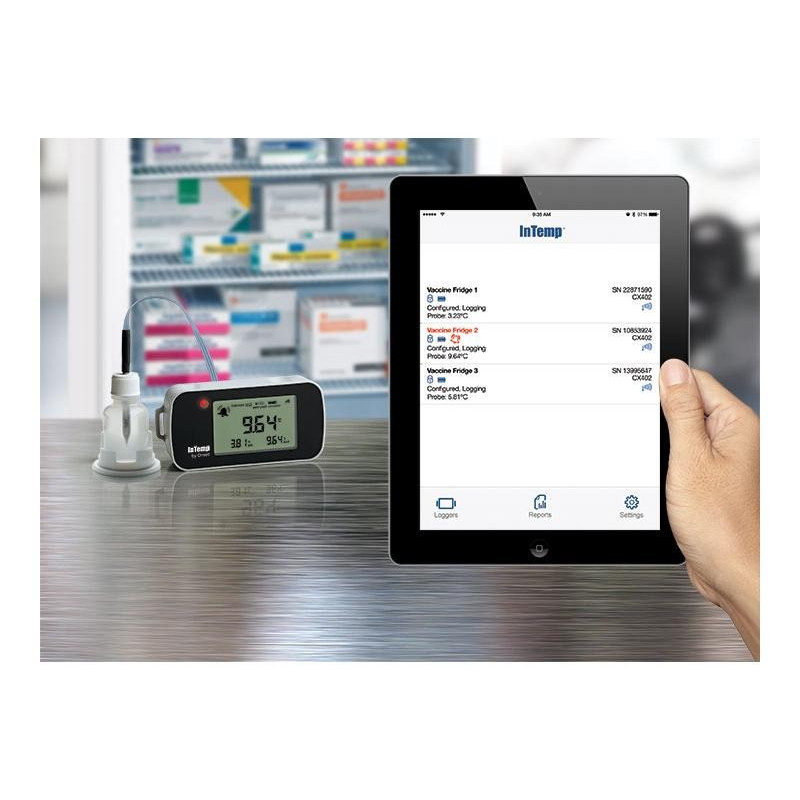

The loggers communicate wirelessly via Bluetooth Low Energy to mobile devices. Using the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports for streamlined reporting and regulatory compliance. All loggers feature a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities for notification of temperature excursions, an internal sensor for ambient temperature monitoring, and a single-point NIST Certification of Calibration for both the logger body and probe.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.

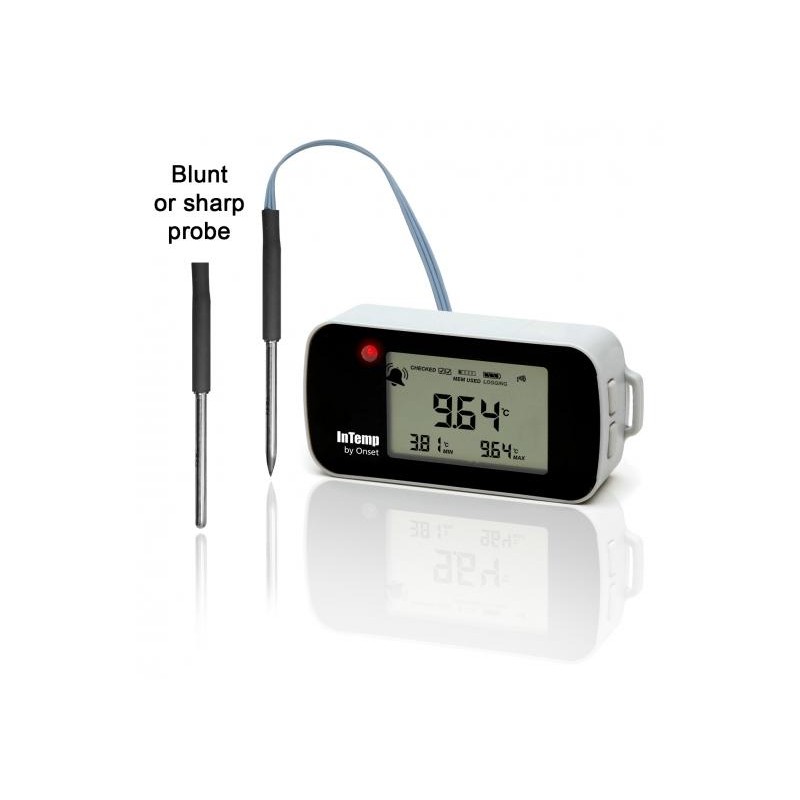

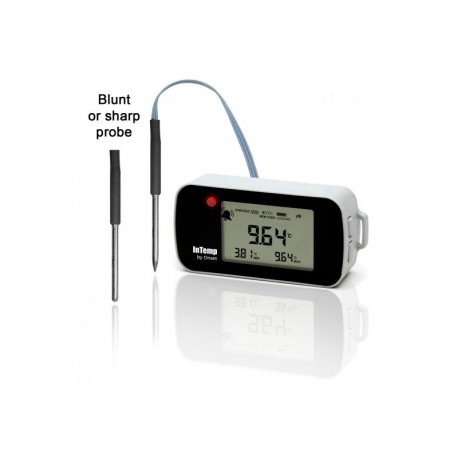

Models are available with a 2- or 4-meter external temperature probe for tracking actual refrigerator temperatures without Glycol buffers or freezer applications.

  • Highlighted Features:

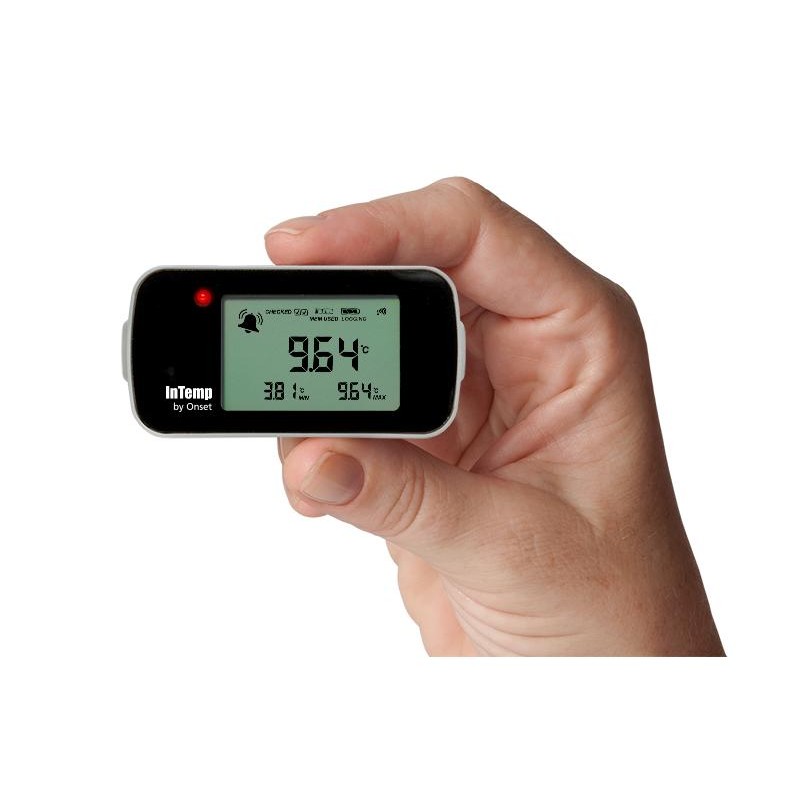

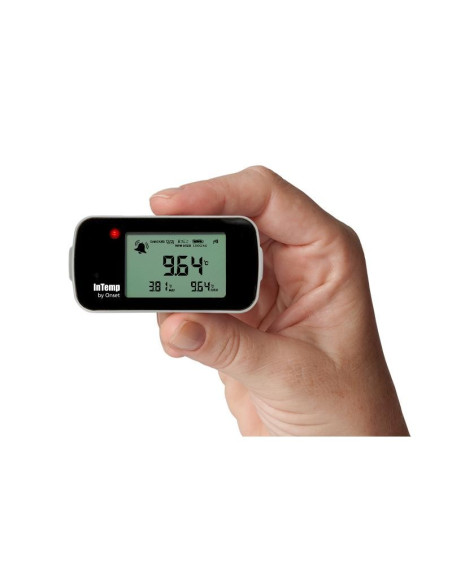

- Easy-to-read display with current and daily min/max temperatures
- Bluetooth transmission of data and alarm states
- Logger setup and download of data in seconds – without a PC or cable
- Real-time alerts and automatic data downloads with optional CX Gateway device
- +/- 0.5C accuracy for reliable temperature readings
- Battery-powered to guard against local power loss
- NIST Certificate of Calibration

External Temperature Probe

Range

-40° to 100°C (-40° to 212°F)

Accuracy

±0.5°C from -15° to 80°C (±0.9°F from 5° to 176°F)
±1.0°C from -40° to -15°C (±1.8°F from -40° to 5°F)
±0.7°C from 80° to 100°C (±1.3°F from 176° to 212°F)

Resolution

0.024°C at 25°C (0.04°F at 77°F)

Drift

<0.1°C (0.18°F) per year

Response Time

With 5 mL bottle: 10 minutes typical to 90% in air moving 1 m/s
With 15 mL bottle: 20 minutes typical to 90% in air moving 1 m/s
With 30 mL bottle: 25 minutes typical to 90% in air moving 1 m/s

Cable Length

2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable

Ambient Temperature Sensor

Range

-30° to 70°C (-22° to 158°F)

Accuracy

±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)

Resolution

0.024°C at 25°C (0.04°F at 77°F)

Drift

<0.1°C (0.18°F) per year

Response Time

15 minutes typical to 90% in air moving 1 m/s

Logger

Radio Power

1 mW (0 dBm)

Transmission Range

Approximately 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Low Energy (Bluetooth Smart)

Logger Operating Range

-30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)

Logging Rate

1 second to 18 hours

Time Accuracy

±1 minute per month at 25°C (77°F)

Battery Type

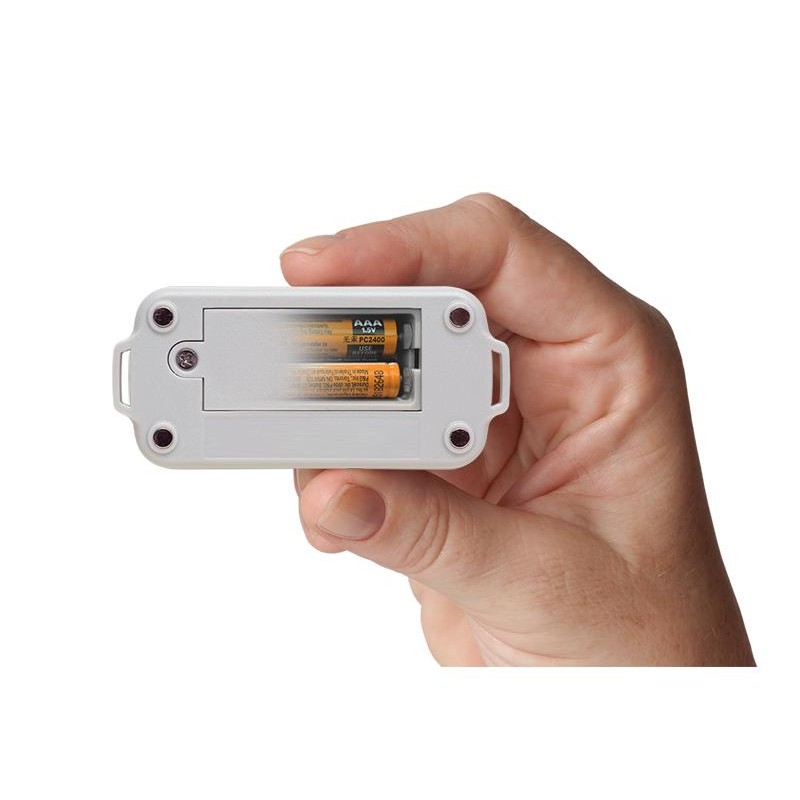

Two AAA 1.5 V alkaline or lithium batteries, user-replaceable

Battery Life

1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.

Memory

128 KB (84,650 measurements, maximum)

Full Memory Download Time

Approximately 60 seconds; may take longer the farther the device is from the logger

LCD

LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Dimensions

9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)

Weight

90.2 g (3.18 oz)

Environmental Rating

IP54

CE

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

  • ONSET InTemp CX400 Series

  • InTemp and the CX400 - Getting Started

  • InTemp - Configuring your CX400 Data Logger with the InTemp App

  • InTemp - Downloading Data From the CX400 with the InTemp App

  • InTemp - Basic Concepts

  • InTemp - Configuring Daily Checks

  • Onset InTemp CX Gateway

Product Numbers:
CX402-B2M: InTemp CX Temperature Data Logger, Blunt Probe, 2 Meters Cable

CX402-B4M: InTemp CX Temperature Data Logger, Blunt Probe, 4 Meters Cable

CX402-T2M: InTemp CX Temperature Data Logger, Sharp Probe, 2 Meters Cable

CX402-T4M: InTemp CX Temperature Data Logger, Sharp Probe, 4 Meters Cable
