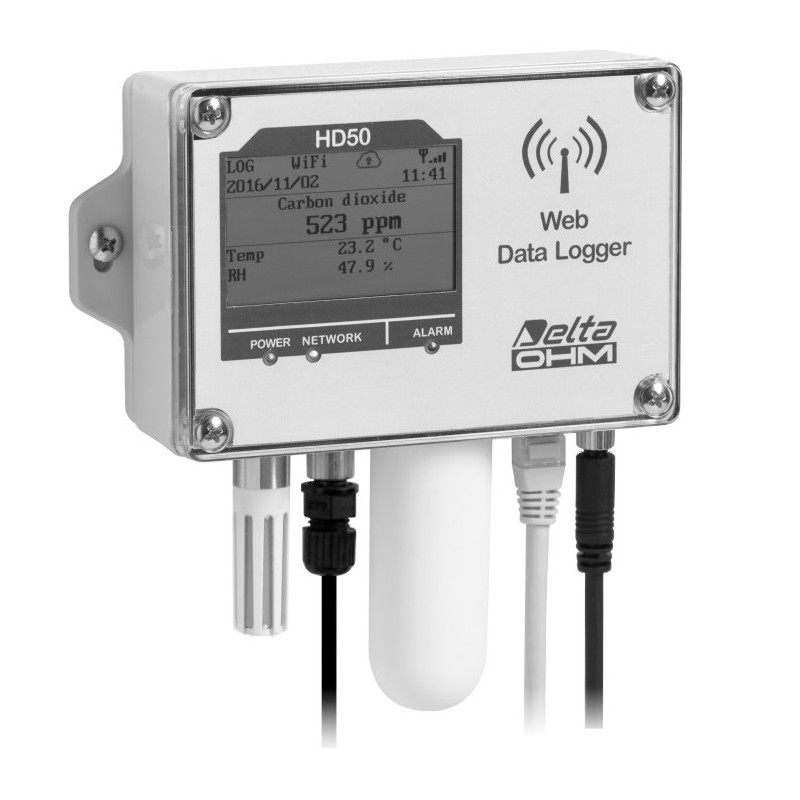

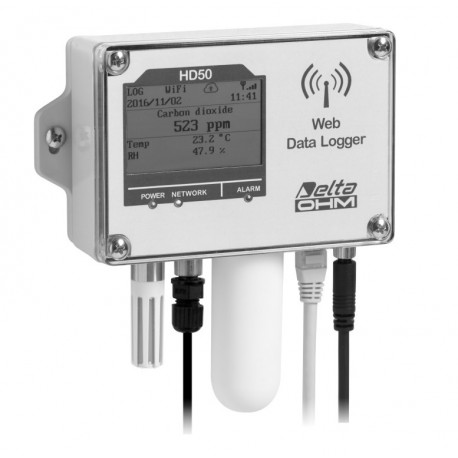

HD 50 1NB…I…TCV Temperature, Humidity, Carbon Dioxide and Illuminance Data Logger

Reference

Manufacturer: Delta Ohm

Condition: New

Number of samples: Min = 323,800, Max = 906,640 (depending on the number of stored quantities). Optional custom (option L) or graphical (option G) LCD display. Fixed vertical temperature and relative humidity combined probe (with NTC10KΩ temperature sensor). Fixed CO2 probe with removable protection filter. One input with M12 connector for the LP 35 PHOT illuminance probe. Photodiode with spectral response similar to the standard photopic curve V (λ).

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Select Model

Add to wishlist

OVERVIEW
RELATED PRODUCTS
SPECIFICATIONS
MODELS
Data sheet
Download

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor
IP Classification	IP54
Communications	Wifi/Ethernet

HD 50 Manual Download (3.16M)

HD 50 Data Sheet Download (1.43M)

Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- CO2:

0 ... 5,000 ppm (HD 50 1NBI TCV, HD 50 1NBI2 TCV)
0 ... 10,000 ppm (HD 50 1NB2I TCV, HD 50 1NB2I2 TCV)

- illuminamento:

0 ... 20,000 lux (HD 50 1NBI TCV, HD 50 1NB2I TCV)
0 ... 200,000 lux (HD 50 1NBI2 TCV, HD 50 1NB2I2 TCV)

RH. Sensor operating temperature: -20 ... + 80 ° C.
CO2 sensor operating temperature: -20 ... + 60 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the power supply, operating manual. The LP 35 PHOT illuminance probe, the LP BL base or the LP BL3 wall mount support, the SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.
