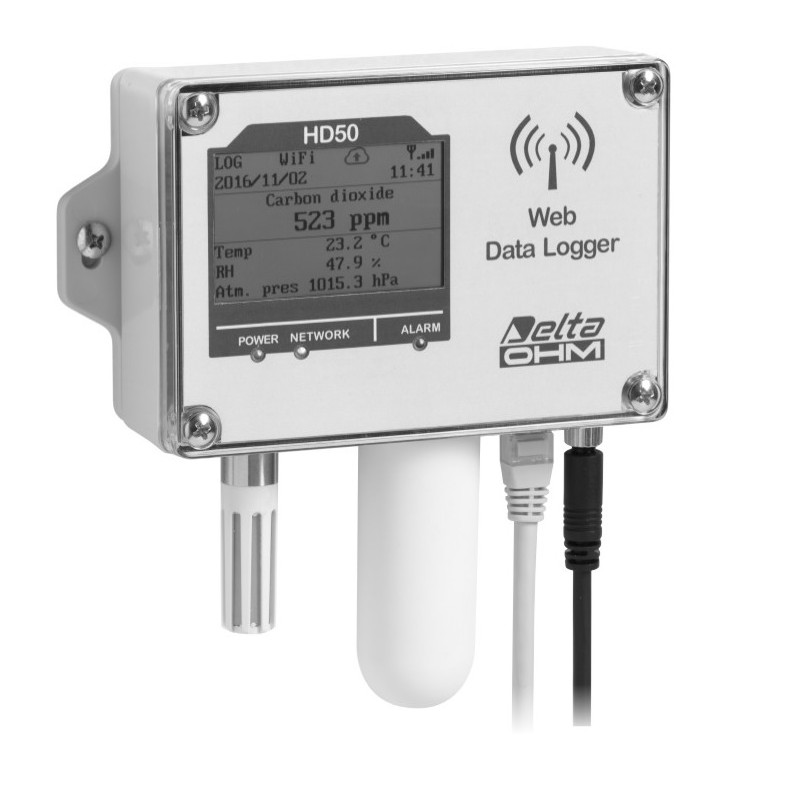

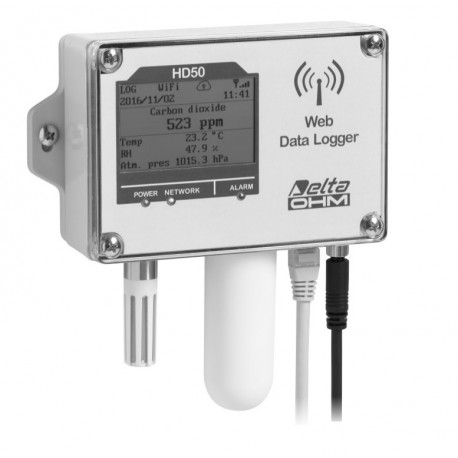

HD 50 14bNB… TV Temperature, Humidity, Atmospheric Pressure and Carbon Dioxide (CO2) Data Logger

Reference

Manufacturer: Delta Ohm

Condition: New

Number of samples: Min = 323,800, Max = 906,640 (depending on the number of
stored quantities). Optional custom (option L) or graphical (option G) LCD display.
Fixed vertical temperature and relative humidity combined probe (with NTC10KΩ temperature sensor). Fixed CO2 probe with removable protection filter. Integrated pressure sensor.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

830,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

-----------------DATA LOGGERS----------------	Data Acquisition
Environment of Use	Indoor
IP Classification	IP54
Communications	Wifi/Ethernet

HD 50 Manual Download (3.16M)

HD 50 Data Sheet Download (1.43M)

Sensors measuring ranges:
- temperature: -40 ... + 105 ° C
- relative humidity: 0 ... 100% RH
- atmospheric pressure: 300 ... 1100 hPa
- CO2:

0 ... 5,000 ppm (HD 50 14bNB TV)
0 ... 10,000 ppm (HD 50 14bNB2 TV)

RH. Sensor operating temperature: -20 ... + 80 ° C.
CO2 sensor operating temperature: -20 ... + 60 ° C.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: dew point, wet bulb temperature, absolute humidity, mixing ratio, partial vapor pressure.
It includes HD35AP-S downloadable software from Delta OHM web site.
Supplied with: pair of flanges for wall mounting, M8 connector for connecting the powe supply, operating manual. The SWD10M8 power supply or the CPM8 ... power supply cable have to be ordered separately. The Ethernet cable is not included.
