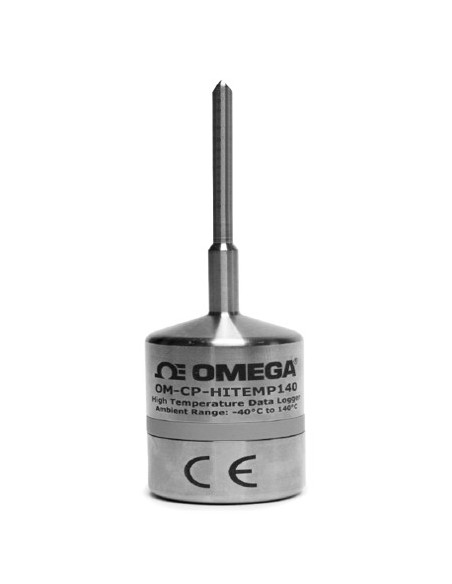

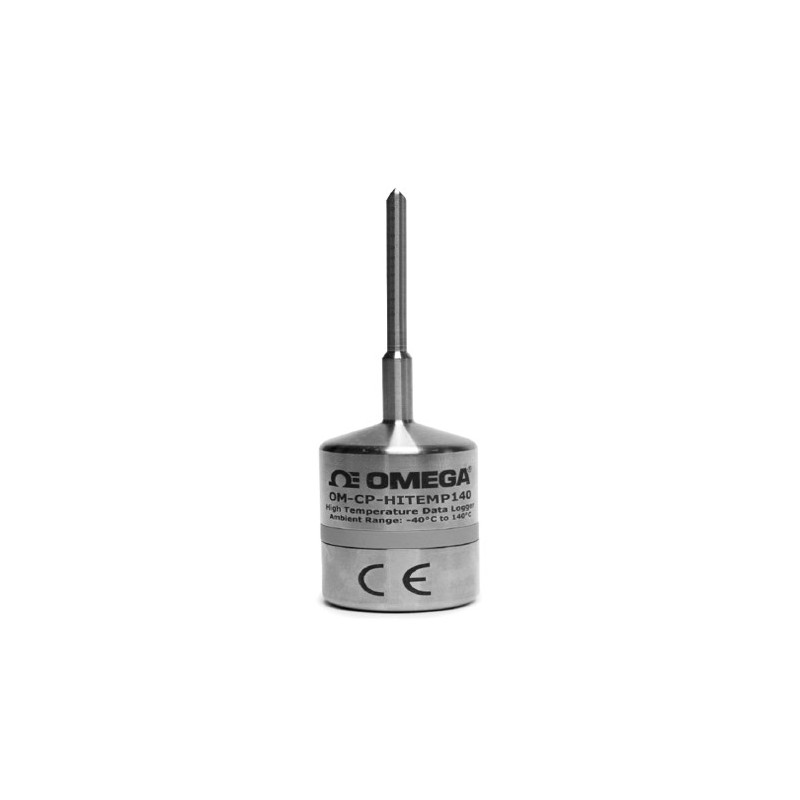

OM-CP-HITEMP140 Data logger of Temperature for Autoclaves View larger

OM-CP-HITEMP140 Data logger of Temperature for Autoclaves

OM-CP-HITEMP140

Omega

New

  • Datalogger for autoclaves with accuracy ±0. 1° C
  • Runs up to 140° C
  • Submersible (IP68)
  • User replaceable batteries
  • Reusable
  • Start and end of the programmable register
  • Probes of different lengths depending on the model

Add to wishlist

The OM-CP-HITEMP140 is a dataloggerde robust temperature and high precision that is built for use in hostile environments. This steel device is waterproof and can withstand temperatures up to 140° c with an accuracy of ±0. 1° C in this interval. The probe, 50 mm in length (depending on model), is capable of measuring temperatures extended up to 260 ° C provided that the main body does not exceed 140 ° C making it ideal for autoclaves.
For autoclaves data logger can store up to 32,700 readings with date and time. Solid-State non-volatile memory retains data even if the battery is discharged.

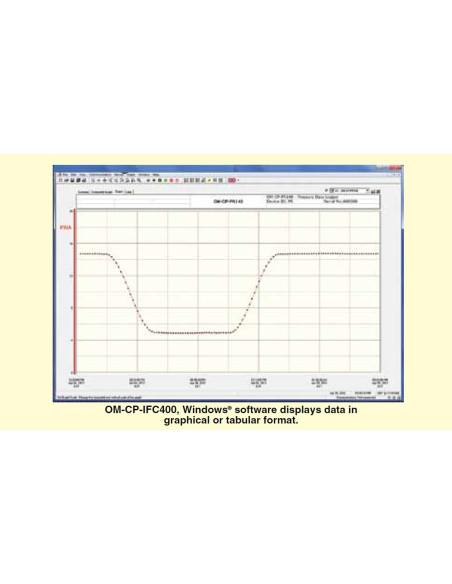

Using the software start, stop, and transfer data from the OM-CP-HITEMP140 is simple and easy. Graphed can be and tabulate the data to provide an analysis. The data can also be exported as automatically to Excel for further analysis.

OM-CP-HITEMP140-1 Temperature Data Logger with 27 mm (1.1") Probe
Temperature Sensor: 100Ω Platinum RTD
Temperature Range (Body): -40 to 140°C (-40 to 284°F)
Temperature Measurement Range (Probe): -200 to 260°C (-328 to 500°F)
Temperature Resolution: 0.01°C (0.02°F)
Calibrated Accuracy: ±0.1°C (±0.18°F) [20 to 140°C (68 to 284°F)]
Battery Life: 1 year typical [1 minute reading rate at 25°C (77°F)]
Data Format: Date and time stamped °C, °F, K, °R
Time Accuracy: ±1 minute/month at 20 to 30°C (68 to 86°F) (stand alone mode)
Operating Environment: -40 to 140°C (-40 to 284°F), 0 to 100% RH
Dimensions
    Body: 40 H x 25 mm D (1.6 x 0.97")
    Probe: 27 L x 3.2 mm dia (4.8 mm transitional dia) [1.1 x 0.125" dia (0.188" transitional dia)]
Weight: 120 g (4.2 oz)
Material: 316 stainless steel

OM-CP-PR140 PRESSURE DATA LOGGER
Pressure Sensor: Semiconductor strain gauge
Pressure Range: 0 to 5 bar (0 to 72.5 psia)
Pressure Resolution: 0.1 mBar (0.0015 psia)
Calibrated Accuracy: ±0.03 Bar (±0.435 psi) (20 to 140°C/68 to 284°F)
Pressure Response Time: 0.1 ms (10 to 90% FSR)
Repeatability: ±0.5% FSR; ±0.2% typical
Data Format: psia, bar, mbar, atm, Torr, Pa, kPa, MPa, mmHg, inHg, inH20, mH20, ft, m
Battery Life: 2 years typical
Time Accuracy: ±1 minute/month at 20°C
Operating Environment: -20 to 140°C, (-4 to 284°F) 0 to 100% RH, may be used above 60°C (140°F) for up to 8 hrs per 24 hr period
Dimensions: 50.8 L x 25.4 mm dia. (2.0 x 1.0")
Weight: 85 g (3 oz)
Enclosure: Stainless steel

COMMON SPECIFICATIONS (OM-CP-HITEMP140-1 and OM-CP-PR140)
Real Time Recording: May be used with PC to monitor and record data in real time
Memory: 32,700 readings; software configurable memory wrap
Reading Rate: One second up to once every 24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V high-temperature lithium battery (included)
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

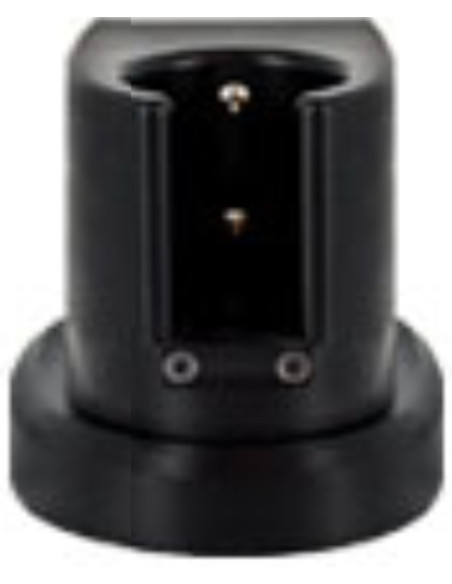

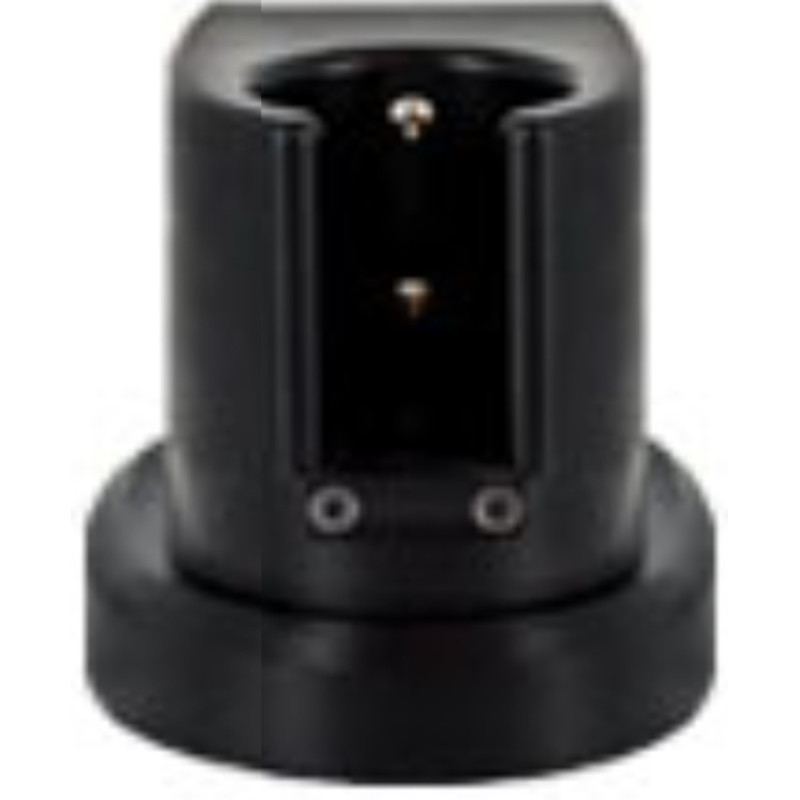

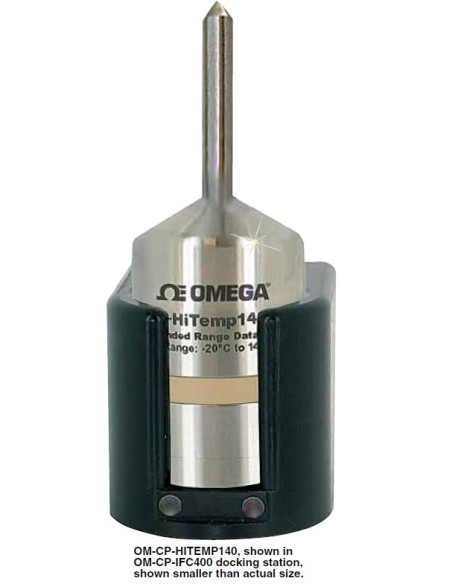

Computer Interface: OM-CP-IFC400 USB docking station or OM-CP-IFC406 multiplexer interface required, 125,000 baud
