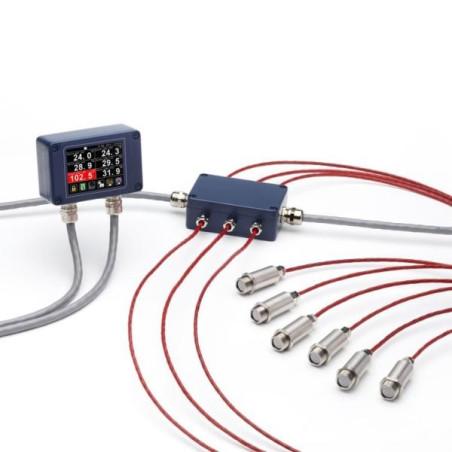

PyroMiniBus Multi-channel Infrared Temperature Monitoring System




Add to wishlist


AlphaOmega-Electronics offers you the best range of Temperature Data Loggers and at the most competitive prices.


Sensor Features

  • Miniature non-contact temperature sensor
  • RS485 Modbus interface
  • Measures temperatures from -20°C to 1000°C
  • Withstands ambient temperatures of 120°C without cooling

PM180 Touch Screen Interface Features

  • 6-channel temperature display with configuration, alarms and data logging
  • Analogue and alarm relay outputs via optional modules

System Features

  • Low-cost standalone 6-channel temperature monitoring system
  • Build larger systems using the PM180’s separate Modbus Master and Slave interfaces

General Specifications

Temperature Range: -20°C to 1000°C

Interface: RS485 Modbus RTU

Accuracy: ±1% of reading or ±1ºC whichever is greater

Repeatability: ± 0.5% of reading or ± 0.5°C whichever is greater


Electrical Installation

Dimensions (mm)

PM180 6-Channel Hub

6-channel touch screen hub for temperature display, alarms, configuration and data logging. Isolated RS485 Modbus master and slave interfaces allow multiple hubs to be connected to a larger network. Optional modules provide analogue and relay outputs.

Air Purge Collar

The air purge collar is used to keep dust, fumes, moisture and other contaminants away from the lens. Air flows into the fitting on the side and out of the aperture at the front.

Fixed Mounting Bracket

The L-shaped fixed mounting bracket offers a rigid support for the sensor and allows fine rotational adjustment about one axis.

Adjustable Mounting Bracket

The adjustable mounting bracket consists of a fixed mounting bracket plus another L-shaped bracket. When assembled as shown, the adjustable mounting bracket offers a rigid support for the sensor and allows fine two-axis adjustment.

Laser Sighting Tool

The Laser Sighting Tool screws onto the front of the sensor during installation and shows precisely where the sensor is aiming. Once the sensor has been aimed at the centre of the target and locked in position, the Laser Sighting Tool can be removed. The laser is operated via a latching push button on the front of the tool.

Dual Laser Sighting Bracket

The Dual Laser Sighting Bracket is a sturdy mount for the sensor and provides continuous target sighting while measurements are being taken. Two parallel lasers indicate the centre of the measured spot and are controlled by a remote switch on the electronics module.

Protective Plastic Window

When fitted over the lens of the sensor, the protective plastic window in stainless steel holder provides mechanical protection and helps retain fragments of lens in case of damage. Adjust the sensor’s emissivity setting to compensate for the presence of the window for maximum accuracy. This accessory is ideal for the food and pharmaceutical industries.
