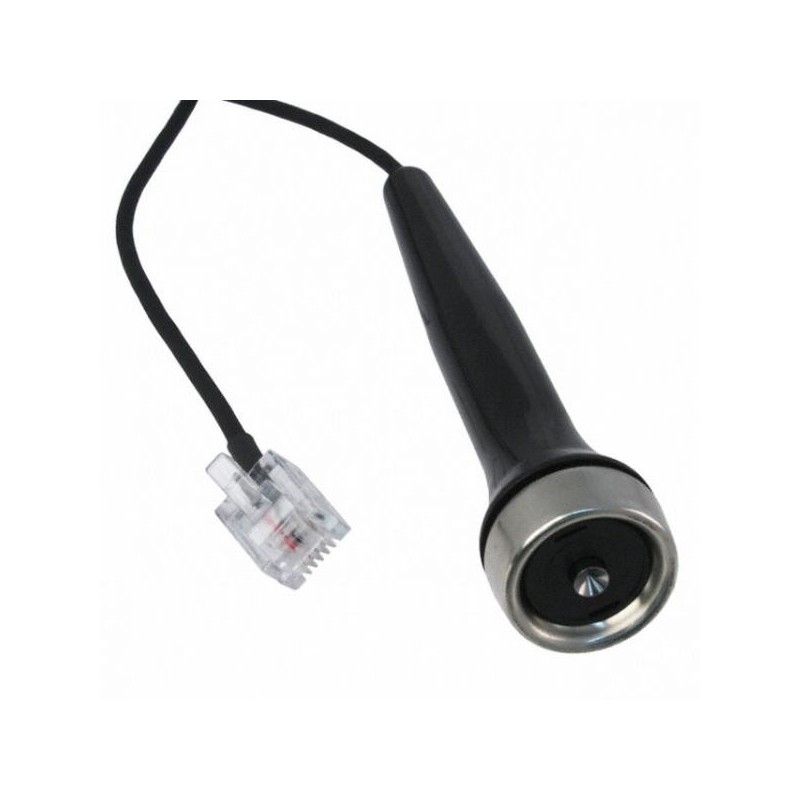

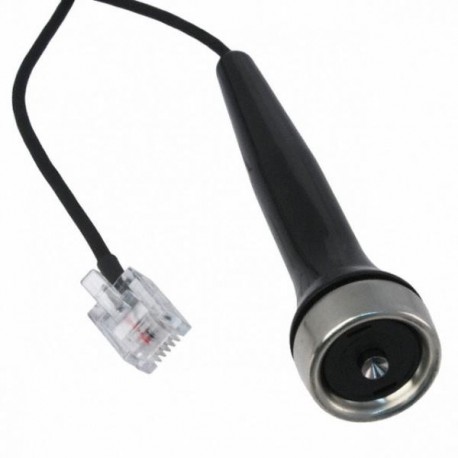

DS9092GT iButton Probe Hand-grip mount with tactile feedback

The DS9092GT  iButton Probe provides the electrical contact necessary for the transfer of data to and from the DS19xx family of iButtons. The round probe shape provides a self-aligning interface that readily matches the circular rim of the iButton's MicroCan package.
Metal contacts resist wear and are easy to keep clean.

The DS9092GT has tactile feedback and is a grip-mount version. The Hand-grip probe mates to RJ-11 jack for quick installation.
The center contact of the standard reader has no moving parts, making this a more rugged interface for harsh environments. This type of probe is best suited for designs where the iButton is brought into contact with the reader.

The tactile feedback probe is ideal for situations where the iButton is stationary and the movable reader is brought in contact with it.

This type of probes is available in a panel-mount version and in a grip-mount version. The panel-mount probes are fastened behind the panel with a push-on type spring nut.

The two 15 cm 22AWG wires are provided for easy connection to the system microcontroller.

Features:
Simple, low-cost metal stampings form a read/write probe for the iButton family
Probe guides the entry of the iButton
iButton slides over the surface to self-clean contacts
Accessible shallow probe cavity simplifies removal of debris such as mud
Bright tarnish-resistant metal surface provides millions of operations
Panel-mount probe, pre-wired for easy installation
Hand-grip probe mates to RJ-11 jack for quick installation
DS9092 probes both F3 and F5 cans. Extra consideration is required for operation with the F3 can. The attachment method of the F3 can must not interfere with the cavity dimensions of the probe, otherwise the data signal will not make contact
