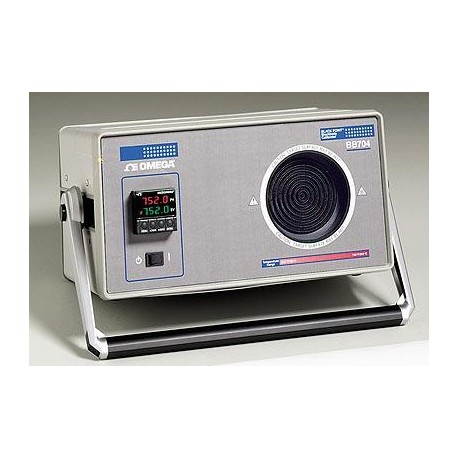

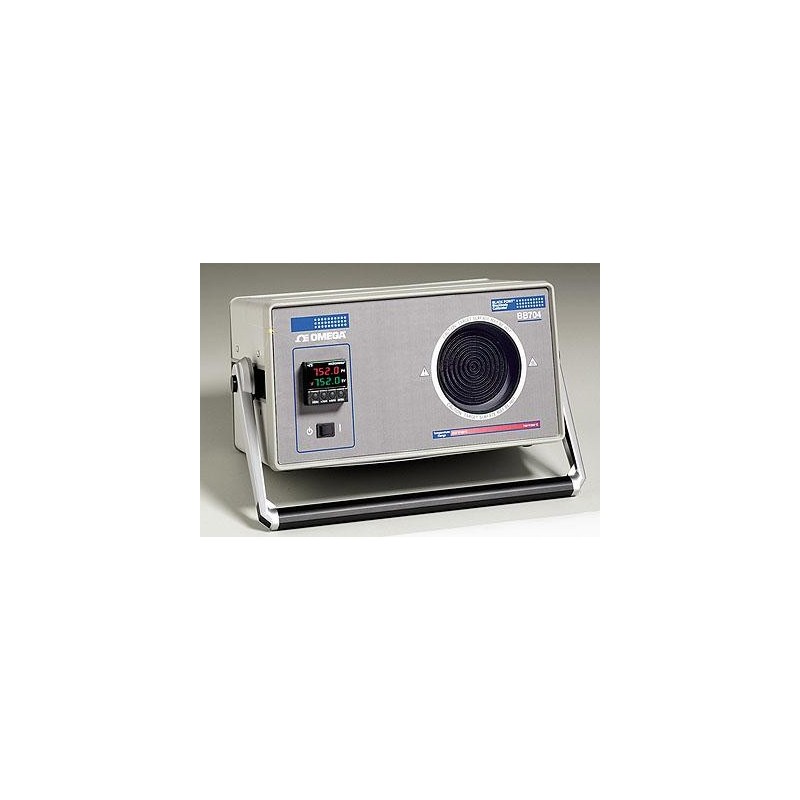

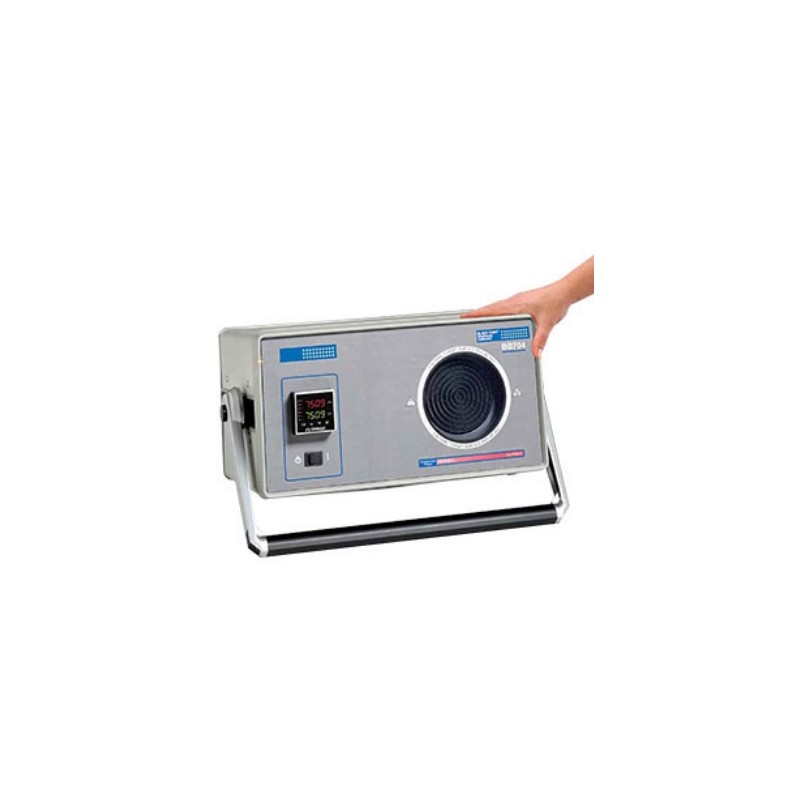

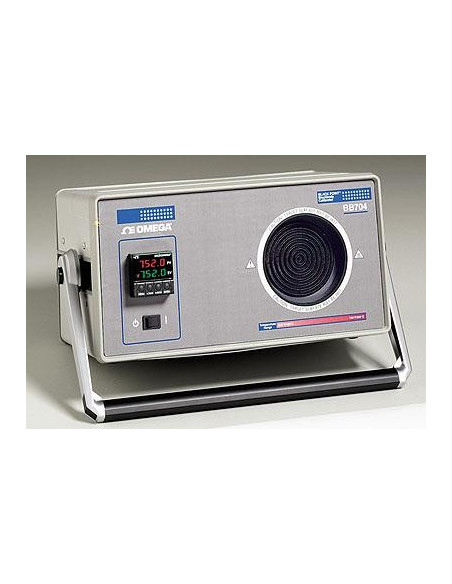

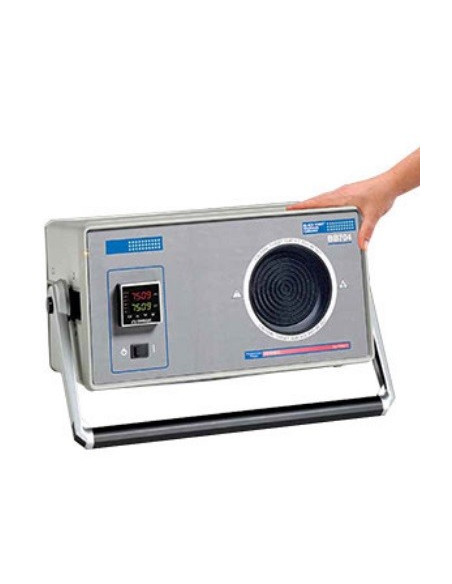

BB704 Black Body Calibration Source (100ºC to 398°C)

BB704

Omega

New

102 mm (4) large Pocket opening (100ºC to 398°C):

Calibrates from 100 to 398°C (212 to 750°F)
Portable Rugged Design
Large 102 mm (4") Aperture
Calibrates Infrared Pyrometers Quickly and Accurately
Built-In Digital PID Autotune Temperature Controller with Temperature Readout
NIST Traceable Calibration Certificate with 3 Temperature Data Points Included
RS-232 Output Standard
Built-In RTD Reference Probe Output

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS DRY WELL CALIBRATORS

The model BB704 is a reference source of temperature of a black body that fits in the range of 100 ° c to 398 ° C (212-750 ° F) and has an accuracy of ±0. 8 ° C (4 ° F, ±1) the indicated temperature. It has an integrated digital temperature controller to provide precise and stable temperatures, as well as to provide readings of the temperature of the target plate. The heated cavity provides an objective of known temperature and emissivity and can calibrate almost any infrared pyrometers with a diameter the size of a point of 102 mm (4) or less. Its compact and portable design allows for quick and easy calibration.

Calibrates from 100 to 398°C (212 to 750°F)
Portable Rugged Design
Large 102 mm (4") Aperture
Calibrates Infrared Pyrometers Quickly and Accurately
Built-In Digital PID Autotune Temperature Controller with Temperature Readout
NIST Traceable Calibration Certificate with 3 Temperature Data Points Included
RS-232 Output Standard
Built-In RTD Reference Probe Output
  • Calibra desde 100 hasta 398 °C (212 a 750 °F)
  • Diseño resistente y portátil
  • Placa del objetivo grande de 102 mm (4")
  • Calibra pirómetros infrarrojos de forma rápida y precisa
  • Controlador de temperatura digital con ajuste automático de PID incorporado con lectura de la temperatura
  • Se incluye un certificado de calibración rastreable con 3 puntos de datos de temperatura
  • Estándar de salida RS232
  • Salida de sonda de referencia RTD integrada

Ambient temperature: 0 to 50 ° C (32 to 122 ° F)
Power: 115 Vac, 50/60 Hz or
230 Vac, 50/60 Hz, 425 W
Operating temperature range (black body cavity): 100 to 398 ° C (212 to 752 ° F)
Internal detector elements: RTD
Accuracy: ± 0.8 ° C (± 1.4 ° F)
Stability: ± 0.1 ° C (± 0.2 ° F)
Emissivity of the cavity: 0.95
Warm-up time: 20 minutes from ambient to 398 ° C (750 ° F)
Diameter of lens plate 102 mm (4 ")
Dimensions: 410 x 190 x 264 mm
(16.12 x 7.50 x 10.38 ")
Weight: 7.27 Kg. (16 lb)
