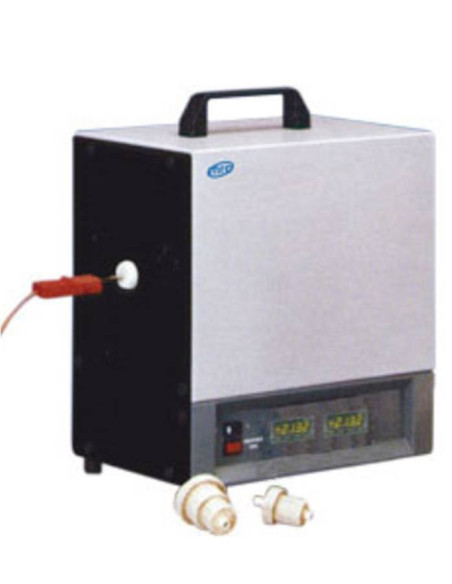

CALI-1200  Thermocouple Calibration Furnace 400 - 1200°C View larger

CALI-1200 Thermocouple Calibration Furnace 400 - 1200°C

CALI-1200

MRC

New

The Portable Thermocouple calibrator is a high stability heat source designed for
the calibration of thermocouples up to 7.5mm, with a maximum operating temperature of 1200°C. Thermocouples.

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS DRY WELL CALIBRATORS

Calibration oven for thermocouples
Temperature range: 400 to 1200 degrees C
Diameter of thermocouples up to 7.5mm
Temperature stability better than 1 degree C
External: w310xd225xh399
Weight 8.8kg
1100 Watt power

Model

CALI-1200

Max. temperature (°C)

1200

Continuous temperature (°C)

1150

Temperature range (°C)

400-1200

Stability

Better than +1°C

Overall dimensions (mm)

W310xD225xH399

Heated length (mm)

150

Controller

eurotherm 2132

Indicator

eurotherm 2132

Heating rate

20 mins (to 1150°C)

Cavity diameter (mm)

20

Weight (kg)

8.8

Furnace voltage

120/240 externally selectable

Max. power (W)

1100

Thermocouple type

N
