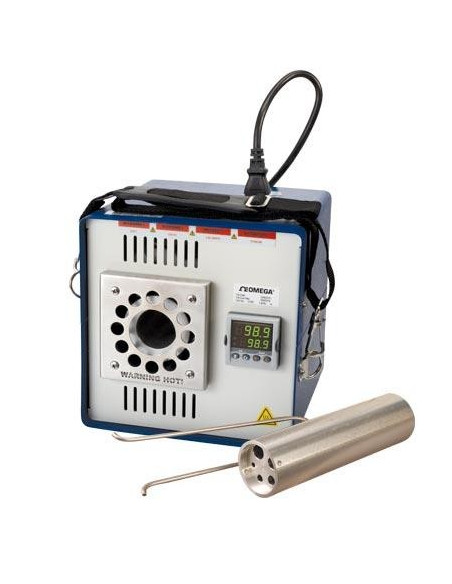

CL-355A Gauge Portable Compact 400° C View larger

CL-355A Gauge Portable Compact Calibrator up to 400° C

CL-355A

Omega

New

  • Portable compact temperature gauge with 10 insert sizes available.
  • 1 insert for multiple wells included (⅛, 3/16, ¼, 5/16, ⅜ ").
  • Maximum operating temperature of 400 ° C (752 ° F).
  • Independent cut of overtemperature.
  • Protection against wear of the temperature sensor.
  • Includes calibration certificate traceable by NIST.
  • Includes shoulder strap, power cord and extraction and insertion tool.

Add to wishlist

MEASUREMENT AND CALIBRATION INSTRUMENTS DRY WELL CALIBRATORS

The CL-355A is a small, lightweight and portable dry block gauge calibrator offering times of fast with excellent performance specifications on a wide range of operating temperature cooling and heating. It's a good choice for laboratory work in standard tables or as a portable field unit.
The unit covers the temperature range of 5 ° C (9° F) above ambient temperature up to 400 ° C (752 ° F) using a block of inclusion of large aluminum macanizado for multiple wells as a means of transfer of heat sensors under test. The CL-355A uses the same aluminum that CL-740A gauge inserts. Omega.com cl-700a series CL-700A see for a listing of the inserts.
This gauge is designed to operate safely under the following conditions: ambient temperature range: 5 to 40 ° C (9 to 104 ° F), to 95 RH, without condensation.

Minimum temperature: 5 ° C (9 ° F) above room temperature
Maximum temperature: 400 ° C (752 ° F)
Cooling speed, 400 to 100 ° C
(752 to 212 ° F): 21 min
Heating speed, 20 to 400 ° C
(68 to 752 ° F): 12 min
Independent overtemperature cut: 450 ° C (842 ° F) approx.
Cooling of the fan: automatic
Screen resolution: 0.1 °
Weight: 4 kg (9 pounds)
Immersion depth of insertion: 114 mm (4.5 ")
Dimensions: 222.25 mm high x 203.2 mm wide x 203.2 mm deep (8.8 x 7.9 x 7.9 ")
Stability after 15 minutes: ± 0.15 ° C (0.27 ° F)
Screen accuracy: ± 0.6 ° C (1.1 ° F)
Uniformity from well to well: 0.015 to 0.025 ° C (0.027 to 0.045 ° F)
