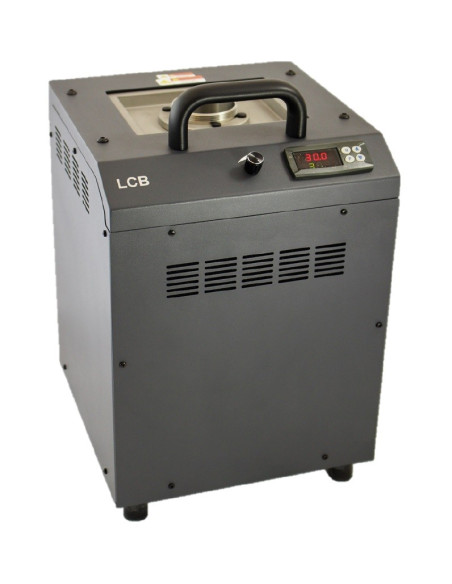

AO-LCB-50 Portable Calibration Bath with temp. range 30ºC to 225ºC View larger

AO-LCB-50 Portable Calibration Bath with temp. range 30ºC to 225ºC

AO-LCB-50

AO-Electronics

New

HIGHLIGHTS
Temperature range 30… 225ºC
Immersion depth 190 mm
Stability 0.03 ° C
Uniformity 0,05ºC
Fast response time

Add to wishlist

With Display LCD
MEASUREMENT AND CALIBRATION INSTRUMENTS Calibration Baths

Portable calibration thermostatic bath, with temperature range
from 30 ° C to 225 ° C. It offers a depth of immersion of 190 mm and
a diameter of 60mm, which allows a high working range. The
AO portable Calibration baths offer the best
performance for the most demanding precision calibrations.
Thanks to the continuous regulation magnetic stirrer, it allows
homogenize the calibration area, which makes it one of the
more reliable equipment thanks to its high stability of 0.03ºC and a
uniformity better 0,05ºC.

General data:
PID temperature controller
Keyboard for setpoint selection, alert / security settings and menu
Adjustable magnetic stirrer speed by potentiometer
High temperature stability up to ± 0.05ºC
Temperature uniformity better than ± 0.03ºC
Integrated Pt100 probe for reference temperature measurements
Temperature chamber with basket for temperature probes to be calibrated.

Technical characteristics

Operating temperature range (ºC): 30… 225 ºC
Temperature stability (ºC): ± 0.03 ºC
Uniformity: 0.05ºC
Resolution: 0.1ºC
Well Diameter: 60mm
Well depth: 190 mm
Well capacity: 0.7 liters
Warm-up time: from 25 to 220ºC: 42 minutes
Cooling time: 220 to 100ºC: 35 minutes
Housing and mounting: Desktop / portable
Dimensions W x D x H (cm): 280 x 280 x 400
Weight (kg): 11.4 kg
Power supply: 110… 230 Vac 50/60 Hz

-Calibration laboratories
-Test laboratories
-Universities / R&D Centers
-Chemical / Pharmaceutical Industry
-Food industry

Standard Delivery:
Basic Instrument LCB 50
Enteflonado magnetic stirrer, basket and cable, metal lid.
Certificate 3.1 Traceable
Manual

Optional:
Metal trolley carrying case with wheels and handle.
ENAC / ISO 17025 calibration certificate
