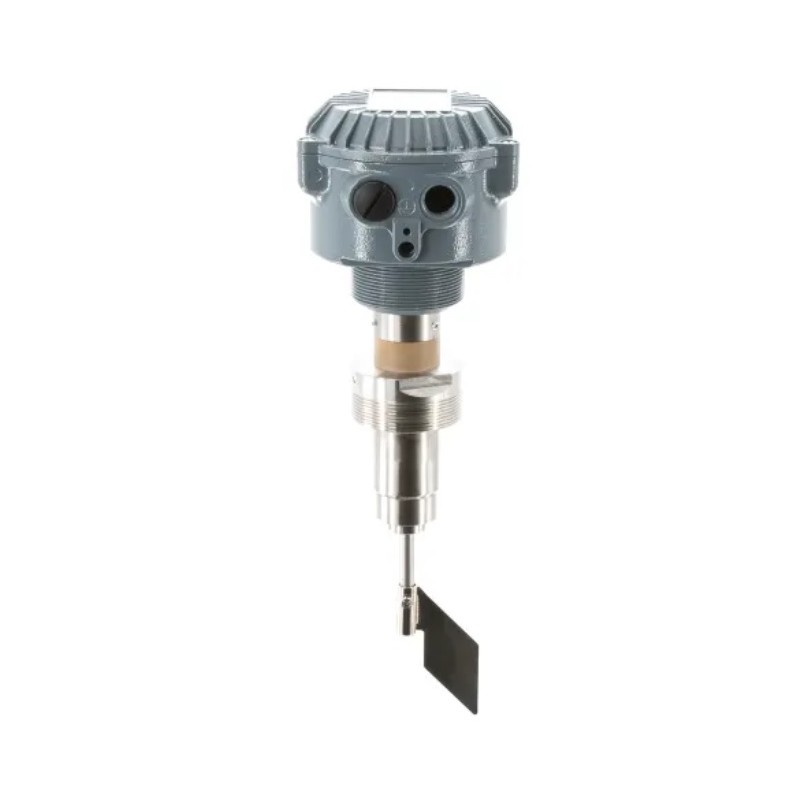

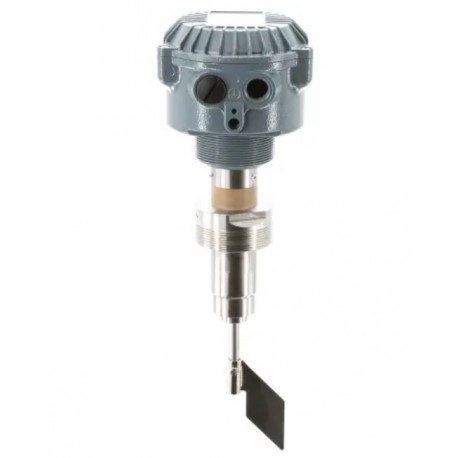

CamLogic PFG05AT Rotary level indicator for Solids, Corrosives and High Temperature


CamLogic s.r.l.


This Rotary paddle level switch monitors level threshold, generally full or empty, in solid materials in silos or bins.
Of sturdy construction and with an aluminium casing, the unit is of Guaranteed reliability at an excellent quality price ratio.
It is the ideal sensor for heavy-duty conditions and continuous cycles, even in atmospheres that are potentially explosive owing to the presence of dusts/powders.
The unit conforms to the most recent ATEX standards.

Add to wishlist

The Sensor measures: Level

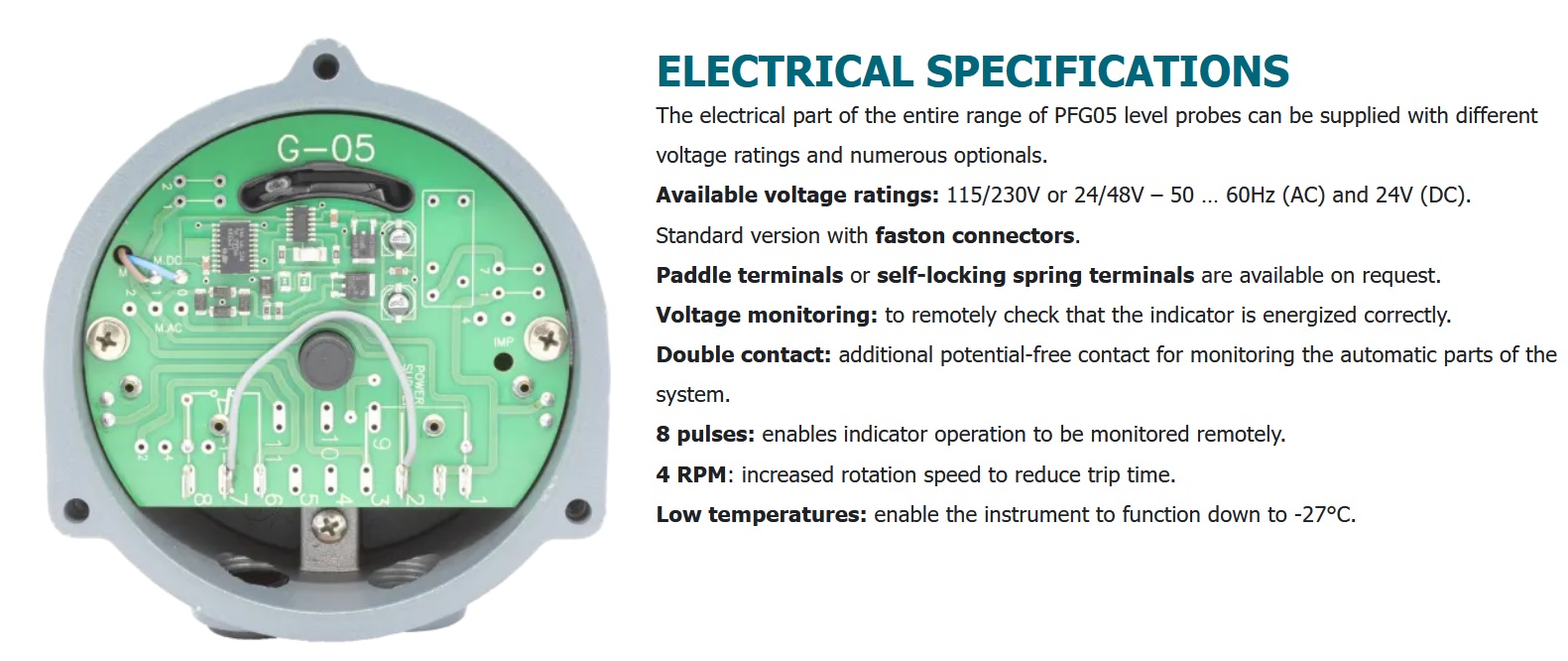

Power Supply: 115/230V or 24/48V – 50 … 60Hz (AC) and 24V (DC) Power consumption max 4 W
Sensor IP Rating IP65

► This version is for high temperatures up to 200°C and for contact with corrosive materals.
Easy to install: specific tools or settings are not required.
Provides the highest standard of safety in the presence of potentially explosive dusts/powders.

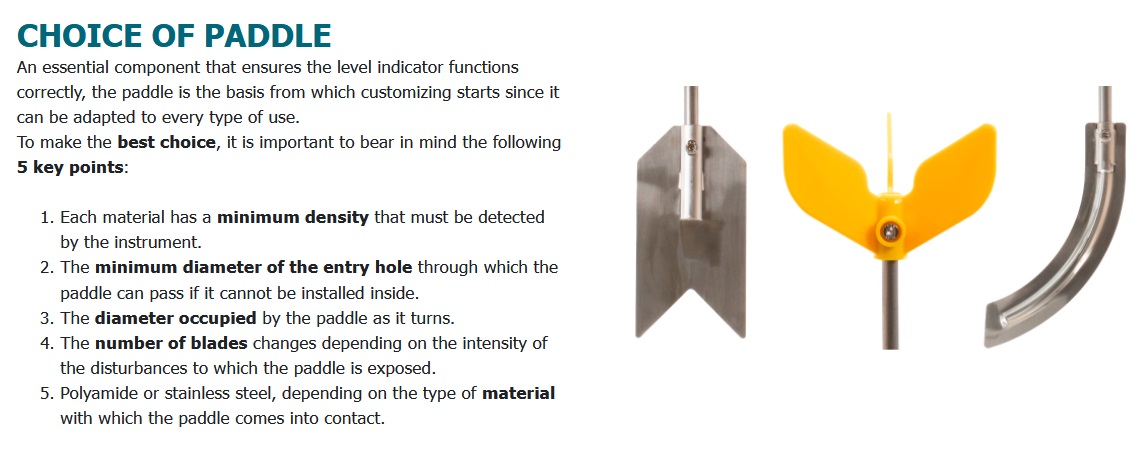

The Probe can be adapted to the material with a broad range of plastic or stainless steel paddles.
It can be mechanicalyl and electrically customised for the measurement of instruments on request.
Extremely reliable, the instrument can be used in addition to radar, capacitive, ultrasound or continuous level probes as a safe signal

Casing and cover in die-cast aluminium
Shaft in AISI 303 / EN 1.4305 stainless steel on life-lubricated sealed bearings, with dust-tight retaining ring in FKM
All parts in contact with the product are in AISI 303 / EN 1.4305 or AISI 304 / EN 1.4301 stainless steel

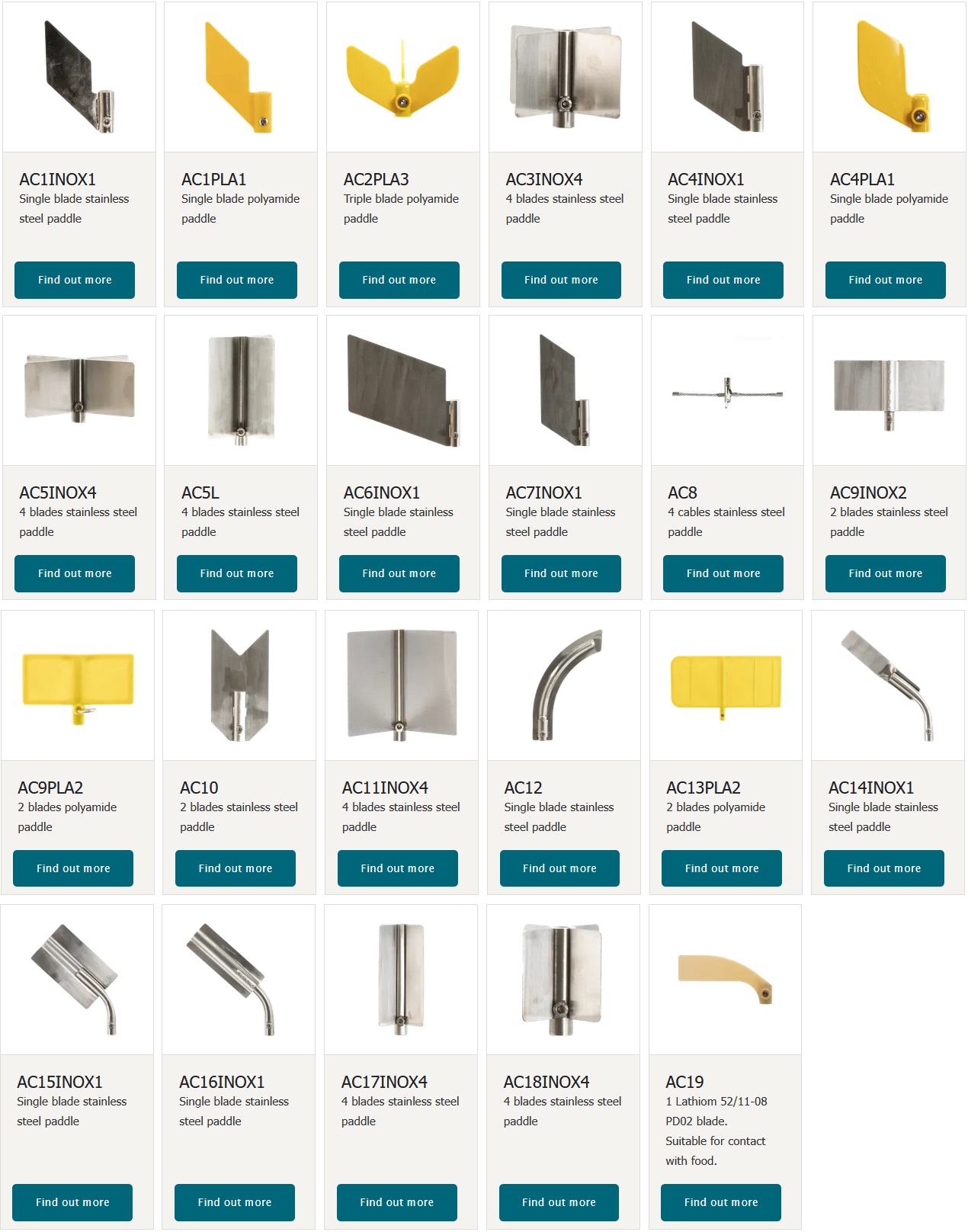

Broad range of paddles in AISI 304 / EN 1.4301 stainless steel

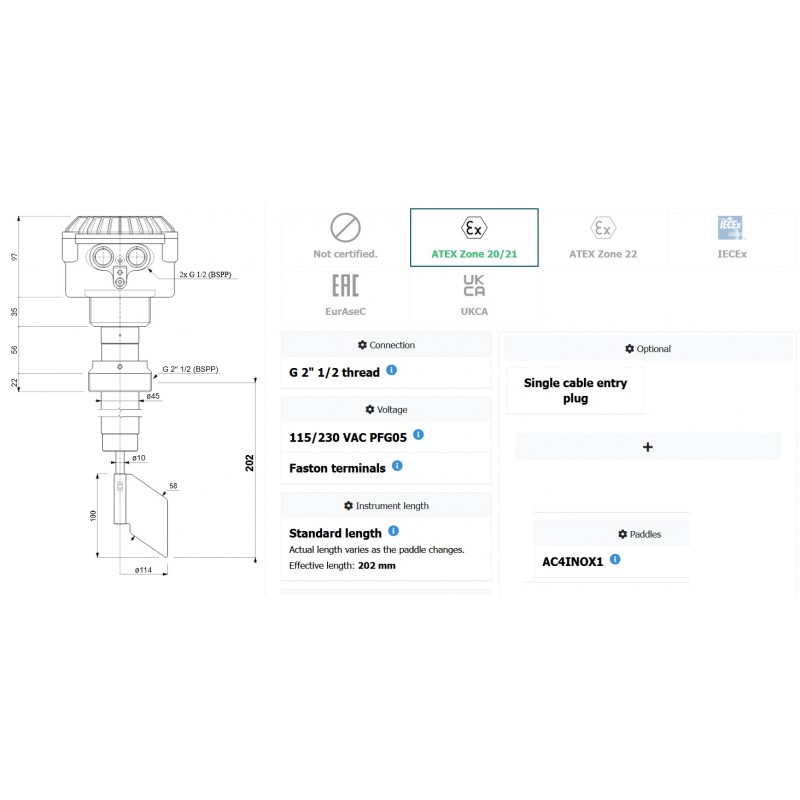

2” 1/2 Gas (BSPP) process connection and 1/2 Gas (BSPP) double cable entry
Rotation speed 1 turn / minute
Ambient temperature -20° to +90°C (-4° ... +194°F)
Process temperature -20° to +200°C (-4° ... +392°F)
Process pressure 0,8 to 5 bar (11,6 to 72,5 psi)
IP65 protection rating (dustproof, protection against water jets)
Power consumption max 4 W
Contact capacity 10A at 250V (AC)
Micro switch SPDT output signal

If the product is to be used in areas with explosive atmospheres, the following characteristics apply:
Ambient temperature -20° to +70°C (-4° ... +158°F)
Process pressure 0,8 to 1,1 bar (11.6 to 72,5 psi)
