LCB Universal Digitizer-Transmitter for Load Cells

LCB

Laumas

New

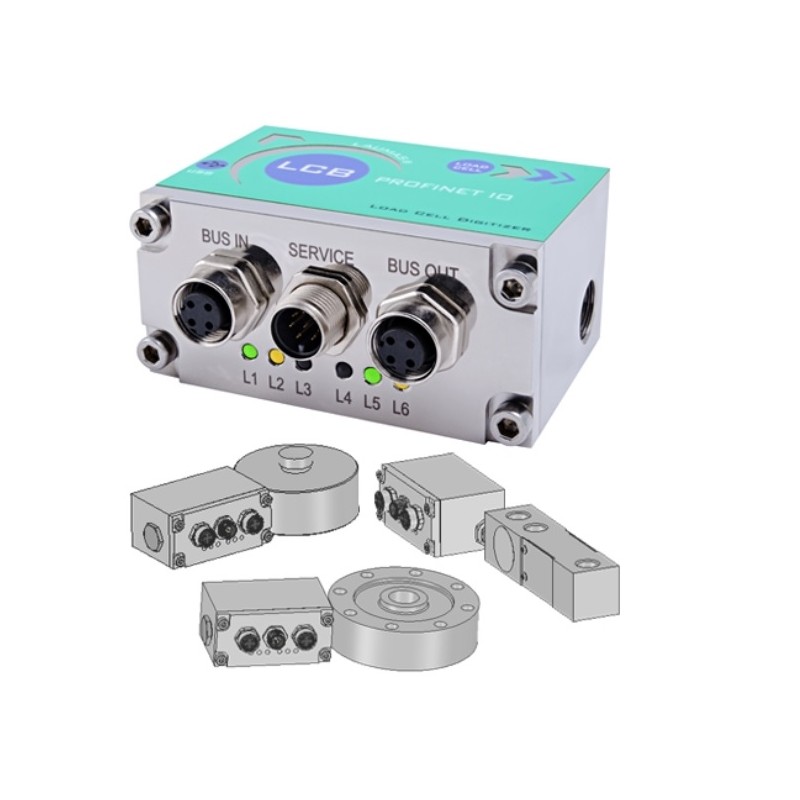

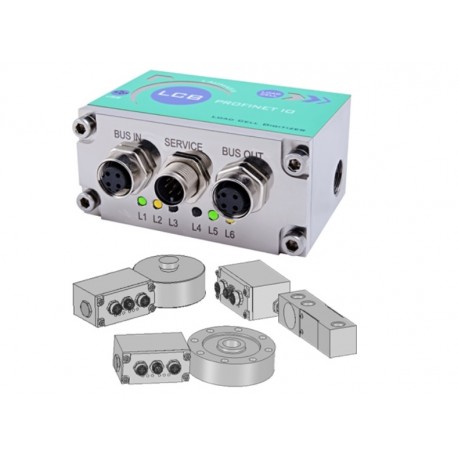

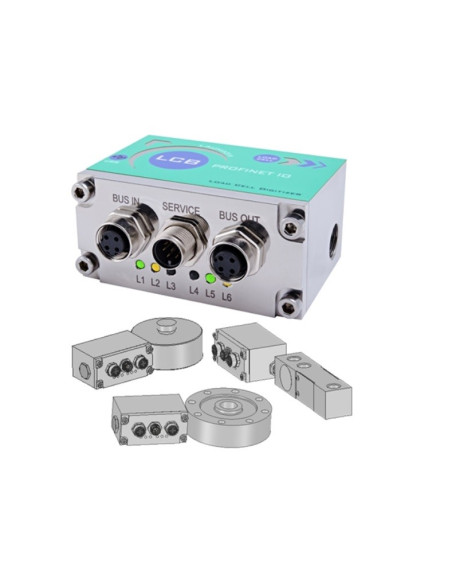

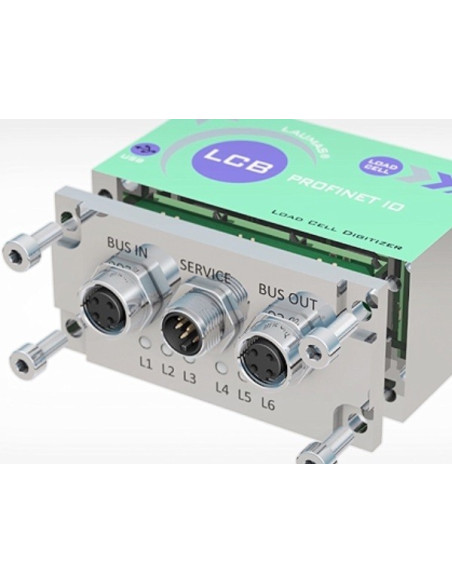

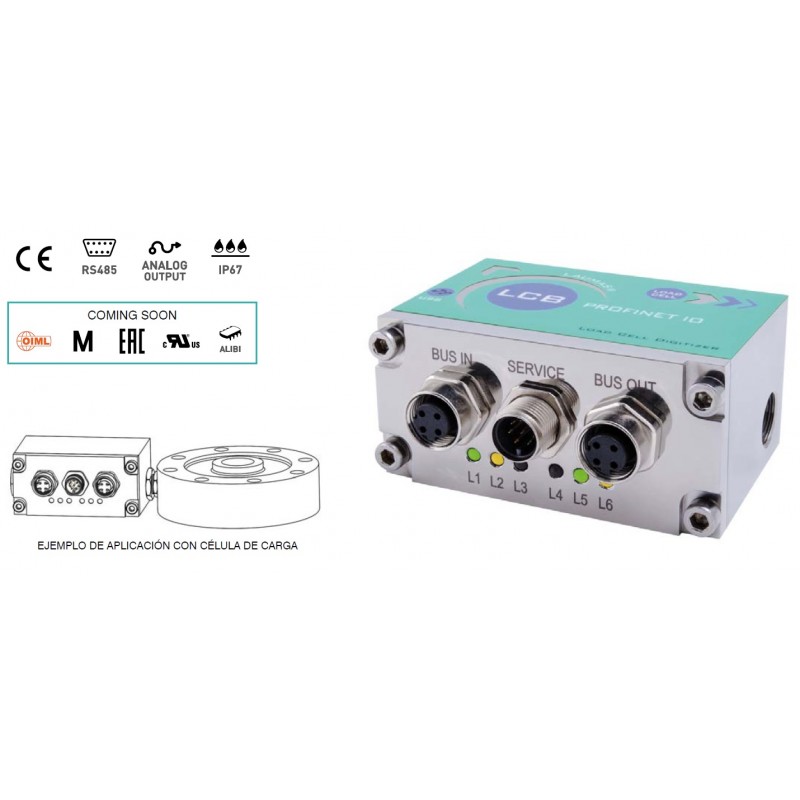

Digitizer-Weight transmitter for load cells conceived from an IoT (Internet of Things) perspective. IP67 box in AISI 316 stainless steel, suitable for aggressive environments. 3 M12 IP67 connectors. 6 led signaling of the communication interface. Dimensions: 97 x 38 x 82 mm including connectors.

The LCB digitizer transforms an analog load cell (mV / V output) into digital and can also be used with existing load cells or strain gauges. Developed for the integral assembly / wiring with the load cell body, it can be connected to the PLCs of the most famous international brands through field buses.

Add to wishlist

IP Classification IP67
The Sensor measures: Load Cells
Output Signal: 16-bit analog output: 0 / 4-20 mA; 0-5 / 10 V (optional)
Sensor for use in: Outdoor

-LCB transforms an analog load cell (mV / V output) into digital; It can also be used with existing load cells to digitize the weighing system.
-Developed for applications in the field of IoT (Internet of Things).

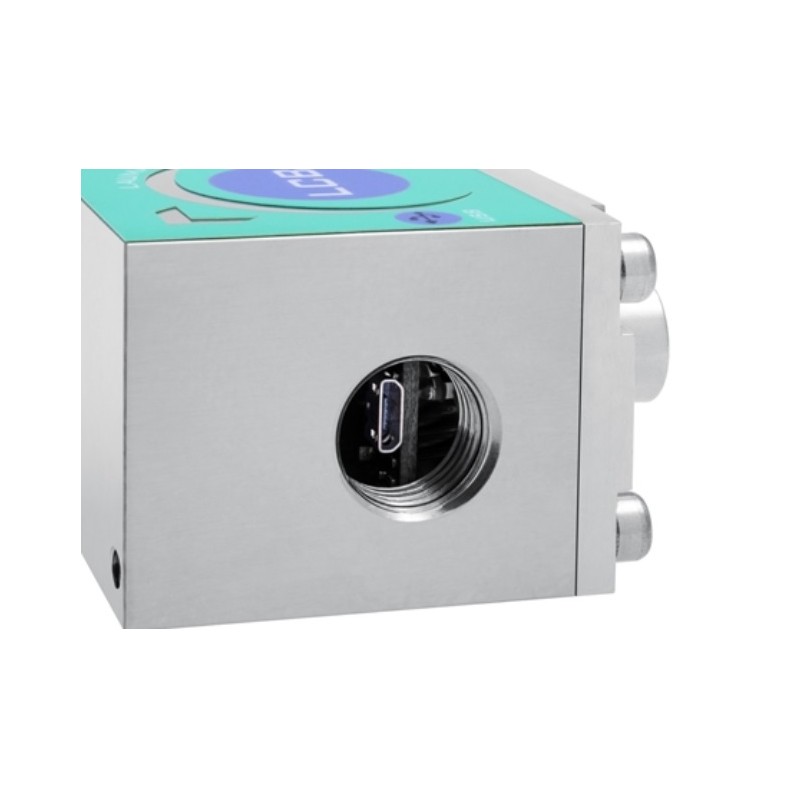

-Computer configuration software through the micro USB port.
- Status LED of the communication interface.

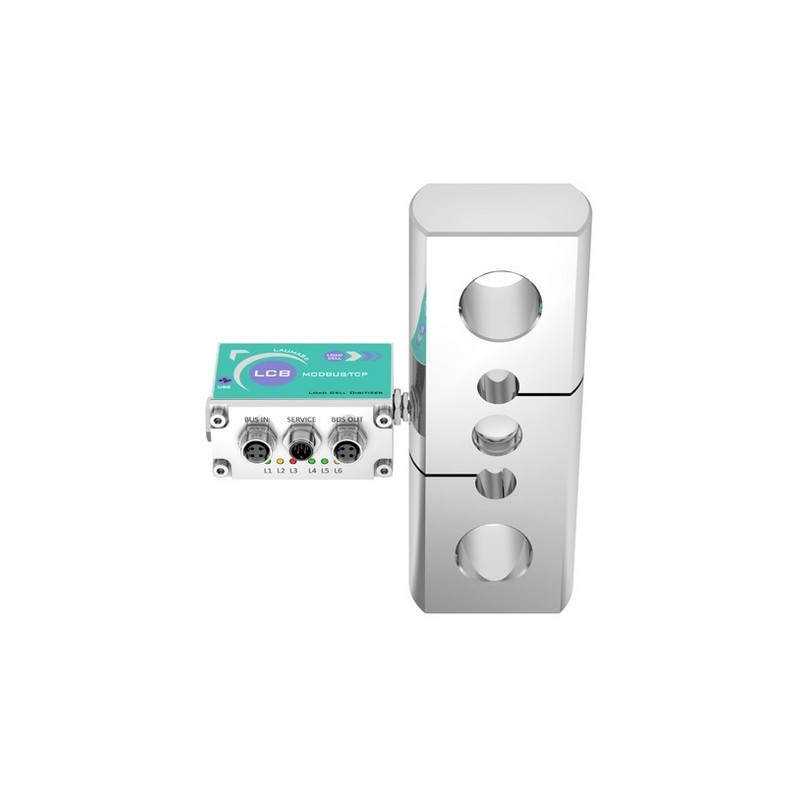

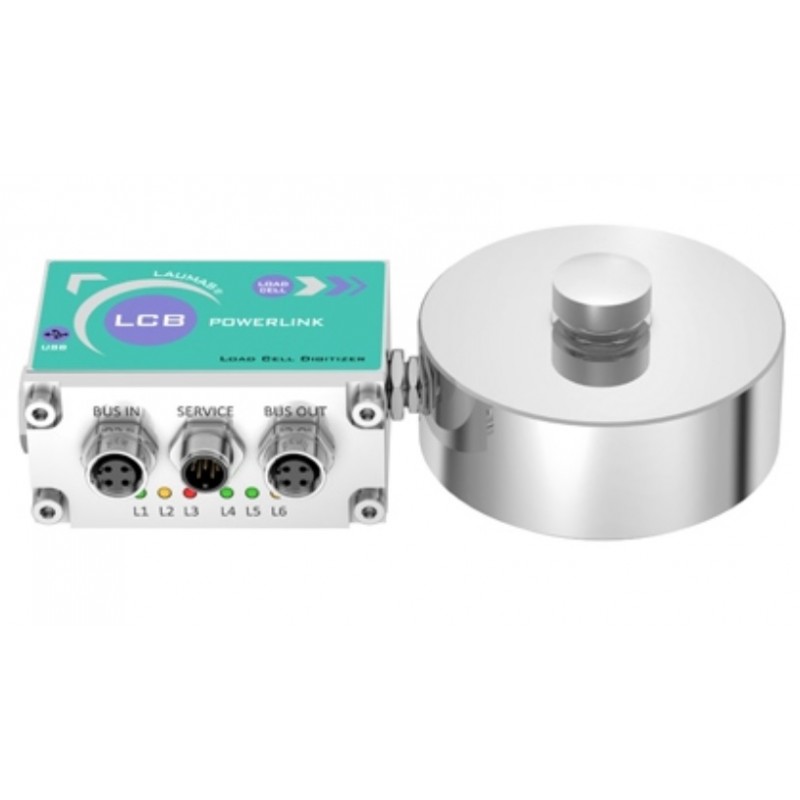

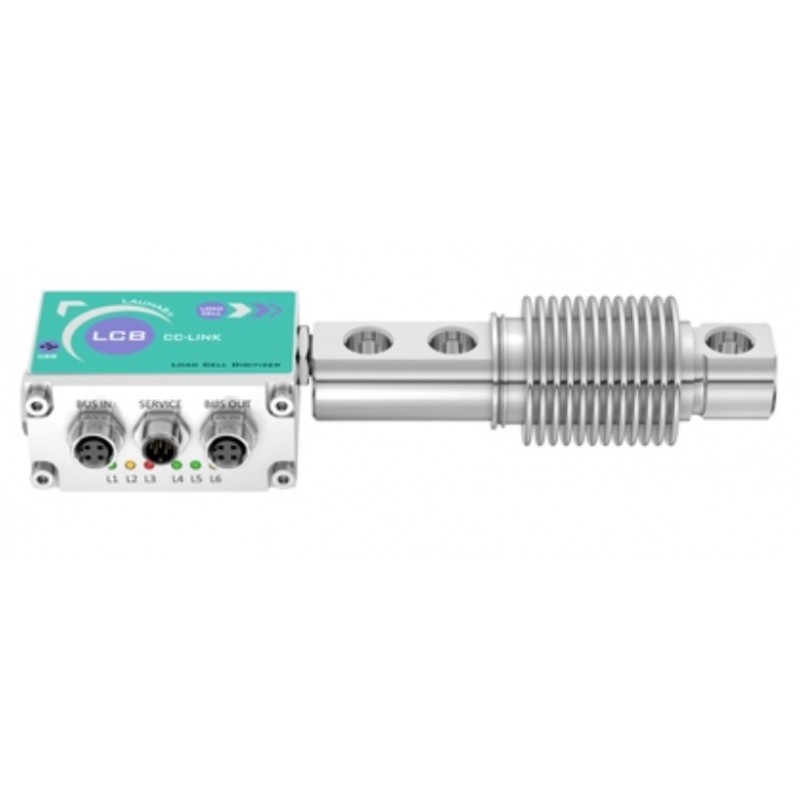

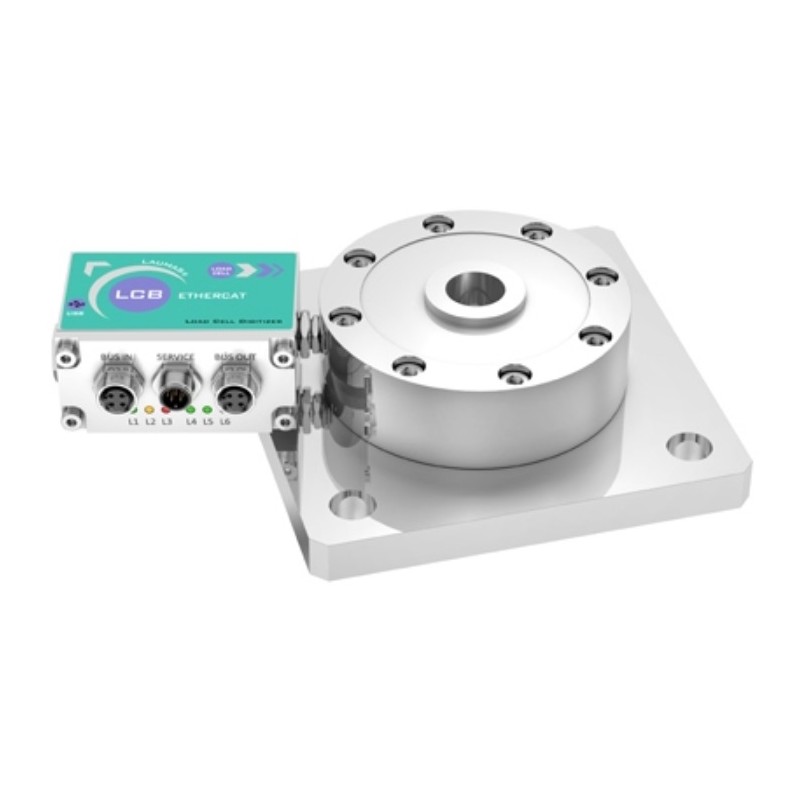

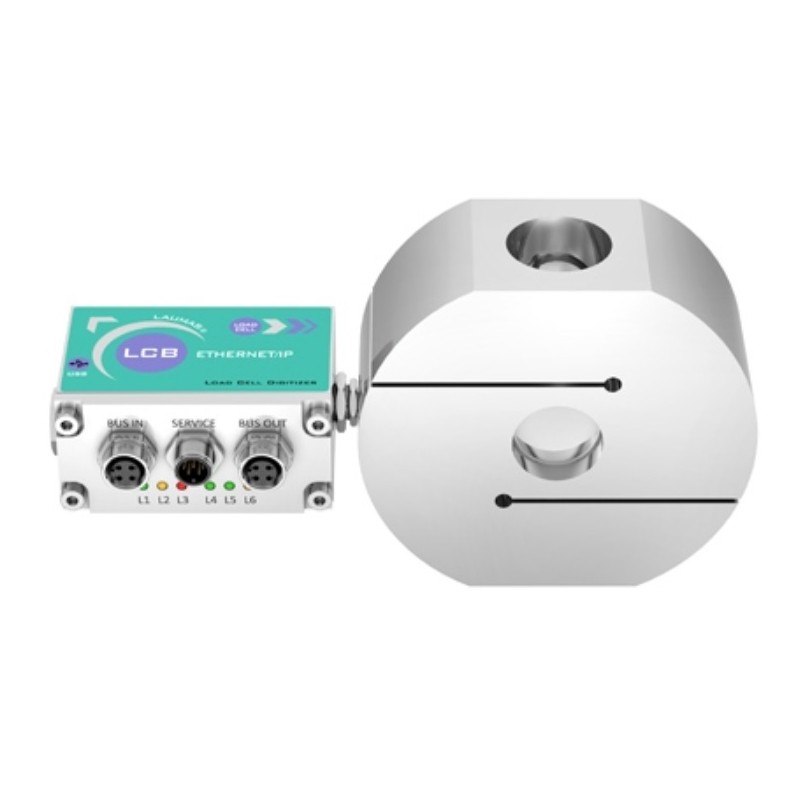

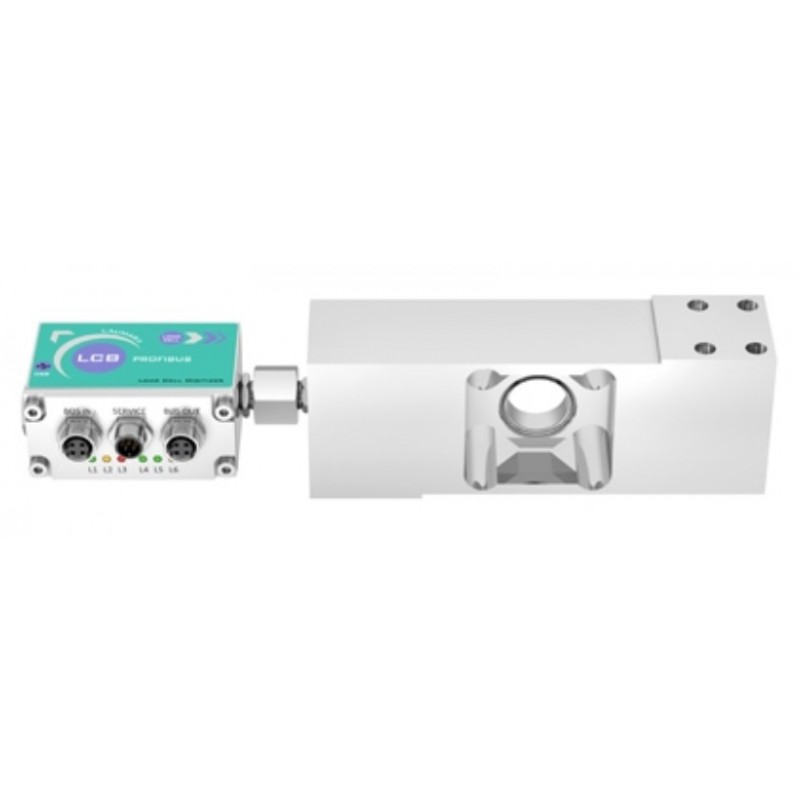

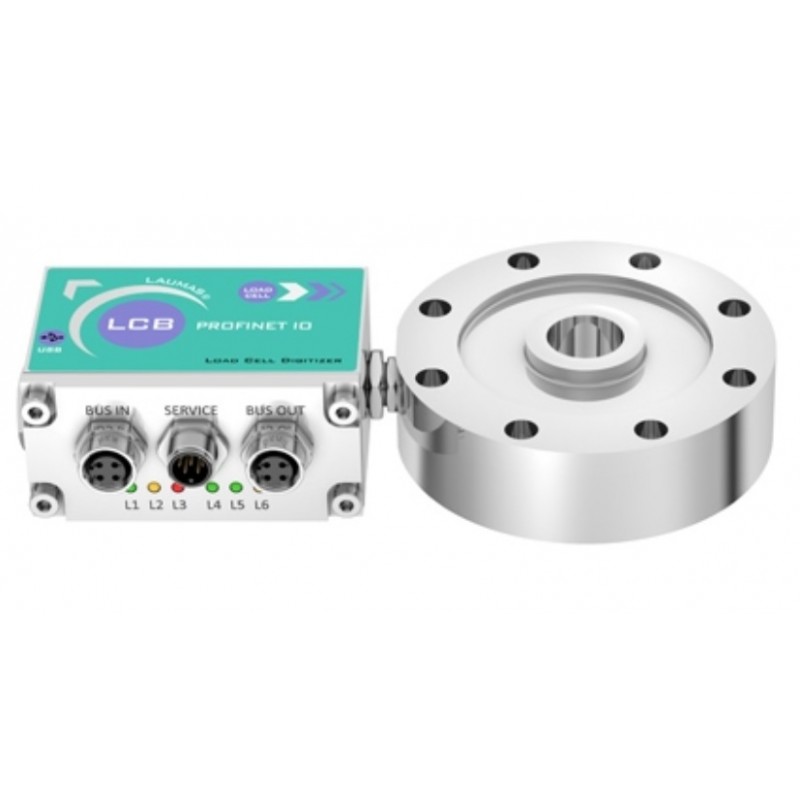

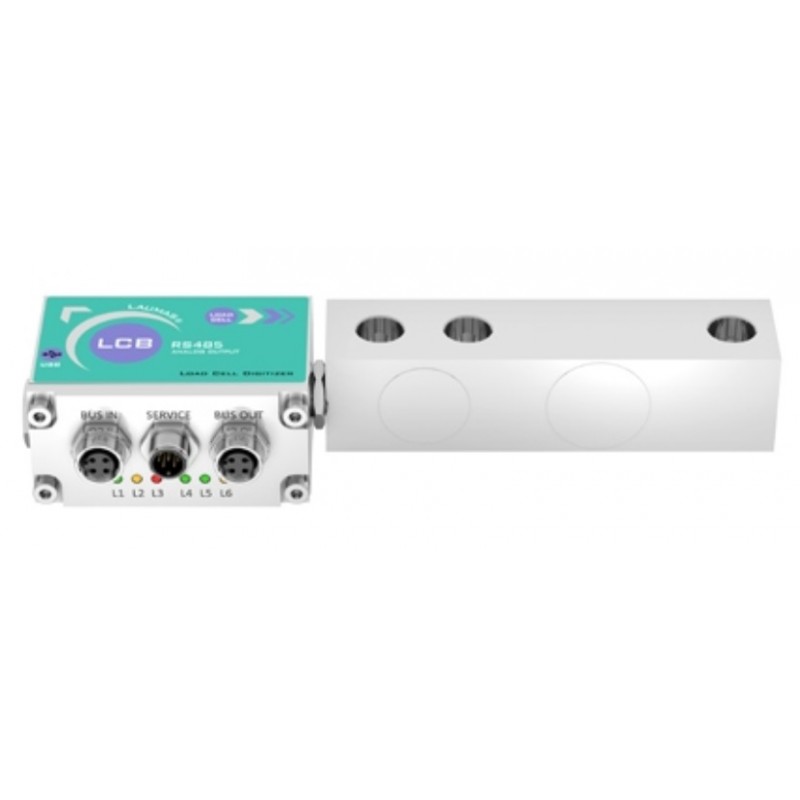

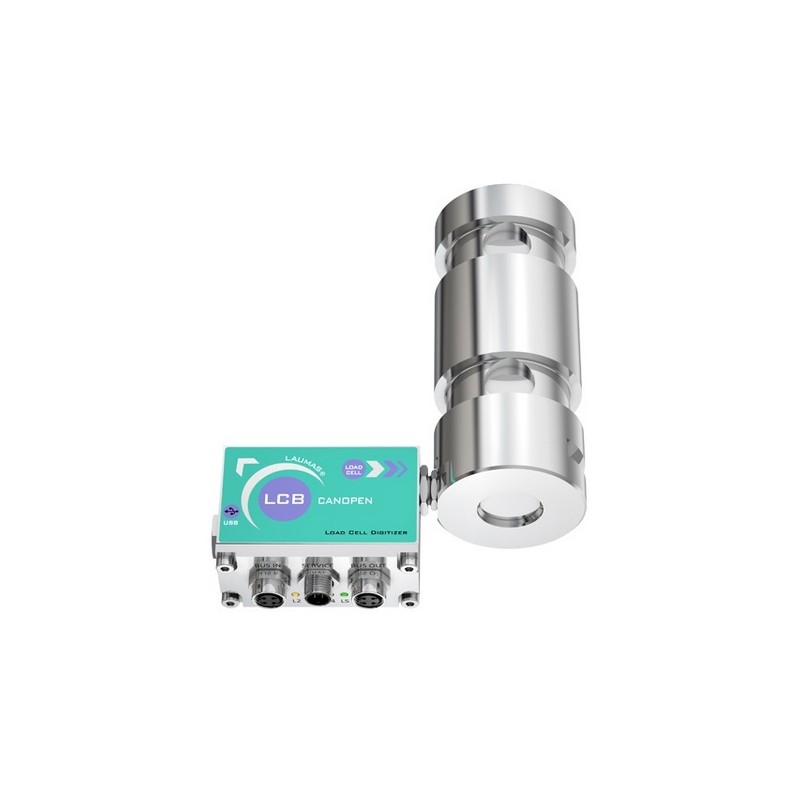

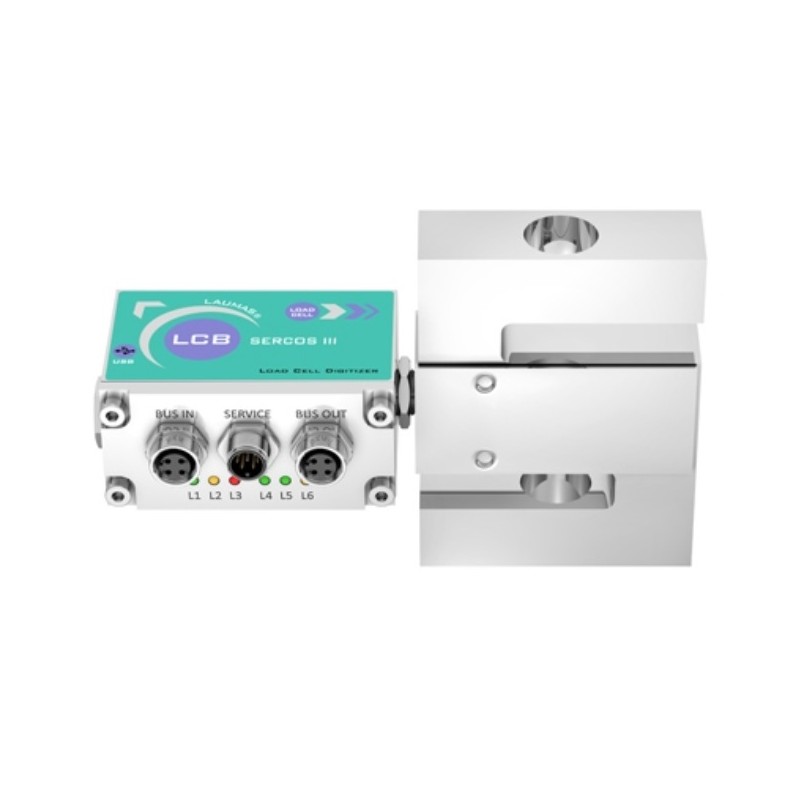

- Assembly: wired or attached to the body of the load cell by standard ¼ GAS connection (on request it is provided with specific adapters for the different screw steps of the load cell).
-2 M4 fixing holes for wall mounting by means of anchor plate (not included in the supply).
- IP67 AISI316 stainless steel case (dimensions: 97x38x82 mm including mobile connectors).

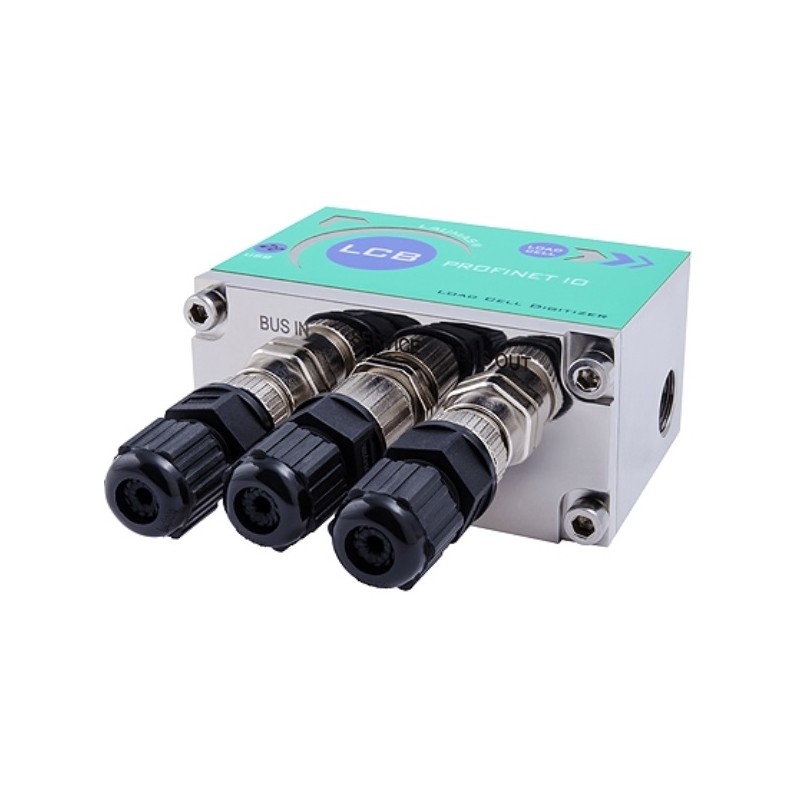

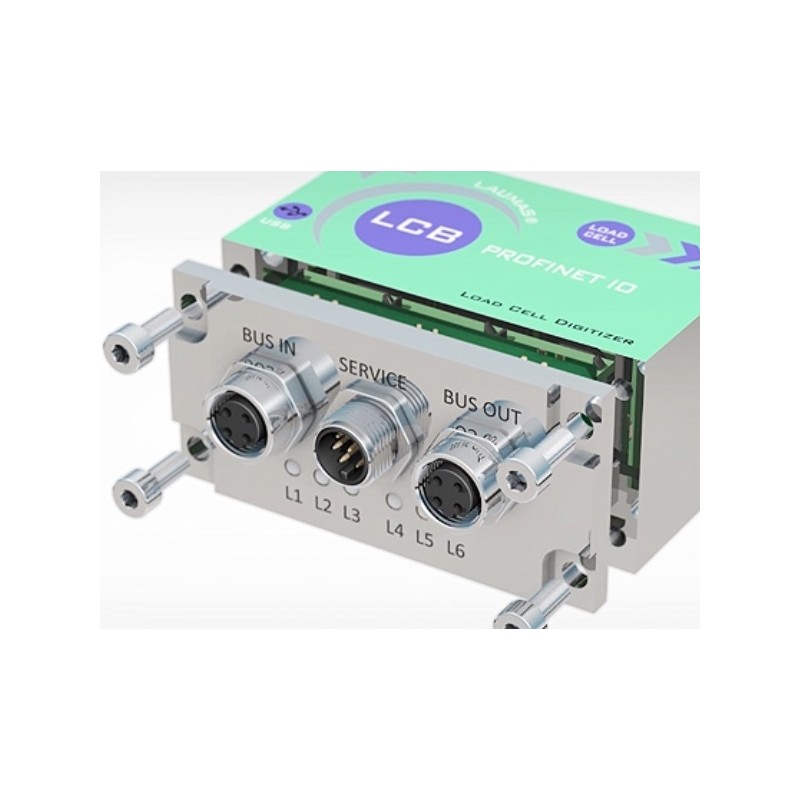

-3 M12 IP67 mobile connectors included in the supply.

  • Optional fieldbus type available: PROFINET IO, Ethernet / IP, Ethernet TCP / IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE, SERCOS III, IO-LINK.
  • Micro-USB port
  • 16-bit analog output: 0 / 4-20 mA; 0-5 / 10 V (optional)
  • RS485 port (optional)
  • Direct connection between RS485 and RS232 without converter
  • 2 logic inputs, 3 relay logic outputs
  •   Single product loading dosages, max 99 formulas

LCB-Specs

- 1 micro USB port.

- 3 relay outputs controlled by the setpoint value or through protocols.

- 2 digital inputs: read the status through serial communication protocols.

- 1 load cell input.

RS485 - (Ref .: LCBRS485)
M12 male circus connector, encoded A, 5 pins.
M12 female circus connector, encoded A, 5 pins.
Transmission speed: 2400, 4800, 9600, 19200, 38400, 115200 (bit / s).

RS485 + analog output - (Ref .: LCBRS485ANA)
Current output: 0 ÷ 20 mA; 4 ÷ 20 mA (up to 400 Ω).
Voltage output: 0 ÷ 10 V; 0 ÷ 5 V (min 2 kΩ).
M12 male circus connector, encoded A, 5 pins.
M12 female circus connector, encoded A, 5 pins.

IO-Link - (Ref .: LCBIOLINK)
2x M12 male circular connectors, encoded A, 4 pins.
The device works as a device in an IO-Link network.

CANopen - (Ref .: LCBCANOPEN)
M12 male circus connector, encoded A, 5 pins.
M12 female circus connector, encoded A, 5 pins.
The device functions as a slave in a synchronous CANopen network.

CC-Link IE - (Ref .: LCBCCLINKIE)
2x female M12 circular connectors, D-coded, 4 pin.
The device functions as a slave in a CC-Link IE network.

CC-Link - (Ref .: LCBCCLINK)
M12 male circus connector, encoded A, 4 pins.
M12 female circus connector, encoded A, 5 pins.
The device works as a Remote Device Station in a CC-Link network and occupies three stations.

PROFIBUS DP - (Ref .: LCBPROFIBUS)
M12 male circus connector, coded B, 5 pins.
M12 female circus connector, encoded B, 5 pins.
The device functions as a slave in a Profibus-DP network.

Modbus / TCP - (Ref .: LCBMODBUSTCP)
2x female M12 circular connectors, D-coded, 4 pin.
The device functions as a slave in a Modbus / TCP network.

Ethernet TCP / IP - (Ref .: LCBETHETCP)
M12 female circolar connector, D-coded, 4 pins.
The device works on an Ethernet TCP / IP network and is also accessible through the web browser.

Ethernet / IP - (Ref .: LCBETHEIP)
2x female M12 circular connectors, D-coded, 4 pin.
The device works as an adapter in an Ethernet / IP network.

PROFINET IO - (Ref .: LCBPROFINETIO)
2x female M12 circular connectors, D-coded, 4 pin.
The device works as a device in a Profinet IO network.

EtherCAT - (Ref .: LCBETHERCAT)
2x female M12 circular connectors, D-coded, 4 pin.
The device functions as a slave in an EtherCAT network.

POWERLINK - (Ref .: LCBPOWERLINK)
2x female M12 circular connectors, D-coded, 4 pin.
The device functions as a slave in a Powerlink network.

SERCOS III - (Ref .: LCBSERCOSIII)
2x female M12 circular connectors, D-coded, 4 pin.
The device works as a slave in a Sercos III network.
