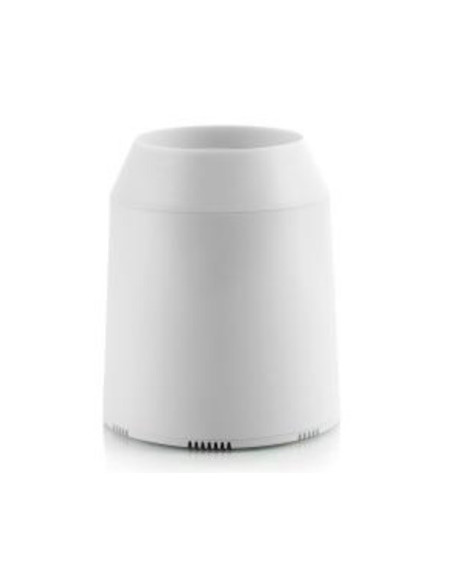

Rain-O-Matic-Tower Economic Rain Gauge

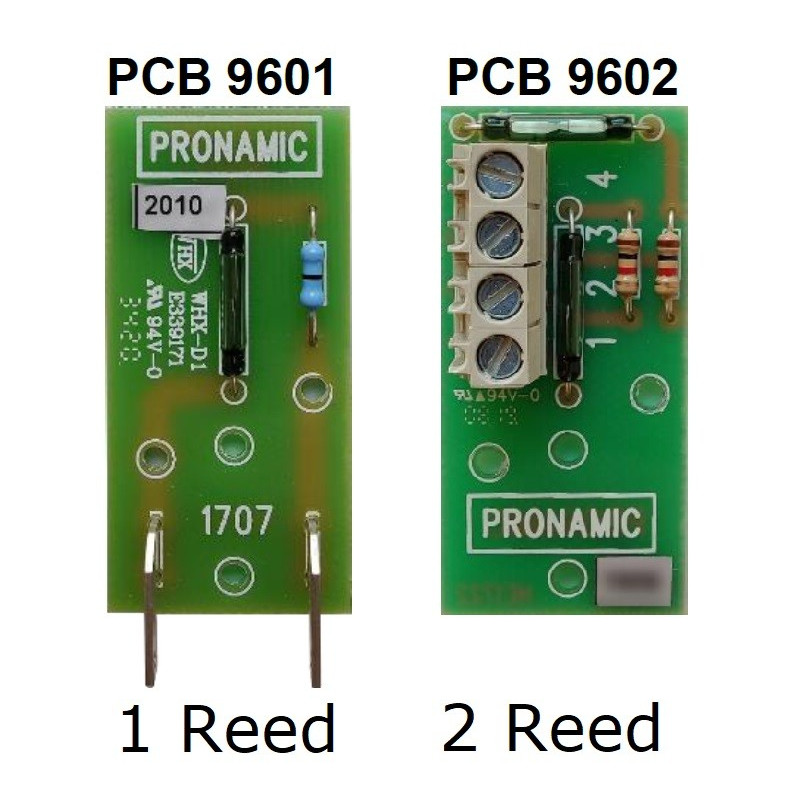

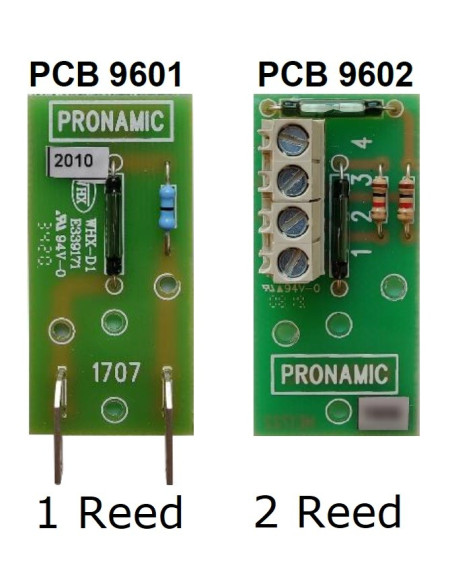

1 Reed Relay model PCB 9601 – item no. 100.073:

- Rain collector, orifice = 50 cm2
- PCB No. 9601 has a male connection and one reed switch. The reed switch is NC – Normally Closed.
- Resolution: 1 mm rain per Tip.
- Calibration: 5 grams per Tip.

2 Reed Relays model PCB 9602– item no. 100.074:

- Rain collector, orifice = 50 cm2
- PCB No. 9602 has a terminal strip and two reed switches. The reed switches are NO – normally open and NC - normally closed.
- Resolution: 1 mm rain per Tip.
- Calibration: 5 grams per Tip.

Rain gauge/Tipping Spoon

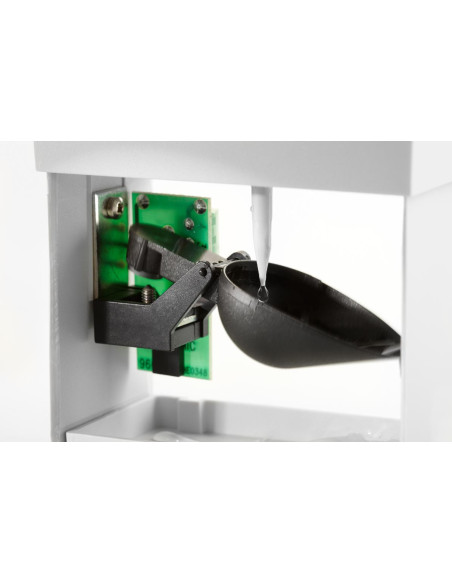

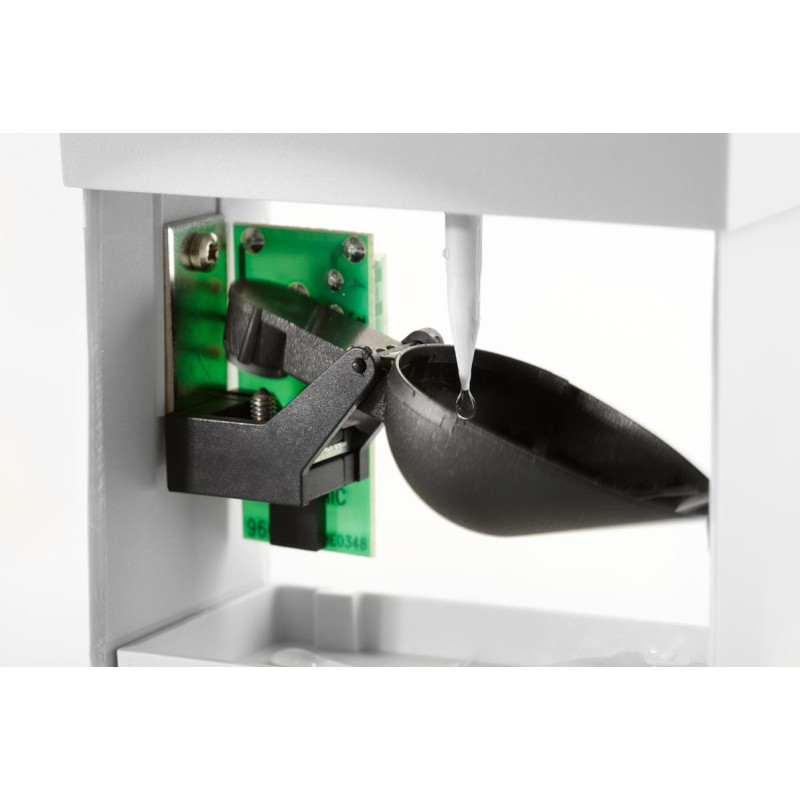

Rain-O-Matic Tower measures the precipitation by means of a funnel (orifice 50 cm2), which leads the water down into the self-emptying tipping POM bucket, held in place by a hard ferrite magnet. The magnet always exerts just enough tension to allow the measuring bucket to empty in one quick movement (less than 300 ms) and then return to its normal position, ready to once again collect precipitation. This means the counter weight always remains the same opposite to other conventional two spoons tipping bucket rain gauges.

The rain gauge is mainly made in molded modified high-impact polystyrene also known as STYROSUN which is a highly weather-resistant polymer that reduces breakdown and discoloration.

STYROSUN which has passed the Arizona test is extremely resistant against the sun’s UV radiation and it is frost- and heat resistant standing all climatically conditions.

STYROSUN is resistant to common household cleaners, recyclable and easily decorated.
