DD-S Radial Dendrometer Small (Diameter 0-5 cm)

Ecomatik

New

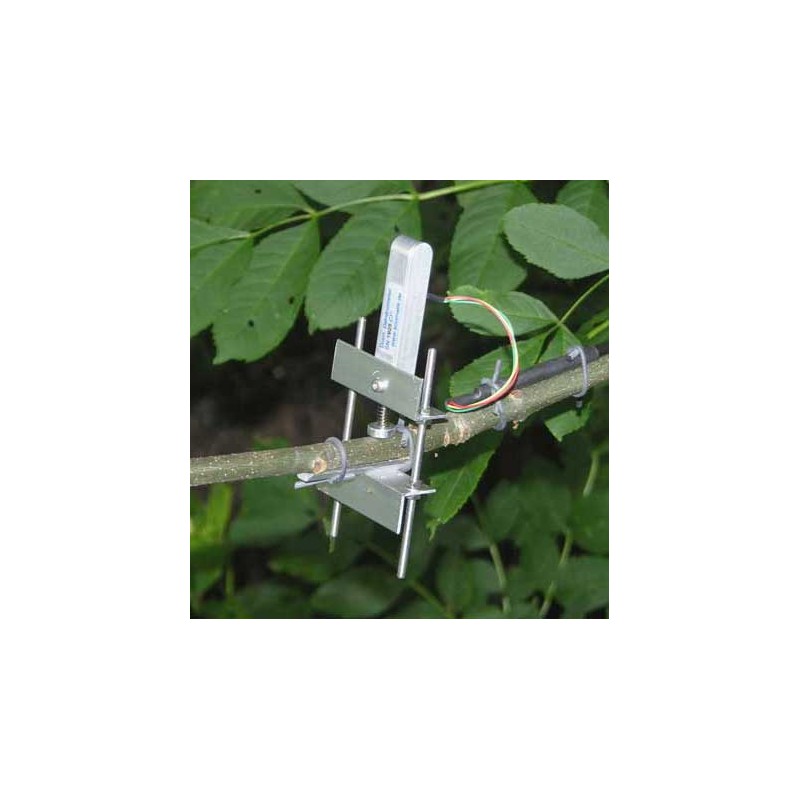

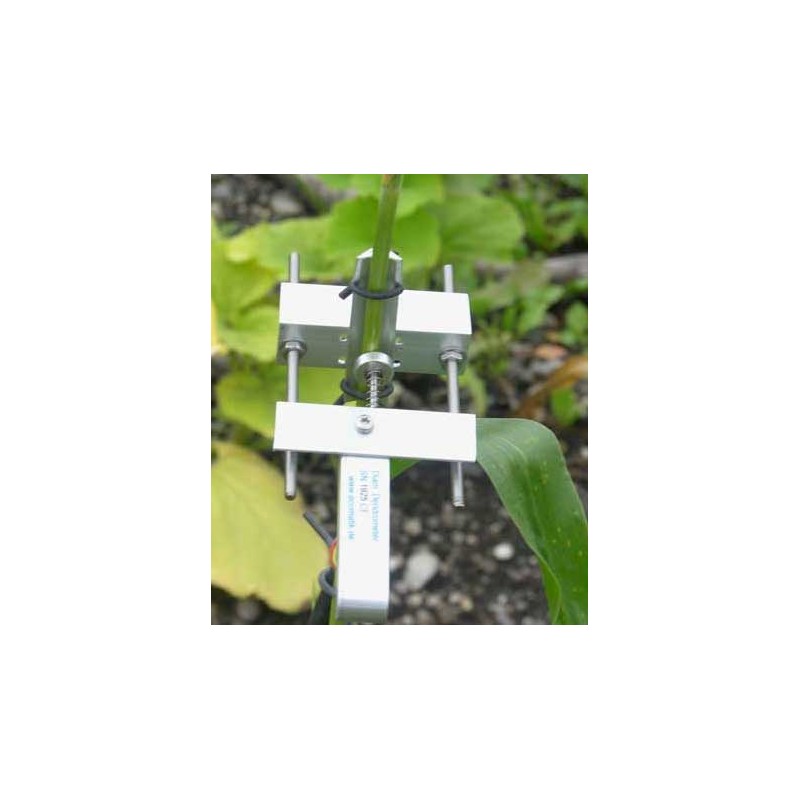

The Radial Dendrometer DD-S is designed specifically for agricultural plants, small trees and branches (diameter < 5 cm). Due to the patented mounting method, the dendrometer provides stable readings also for very small plants.

Volume discounts

Quantity Price
You Save
%
1+ 385,00 € 0%
5+ 377,30 € 2%
10+ 369,60 € 4%

385,00 €

Add to wishlist

The Sensor measures: Radial Dendrometer
Output Signal: mV
Cable Length: 5 meters
Power Supply: 12 a 36 VDC
Sensor for use in: Outdoor

The sensor remains stable fixed at the measuring point without exerting excessive pressure on the measuring point.

  • Advantages:


■ Suitable for small trees and agricultural plants

■ Plants do not have to bear the weight of the dendrometer (separate braces for small plants)

■ No injury to plants

■ Minimal contact pressure on the plant

■ Stability against wind, snow, falling small branches and small fruits

■ Plant size specific ordering possible within the 0 to 5 cm diameter range

  • Limits:


■ Not suitable for diameter greater than 5 cm (see Type DD-L)


  • Delivery:


■ Complete with 5 m cable

■ Fixing materials and installation tools (wrench)


  • Options / Ordering Information:


■ Cable extension (please specify in meters)

■ If necessary, different frame size

■ Data Logger

1. DD-S1: with standard mounting frame

2. DD-S2: with quick-mount frame

3. DD-S2W: with a quick-mounting frame and hermetically sealed to withstand extreme environmental conditions (under snow cover, underwater, elevated exposure to dust and corrosive agents).

4. DD-S3: Small type diameter Dendrometer, in quick-mount design, for plant diameters from 0 to 5 cm (two quick-mount frames for diameters of 0 to 2.2 cm and for 1.8 to 5 cm), measuring range 25 mm, linearity <1%. Complete with 5 m sensor cable, extendable to up to 100 m.

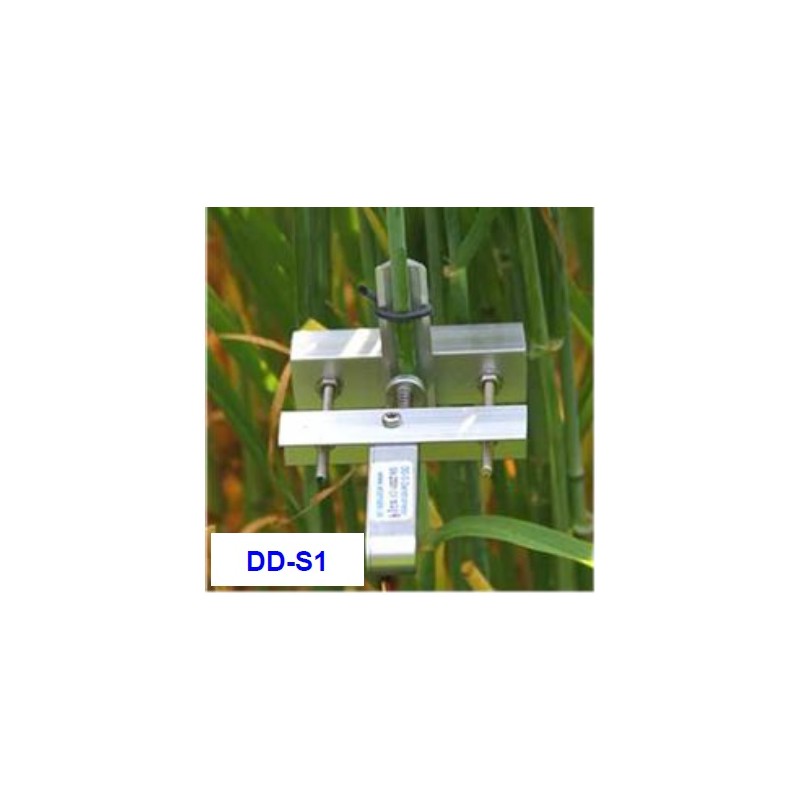

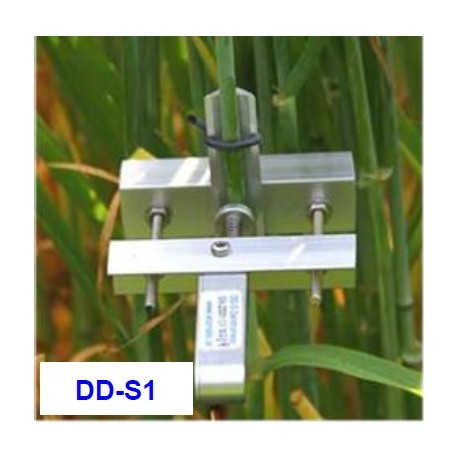

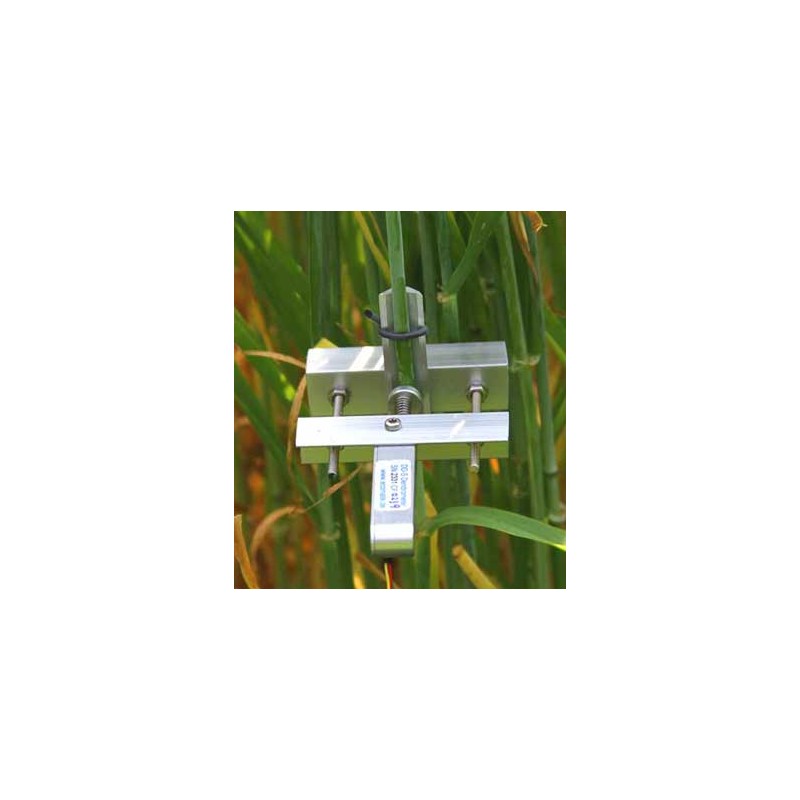

DD-S1
Diameter Dendrometer Small, type DD-S1, for plant diameters from 0 to 5 cm, measuring range 11 mm (>5 cm on request), linearity 1%. Complete with 5 m sensor cable, extendable to up to 100 m.
Standard configuration:
- Complete with 5 m sensor cable, extendable to up to 100 m.
- Cable configuration: bare ended

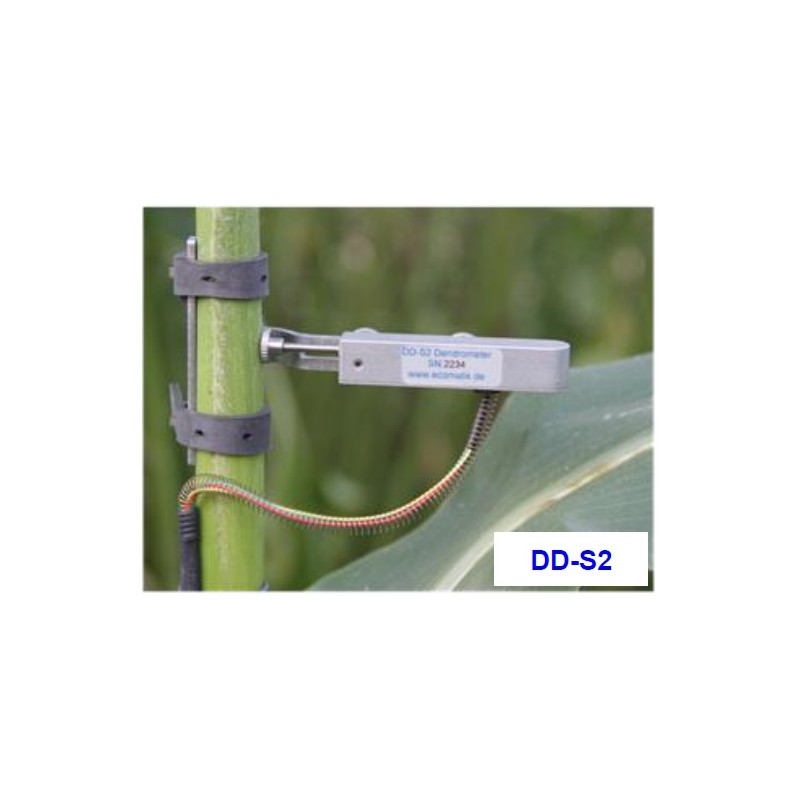

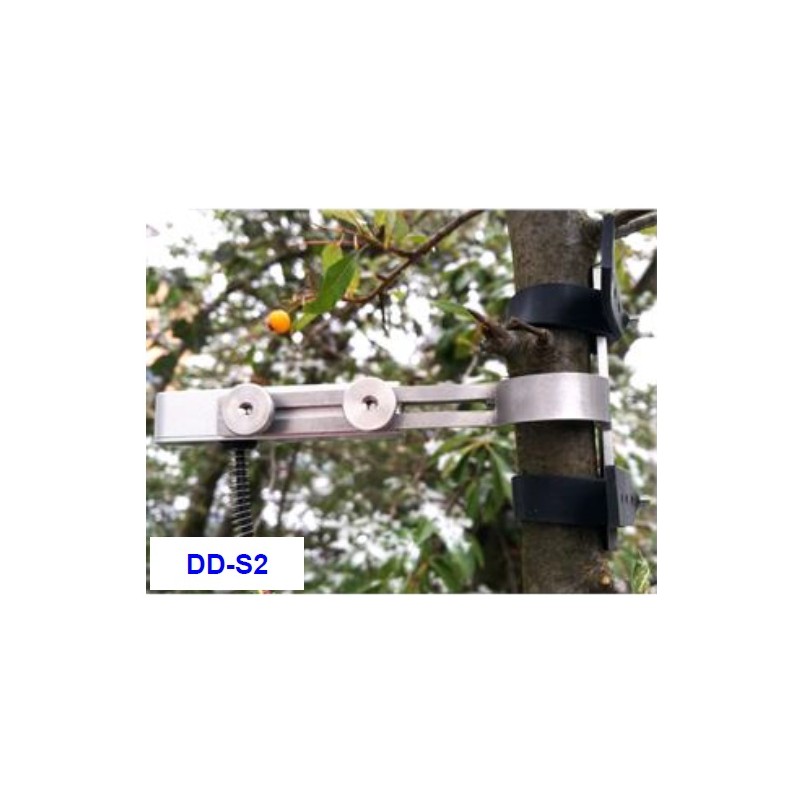

DD-S2
Diameter Dendrometer Small, type DD-S2 in quick-mount design, for plant diameters from 0 to 5 cm (two quick-mount frames for diameters of 0 to 2.2 cm and for 1.8 to 5 cm), measuring range 11 mm, linearity 1%. Complete with 5 m sensor cable, extendable to up to 100 m.
Standard configuration:
- Complete with 5 m sensor cable, extendable to up to 100 m.
- Cable configuration: bare ended

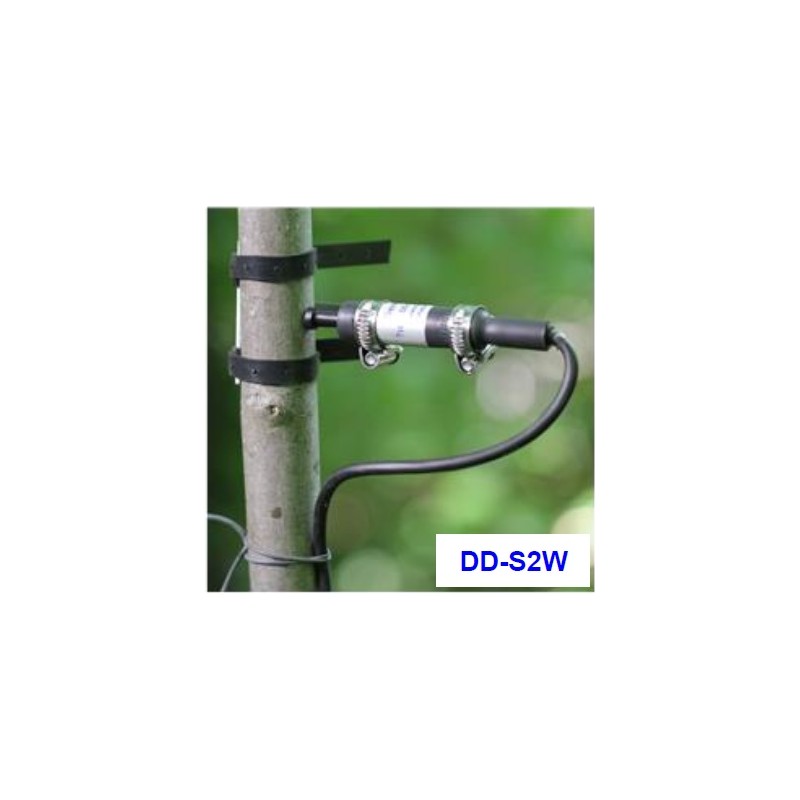

DD-S2W
Rugged Diameter Dendrometer Small, type DD-S2W in quick-mount design, for use under extreme environmental conditions: extremely moist conditions, e.g. underwater, below snow cover level, near soil surface, under heavy exposure to dust or corrosive agents, e.g. on the coast, volcanic ashes, etc. For plant diameters from 0 to 5 cm (two quick-mount frames for diameters of 0 to 2.2 cm and for 1.8 to 5 cm), measuring range 11 mm, linearity 1%. Complete with 5 m sensor cable, extendable to up to 100 m.
Standard configuration:
- Complete with 5 m sensor cable, extendable to up to 100 m.
- Cable configuration: bare ended

DD-S3
Diameter Dendrometer Small, type DD-S3 in quick-mount design, for plant diameters from 0 to 5 cm (two quick-mount frames for diameters of 0 to 2.2 cm and for 1.8 to 5 cm), measuring range 25 mm, linearity <1%. Complete with 5 m sensor cable, extendable to up to 100 m.

Standard configuration:
- Complete with 5 m sensor cable, extendable to up to 100 m.
- Cable configuration: bare ended

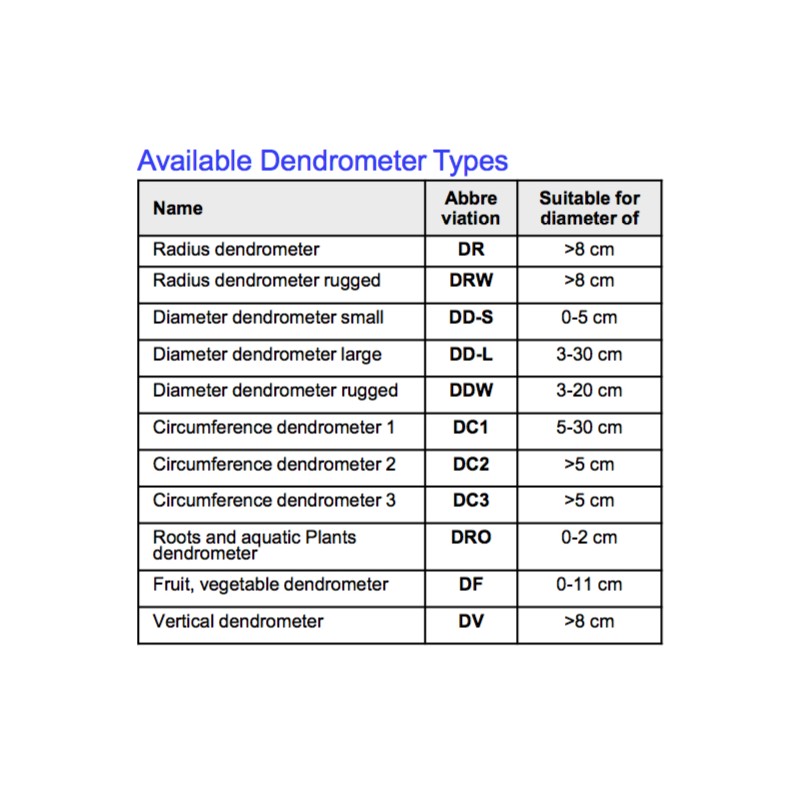

Other Dendrometer Models:

Type

Available models

Suitable for diameters

Measurement range

Radius dendrometer

DR1, DR1W

>8 cm

11 mm

Radius dendrometer

DR2

>8 cm

25 mm

Radius dendrometer

DR3, DR3W

>5 cm

11 mm

Diameter dendrometer small

DD-S1, DD-S2, DD-S2W

< 5 cm

11 mm

Diameter dendrometer large

DD-L1

3-30 cm

11 mm

Diameter dendrometer large

DD-L1W

3-20 cm

11 mm

Diameter dendrometer large

DD-L2

3-30 cm

25 mm

Diameter dendrometer large

DD-L3

3-30 cm

50 mm

Diameter dendrometer root

DD-RO

<2 cm

11 mm

Circumference dendrometer

DC1

5-30 cm

11 mm

Circumference dendrometer

DC3

>5 cm

25 mm

Circumference dendrometer

DC4

>5 cm

50 mm

Fruit dendrometer

DF1

< 5 cm

15 mm

Fruit dendrometer

DF2

< 13 cm

25 mm

Fruit dendrometer

DF3

< 13 cm (> 13 cm on request)

50 mm

Vertical dendrometer

DV

>8 cm

11 mm
