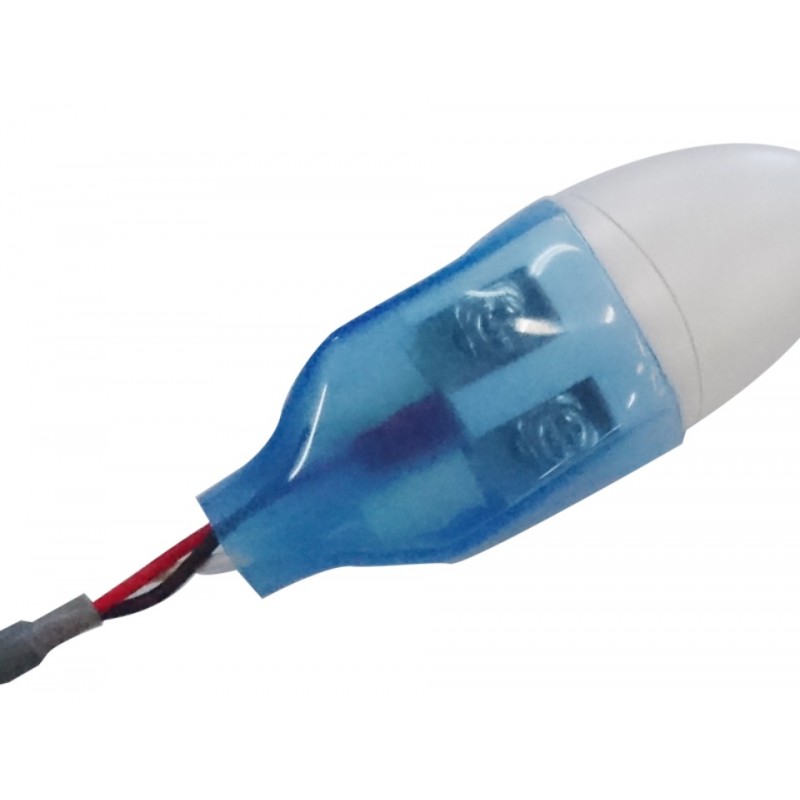

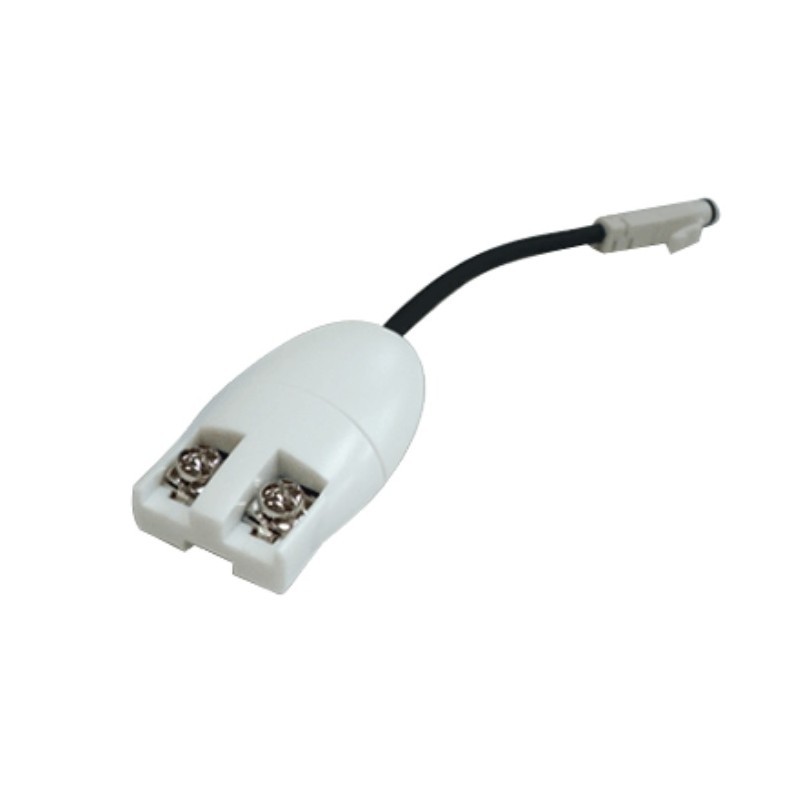

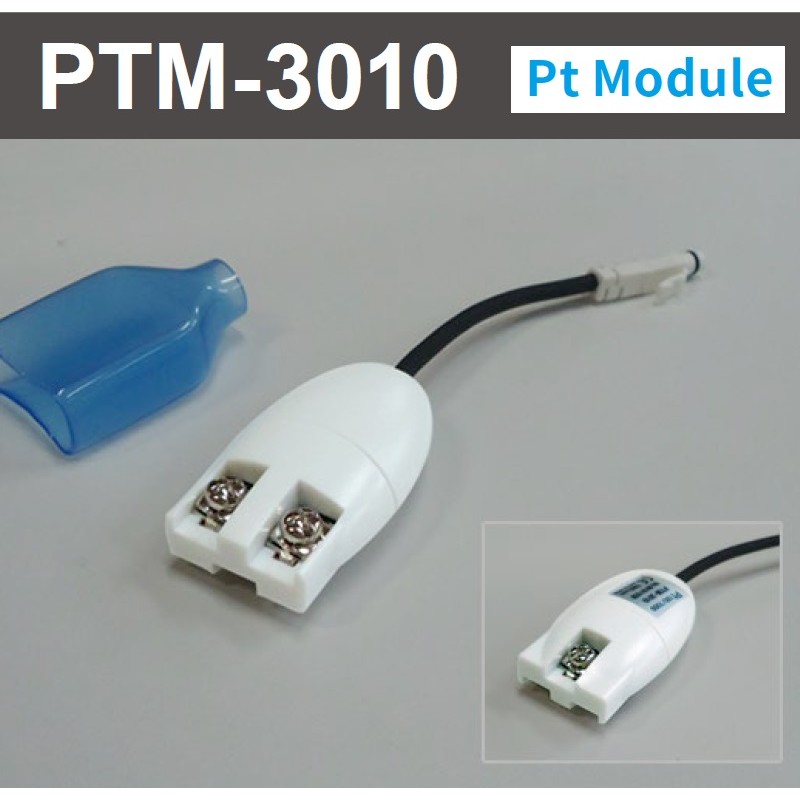

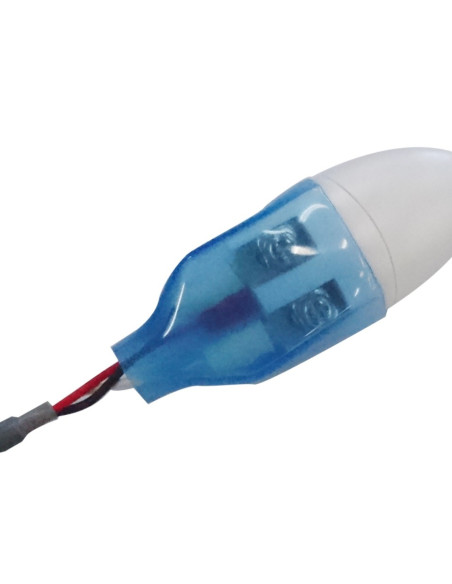

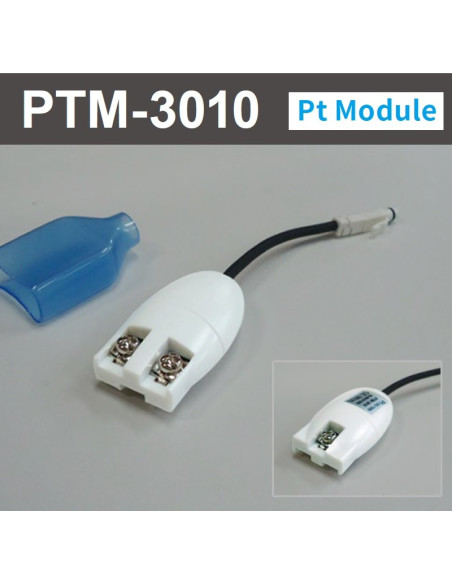

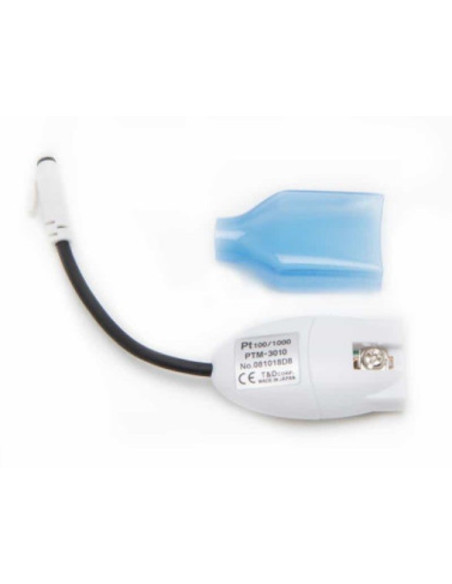

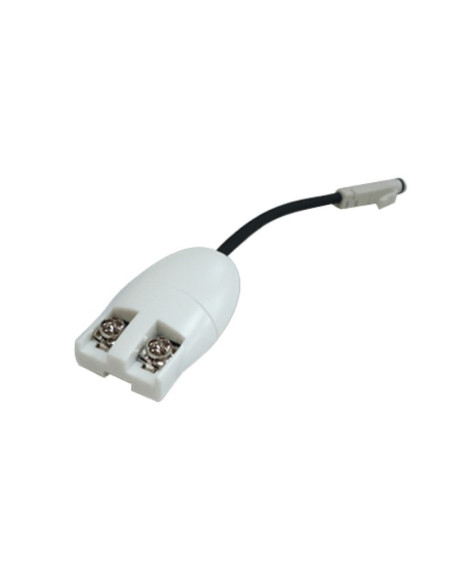

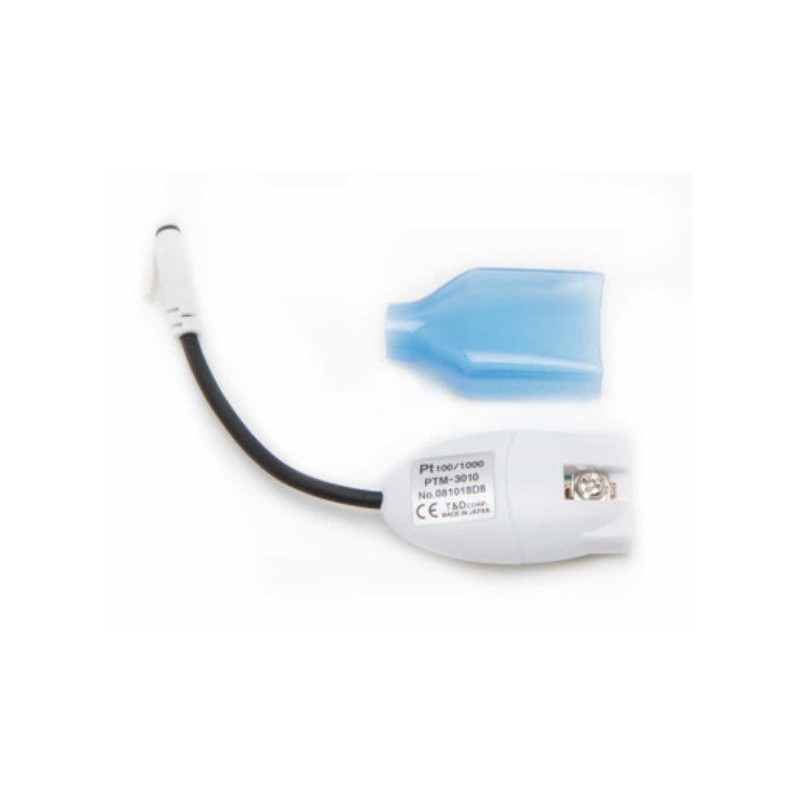

Input module PTM-3010 for TandD TR-55i-Pt / RTR-505-Pt Loggers

Reference PTM-3010

Manufacturer: TandD

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
COMPATIBLE LOGGERS
Data sheet
Download

Environment of Use	Indoor
Type of Logger	Miniature
Measured Parameters	Temperature
Number of Channels	1

Optional Products Catalog Download (3.18M)

-   Compatible Sensors: Pt100 (3-wire, 4-wire), Pt1000 (3-wire, 4-wire)
-   Works with RTR-505PT
-   Replacement component
-   Extension available up to 3.0m (TR-3C30)

- Temp.Range: -40 to 176°F (-40 to 80°C)
- Humidity Range: 90%RH or less (no condensation)
- Compatible Sensors: Pt100 (3-wire, 4-wire), Pt1000 (3-wire, 4-wire)
- Sensor Connection: Screw Clamp Terminal Block: 3-Terminal Square Washer (3-M3.5)

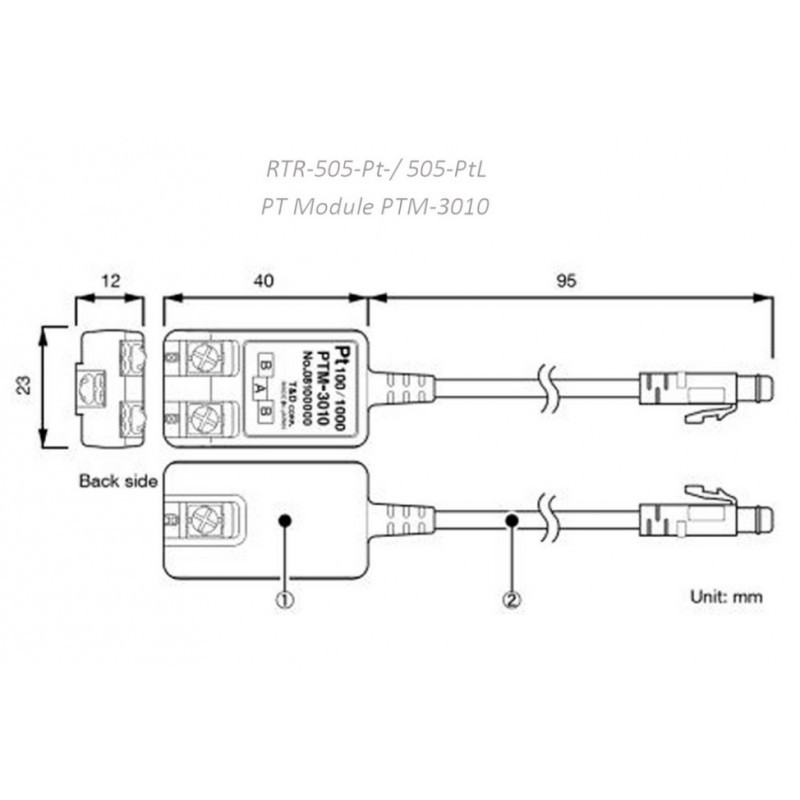

- Cable Length: 52mm

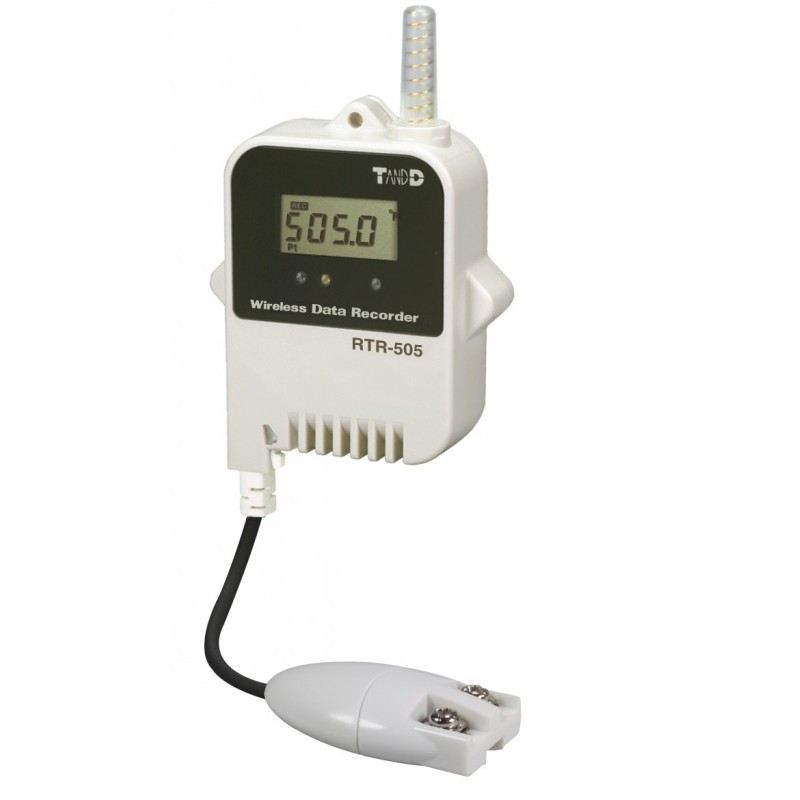

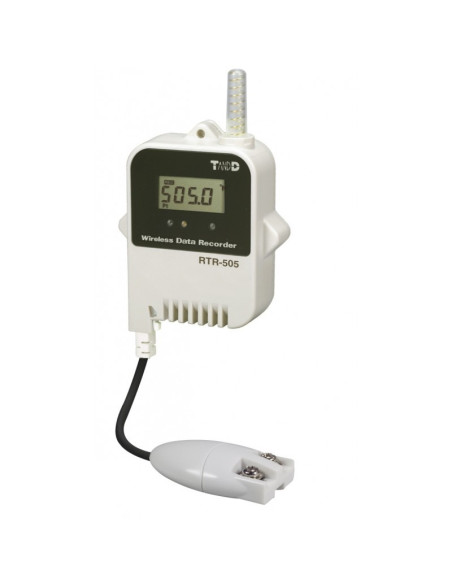

- Compatible Unit: RTR-505PT
- Extension Option: TR-3C30

Compatible Data Loggers:
