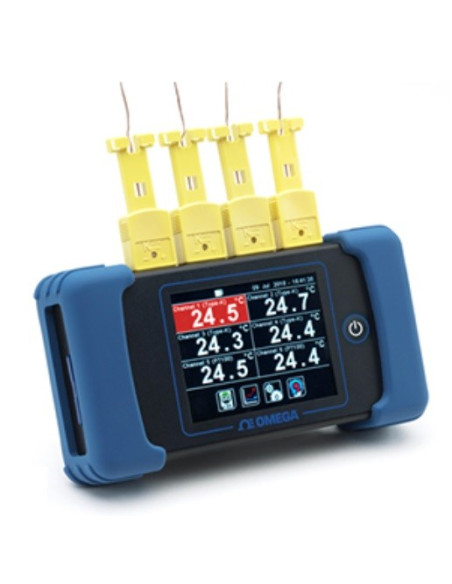

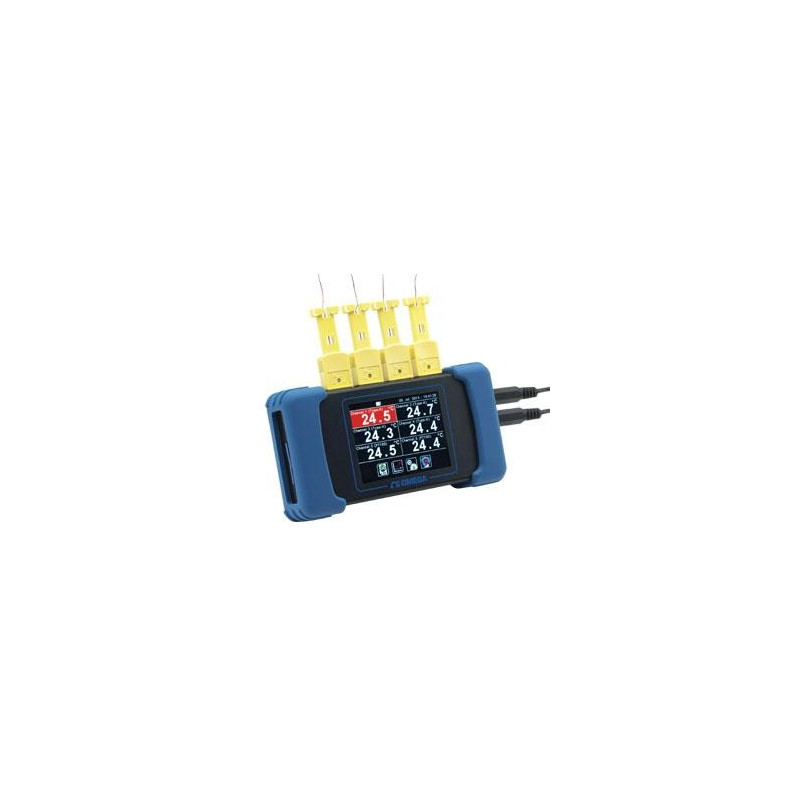

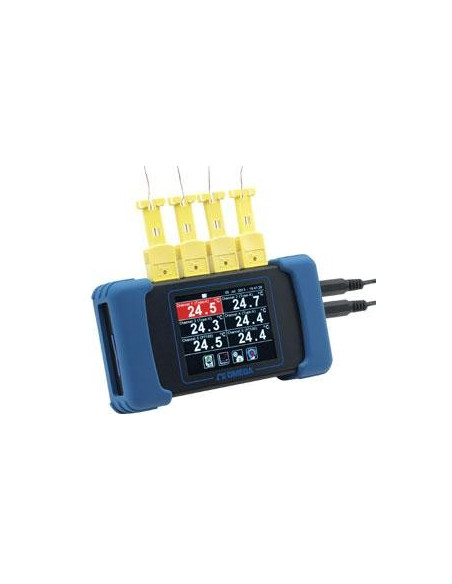

RDXL6SD Data logger for Temperature with Six-channel Portable

RDXL6SD

Omega

New

- Data logger with 4 thermocouple inputs Type J, K, T, E, R, S or N and 2 RTD inputs of 3 Pt100 cables (RTD connectors are included)
- Registers all 6 channels simultaneously or individually
- Manual or programmable Start/Stop registration
- SD card 4 GB almacena data up to 1 year
- View maximum, minimum, average and standard deviation
- Visualization of temperature difference between 2 channels
- Battery (2 x AA) or power supply (with adapter included)
- tactile pantalla
- Graphic of the channels
- Alarm indication for each channel

592,00 €

Add to wishlist

Number of Channels 4 channels
With Display Color LCD

The RDXL6SD temperature data logger shows maximum, minimum, average, standard deviation, and the temperature difference between two channels. This product complies with CE and features a backlit touch screen, programmable data logging and manual startstop, alarm indication for each channel and a graph of temperature 2 channels. Ideal for manufacturing processes and automotive industry.

Inputs: 4 thermocouple (any of the following), for use with Mini connectors, and 2 x 3-wire Pt100, for use with 3-pole 3.5 mm connectors
Inlet temperature range:
 - Type J: -200 to 1200 ° C
 - Type K: -200 to 1372 ° C
 - Type T: -200 to 400 ° C
 - Type R: 0 to 1768 ° C
 - Type S: 0 to 1768 ° C
 - Type N: 0 to 1300 ° C
 - Type E: -200 to 1000 ° C
 - RTD: -200 to 850 ° C
(RTD connectors required, model RDXLSD-CONN)

Precision:
 - Thermocouples: ± 0.1% or 0.8 ° C
 - RTD: ± 1.0% or 1.0 ° C
Resolution: 0.1 ° for temperatures below 1000 ° C or ° F, 1 ° for temperatures above 1000 ° C or ° F
Display: 72 mm TFT resistive touchscreen, 320 x 240 pixels, backlit
Configurable parameters: temperature units, alarms, process signal, date and time, record date, energy options, graphic channels
Temperature Units: ° F or ° C
Alarm Configuration: 12 adjustable alarms (2 per channel), individually configurable as high and low
Process signal: Average, minimum, maximum, standard deviation, temperature difference between two channels
Display response time: 1 second
Operating temperature: 0 to 50 ° C
Power supply:
 - 2 x AA batteries (included)
 - 5 Vdc adapter (included)
Consumption: 250 mA while recording with maximum illumination; 60 mA while recording with energy saving
Weight: 180 g without batteries
Dimensions: 136 A x 71 H x 32 mm
Pt100 (RTD) connectors: 3.5 mm stereo (3-pole) connectors

Specifications Data logging:
Sampling interval: 1 to 86,400 seconds (1 day)
Maximum SD card capacity: 32 GB SD or SDHC Card (4 GB included)
Log variables: measured temperature, cold just temperature, event alarm
File format: .csv (can be imported into Excel)
Configurable parameters: Sampling interval, number of samples, Programmable in date and time.
