MS6D DataLogger 16 Channels

MS6D

Comet System

New

898,00 €

tax excl.

Add to wishlist

The complete solution for monitoring of temperature, humidity and other values.

Data loggers are designedfor measuring, recording, evaluationand subsequent processing ofinput electrical signals,which are subject torelativelyslow changes (> 1s).In conjunctionwith the appropriatesensorsandtransducers are suitableformonitoringphysical quantities.

The device includes traceable calibration certificate

"

Data Logger enables to:

  • 16 software programmable inputs
  • Measure and process 1 to 16 input variables
  • Each of the 16 channels offers the virtual channel (countable)
  • Acquire autonomous recording of measured values
  • Create alarm conditions
  • Based on the created alarms perform other actions (acoustic, optical signalingcontrol relay outputs, sending SMS messages, handling telephone dialer, messaging using different protocolsEthernet interface, etc.)
  • On-line monitoring of measured values ​​and states

Each from 16 Channels offers:

  • independent hysteresis, delay
  • setting up 4 conditions for an alarm

Alarms by:

  • GSM modem
  • Emails
  • Phone dialer
  • Integrated buzzer
  • External siren or light
  • Relay

Applications:

  • Food and beverages industry (HACCP)
  • Server rooms, data centers
  • Server rooms, data centers
  • Pharmaceutical industry (GMP)
  • Blood stations, pharmacies
  • Horticulture and cultivation of plants
  • HVAC - heating, ventilation, air conditioning, cooling
  • Building and energy management
    Building automation
  • Research and development
  • Laboratories (GLP)
Monitoring System Architecture



Monitoring system inputs

Monitoring system inputs

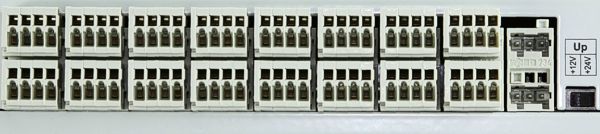

Figure: data logger inputs with switch 12Vdc/24 voltage power supply for connecting sensors.
Serial input RS485IN a surcharge.



Figure: communication interface, alarm outputs, connection of power. Ethernet interface is optional.



Features of Ethernet Interface:

Ethernet Interface

Ethernet interface
Data logger is designed for  connection to standard computer network. The 10 and 100Mb/s Ethernet is supported.No need to build new data lines. Thanks this installation cost are essentially reduced and instant easy start of monitoring system operation is enabled.

Modbus TCP

Modbus protocol
Enables to read actually measured values by means of industrial standard Modbus. Data is available in several formats. Protocol is suitable for implementing of MS data logger to SCADA system.

SNMP
SNMPv1 protocol
Actually measured values can be acquired by means of SNMPv1 protocol. MIB tables are available for free.
Designed especially for IT applications and use in “managed” computer networks.
Fast data download

Fast data download
Record download speed was increased four-times from previous MS5 data logger generation.

SOAP
SOAP protocol
Protocol designed for data logger integration to own www infrastructure. Available actual values can be captured by www server (Apache, IIS) and processed by the user.Communication protocol SOAP version 1.1. is supported. By means of this protocol data logger sends actual values in preset intervals to specified server.
Syslog

Syslog protocol
Syslog message is sent after alarm state or data logger error appears. Syslog is compatible with RFC5424.

Email

E-mail
Data logger sends warning emails up to three different addresses. E-mail is immediately sent after alarm state of monitored technological process appears. User is also informed on error states of device itself (measuring channel error, fulfilling of internal memory, self-test error). SMTP servers requiring autentization are also supported.

XML file

XML file
Actual values can be downloaded to XML file. This option is suitable for data logger integration to SCADA systems.

Display

Data logger display
Network parameters can be set directly from data logger display. It is possible to change IP address, subnetwork mask and initial gate.

Secured web server

Secured WEB server
WWW server is built in the device. Here it is possible to monitor actual values, alarm states and information on data logger. Also access password for www pages can be entered. WWW pages are user modifiable. Free SDK description is available to create own www pages.

SNMP Trap

SNMP Trap
SNMP Traps are sent after alarm state or device error appears.

Database ready

Database system
Prepared for connection to database system including online values transfer.

Remote conditions

WWW remote conditions
Control of remote condition and relays is enabled also via www interface.

 Included in Delivery:

  • Data logger including the battery
  • Traceable calibration certificate. Calibration certificate contains calibration of 16 inputs 4-20mA, if it is not defined required configuration of inputs by the user. If required configuration of inputs is defined by the user, calibration certificate proves calibration of inputs in accordance with this required configuration - maximum one range for each of 16 inputs.
  • Calibration of other ranges is optional.
  • USB communication cable
  • Basic manual
  • Free basic Windows software is ready to download at folde


Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory

cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

24Vdc, consumption of data logger itself approximately 80 mA

Operating temperature range

0 to +50°C

Dimensions including connectors

215 x 225 x 44 mm (W x D x H)

Protection

IP20

Weight

approximately 800 g

Warranty

2 years
