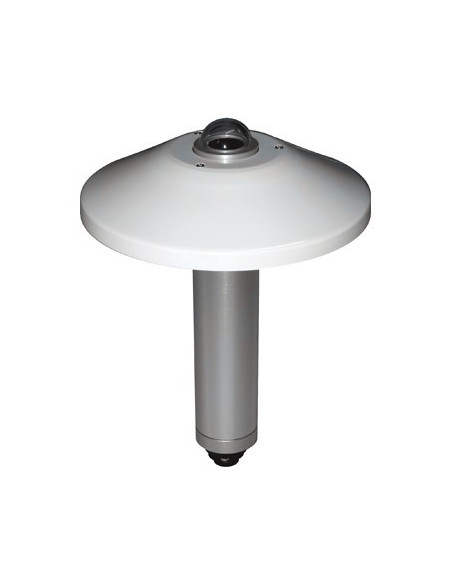

RSG II Class Global Solar Radiation Sensor

Sensor for the measurement of Global Solar Radiation (pyranometer) class II with thermopile.

Designed to measure the global component of sunlight in the spectrum 0.3 um - 3um according to the law of cosine.

Conforming to the WMO for environmental monitoring, it is also an ideal instrument for photovoltaic applications according to IEC-9060 and IEC-17025.

Quality instrument that, thanks to the different types of electrical outputs (voltage and current) or digital RS485 with ModBus protocol, allows easy interface with any acquisition system.

    -Measurement of global solar radiation with thermopile in class II
    -Compliant to ISO9060, WMO and IEC-17025
    -Body in aluminum, sturdy and compact, easy to install
    -Measuring range 0 ÷ 2000W/m2
    -Sensitivity: 10μV/m2
    -Spectral range: 0,3÷3 µm
    -Long-term stability: <± 2%
    -Response to tilt from 0÷90° <± 4%
    -Uncertainty expected daily: <10%

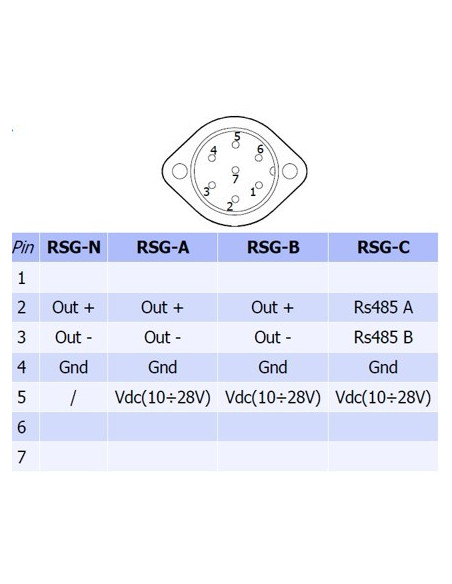

    -Output signal: 10µV/W/m2, 0÷2Vdc, 4÷20mA, RS485/Modbus
    -Operating conditions: -40 ÷ +80°C
    -Power supply: 10 ÷ 30Vdc

RSG-N.- Global Solar Radiation Sensor with thermopile 0÷2000W/m², II Class in accordance to WMO. Typical sensitivity: 10μV/(W/m²). Electrical output in μV. Complete of Calibration Report. (Also available with cable and support).

RSG-A.- Global Solar Radiation Sensor with thermopile 0÷2000W/m², II Class in accordance to WMO. Out: 0÷2Vdc. Complete of Calibration Report. (Also available with cable and support).

RSG-B.- Global Solar Radiation Sensor with thermopile 0÷2000W/m², II Class in accordance to WMO. Out: 4÷20mA. Complete of Calibration Report. (Also available with cable and support).

RSG-C.- Global Solar Radiation Sensor with thermopile 0÷2000W/m², II Class in accordance to WMO. Out: RS485/Modbus or RS485/NESA protocol, standard ID: 003. Complete of Calibration Report. (Also available with cable and support).
