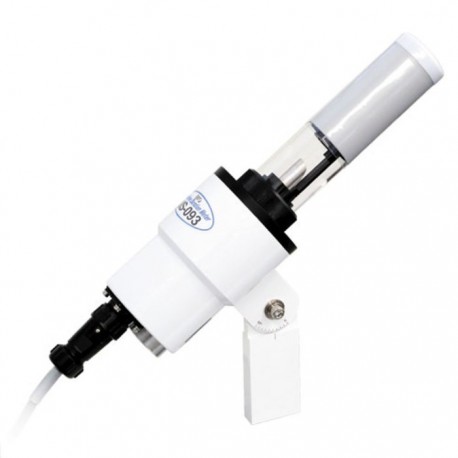

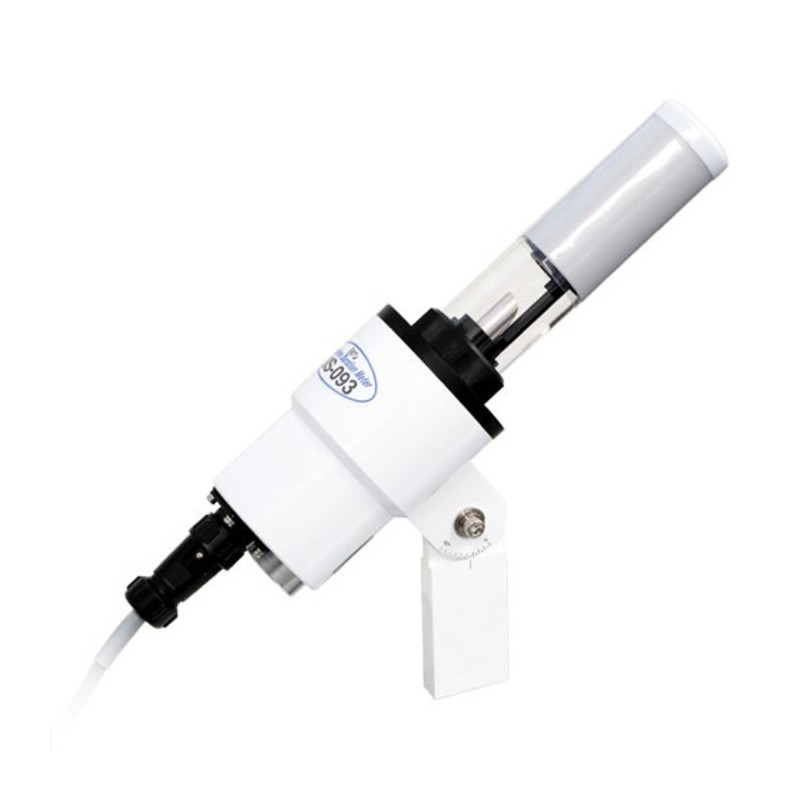

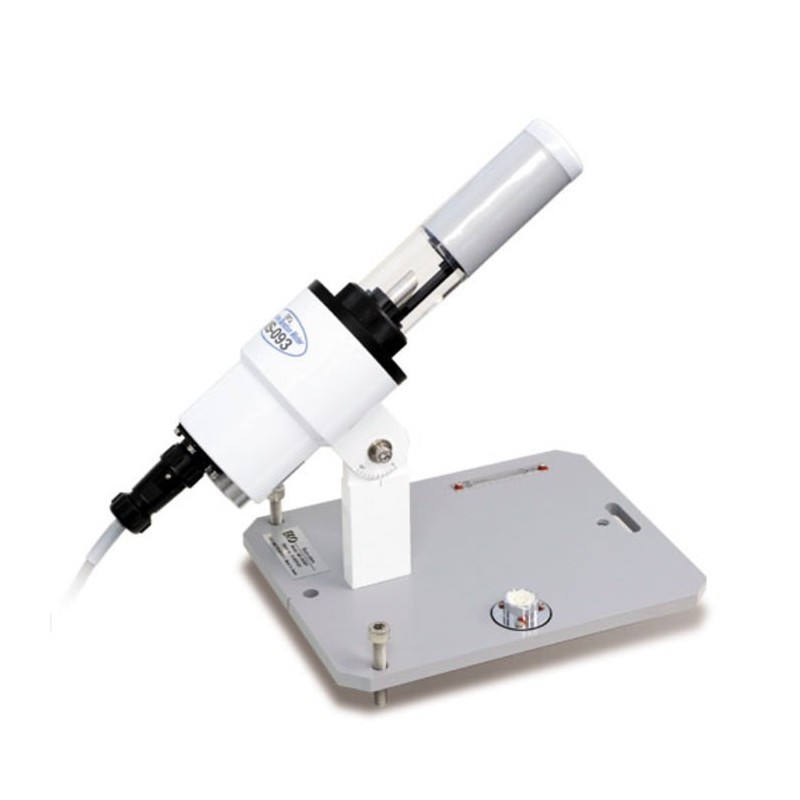

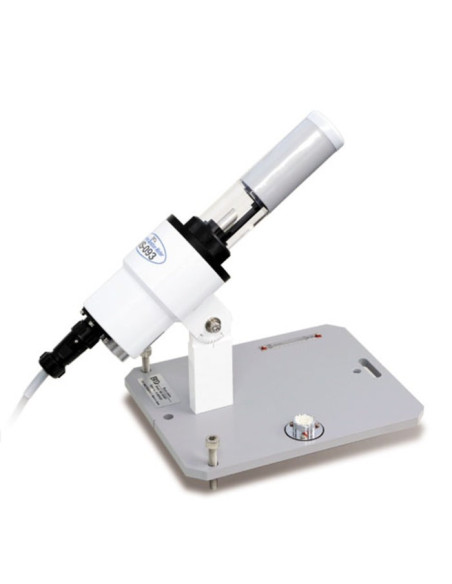

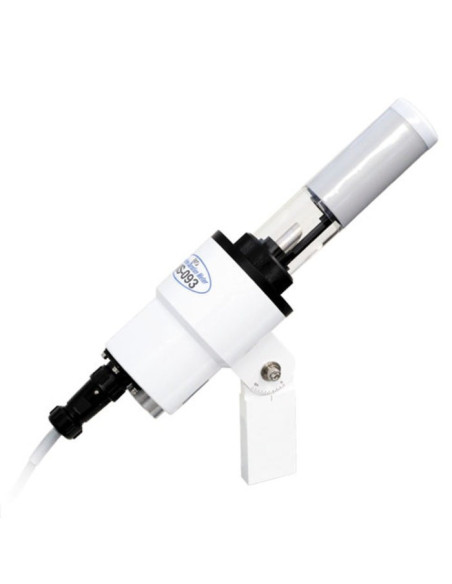

MS-093 Sunshine Duration Sensor
MS-093
New
- Very precise independent from atmospheric conditions.
- Pyroelectric detector (300 nm - 2500 nm)
- Economic solution to measure sunshine hours
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
EKO Sunshine Duration Meter MS-093 has a specially designed and rotating mirror, which reflects the direct solar radiation onto an especially flat spectral response pyroelectric sensor and measures the sunshine duration by pulse signals.
MS-093 precisely measures the direct solar irradiance that exceeds the threshold of 120w/m2, which is defined in the sunshine duration measurement method by WMO (World Meteorological Organization), making it possible to measure highly accurate sunshine duration.
EKO Sunshine Duration Meter MS-093 is a one-of-a-kind high performance instrument, which is used worldwide in many applications such as ASOS (Automated Surface Observing System) by NOAA (National Oceanic and Atmospheric Administration).
Specifications
| Wavelength Range | 300 to 2,500nm | |
| M i rror Rotation Speed | 100 revolutions /hour (Optional: 120 revolutions/hour) | |
| Sunshine Duration Threshold | Direct Solar Irradiance 120W/m2 | |
| Sunshine Duration Measurement Error |
Within ±10% aga inst the Sunshine Duration Threshold | |
| Power Voltage | DC10.5 to 12. 5 V | |
| Consumption Current | 380mA to 450mA ( - 30 to 40°C) | |
| Operation Temperature Range | -20 to 40°C | |
| Sunshine Duration Outputs | Output : | Non-voltage contact output Pulse Width: 1±0.05sec. Voltage Resistance: 60V |
| Sunshine : | Make contact for one second every 36 seconds 1pulse/36 sec., 100pulse/hour |
|
| No Sunshine : | Contact remains in break condition | |
| Weight | 2.1kg | |
| Materials | Body : | A6063BD |
| Glass Tube : | Borosilicate Glass (Hard Glass) | |
| Sensor Cover : | SUS | |
Reset Box (Optional)
| Detection Time of Stopped Mirror | Approximately 7.5 Sec. |
| Power Supply Reset Time | Approximately 20 Sec. (Mirror does not rotate for same length of time when the power is turned on for the first time.) |
| Dimension | 130(D) x90(W) x 47(H)mm |
| Weight | Approximately 560g |
| Cable Length | 1m |
Power Box (Optional)
| Power Voltage | AC85 to 264V (50/60Hz) |
| Output Voltage | DC12V |
| Fuse | 2A (φ5.2 x 20, N-type) |
| Power Consumption | 11VA |
| Size | 200 W x 140 D x 80 H |
| Weight | Approximately 1.1kg |
Blower Fan Unit (Optional)
| Maximum Wind Flow Rate | Approximately 1m3/min |
| Maximum Static Pressure | Approximately 3.3mm H2O |
| Noise | Approximately 40phon |
| Rotation Frequency | Approximately 2,700rpm |
| Power Voltage | DC12V |
| Power Cable | 10m (non-treated cable ends) |
| Power Consumption | 16W |
| Weight | Approximately 1.7kg |
