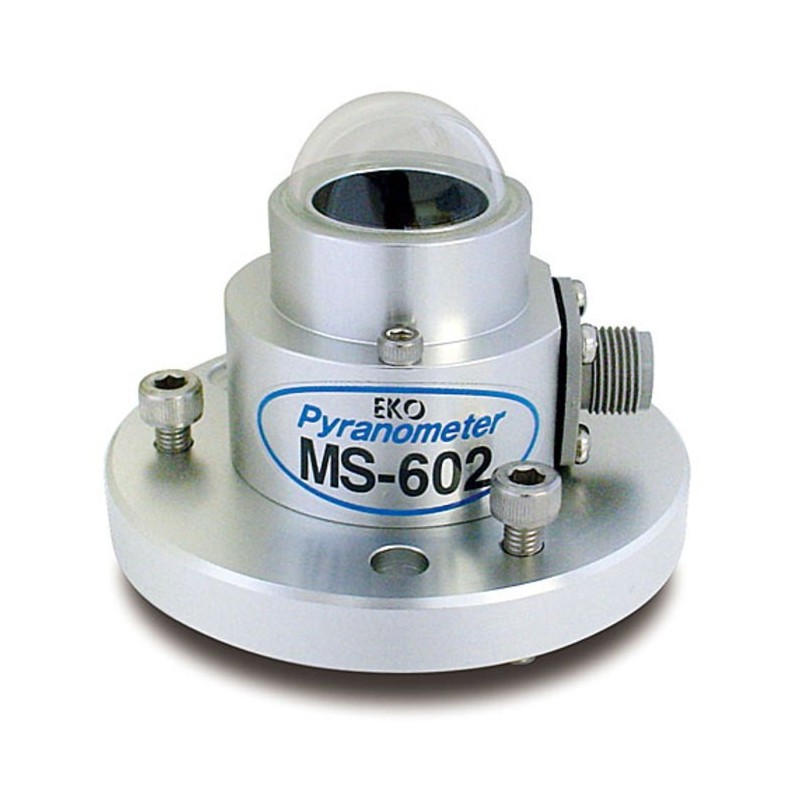

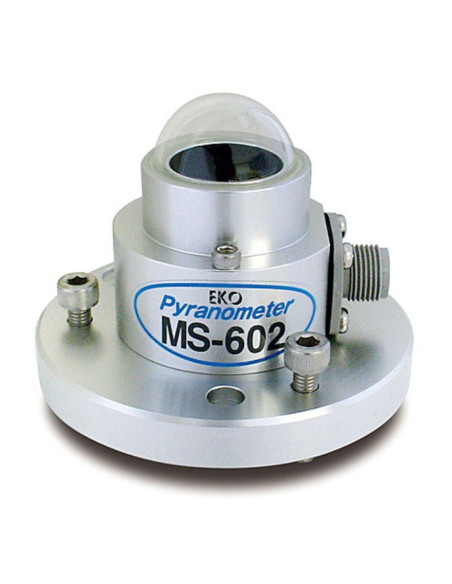

MS-602 Pyranometer

Reference MS-602

Manufacturer: Eko Instruments

Condition: New

OBSOLETE PRODUCT

Second Class Pyranometer
Most economic thermopile sensor
Low temperature dependency unique in its class
Compact all weather sensor

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
Specifications

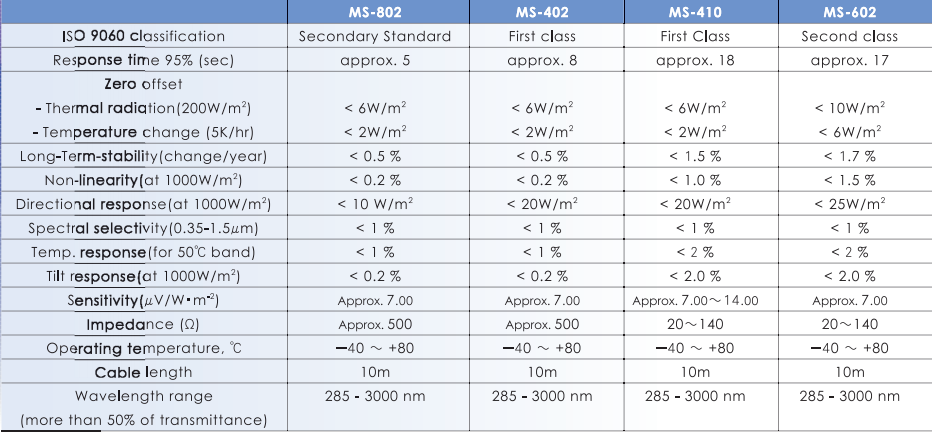

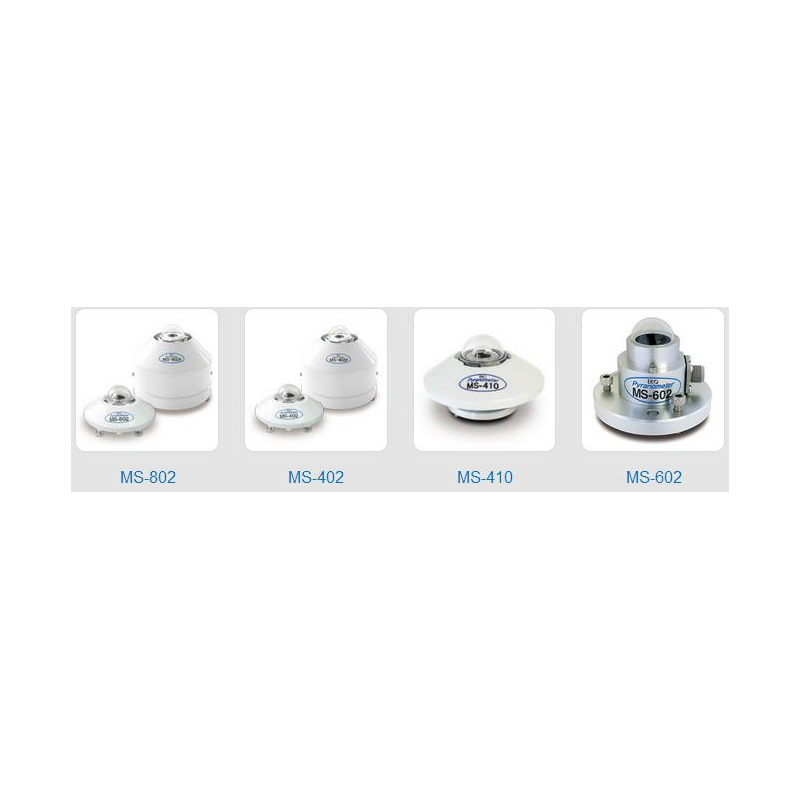

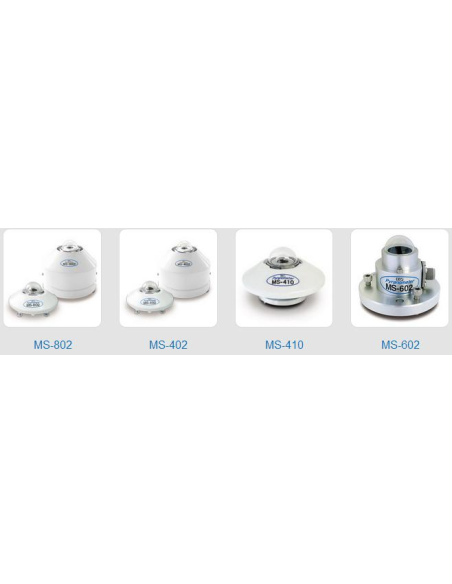

Comparative Models

Within the MS-series the MS-602 pyranometer is the smallest true thermopile pyranometer. It is the most economic measurement solution for global solar radiation measurements capturing the full solar spectrum. MS-602 meets the ISO Second Class performance criteria. However, its outstanding temperature dependency characteristics can only be found on higher class pyranometers. This sensor can be found in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously.

Specifications (Typical)		MS-602
ISO 9060 classification		Second Class
Response time 95% (sec)		17
Zero offset - Thermal radiation (200W/m²)		< 10 W/m²
Zero offset - Temperature change (5K/hr)		< 6 W/m²
Non-stability (change/year)		< 1.7 %
Non-linearity (at 1000W/m²)		< 1.5 %
Directional response (at 1000W/m²)		< 25 W/m²
Spectral selectivity (0.35-1.5µm)		< 1 %
Temp. response (for 50°C band)		< 2 %
Tilt response (at 1000W/m²)		< 2 %
Sensitivity (µV/W・m^-2)		Approx. 7
Impedance (Ω)		20 ~ 140
Operating temperature range (°C)		- 40 to +80
Irradiance range (W/m²)		0 - 4000 W/m²
Cable length		10m
Wavelength range		285 to 3000 nm
