FUEL CELL EXPERT PACK FCP102

KEY FEATURES:

– High performance, large fuel cell

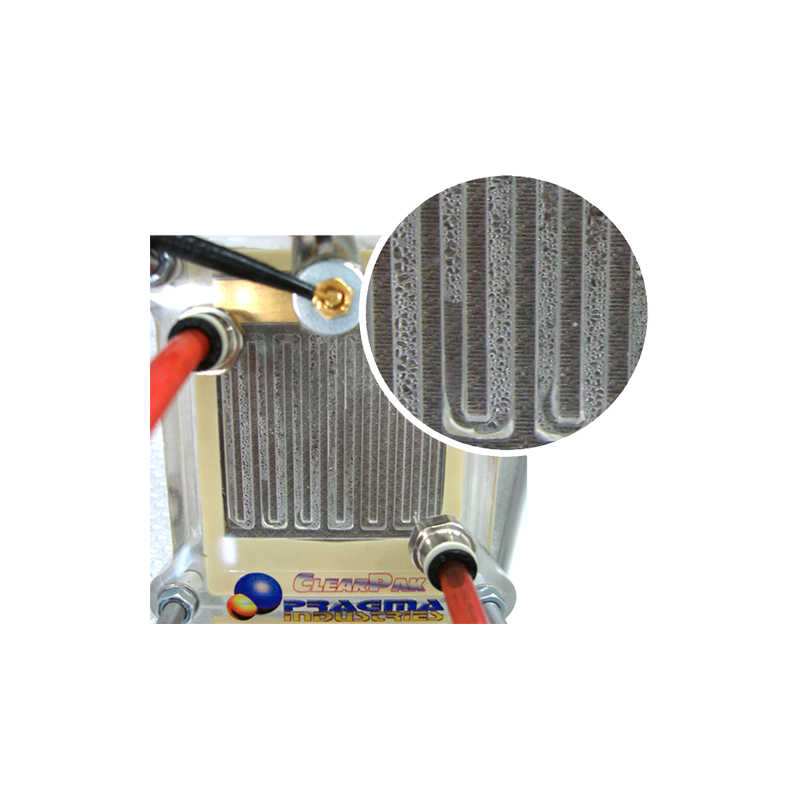

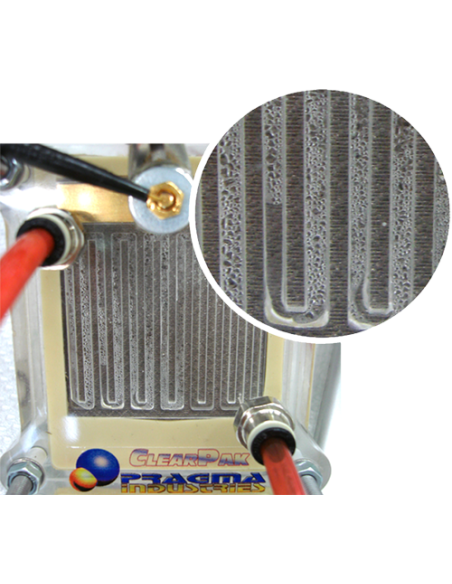

– See-through fuel cell to observe water by-product of reaction
– Realistic flow field design. The fuel cell behaves like a real industrial FC.
– Sturdy design
– Take apart fuel cell and system that can be assembled by students
– Easy experiment setupRecommended for fuel cell general science, chemistry, electrochemistry, fluid dynamics, thermodynamics, and electric education/training courses.

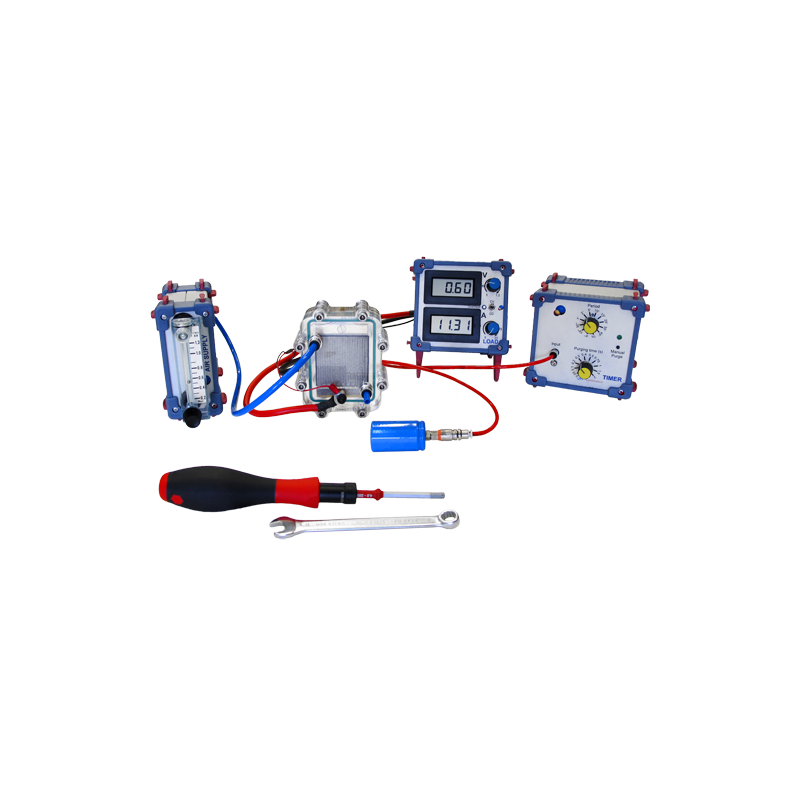

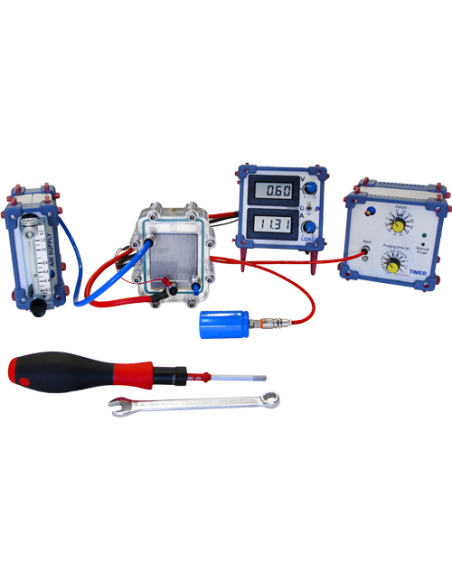

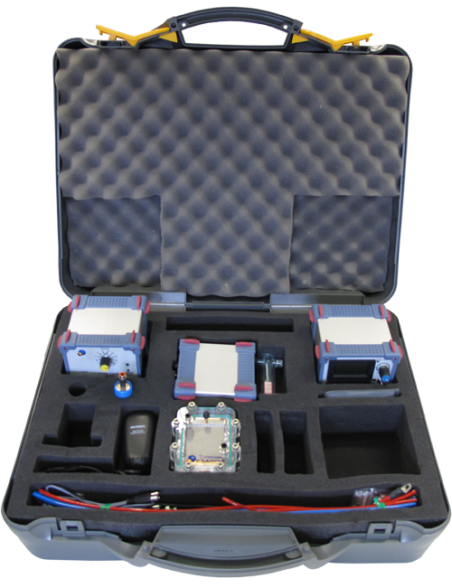

PACKAGE INCLUDES:

– Take apart forced flow fuel cell with serpentine flow field design

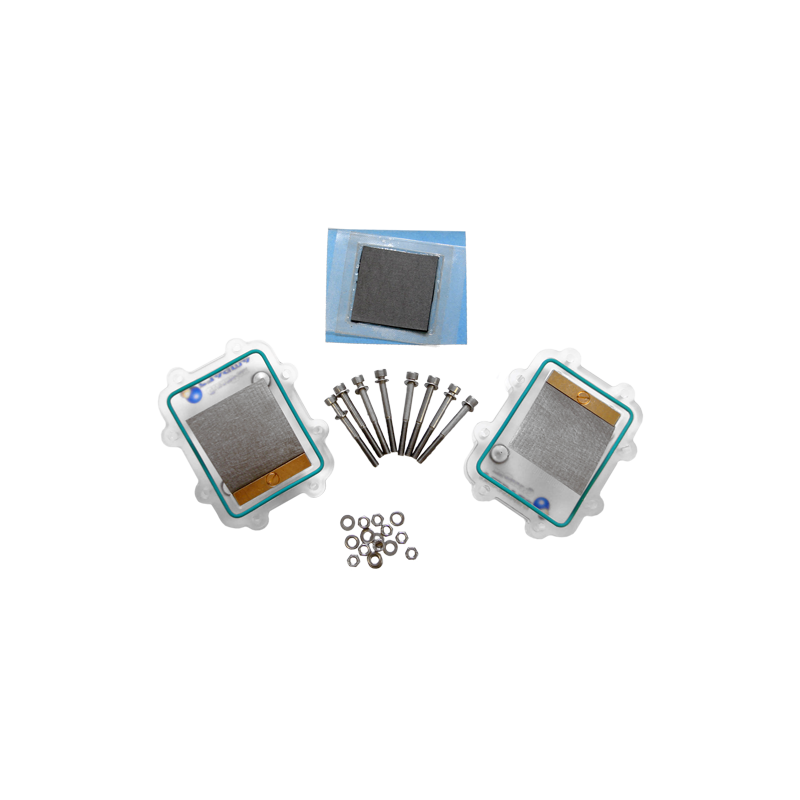

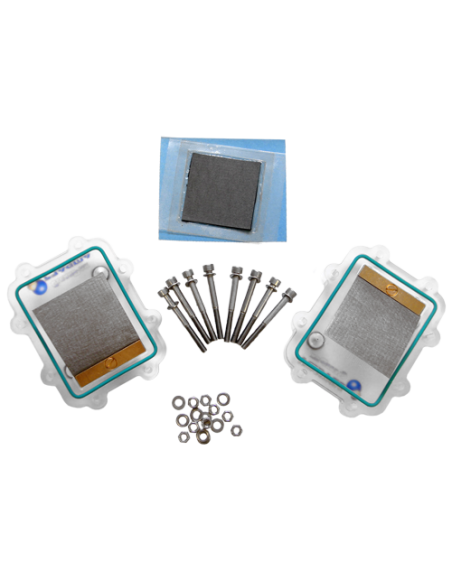

– Fuel cell core
– e-Load box with current and voltage measurement
– Rechargeable hydrogen canister (solid storage)
– programmable purge valve
– Air pump with variable flowmeter
– Torque screwdriver and flat wrench
– Cables and tubing
– 24V power supply

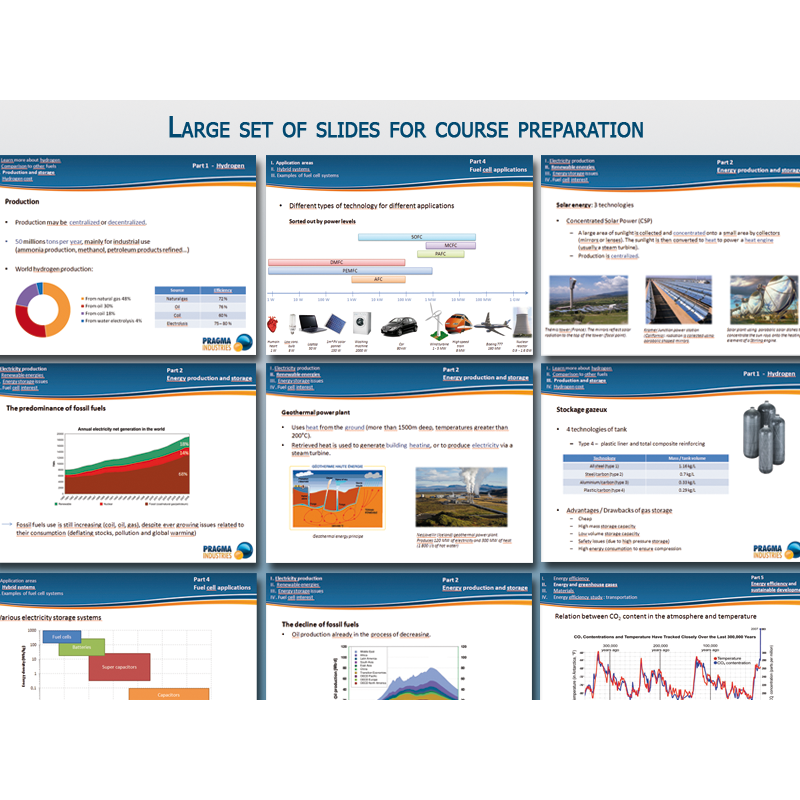

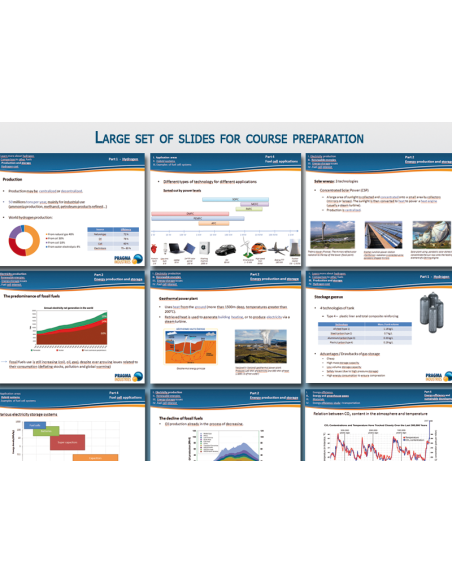

– Teaching material

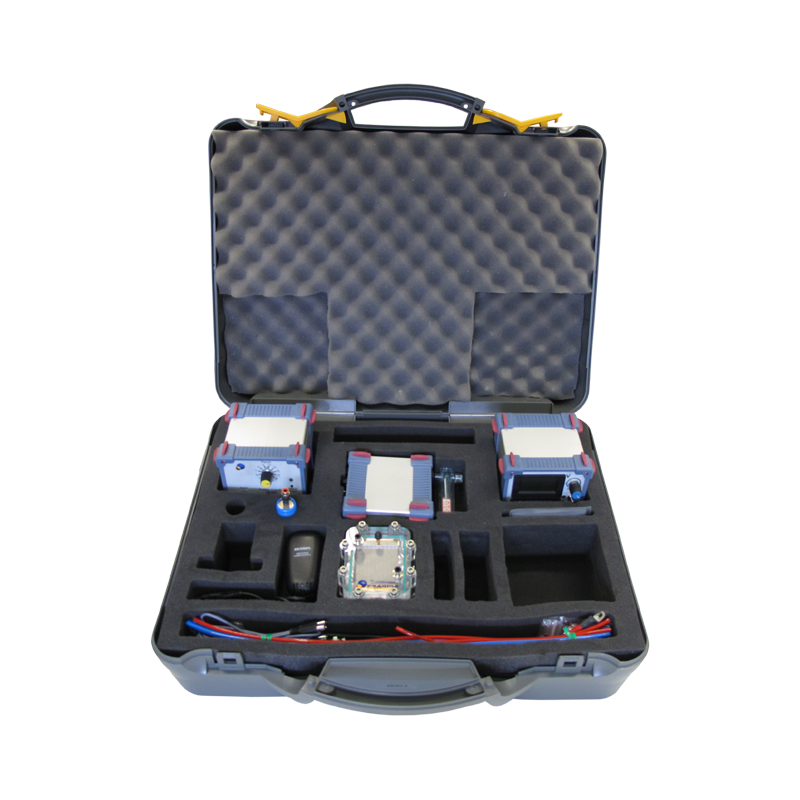

– Robust suitcase packaging

EXPERIMENTS:

– Building a fuel cell and a fuel cell circuit
– Understanding the fuel cell system and how it is controlled

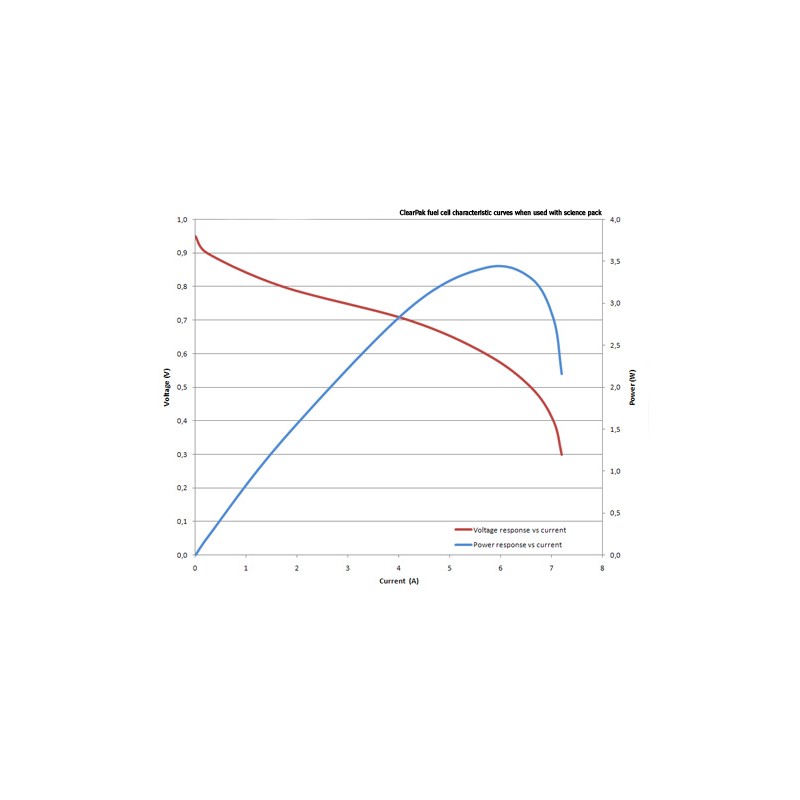

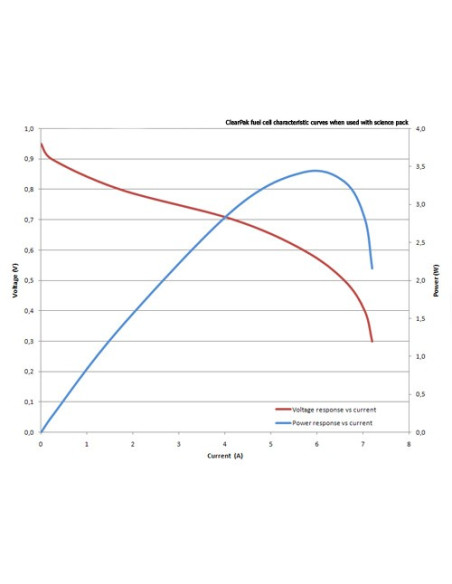

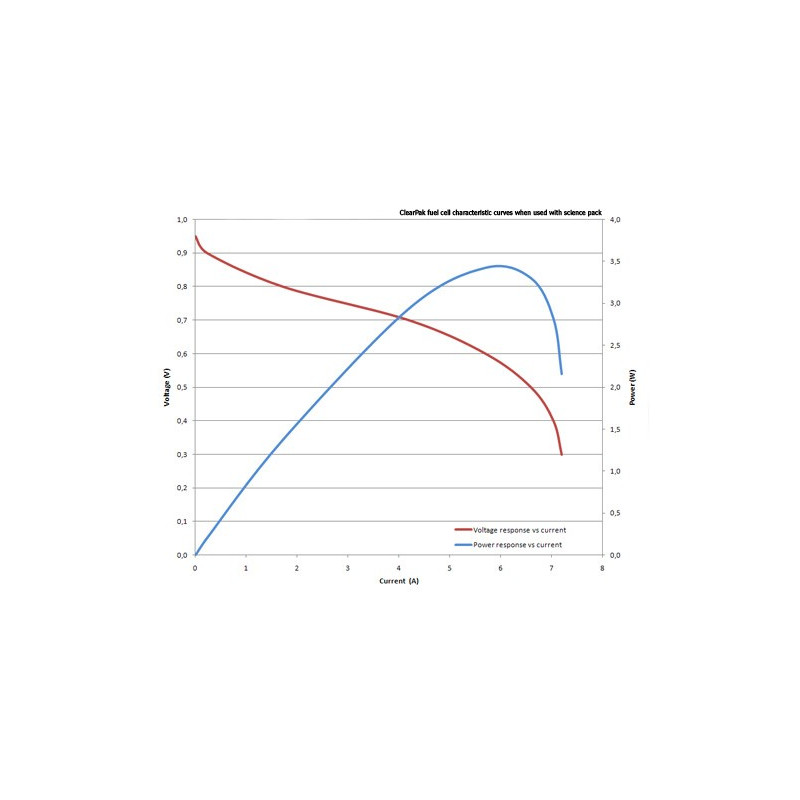

– Plotting characteristic curves at various operating conditions
– Understanding energy conversion and efficiency calculation
– Measuring the effect of catalyst loading
– Measuring and analyzing the effect of fuel cell core compression
– Understanding the effect of H2 purging on performances and fuel management
– Measuring the effect of air stoichiometry on FC behavior
– Observing the water production and evacuation in the flowfield
– Observing water liquid/vapor phase changing in the fuel cell and understanding dew point physics
– Controlling the fuel cell output in current and voltage
– Understanding fuel cell efficiency vs. system efficiency

TECHNICAL SPECIFICATIONS
